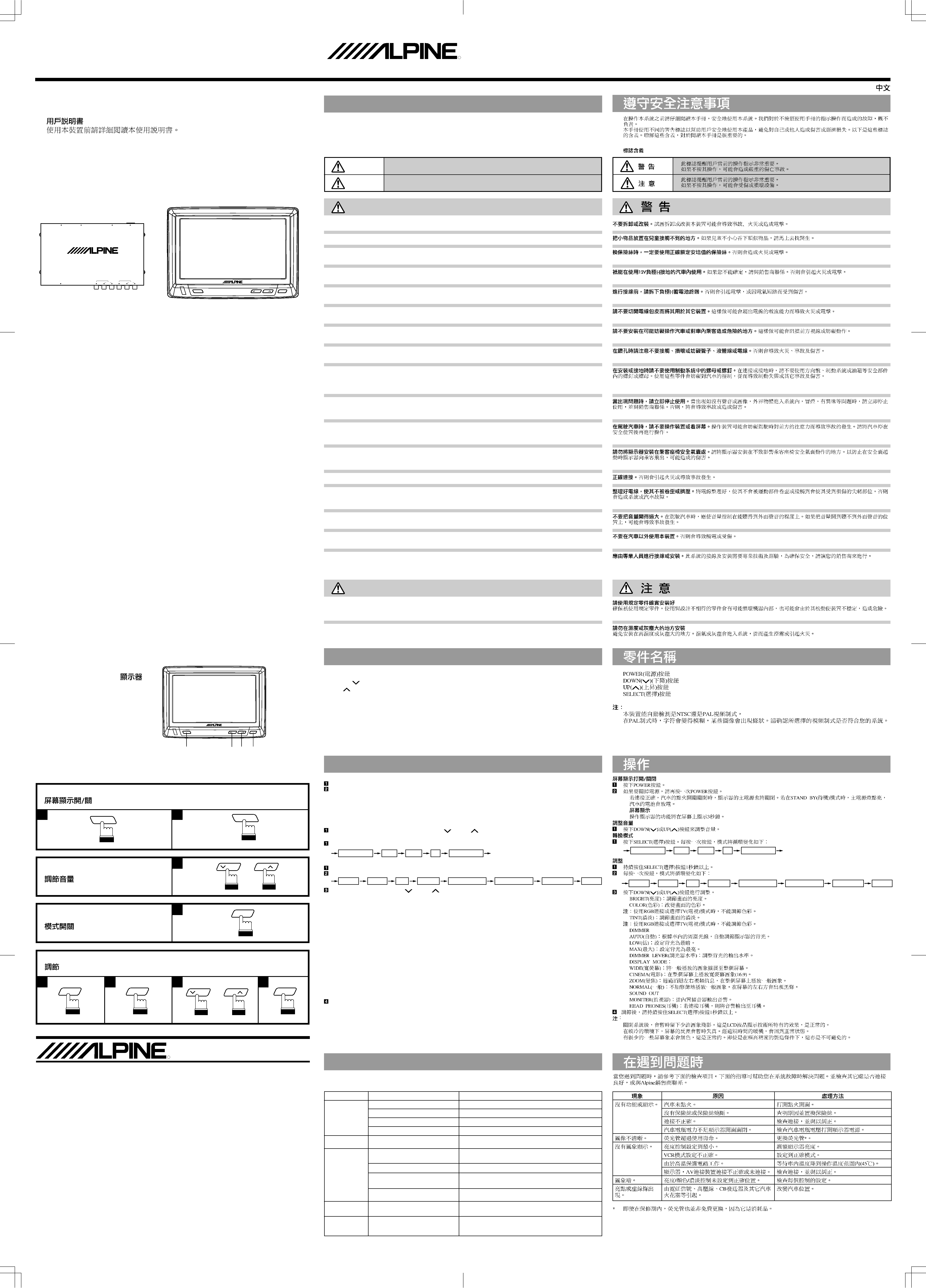

Cover page of ALPINE TME-M750 Owner's Manual

Owner's Manual for ALPINE TME-M750, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 2 pages
  • File size: 0.35 MB
  • Available language versions: Portuguese, Swedish, French, English, Spanish, German, Chinese Simplified, Italian
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6
background image
TME-M750
6.5-inch Mobile Color Monitor
R
68P21523Y50-O
Printed in Japan (S)
·
Read this manual carefully before starting operation and use this system safely. We cannot be responsible for
problems resulting from failure to observe the instructions in this manual.
·
This manual uses various pictorial displays to show how to use this product safely and to avoid harm to yourself and
others and damage to your property. Here is what these pictorial displays mean. Understanding them is important
for reading this manual.
Meaning of displays
·
·
Points to Observe for Safe Usage
This label is intended to alert the user to the presence of important operating instructions.
Failure to heed the instructions will result in severe injury or death.
This label is intended to alert the user to the presence of important operating instructions.
Failure to heed the instructions can result in injury or material damage.
Caution
Warning
Warning
DO NOT DISASSEMBLE OR ALTER. Doing so may lead to accident, fire or electric shock.
KEEP SMALL ARTICLES OUT OF THE REACH OF CHILDREN. If swallowed, consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES. Failure to do so may result in fire or electric
shock.
USE ONLY IN VEHICLES WITH A 12 VOLT NEGATIVE (­) GROUND. Check with your dealer if you are not sure.
Failure to do so may result in fire or electric shock.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE (­) BATTERY TERMINAL. Failure to do so
may result in electric shock or injury due to electrical shorts.
DO NOT CUT AWAY THE WIRE SHEATH AND USE POWER FOR OTHER EQUIPMENT. Doing so may exceed the
current carrying capacity of the wire and result in fire or electric shock.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION OR CREATE HAZARDS FOR
VEHICLE OCCUPANTS. Doing so may obstruct forward vision or hamper movement.
DO NOT CONTACT, DAMAGE OR OBSTRUCT PIPES, FLUID LINES OR WIRING WHEN DRILLING HOLES. Failure
to take such precautions may result in fire or cause an accident or injuries.
DO NOT USE NUTS OR BOLTS IN THE BRAKE SYSTEM WHEN MAKING INSTALLATION OR GROUND
CONNECTIONS. Never use safety-related parts such as bolts or nuts in the steering or brake systems or tanks to make
wiring installations or ground connections. Using such parts could disable control of the vehicle and cause brake failure,
other accident or injury.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS. When problems occur such as a lack of sound or video, foreign
objects inside the unit, smoke coming out, or noxious odors, stop use immediately and contact the dealer where you
bought the equipment. Failure to do so may result in an accident or injury.
DO NOT OPERATE THE EQUIPMENT OR LOOK AT THE SCREEN WHILE DRIVING THE VEHICLE. Operating the
equipment may distract the driver from looking ahead of the vehicle and cause accident. Always stop the vehicle in a
safe location before operating this equipment.
DO NOT INSTALL THE MONITOR NEAR THE PASSENGER SEAT AIR BAG. Ensure that the location chosen for the
monitor does not interfere with the operation of the passenger seat air bag. This will prevent the triggered air bag from
launching the display towards passengers, possible causing injury.
MAKE THE CORRECT CONNECTIONS. Failure to do so may cause fire or accident to occur.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED. Route the cables and wiring so as not to be crimped
by moving parts or make contact with sharp or pointed spots which might damage the wiring. Failure to do so may cause
failure of unit or vehicle.
DO NOT RAISE THE VOLUME EXCESSIVELY. Keep the volume at a level where you can still hear outside noises
while driving. Driving while unable to hear outside noises could be the cause of accident.
DO NOT USE THIS EQUIPMENT FOR PURPOSES OTHER THAN STATED FOR THE VEHICLE. Failure to do so may
result in electric shock or injury.
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS. The wiring and installation of this unit requires special
technical skill and experience. To ensure safety, always contact the dealer where you purchased this unit to have the
work done.
WIDE COLOR LCD MONITOR
POWER
VOLUME
DN
UP
SELECT
TME-M750
s OWNER'S MANUAL
· Please read before using this equipment.
TV TUNER INPUT
PHONE OUTPUT
VIDEO
L
R
AUDIO
AUX INPUT 2
MOBILE COLOR MONITOR
TME-M750
NAVIGATION INPUT
DISPLAY OUTPUT
POWER SUPPLY
VIDEO
L
R
AUDIO
AUX INPUT 1
12 3
4
WIDE COLOR LCD MONITOR
POWER
VOLUME
DN
UP
SELECT
TME-M750
English
USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY. Be sure to use only the specified
accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in
place as parts that come loose can create hazards.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST. Avoid installing the unit in locations with high
incidence of moisture or dust. Moisture or dust that penetrates into this unit may cause smoke or fire.
Caution
s
·
Monitor
1 POWER button
2 DOWN (
) button
3 UP (
) button
4 SELECT button
Notes:
·
This unit will automatically detect the NTSC and PAL video standards.
·
In the PAL mode, characters may freeze or banding may occur in some images. Make sure you have selected the
correct video mode for your system.
Screen Display ON/OFF
Press the POWER button.
To turn off the POWER, press the POWER button again.
Notes:
· If properly connected, the monitors main POWER will turn off when the vehicle's ignition switch is off. If the main
power lamp illuminates in the STAND BY mode, the vehicle's battery may be discharged.
· On Screen Display
Operating the monitor functions will be displayed On Screen for 3 seconds.
Adjusting the Volume
Adjust the volume level by pressing the DOWN (
) or UP (
) button.
Mode switching
Press the SELECT button. Each press of the button will cycle through the modes as follows:
Adjustment
Press and hold the SELECT button for at least 1 second.
Each press of the button will cycle through the modes as follows:
Adjust by pressing the DOWN (
) or UP (
) button.
· BRIGHT: Adjust the brightness of the picture.
· COLOR: Change the color balance of the picture.
Note: The color adjustment is disabled when using the RGB connection or if TV mode selected.
· TINT: Adjust the tint of the picture.
Note: The color adjustment is disabled when using the RGB connection or if TV mode selected.
· DIMMER:
AUTO: Backlighting of the monitor adjusts automatically to the ambient light available inside the vehicle.
LOW: Backlighting is set to its lowest level.
MAX: Backlighting is set to its maximum level.
· DIMMER LEVEL: Adjust the backlighting output level.
· DISPLAY MODE:
WIDE: Expands a normal broadcast picture to fit the entire screen.
CINEMA: Displays a widescreen formatted picture (16:9) to fit the entire screen.
ZOOM: Displays a normal broadcast picture to fit the entire screen by cropping the left and right video information.
NORMAL: Displays a normal broadcast picture without modification. Black stripes will appear at left and right of the
screen.
· SOUND OUT
MONITOR: Outputs sound through the built-in speakers.
HEADPHONES: Outputs sound to headphones if connected.
After completing adjustments, press and hold the SELECT button for at least 1 sec.
Notes:
·
After turning the system off, a slight ghost of the image will remain temporarily. This is an effect peculiar to LCD
technology and is normal.
·
Under cold temperature conditions, the screen may lose contrast temporarily. After a short warm-up period, it will
return to normal.
·
It is normal for a very small number of the screen's pixels to be off. Even under the very high precision manufacturing
conditions, this fact is unavoidable.
NAVIGATION
AUX1
AUX2
TV
NAVIGATION
BRIGHT
COLOR
TINT
DIMMER
DIMMER LEVEL
DISPLAY MODE
SOUND OUT
BRIGHT
In Case of Difficulty
ALPINE ELECTRONICS, INC.
Tokyo office: 1-1-8 Nishi Gotanda,
Shinagawa-ku, Tokyo 141-8501, Japan
Tel.: (03) 3494-1101
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
Suite 203, 7300 Warden Ave. Markham,
Ontario L3R 9Z6, Canada
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
6-8 Fiveways Boulevarde Keysborough,
Victoria 3173, Australia
Tel.: (03) 9769-0000
ALPINE ELECTRONICS GmbH
Kreuzerkamp 7-11 40878 Ratingen,
Germany
Tel.: 02102-45 50
ALPINE ITALIA S.p.A.
Via C. Colombo 8, 20090 Trezzano Sul
Naviglio MI, Italy
Tel.: 02-48 40 16 24
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue De La Belle Etoile, Z.I. Paris Nord II
B.P. 50016 F-95945, Roissy,
Charles de Gaulle Cedex, France
Tel.: 01-48 63 89 89
ALPINE ELECTRONICS OF U. K., LTD.
13 Tanners Drive, Blakelands,
Milton Keynes MK14 5BU, U.K.
Tel.: 01908-61 15 56
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal De Gamarra 36, Pabellón 32
01013 Vitoria (Alava) - Apdo. 133, Spain
Tel.: 34-45-283588
Adjusting the Volume
DN
UP
POWER
POWER
Mode switching
SELECT
3
2
1
4
DN
UP
SELECT
SELECT
SELECT
1
2
2
2
Adjustment
Screen Display ON/OFF
R
Cause
Car's ignition is off.
No fuse or blown fuse.
Incorrect connections.
Vehicle's battery is weak.
Fluorescent tube is exhausted.
Brightness control is set for
minimum brightness control.
Incorrect setting of the VCR mode.
Protective circuit is on because of
high temperature.
Incorrect or open connection with
the Monitor, AV Interface unit.
Brightness/Colour/Tint control are
not set to the proper positions.
Caused by neon signs, high-voltage
power lines, CB transmitter, other
vehicle's ignition plugs, etc.
Symptom
No function or
display.
Unclear picture
display.
No picture
display.
Picture colour is
poor.
Spots or dotted
lines/stripes
appear.
Solution
Turn the ignition on.
Check the cause and replace the fuse.
Check connection and remedy.
Check the voltage of vehicle's battery.
Replace the fluorescent tube*.
Adjust the brightness.
Switch to the correct mode.
Wait until the temperature inside the vehicle comes down to
the operating temperature range (45
°C).
Check the connection and remedy.
Check each control.
Change the location of your vehicle.
*
The fluorescent tube replacement is not free of charge even within the warranty period, for the tube is an article of
consumption.
1
2
3
4
·
·
·
·
·
·
·
·
·
·
·
·
·
·
NAVIGATION
AUX1
AUX2
TV
NAVIGATION
BRIGHT
COLOR
TINT
DIMMER
DIMMER LEVEL
DISPLAY MODE
SOUND OUT
BRIGHT
Operation
Parts Identification
(RCS PONTOISE B 338 101 280)
Sankei Kikaku Co., Ltd.
1-13-38, Hinodai,
Hino, Tokyo, Japan
If you encounter a problem, please review the item in the following check list. This guide will help you isolate the problem
if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized
Alpine dealer.
background image
TME-M750
6.5-inch Mobile Color Monitor
R
68P21523Y50-O
Printed in Japan (S)
·
Read this manual carefully before starting operation and use this system safely. We cannot be responsible for
problems resulting from failure to observe the instructions in this manual.
·
This manual uses various pictorial displays to show how to use this product safely and to avoid harm to yourself and
others and damage to your property. Here is what these pictorial displays mean. Understanding them is important
for reading this manual.
Meaning of displays
·
·
Points to Observe for Safe Usage
This label is intended to alert the user to the presence of important operating instructions.
Failure to heed the instructions will result in severe injury or death.
This label is intended to alert the user to the presence of important operating instructions.
Failure to heed the instructions can result in injury or material damage.
Caution
Warning
Warning
DO NOT DISASSEMBLE OR ALTER. Doing so may lead to accident, fire or electric shock.
KEEP SMALL ARTICLES OUT OF THE REACH OF CHILDREN. If swallowed, consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES. Failure to do so may result in fire or electric
shock.
USE ONLY IN VEHICLES WITH A 12 VOLT NEGATIVE (­) GROUND. Check with your dealer if you are not sure.
Failure to do so may result in fire or electric shock.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE (­) BATTERY TERMINAL. Failure to do so
may result in electric shock or injury due to electrical shorts.
DO NOT CUT AWAY THE WIRE SHEATH AND USE POWER FOR OTHER EQUIPMENT. Doing so may exceed the
current carrying capacity of the wire and result in fire or electric shock.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION OR CREATE HAZARDS FOR
VEHICLE OCCUPANTS. Doing so may obstruct forward vision or hamper movement.
DO NOT CONTACT, DAMAGE OR OBSTRUCT PIPES, FLUID LINES OR WIRING WHEN DRILLING HOLES. Failure
to take such precautions may result in fire or cause an accident or injuries.
DO NOT USE NUTS OR BOLTS IN THE BRAKE SYSTEM WHEN MAKING INSTALLATION OR GROUND
CONNECTIONS. Never use safety-related parts such as bolts or nuts in the steering or brake systems or tanks to make
wiring installations or ground connections. Using such parts could disable control of the vehicle and cause brake failure,
other accident or injury.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS. When problems occur such as a lack of sound or video, foreign
objects inside the unit, smoke coming out, or noxious odors, stop use immediately and contact the dealer where you
bought the equipment. Failure to do so may result in an accident or injury.
DO NOT OPERATE THE EQUIPMENT OR LOOK AT THE SCREEN WHILE DRIVING THE VEHICLE. Operating the
equipment may distract the driver from looking ahead of the vehicle and cause accident. Always stop the vehicle in a
safe location before operating this equipment.
DO NOT INSTALL THE MONITOR NEAR THE PASSENGER SEAT AIR BAG. Ensure that the location chosen for the
monitor does not interfere with the operation of the passenger seat air bag. This will prevent the triggered air bag from
launching the display towards passengers, possible causing injury.
MAKE THE CORRECT CONNECTIONS. Failure to do so may cause fire or accident to occur.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED. Route the cables and wiring so as not to be crimped
by moving parts or make contact with sharp or pointed spots which might damage the wiring. Failure to do so may cause
failure of unit or vehicle.
DO NOT RAISE THE VOLUME EXCESSIVELY. Keep the volume at a level where you can still hear outside noises
while driving. Driving while unable to hear outside noises could be the cause of accident.
DO NOT USE THIS EQUIPMENT FOR PURPOSES OTHER THAN STATED FOR THE VEHICLE. Failure to do so may
result in electric shock or injury.
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS. The wiring and installation of this unit requires special
technical skill and experience. To ensure safety, always contact the dealer where you purchased this unit to have the
work done.
WIDE COLOR LCD MONITOR
POWER
VOLUME
DN
UP
SELECT
TME-M750
s OWNER'S MANUAL
· Please read before using this equipment.
TV TUNER INPUT
PHONE OUTPUT
VIDEO
L
R
AUDIO
AUX INPUT 2
MOBILE COLOR MONITOR
TME-M750
NAVIGATION INPUT
DISPLAY OUTPUT
POWER SUPPLY
VIDEO
L
R
AUDIO
AUX INPUT 1
12 3
4
WIDE COLOR LCD MONITOR
POWER
VOLUME
DN
UP
SELECT
TME-M750
English
USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY. Be sure to use only the specified
accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in
place as parts that come loose can create hazards.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST. Avoid installing the unit in locations with high
incidence of moisture or dust. Moisture or dust that penetrates into this unit may cause smoke or fire.
Caution
s
·
Monitor
1 POWER button
2 DOWN (
) button
3 UP (
) button
4 SELECT button
Notes:
·
This unit will automatically detect the NTSC and PAL video standards.
·
In the PAL mode, characters may freeze or banding may occur in some images. Make sure you have selected the
correct video mode for your system.
Screen Display ON/OFF
Press the POWER button.
To turn off the POWER, press the POWER button again.
Notes:
· If properly connected, the monitors main POWER will turn off when the vehicle's ignition switch is off. If the main
power lamp illuminates in the STAND BY mode, the vehicle's battery may be discharged.
· On Screen Display
Operating the monitor functions will be displayed On Screen for 3 seconds.
Adjusting the Volume
Adjust the volume level by pressing the DOWN (
) or UP (
) button.
Mode switching
Press the SELECT button. Each press of the button will cycle through the modes as follows:
Adjustment
Press and hold the SELECT button for at least 1 second.
Each press of the button will cycle through the modes as follows:
Adjust by pressing the DOWN (
) or UP (
) button.
· BRIGHT: Adjust the brightness of the picture.
· COLOR: Change the color balance of the picture.
Note: The color adjustment is disabled when using the RGB connection or if TV mode selected.
· TINT: Adjust the tint of the picture.
Note: The color adjustment is disabled when using the RGB connection or if TV mode selected.
· DIMMER:
AUTO: Backlighting of the monitor adjusts automatically to the ambient light available inside the vehicle.
LOW: Backlighting is set to its lowest level.
MAX: Backlighting is set to its maximum level.
· DIMMER LEVEL: Adjust the backlighting output level.
· DISPLAY MODE:
WIDE: Expands a normal broadcast picture to fit the entire screen.
CINEMA: Displays a widescreen formatted picture (16:9) to fit the entire screen.
ZOOM: Displays a normal broadcast picture to fit the entire screen by cropping the left and right video information.
NORMAL: Displays a normal broadcast picture without modification. Black stripes will appear at left and right of the
screen.
· SOUND OUT
MONITOR: Outputs sound through the built-in speakers.
HEADPHONES: Outputs sound to headphones if connected.
After completing adjustments, press and hold the SELECT button for at least 1 sec.
Notes:
·
After turning the system off, a slight ghost of the image will remain temporarily. This is an effect peculiar to LCD
technology and is normal.
·
Under cold temperature conditions, the screen may lose contrast temporarily. After a short warm-up period, it will
return to normal.
·
It is normal for a very small number of the screen's pixels to be off. Even under the very high precision manufacturing
conditions, this fact is unavoidable.
NAVIGATION
AUX1
AUX2
TV
NAVIGATION
BRIGHT
COLOR
TINT
DIMMER
DIMMER LEVEL
DISPLAY MODE
SOUND OUT
BRIGHT
In Case of Difficulty
ALPINE ELECTRONICS, INC.
Tokyo office: 1-1-8 Nishi Gotanda,
Shinagawa-ku, Tokyo 141-8501, Japan
Tel.: (03) 3494-1101
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
Suite 203, 7300 Warden Ave. Markham,
Ontario L3R 9Z6, Canada
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
6-8 Fiveways Boulevarde Keysborough,
Victoria 3173, Australia
Tel.: (03) 9769-0000
ALPINE ELECTRONICS GmbH
Kreuzerkamp 7-11 40878 Ratingen,
Germany
Tel.: 02102-45 50
ALPINE ITALIA S.p.A.
Via C. Colombo 8, 20090 Trezzano Sul
Naviglio MI, Italy
Tel.: 02-48 40 16 24
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue De La Belle Etoile, Z.I. Paris Nord II
B.P. 50016 F-95945, Roissy,
Charles de Gaulle Cedex, France
Tel.: 01-48 63 89 89
ALPINE ELECTRONICS OF U. K., LTD.
13 Tanners Drive, Blakelands,
Milton Keynes MK14 5BU, U.K.
Tel.: 01908-61 15 56
ALPINE ELECTRONICS DE ESPAÑA, S.A.
Portal De Gamarra 36, Pabellón 32
01013 Vitoria (Alava) - Apdo. 133, Spain
Tel.: 34-45-283588
Adjusting the Volume
DN
UP
POWER
POWER
Mode switching
SELECT
3
2
1
4
DN
UP
SELECT
SELECT
SELECT
1
2
2
2
Adjustment
Screen Display ON/OFF
R
Cause
Car's ignition is off.
No fuse or blown fuse.
Incorrect connections.
Vehicle's battery is weak.
Fluorescent tube is exhausted.
Brightness control is set for
minimum brightness control.
Incorrect setting of the VCR mode.
Protective circuit is on because of
high temperature.
Incorrect or open connection with
the Monitor, AV Interface unit.
Brightness/Colour/Tint control are
not set to the proper positions.
Caused by neon signs, high-voltage
power lines, CB transmitter, other
vehicle's ignition plugs, etc.
Symptom
No function or
display.
Unclear picture
display.
No picture
display.
Picture colour is
poor.
Spots or dotted
lines/stripes
appear.
Solution
Turn the ignition on.
Check the cause and replace the fuse.
Check connection and remedy.
Check the voltage of vehicle's battery.
Replace the fluorescent tube*.
Adjust the brightness.
Switch to the correct mode.
Wait until the temperature inside the vehicle comes down to
the operating temperature range (45
°C).
Check the connection and remedy.
Check each control.
Change the location of your vehicle.
*
The fluorescent tube replacement is not free of charge even within the warranty period, for the tube is an article of
consumption.
1
2
3
4
·
·
·
·
·
·
·
·
·
·
·
·
·
·
NAVIGATION
AUX1
AUX2
TV
NAVIGATION
BRIGHT
COLOR
TINT
DIMMER
DIMMER LEVEL
DISPLAY MODE
SOUND OUT
BRIGHT
Operation
Parts Identification
(RCS PONTOISE B 338 101 280)
Sankei Kikaku Co., Ltd.
1-13-38, Hinodai,
Hino, Tokyo, Japan
If you encounter a problem, please review the item in the following check list. This guide will help you isolate the problem
if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized
Alpine dealer.
background image
English
·
·
·
·
·
·
·
·
·
·
1
2
3
4
5
6
7
8
9
Ä
Å
2
3
1
1
1
1
4
7
5
5
7
6
p
q
2
1
TV
TU
NE
RIN
PU
T
PH
ON
EO
UTPU
T
VID
EO
L
R
AU
DIO
AUX
INPUT
2
MOBILE
COLOR
MONITOR
TME-M750
NA
VIG
ATIO
NIN
PU
T
DISPLAY
OUTPUT
POW
ER
SUPPLY
VID
EO
L
R
AU
DIO
AUX
INPUT
1
6
8
2
3
9
4
5
TV TUNER INPUT
PHONE OUTPUT
VIDEO
L
R
AUDIO
AUX INPUT 2
MOBILE COLOR MONITOR
TME-M750
NAVIGATION INPUT
DISPLAY OUTPUT
POWER SUPPLY
VIDEO
L
R
AUDIO
AUX INPUT 1
WIDE COLOR LCD MONITOR
POWER
VOLUME
DN
UP
SELECT
TME-M750
2
3
4
p
6
5
7
9
8
2
3
4
5
6
7
Ä
8
9
Å
Installing the Monitor
Caution:
Do not install the monitor near the air bag system in front passenger's seat.
Assemble the supplied bracket and mount the monitor temporarily.
Note:
Always use the supplied bracket or equivalent.
Verify the installation location.
Select a flat surface and temporarily mount the unit. Use adhesive tape, etc.
Notes:
· Mounting hints
· Top of the monitor does not exceed the top of the dash when viewed from the driver's seat.
· Mounting surface is stable.
· Monitor can be angled for easy viewing.
· In a vehicle with a front passenger air bag, do not install the unit where it will interfere with the
operation of the system.
· If the surface of the dash board is finished with other than plastic (true leather, wooden panel, cloth
covered panel, etc.), there will be some damage if the bracket is removed.
Remove the monitor from the bracket.
Peel the protective paper from the double-stick tape on bracket's base.
Clean the mounting location with the cleaner supplied.
Notes:
· Warm the mounting location with a dryer, etc. and then place the bracket into position.
· Do not apply force or moisture for 24 hours after installation.
· If the bracket is not attached securely with just the tape, use the supplied screws to complete the
installation.
· 5: If the mounting surface is curved slightly, reform the base to fit to its shape.
Connect the monitor and the AV Interface unit.
Insert the connector of the AV Interface Unit into the AV Interface connector of the monitor until a click
is heard.
Mount the monitor on the bracket.
Slide the mounting foot into the bracket on the monitor. Secure the monitor by tightening the locking
collar.
Dress the monitor's cable using the cord clamp provided.
Adjust the height and angle of the monitor for easy visibility.
Determine the height and angle. Tighten the height and angle adjusting screws to secure the monitor.
Numbers Identification
1 Mounting Bracket
2 Monitor
3 Dashboard
4 Double-stick Tape
5 Mounting Screws (Included)
6 AV Interface Unit
7 AV Interface Unit Connector Terminal
8 AV Interface Unit Connector
9 Cord Clamp
p Height Adjustment Screw
q Angle Adjustment Screw
Installing AV Interface Unit
This Unit can be placed inside the trunk, on the kick panel of the front passenger's seat or underdash.
However, to avoid unnecessary signal wiring, it is better to mount the Unit as close as possible to the
Display.
DO NOT MOUNT THE UNIT IN LOCATIONS THAT WILL BE IN THE VICINITY OF MOISTURE OR
EXTREME HEAT (such as the engine compartment).
VelcroTM Tape Mounting:
This installation method is suggested when the mounting location does not permit drilling.
USE THIS METHOD ONLY WHEN THE UNIT IS MOUNTED ON A HORIZONTAL SURFACE. NEVER
MOUNT A UNIT UPSIDE-DOWN USING THE VELCROTM TAPE.
1. Remove the adhesive protective paper from one side of the VelcroTM tape.
2. Attach the exposed adhesive side to the underside of the Unit, in a central location. Do not cover the
serial number.
3. Make sure the mounting location is clean, dry and free from contaminants.
4. Remove the protective strip from the other side of the VelcroTM pad.
5. Press the unit onto its mounting location.
Numbers Identification
1 Floor/Trunk
2 VelcroTM Tape (Included)
3 Press onto the carpet.
Installation
Please read the Owner's Manual of the products connected also.
1
1
1
1
1 TV tuner
Alpine TV tuner
2
2
2
2
2 Navigation
Alpine Navigation system
3
3
3
3
3 To RGB Output connector
Connect to the RGB output connector of the Alpine navigation system.
4
4
4
4
4 DVD player
Alpine DVD player
5
5
5
5
5 To Video Output Connector
Connect to the Video Output Connector of the Alpine DVD player.
6
6
6
6
6 Video
7
7
7
7
7 To Audio Output Terminal (R)
8
8
8
8
8 To Audio Output Terminal (L)
9
9
9
9
9 To Video Output Terminal
p
p
p
p
p Headphones
Cautions
Make connections correctly.
Improper connections may cause a fire or operation failure.
1
1
1
1
1
Parking brake lead (Yellow/Blue)
Connect this lead to the parking brake lead powered when parking brake is pulled.
23
23
23
23
23
Remote control output lead (White/Brown)
To remote control input lead of ALPINE product used in combination.
4
4
4
4
4
ACC power lead (Red)
To ACC power lead powered when engine key position is ACC.
5
5
5
5
5
Fuse (5A)
6
6
6
6
6
Ground lead (Black)
Connect the lead to a good chassis ground on the vehicle. Make sure the connection is made to bare
metal and is securely fastened using the sheet metal screw provided.
7
7
7
7
7
Brake Lead
8
8
8
8
8
Brake Connector (Included)
9
9
9
9
9
Brake Lamp
Ä
Ä
Ä
Ä
Ä
Brake Signal Lead
Å
Å
Å
Å
Å
Brake Switch
Connections
Monitor
AV-Interface Unit
Power Lead Connection
System Connection
MONITOR
Screen Size ...................................................................................................................................... 6.5-type
Display System ................................................... Low reflection rear projection type TN liquid crystal panel
Drive System ............................................................................... Active matrix drive, normally white display
Number of Picture Elements ................................................................ 336, 960 pcs. (H:1440 x V:234 dots)
Light Source ................................................. Internal optical system (U-type cold cathode fluorescent tube)
Dimensions (W x H x D) ............................................................................................. 178 x 124.8 x 32.1mm
Weight ................................................................................................................................................... 470g
AV Interface Unit
Dimensions (W x H x D) .......................................................................................... 196.2 x 119.9 x 28.5mm
Weight ................................................................................................................................................... 670g
Specifications
1
2
3
1
23
4
5
6
7
8
9
Ä
Å
1
2
3
4
5
6
7
8
9
Ä

Reviews

There are no reviews of this manual yet.
