CANON BJ-5 Service Manual

Cover page of CANON BJ-5 Service Manual

Service Manual for CANON BJ-5, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 11 pages
  • File size: 0.42 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
BJ-5
PARTS
CATALOG
Canon
background image
BJ-5
PARTS
CATALOG
Canon
background image
Parts Catalog
BJ-5
NUM. PART #
DESCRIPTION
NUM. PART #
DESCRIPTION
1 of 10

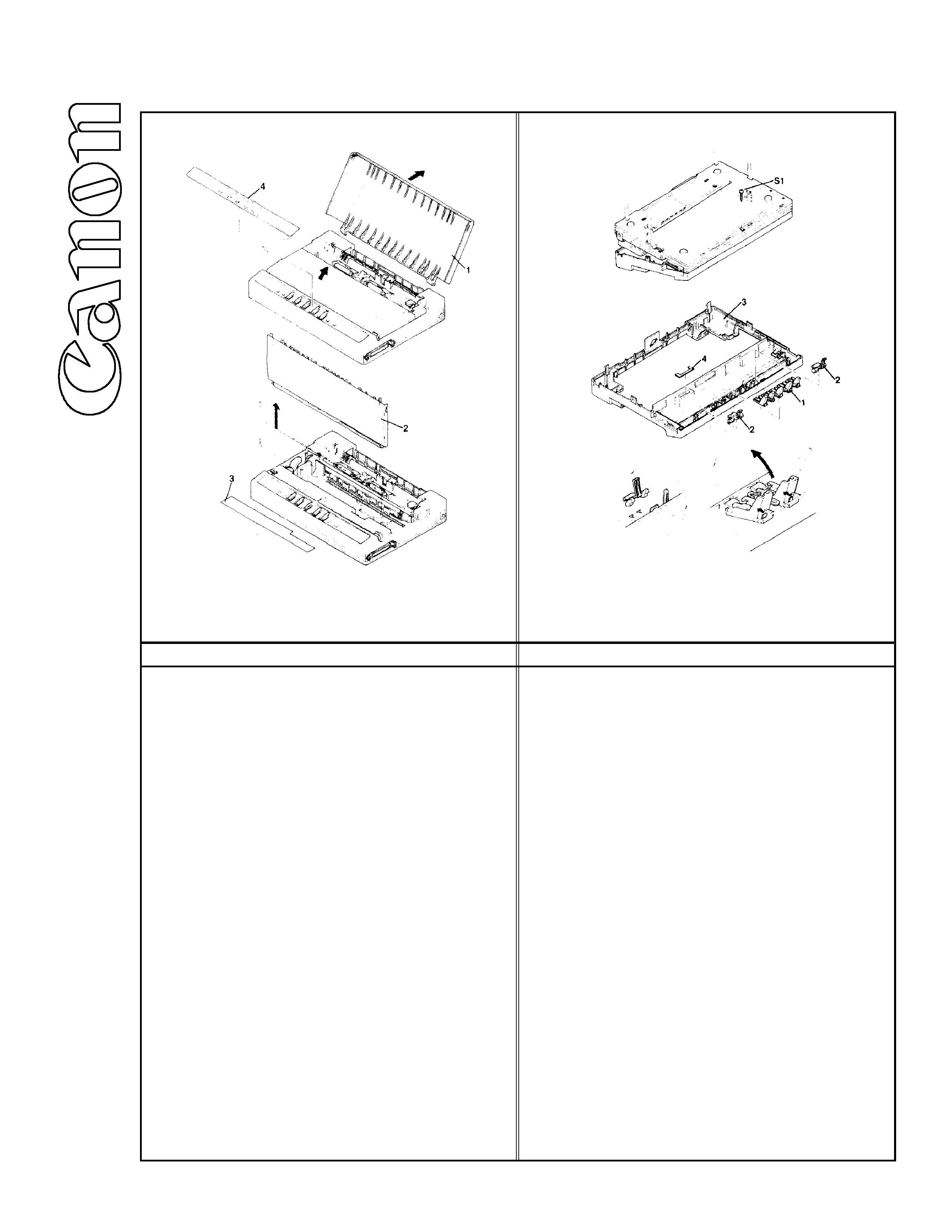

FIGURE 1
PRINTER SET
FIGURE 2
PRINTER REAR PART
1 - 2 QA2-0503-000 CAP, CONNECTOR
2 - 1 QA2-0964-000 COVER, BATTERY
2 QA2-0324-020 STAND, PRINTER (WHITE)
3 QA2-0809-000 FOOT, RUBBER (WHITE) (2)
background image
Parts Catalog
BJ-5
NUM. PART #
DESCRIPTION
NUM. PART #
DESCRIPTION
2 of 10
FIGURE 3
TOP & INNER COVERS
FIGURE 4
UPPER COVER
3 - 1 QA2-0959-000 COVER, TOP
2 QF1-5100-000 COVER, INNER
3 QS1-1580-000 LABEL, INSTRUCTION
4 QS1-1581-000 LABEL, KEY PANEL
4 - 1 QA2-0793-000 KEYTOP
2 QA2-0794-000 INDICATOR, LED (2)
3 QA2-0962-000 COVER, UPPER
4 QA2-0897-000 LABEL, GROUNDING
background image
Parts Catalog
BJ-5
NUM. PART #
DESCRIPTION
NUM. PART #
DESCRIPTION
3 of 10
FIGURE 5
LOGIC CARD
FIGURE 6
PRINTER UNIT
5 - 1 QG2-2397-000 CARD, LOGIC
6 - 1 QA2-0326-000 SWITCH, BATTERY (WHITE)
2 QG1-5272-000 UNIT, PRINTER
3 QH3-8302-000 SENSOR, PAPER
background image
Parts Catalog
BJ-5
NUM. PART #
DESCRIPTION
NUM. PART #
DESCRIPTION
4 of 10
FIGURE 7
POWER SWITCH
FIGURE 8
LOWER COVER
7 - 1 QA2-0312-000 HOLDER, SWITCH
2 QA2-0985-000 SWITCH, POWER
8 - 1 QG2-2315-020 UNIT, DC INLET
2 QA2-0963-000 COVER, LOWER
3 QA2-0808-000 FOOT, RUBBER (WHITE) (4)
