Service Manual
Model
NISSAN Automobile Genuine
6-Disc CD Changer Deck
PN-2541B
(Genuine No.28184 CS500)
SPECIFICATIONS
Output level:
3.0V +2/-2dB(at 1kHz)
Frequency Response: 17Hz to 20kHz +2/-2dB
Separation:
More than 70dB
(at 1kHz, Filter:20kHz LPF)
Distortion:
Less than 0.02%
(at 1kHz, Filter:20kHz LPF)
Power supply voltage: DC13.2V
Negative ground
Current consumption: 0.6A(during playing)
Dimensions(mm):
184(W) x56(H) x197.5(D)
Weight:
1.65kg
COMPONENTS
PN-2541B-A
Main unit
-----------
1
NOTE
*
Specifications and design are subject to change without
notice for further improvement.
*
We cannot supply PWB with component parts in prin-
ciple.
When a circuit on PWB has failure, please repair it by
component parts base. Parts which are not mentioned
in service manual are not supplied.
CAUTIONS
Use of controls,adjustments,or performance of procedures
other than those specified herein,may result in hazardous
radiation exposure.
The compact disc player should not be adjusted or repaired
by anyone except properly qualified service personnel.
background image
- 1 -
PN-2541B
Published by Service Dept.
Printed in Japan
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
298-6211-00 Dec.2004 P
Service Manual
Model
NISSAN Automobile Genuine
6-Disc CD Changer Deck
PN-2541B
(Genuine No.28184 CS500)
SPECIFICATIONS
Output level:
3.0V +2/-2dB(at 1kHz)
Frequency Response: 17Hz to 20kHz +2/-2dB
Separation:
More than 70dB
(at 1kHz, Filter:20kHz LPF)
Distortion:
Less than 0.02%
(at 1kHz, Filter:20kHz LPF)
Power supply voltage: DC13.2V
Negative ground
Current consumption: 0.6A(during playing)
Dimensions(mm):
184(W) x56(H) x197.5(D)
Weight:
1.65kg
COMPONENTS
PN-2541B-A
Main unit
-----------
1
NOTE
*
Specifications and design are subject to change without
notice for further improvement.
*
We cannot supply PWB with component parts in prin-
ciple.
When a circuit on PWB has failure, please repair it by
component parts base. Parts which are not mentioned
in service manual are not supplied.
CAUTIONS
Use of controls,adjustments,or performance of procedures
other than those specified herein,may result in hazardous
radiation exposure.
The compact disc player should not be adjusted or repaired
by anyone except properly qualified service personnel.
background image
PRINTED WIRING BOARD
Escutcheon PWB(B2) Section
- 13 -
PN-2541B
TO J102 of MAIN PWB
Page 14
COMPONENT SIDE
SOLDER SIDE
Caution:
COMPONENT SIDE:
from the component side are indicated.
SOLDER SIDE:
from the solder side are indicated.
Parts on the component side seen
Parts on the solder side seen
background image

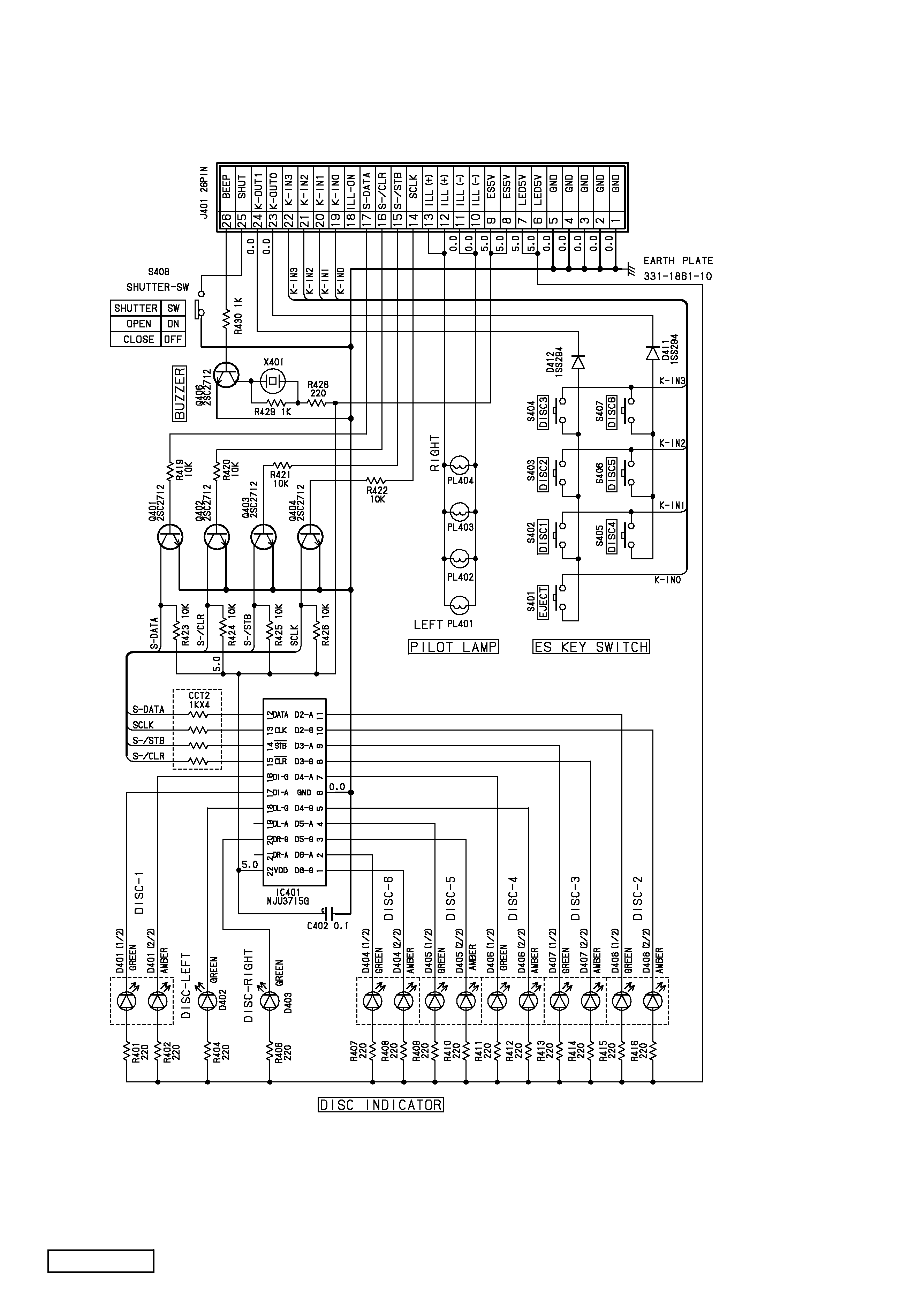

CURCUIT DIAGRAM
Escutech PWB (B2) section
- 12 -
PN-2541B
To J102 of MAIN PWB Page15
background image
- 2 -
PN-2541B
To engineers in charge of repair or
inspection of our products.
Before repair or inspection, make sure to follow
the instructions so that customers and Engineers
in charge of repair or inspection can avoid suf-
fering any risk or injury.
1. Use specified parts.
The system uses parts with special safety features against
fire and voltage. Use only parts with equivalent charac-
teristics when replacing them.
The use of unspecified parts shall be regarded as re-
modeling for which we shall not be liable. The onus of
product liability (PL) shall not be our responsibility in cases
where an accident or failure is as a result of unspecified
parts being used.
2. Place the parts and wiring back in their original positions
after replacement or re-wiring.
For proper circuit construction, use of insulation tubes,
bonding, gaps to PWB, etc, is involved. The wiring con-
nection and routing to the PWB are specially planned
using clamps to keep away from heated and high voltage
parts. Ensure that they are placed back in their original
positions after repair or inspection.
If extended damage is caused due to negligence during
repair, the legal responsibility shall be with the repairing
company.
3. Check for safety after repair.
Check that the screws, parts and wires are put back se-
curely in their original position after repair. Ensure for
safety reasons there is no possibility of secondary
ploblems around the repaired spots.
If extended damage is caused due to negligence of re-
pair, the legal responsibility shall be with the repairing
company.
4. Caution in removal and making wiring connection to the
parts for the automobile.
Disconnect the battery terminal after turning the ignition
key off. If wrong wiring connections are made with the
battery connected, a short circuit and/or fire may occur.
If extensive damage is caused due to negligence of re-
pair, the legal responsibility shall be with the repairing
company.
8. Cautions in checking that the optical pickup lights up.
The laser is focused on the disc reflection surface through
the lens of the optical pickup. When checking that the
laser optical diode lights up, keep your eyes more than
30cms away from the lens. Prolonged viewing of the la-
ser within 30cms may damage your eyesight.
9. Cautions in handling the optical pickup
The laser diode of the optical pickup can be damaged by
electrostatic charge caused by your clothes and body.
Make sure to avoid electrostatic charges on your clothes
or body, or discharge static electricity before handling the
optical pickup.
9-1. Laser diode
The laser diode terminals are shorted for transpor-
tation in order to prevent electrostatic damage.
After replacement, open the shorted circuit. When
removing the pickup from the mechanism, short
the terminals by soldering them to prevent this
damage.
9-2. Actuator
The actuator has a powerful magnetic circuit. If a
magnetic material is put close to it. Its characteris-
tics will change. Ensure that no foreign substances
enter through the ventilation slots in the cover.
9-3. Cleaning the lens
Dust on the optical lens affects performance. To
clean the lens, apply a small amount of isopropyl
alcohol to lens paper and wipe the lens gently.
5. Cautions regarding chips.
Do not reuse removed chips even when no abnormality
is observed in their appearance. Always replace them
with new ones. (The chip parts include resistors, capaci-
tors, diodes, transistors, etc). The negative pole of tanta-
lum capacitors is highly susceptible to heat, so use spe-
cial care when replacing them and check the operation
afterwards.
6. Cautions in handling flexible PWB
Before working with a soldering iron, make sure that the
iron tip temperature is around 270 . Take care not to
apply the iron tip repeatedly(more than three times)to the
same patterns. Also take care not to apply the tip with
force.
7. Turn the unit OFF during disassembly and parts replace-
ment. Recheck all work before you apply power to the
unit.
background image
- 3 -
PN-2541B
BLOCK DIAGRAM
