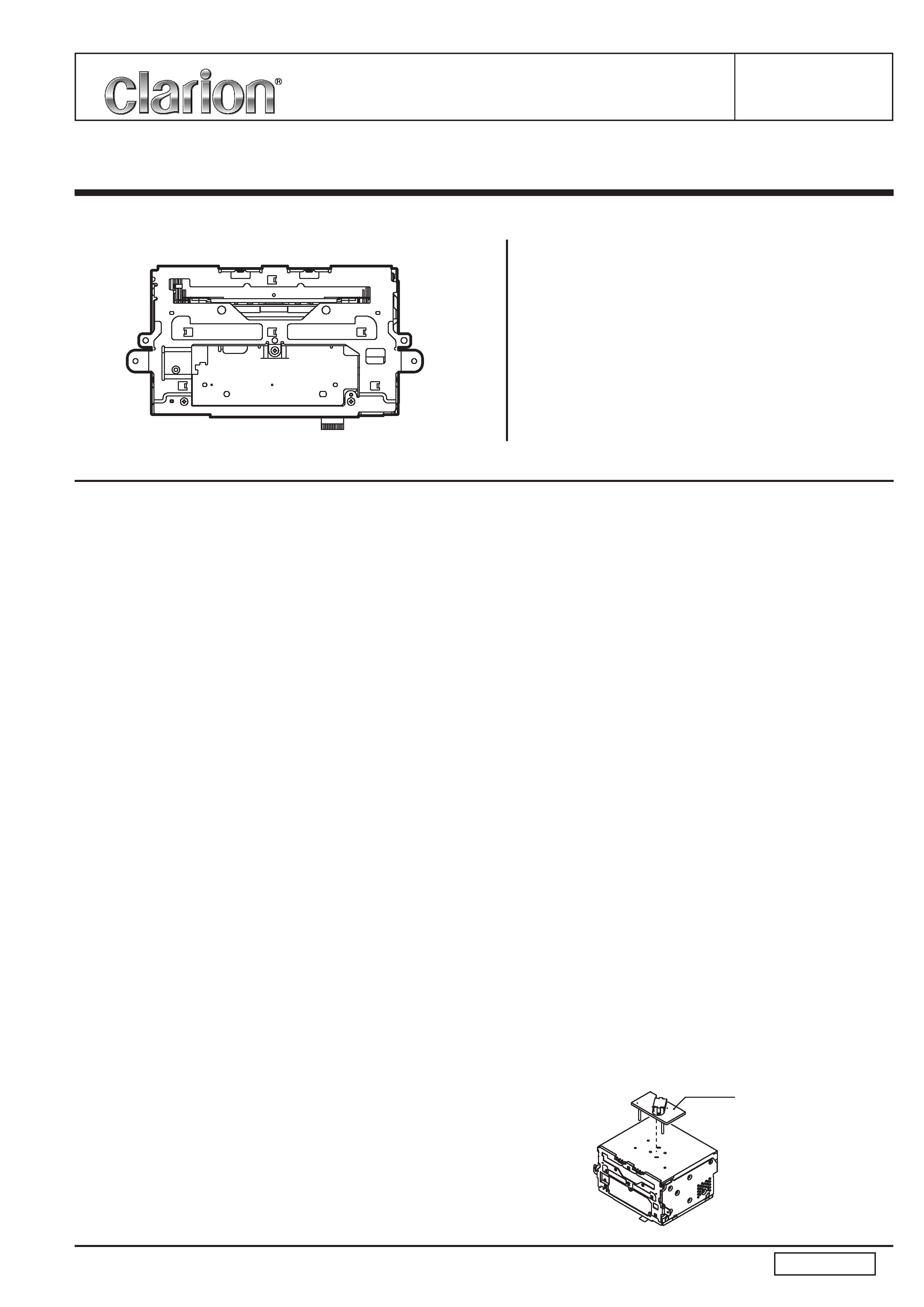

PP-2665D-C
- 1 -
Service Manual
Published by Service Dept.
Printed in Japan
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
298-6355-00
Mar.2006
Model
NISSAN Automobile Genuine
6-disc CD/MP3/WMA Autochanger
AM/FM Radio Stereo
SPECIFICATIONS
Radio section
Tuning system:
PLL frequency synthesizer sys-
tem
Receive range:
AM
530kHz to 1,710kHz
FM
87.75MHz to 107.9MHz
Intermediate frequency:
AM
450kHz
FM
10.7MHz
Quieting sensitivity:
AM
Less than 38dBu(at 20dB
S/N)
FM
Less than 15dBu(at 30dB
S/N)
Separation:
FM
22+5/-7dB(1kHz)
Auto tuning stop sensitivity:
AM
42+/-6dBu(603kHz)
39+/-6dBu(999/1,404kHz)
FM
32+/-6dBu
CD section
Mechanism:
6-disc CD autochanger
Disc:
12cm disc
Format:
CD-DA,MP3,WMA
Separation:
More than 50dB(1kHz,20kHz
L.P.F.)
S/N ratio:
More than 74dB(1kHz JIS-A)
Distortion:
Less than 0.4%(20kHz L.P.F.)
MP3/WMA operations: MP3;Sampling rate 8kHz - 48kHz
Bit rate:8kbps - 320kbps/VBR
WMA;Bit rate;48kbps - 192kbps/
VBR
Logical format(File system);
ISO9660 level1,2 or JOLIET or
Romeo
PP-2665D-C
(Genuine No. 28185 CM30A)
General
Load impedance:
300 ohm/4ch
Power output:
6V x4
Power supply voltage: DC13.2V(10.8V to 15.6V)
Negative ground
Back-up consumption: Less than 0.5mA
Dimensions(mm):
180(W) x106.4(H) x167(D)
Weight:
Approx. 3.5kg
COMPONENTS
PP-2665D-C
1.
Main unit
-----------
1
NOTE
*
Specifications and design are subject to change without
notice for further improvement.
*
We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please repair it
by component parts base. Parts which are not mentioned
in service manual are not supplied.
*
This product includes technology owned by Microsoft
Corporation and cannot be used or distributed without a
license from MSLGP.
*
In case that the main unit or the CD changer mechanism
is transported for repair, the lock pin(966-0653-21) must
be set to fix the mechanism assy.
Lock pin
background image
PP-2665D-C
- 1 -
Service Manual
Published by Service Dept.
Printed in Japan
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
298-6355-00
Mar.2006
Model
NISSAN Automobile Genuine
6-disc CD/MP3/WMA Autochanger
AM/FM Radio Stereo
SPECIFICATIONS
Radio section
Tuning system:
PLL frequency synthesizer sys-
tem
Receive range:
AM
530kHz to 1,710kHz
FM
87.75MHz to 107.9MHz
Intermediate frequency:
AM
450kHz
FM
10.7MHz
Quieting sensitivity:
AM
Less than 38dBu(at 20dB
S/N)
FM
Less than 15dBu(at 30dB
S/N)
Separation:
FM
22+5/-7dB(1kHz)
Auto tuning stop sensitivity:
AM
42+/-6dBu(603kHz)
39+/-6dBu(999/1,404kHz)
FM
32+/-6dBu
CD section
Mechanism:
6-disc CD autochanger
Disc:
12cm disc
Format:
CD-DA,MP3,WMA
Separation:
More than 50dB(1kHz,20kHz
L.P.F.)
S/N ratio:
More than 74dB(1kHz JIS-A)
Distortion:
Less than 0.4%(20kHz L.P.F.)
MP3/WMA operations: MP3;Sampling rate 8kHz - 48kHz
Bit rate:8kbps - 320kbps/VBR
WMA;Bit rate;48kbps - 192kbps/
VBR
Logical format(File system);
ISO9660 level1,2 or JOLIET or
Romeo
PP-2665D-C
(Genuine No. 28185 CM30A)
General
Load impedance:
300 ohm/4ch
Power output:
6V x4
Power supply voltage: DC13.2V(10.8V to 15.6V)
Negative ground
Back-up consumption: Less than 0.5mA
Dimensions(mm):
180(W) x106.4(H) x167(D)
Weight:
Approx. 3.5kg
COMPONENTS
PP-2665D-C
1.
Main unit
-----------
1
NOTE
*
Specifications and design are subject to change without
notice for further improvement.
*
We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please repair it
by component parts base. Parts which are not mentioned
in service manual are not supplied.
*
This product includes technology owned by Microsoft
Corporation and cannot be used or distributed without a
license from MSLGP.
*
In case that the main unit or the CD changer mechanism
is transported for repair, the lock pin(966-0653-21) must
be set to fix the mechanism assy.
Lock pin
background image
PP-2665D-C
- 2 -
CAUTIONS
Use of controls,adjustment,or performance of procedures
other than those specified herein,may result in hazardous
radiation exposure.
The compact disc player should not be adjusted or repaired
by anyone except properly qualified service personnel.
TH I S PRODUC T I ON COMP L I ES W I TH DHHS RU L ES 2 1 C FR
SUBCHA P T ER J AP P L I CA B L E A T DA T E OF MANUF ACTURE .
I N T E R F ER ENC E T H A T MA Y C AU S E U ND E S I R E D
OP E R A T I ON .
T H I S D E V I CE COMP L I E S W I T H P A R T 1 5 OF T H E F CC
RU L E S . OP E R A T I ON I S S U B J E CT T O T H E F O L LOW I NG
TWO CON D I T I ON S : ( 1 ) T H I S D EV I C E MAY NO T C A U SE
H A RM F U L I N T E R F E R E NC E , A ND ( 2 ) T H IS D E VI C E MU S T
AC CE P T AN Y I N T E R F E RE NC E R EC E I V E D , I N C L UD I NG
Th i s p roduc t i nc l udes t echno l ogy owned by Mi c roso f t Co rpor a t i on and
canno t be used or d i s t r i bu t ed wi t hou t a l i cense f rom MSLGP.
Cl a r i o n
C o . , L t d
5 0
K A M I T O D A , T O D A
S H I , S AI T A M A
KEN , J APA N
MO D E L
N O
1 2 V (-) G R O U N D
P/ N
F M : 8 7. 75 M H z - 1 0 7. 9M H z
M5
( F L AT MACHI NE SCRE W)
M A N U F A CT UR E D
8m m M A X
FR E Q U E N C Y
R A N G E
IS O
M O UN T
S CR E W
AM : 5 3 0 k H z - 1 7 1 0 k H z
S E RI A L
NO .
TH I S P R O D U C TI O N C O MP L I E S WI TH D H H S R U L E S 2 1 C F R
SU BC H A PT ER J
A P P L I C A BL E A T D AT E O F MA N U F A C T U R E .
I N T E R F ER EN C E
T H A T
M A Y
C AU S E
U N D E S I R E D
OP E R A T I O N .
TH I S
D E V I C E
C O M P L I E S
WI TH P A R T
1 5
O F
TH E
F C C
R U L E S .
O PER AT I O N I S
S U B J E C T
T O T H E
F O L L O WI N G
T WO C O N D I T I O N S: ( 1 )
T H I S
D EV I C E
M AY
N O T
C AU SE
HA RM F U L
I N T E R F E RE NCE , A N D( 2 )
T H I S
DE V I CE
M U S T
A C CE P T
A N Y
I NT E R F E RE NC E
R E C E I V E D , I N CL UDI N G
Thi s pr oduc t i nc l udes t ec hnol ogy owned by Mi c r os of t Cor por at i on and
c annot be us ed or di s t r i but ed wi t hout a l i c ens e f r om MSLGP.
NISSAN
Top view of the unit
Guide label
ERROR HISTORY OF CD CHANGER
1. The Switch panel unit (ES unit) is connected, and All
OFF situation.
2. It becomes a version display mode by pushing the M1
key and the M6 key at the same time long.
3. When the CD key is pushed, the error history of mecha-
nism is displayed.
4. In addition, when the CD key is pushed, the error history
that has been accumulated is sequentially displayed next.
5. When the DISP key is pushed while displaying the error
history, the error history is deleted.
6. Please turn off B/U or ACC to make clear the version
display mode.
To engineers in charge of repair or
inspection of our products.
Before repair or inspection, make sure to follow the
instructions so that customers and Engineers in
charge of repair or inspection can avoid suffering
any risk or injury.
1. Use specified parts.
The system uses parts with special safety features against
fire and voltage. Use only parts with equivalent character-
istics when replacing them.
The use of unspecified parts shall be regarded as remod-
eling for which we shall not be liable. The onus of product
liability (PL) shall not be our responsibility in cases where
an accident or failure is as a result of unspecified parts
being used.
2. Place the parts and wiring back in their original positions
after replacement or re-wiring.
For proper circuit construction, use of insulation tubes,
bonding, gaps to PWB, etc, is involved. The wiring con-
nection and routing to the PWB are specially planned us-
ing clamps to keep away from heated and high voltage
parts. Ensure that they are placed back in their original
positions after repair or inspection.
If extended damage is caused due to negligence during
repair, the legal responsibility shall be with the repairing
company.
3. Check for safety after repair.
Check that the screws, parts and wires are put back se-
curely in their original position after repair. Ensure for safety
reasons there is no possibility of secondary ploblems
around the repaired spots.
If extended damage is caused due to negligence of repair,
the legal responsibility shall be with the repairing company.
4. Caution in removal and making wiring connection to the
parts for the automobile.
Disconnect the battery terminal after turning the ignition
key off. If wrong wiring connections are made with the bat-
tery connected, a short circuit and/or fire may occur. If ex-
tensive damage is caused due to negligence of repair, the
legal responsibility shall be with the repairing company.
5. Cautions regarding chips.
Do not reuse removed chips even when no abnormality is
observed in their appearance. Always replace them with
new ones. (The chip parts include resistors, capacitors,
diodes, transistors, etc). The negative pole of tantalum
capacitors is highly susceptible to heat, so use special care
when replacing them and check the operation afterwards.
6. Cautions in handling flexible PWB
Before working with a soldering iron, make sure that the
iron tip temperature is around 270 . Take care not to ap-
ply the iron tip repeatedly(more than three times)to the
same patterns. Also take care not to apply the tip with force.
7. Turn the unit OFF during disassembly and parts replace-
ment. Recheck all work before you apply power to the unit.
8. Cautions in checking that the optical pickup lights up.
The laser is focused on the disc reflection surface through
the lens of the optical pickup. When checking that the la-
ser optical diode lights up, keep your eyes more than 30cms
away from the lens. Prolonged viewing of the laser within
30cms may damage your eyesight.
9. Cautions in handling the optical pickup
The laser diode of the optical pickup can be damaged by
electrostatic charge caused by your clothes and body. Make
sure to avoid electrostatic charges on your clothes or body,
or discharge static electricity before handling the optical
pickup.
9-1. Laser diode
The laser diode terminals are shorted for transporta-
tion in order to prevent electrostatic damage. After
replacement, open the shorted circuit. When remov-
ing the pickup from the mechanism, short the termi-
nals by soldering them to prevent this damage.
9-2. Actuator
The actuator has a powerful magnetic circuit. If a
magnetic material is put close to it. Its characteris-
tics will change. Ensure that no foreign substances
enter through the ventilation slots in the cover.
9-3. Cleaning the lens
Dust on the optical lens affects performance. To
clean the lens, apply a small amount of isopropyl
alcohol to lens paper and wipe the lens gently.
background image
PP-2665D-C
- 3 -
ADJUSTMENTS
Checking the connection with "Switch-panel"
When a switch-panel is correctly connected with the main unit, "ES-RETURN" terminal(pin 3) of a microcomputer(IC202) is "low"
. When a switch-panel is incorrectly connected with the main unit, "ES-RETURN" line is cut, and BEEP sounds.
Item
Procedure
Measuring
instrument
Diversity
1. Turn off the unit, and continue pressing "DISP" button for several seconds.
(An antenna input was set main channel, and "MA" appears in the display.)
2. Set the volume to minimum.
3. Input a 98.1MHz/26dBu(1kHz,30%MOD) signal.
4. Connect a digital tester to TP101, and adjust VR101 so that the reading of the
digital tester becomes "high" from "low" exactly.
5. Set the SSG output to 22dBu, and confirm the reading of TP101 becomes "high"
from "low" within 3 seconds.
6. Set the SSG output to 30dBu, and confirm the voltage rage of TP101 is 10V from
2V.
7. Set the SSG output to 20dBu, and confirm the voltage of TP101 becomes less
than 1.0V within 5 seconds.
1. Set an antenna input to main channel.
2. Input a 98.1MHz/55dBu(1kHz,30%MOD) signal, and set the output power of the
unit to 1.4V(= 0dB).
3. Adjust VR102 so that the noise level becomes -22dB.
SSG
Digital tester
Oscilloscope
SSG
Digital tester
Noise
Convergence
EXPLANATION OF IC
052-3193-01
M30624MGA-644GP
System Controller
Terminal Description
pin
1: WAKE UP
: IN : Wake up signal input.
pin
2: ES ACC
: O : It informs Escastion of the audio having
got up.
pin
3: ES RETURN
: IN : The flexible PWB connection OK flag in-
put.
pin
4: NU
: O : Not in use.
pin
5: NU
: O : Not in use.
pin
6: BYTE
: IN : The data length selection(8bit/16bit).
pin
7: CN VSS
: IN : Connect to VSS.
pin
8: TEST
: IN : For the test.
pin
9: NU
: O : Not in use.
pin 10: RESET
: IN : Reset signal input.
pin 11: X out
: O : Crystal connection.
pin 12: GND
: - : Ground.
pin 13: X IN
: IN : Crystal connection.
pin 14: VDD
: - : Positive voltage supply.
pin 15: NMI
: IN : Pull-up to VDD.
pin 16: BU DET
: IN : Backup detection signal input.
pin 17: ACC IN
: IN : ACC ON flag input.
pin 18: TEL ON
: IN : Telephone ON signal input.
pin 19: ILL ON
: IN : Illumination ON signal input.
pin 20: AMP ON
: O : Audio power amplifier ON signal output.
pin 21: SYS ON
: O : System ON signal output.
pin 22: VFD ON
: O : VFD ON signal output.
pin 23: NU
: O : Not in use.
pin 24: BEEP
: O : Beep out.
pin 25: TEL/NAVI MUTE: O : The muting signal output for the telephone
and the navigation.
pin 26: 6-CD REQ
: IN : The request signal input from the 6CD-
Changer.
pin 27: 6-CD RX
: IN : The serial data input for 6CD-Changer.
pin 28: 6-CD TX
: O : The serial data output for 6CD-Changer.
pin 29: NDS/FLASH TX : O : NDS serial data output for NDS and Flash
memory.
pin 30: NDS/FLASH RX : IN : NDS serial data input for NDS and Flash
memory.
pin 31: FLASH CLK
: O : The clock pulse output for the flash mem-
ory.
pin 32: NAVI ON
: IN : NAVI ON signal input.
pin 33: ES TX
: O : Escutcheon serial data output.
pin 34: ES RX
: IN : Escutcheon serial data input.
pin 35: NDS CONT
: O : NDS/Automatic-changer select.
pin 36: NDS REQ 2
: IN : NDS request signal input.
pin 37: NDS REQ 1
: IN : NDS request signal input.
pin 38: SOURCE CHG : O : The signal source change signal output.
pin 39: FLASH EPM
: O : FLASH EPM.
pin 40: EEP ROM DO
: O : The serial data output to the EEP-ROM.
pin 41: EEP ROM CK
: O : The clock pulse output to the EEP-ROM.
pin 42: EEP ROM DI
: IN : The serial data input from the EEP-ROM.
pin 43: EEP ROM CE
: O : The chip enable signal output to the EEP-
ROM.
pin 44: FLASH CE
: IN : The chip enable signal input for the flash
memory.
pin 45: CD ON
: O : CD ON signal output.
pin 46: AUX REQ
: O : AUX request signal output.
pin 47: AUX ON
: IN : AUX ON signal input.
pin 48: COMBI ON
: O : Combi ON signal output.
pin 49: E VOL DO
: O : Serial data output to the volume IC.
pin 50: E VOL CLK
: O : The clock pulse output to the volume IC.
pin 51: Power IC SDA
: O : The serial data output to Power IC.
pin 52: Power IC CLK
: O : The clock pulse output to Power IC.
pin 53: Power IC Stndb : O : The standby signal output to Power IC.
pin 54: Power IC Diag
: IN : Power IC Diagnosis signal input.
pin 55: NU
: O : Not in use.
pin 56: NU
: O : Not in use.
pin 57: NU
: O : Not in use.
pin 58: NU
: O : Not in use.
pin 59: NU
: O : Not in use.
pin 60: VDD
: - : Positive voltage supply.
pin 61: NU
: O : Not in use.
pin 62: GND
: - : Ground.
pin 63: PLL CE
: O : The chip enable signal output to the PLL
IC.
pin 64: PLL CLK
: O : The clock pulse output to the PLL IC.
pin 65: PLL DO
: O : Serial data output to the PLL IC.
pin 66: PLL DI
: IN : Serial data input from the PLL IC.
background image
PP-2665D-C
- 4 -
pin 67: ST/TWEET
:I/O: Outputs "L" at AM 900kHz receiving. In-
puts "L" at FM stereo receiving.
pin 68: NU
: O : Not in use.
pin 69: NU
: O : Not in use.
pin 70: RDS DATA
: IN : RDS serial data input.
pin 71: RDS CLK
: IN : RDS clock pulse input.
pin 72: Speed Pulse
: IN : Speed pulse input.
pin 73: MD LD
: IN : Disc-in signal input from the MD mecha-
nism.
pin 74: FAN ON
: O : The fan on signal output.
pin 75: MD 5V
: O : The power ON signal output for the MD
mechanism.
pin 76: MD WP
: O : Wake up signal output to the MD mecha-
nism.
pin 77: MD CS
: O : The chip selection signal output to the MD
mechanism.
pin 78: MD SCK
: O : The clock pulse output to the MD mech-
anism.
pin 79: MD SO
: O : Serial data output to the MD mechanism.
pin 80: MD RESET
: O : Reset pulse output to the MD mechanism.
pin 81: MD SRQ
: IN : Request signal input from the MD mech-
anism.
pin 82: MD SI
: IN : Serial data input from the MD mechanism.
pin 83: AREA 1
: IN : The destination setting input. Refer Table
1.
pin 84: AREA 2
: IN : The destination setting input. Refer Table
1.
pin 85: 160W / BOSE
: IN : The initial setting terminal. Low = BOSE.
pin 86: CD CONNECT
: IN : CD connection check signal input.
pin 87: NU
: O : Not in use.
pin 88: NU
: O : Not in use.
pin 89: NU
: O : Not in use.
pin 90: NU
: O : Not in use.
pin 91: NU
: O : Not in use.
pin 92: REM A
: IN : Remote control signal input.
pin 93: REM B
: IN : Remote control signal input.
pin 94: A VSS
: - : Negative voltage supply for analog section.
pin 95: S METER
: IN : The input terminal of internal A/D convert-
er to monitor the radio field strength.
pin 96: VREFI
: IN : The reference voltage input.
pin 97: A VDD
: - : Positive voltage supply for analog section.
pin 98: NU
: O : Not in use.
pin 99: NU
: O : Not in use.
pin100: NU
: O : Not in use.
Table 1. The destination setting
Japan
USA
Others
AREA 1 ( pin 83 )
H
L
H
AREA 2 ( pin 84 )
H
H
L
052-5061-02
M30621MCM-FW6GP
Mechanism Controller
Terminal Description
pin
1: HSSW1
: IN : L = It operates by one twice the speed of
a standard.
pin
2: NU
: - : Not in use.
pin
3: NU
: - : Not in use.
pin
4: NU
: - : Not in use.
pin
5: NU
: - : Not in use.
pin
6: CN VSS
: IN : Connect to VSS.
pin
7: NU
: - : Not in use.
pin
8: NU
: - : Not in use.
pin 16: ACC DET
: IN : ACC detection signal input.
pin 17: BU DET
: IN : Backup detection signal input.
pin 18: PON 2
: O : Power ON signal output.
pin 19: NU
: - : Not in use.
pin 20: NDS REQ
: O : NDS request signal output.
pin 21: NU
: - : Not in use.
pin 22: NDS RX
: IN : NDS serial data input.
pin 23: NDS TX
: O : NDS serial data output.
pin 24: T DATA
: O : The display data output for the test mode
indication.
pin 25: T CLK
: O : The test clock output.
pin 26: Flash Write Set : IN : The flash memory writing mode setting
input.
pin 27: DSP V-BUS CS : O : DSP V-BUS Chip Select.
pin 28: DSP V-BUS DO : O : DSP V-BUS Data Output.
pin 29: DSP V-BUS DI : IN : DSP V-BUS Data Input.
pin 30: DSP V-BUS CK : O : DSP V-BUS Clock output.
pin 31: V-BUS SRQ
: IN : V-BUS Slave request.
pin 32: SW 1
: IN : The switch signal input.
pin 33: SW 2
: IN : The switch signal input.
pin 34: EPM
: IN : The flash memory control setting.
pin 35: PT 2
: IN : The photo sensor signal input.
pin 36: PT 5
: IN : The photo sensor signal input.
pin 37: PT 4
: IN : The photo sensor signal input.
pin 38: PT 3
: IN : The photo sensor signal input.
pin 39: ROM Correct
: IN : ROM correction control signal input.
pin 40: PT 6
: IN : The photo sensor signal input.
pin 41: SW 9V
: O : 9V power supply control.
pin 42: PT 1
: IN : The photo sensor signal input.
pin 43: LM CCW
: O : Loading motor control output.
pin 44: LM CW
: O : Loading motor control output.
pin 45: VM CCW
: O : V motor control output.
pin 46: VM CW
: O : V motor control output.
pin 47: MM CCW
: O : Mode motor control output.
pin 48: MM CW
: O : Mode motor control output.
pin 49: D MUTE
: O : Digital mute signal output.
pin 50: DSP RESET
: O : Reset signal output to the DSP IC.
pin 51: DSP Wakeup
: O : DSP wakeup command output.
pin 52: TEST
4
: IN : For the test.
pin 53: TEST
3
: IN : For the test.
pin 54: TEST
2
: IN : For the test.
pin 55: TEST
1
: IN : For the test.
pin 56: EEP DI
: IN : The serial data input from the EEP-ROM.
pin 57: EEP DO
: O : The serial data output to the EEP-ROM.
pin 58: EEP CLK
: O : The clock pulse output to the EEP-ROM.
pin 59: EEP CE
: O : The chip enable signal output to the EEP-
ROM.
pin 60: OEM SW 1
: IN : The destination setting.
pin 61: OEM SW 2
: IN : The destination setting.
pin 62: A MUTE
: O : The audio mute signal output.
pin 63: NU
: - : Not in use.
pin 64: NU
: - : Not in use.
pin 65: NU
: - : Not in use.
pin 66: SHUT
: IN : The shutter signal input.
pin 67: P ON 1
: O : Power ON signal output.
pin 68: NU
: - : Not in use.
pin 69: NU
: - : Not in use.
pin 70: NU
: - : Not in use.
pin 71: NU
: - : Not in use.
pin 72: NU
: - : Not in use.
pin 73: NU
: - : Not in use.
pin 74: NU
: - : Not in use.
pin 75: A VSS
: - : Negative voltage supply for analog section.
pin 76: NU
: - : Not in use.
pin 77: Vref
: - : Reference voltage.
pin 78: A VCC
: - : Positive voltage supply for the internal
analog section.
pin 79: T CLK
: O : "Test mode display" clock output.
pin 80: NU
: - : Not in use.
pin
9: RESET
: IN : Reset signal input.
pin 10: X out
: O : Crystal connection.
pin 11: VSS
: - : Negative voltage supply.
pin 12: X IN
: IN : Crystal connection.
pin 13: VDD
: - : Positive voltage supply.
pin 14: NMI
: IN : Not in use.
pin 15: NU
: - : Not in use.
background image
PP-2665D-C
- 5 -
CONNECTIONS
NS10 MW
A16 MW
Antenna Recept.
A12 MW
NS06 MW
NS10 MW
(Power/Front SP)
NS06 MW
(Rear SP)
A-16 MW
(Remote control)
A-12 MW
(NDS-Auto changer)
A
B
C
D
E
F
G
H
I
J
Front Rch(-)
ANT-ON
Back up
N.C.
GND
V01
V02
V03
V04
V05
V06
CD Lch(-)
CD Lch(+)
CD Rch(-)
CD Rch(+)
GND
Sheild-GND
V07
V08
V09
V10
V11
V12
N.C.
REQ(CD -> Combi)
RX(CD -> Combi)
TX(Combi -> CD)
N.C.
N.C.
V21
V22
V23
V24
V25
V26
V27
V28
N.C.
SPEED SIG
N.C.
N.C.
N.C.
REMO-A
REMO-B
NAVI-ON
V29
V30
V31
V32
V33
V34
V35
V36
REMO-GND
TEL IN(-)
TEL IN(+)
TEL ON
GND
NAVI IN(-)
NAVI-GND
NAVI IN(+)
K
L
M
Amp.ON Signal
Rear Rch(+)
GND
N
O
P
Rear Lch(-)
Rear Lch(+)
Rear Rch(-)
V01 V03 V05 V06 V07 V08 V09 V11
V02 V04
V10 V12
V21 V23 V25 V27 V28 V29 V30 V31 V33 V35
V22 V24 V26
V32 V34 V36
A B
C D
E F G H I J
K
L
M N O P
Antenna Recept.
1
2
Main Antenna
Sub Antenna
1 2
Front Lch(+)
Front Rch(+)
Lighting SW(+)
ACC
Front Lch(-)

Reviews

There are no reviews of this manual yet.
