CLARION RN-9437G-B Service Manual

CLARION RN-9437G-B Service Manual
0 Rating(s)
Read reviews

Service Manual for CLARION RN-9437G-B, downloadable as a PDF file.

Manual details

Immediate download after payment.
Delivered as a PDF file.
The manual has 8 pages
File size: 0.98 MB
Available language versions: English
Different language versions may vary sligthly in file size and page count.

We guarantee that...

our manuals are complete,
the manual includes circuit diagrams,
our manuals are checked with antivirus,
We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

RN-9437G-A,B

- 1 -

Service Manual

Published by Service Dept.

Printed in Japan

Clarion Co., Ltd.

7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama 330-0081 Japan

Service Dept.: 7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama 330-0081 Japan

Tel: +81-48-601-3705 FAX: +81-48-601-3804

298-6535-00 Jan.2008

Model

CB02A

NISSAN MOTOR Genuine

AM/FM RADIO

RN-9437G-A,B

(Genuine No.28013 VZ10A)

ID No.CB02A

SPECIFICATIONS

Radio section

Tuning system:

PLL Frequency synthesizer system

AM Receive range:

531kHz to 1,602kHz

9 kHz step

530kHz to 1,620kHz

10 kHz step

FM Receive range:

87.5MHz to 107.9MHz

50 kHz step

Intermediate frequency:

AM 450 +3/-3 MHz

FM 10.7 +0.2/-0.2 MHz

Quieting sensitivity:

AM Less than 32dBu (at 20dB S/N)

FM Less than 10dBu (at 30dB S/N)

Separation:

FM 22 +5/-7 dB (at 1kHz)

Auto tuning stop sensitivity:

AM 32 +6/-6 dBu(at DX)

FM 25 +6/-6 dBu

Load impedance:

4 ohm

Power supply voltage: DC13.2V(10.8 to 15.6V)

Negative ground

Current consumption: Less than 5A

Dimensions(mm):

178(W) x50(H) x143(D)

Weight:

0.7kg

Setting the reception area

1. While pressing the CH3 and CH4 button,press the UP

button to change the AM Receiving area from 9 kHz step

to 10 kHz step.

NOTE

There are two models with a different production place.

China production : RN-9437G-A

Malaysia production: RN-9437G-B

All the same parts are used and assemble these mod-

els.

We cannot supply PWB with component parts in prin-

ciple. When a circuit on PWB has failure, please repair it

by component parts base. Parts which are not mentioned

in service manual are not supplied.

Specifications and design are subject to change without

notice for further improvement.

COMPONENTS

RN-9437G-A,B

Main unit

---------

To engineers in charge of repair or

inspection of our products.

Before repair or inspection, make sure to follow the

instructions so that customers and Engineers in charge

of repair or inspection can avoid suffering any risk or

injury.

1. Use specified parts.

The system uses parts with special safety features against fire

and voltage. Use only parts with equivalent characteristics

when replacing them.

The use of unspecified parts shall be regarded as remodeling

for which we shall not be liable. The onus of product liability

(PL) shall not be our responsibility in cases where an accident

or failure is as a result of unspecified parts being used.

2. Place the parts and wiring back in their original positions after

replacement or re-wiring.

For proper circuit construction, use of insulation tubes, bond-

ing, gaps to PWB, etc, is involved. The wiring connection and

routing to the PWB are specially planned using clamps to keep

away from heated and high voltage parts. Ensure that they are

placed back in their original positions after repair or inspec-

tion.

RN-9437G-A,B

- 1 -

Service Manual

Published by Service Dept.

Printed in Japan

Clarion Co., Ltd.

7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama 330-0081 Japan

Service Dept.: 7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama 330-0081 Japan

Tel: +81-48-601-3705 FAX: +81-48-601-3804

298-6535-00 Jan.2008

Model

CB02A

NISSAN MOTOR Genuine

AM/FM RADIO

RN-9437G-A,B

(Genuine No.28013 VZ10A)

ID No.CB02A

SPECIFICATIONS

Radio section

Tuning system:

PLL Frequency synthesizer system

AM Receive range:

531kHz to 1,602kHz

9 kHz step

530kHz to 1,620kHz

10 kHz step

FM Receive range:

87.5MHz to 107.9MHz

50 kHz step

Intermediate frequency:

AM 450 +3/-3 MHz

FM 10.7 +0.2/-0.2 MHz

Quieting sensitivity:

AM Less than 32dBu (at 20dB S/N)

FM Less than 10dBu (at 30dB S/N)

Separation:

FM 22 +5/-7 dB (at 1kHz)

Auto tuning stop sensitivity:

AM 32 +6/-6 dBu(at DX)

FM 25 +6/-6 dBu

Load impedance:

4 ohm

Power supply voltage: DC13.2V(10.8 to 15.6V)

Negative ground

Current consumption: Less than 5A

Dimensions(mm):

178(W) x50(H) x143(D)

Weight:

0.7kg

Setting the reception area

1. While pressing the CH3 and CH4 button,press the UP

button to change the AM Receiving area from 9 kHz step

to 10 kHz step.

NOTE

There are two models with a different production place.

China production : RN-9437G-A

Malaysia production: RN-9437G-B

All the same parts are used and assemble these mod-

els.

We cannot supply PWB with component parts in prin-

ciple. When a circuit on PWB has failure, please repair it

by component parts base. Parts which are not mentioned

in service manual are not supplied.

Specifications and design are subject to change without

notice for further improvement.

COMPONENTS

RN-9437G-A,B

Main unit

---------

To engineers in charge of repair or

inspection of our products.

Before repair or inspection, make sure to follow the

instructions so that customers and Engineers in charge

of repair or inspection can avoid suffering any risk or

injury.

1. Use specified parts.

The system uses parts with special safety features against fire

and voltage. Use only parts with equivalent characteristics

when replacing them.

The use of unspecified parts shall be regarded as remodeling

for which we shall not be liable. The onus of product liability

(PL) shall not be our responsibility in cases where an accident

or failure is as a result of unspecified parts being used.

2. Place the parts and wiring back in their original positions after

replacement or re-wiring.

For proper circuit construction, use of insulation tubes, bond-

ing, gaps to PWB, etc, is involved. The wiring connection and

routing to the PWB are specially planned using clamps to keep

away from heated and high voltage parts. Ensure that they are

placed back in their original positions after repair or inspec-

tion.

RN-9437G-A,B

- 3 -

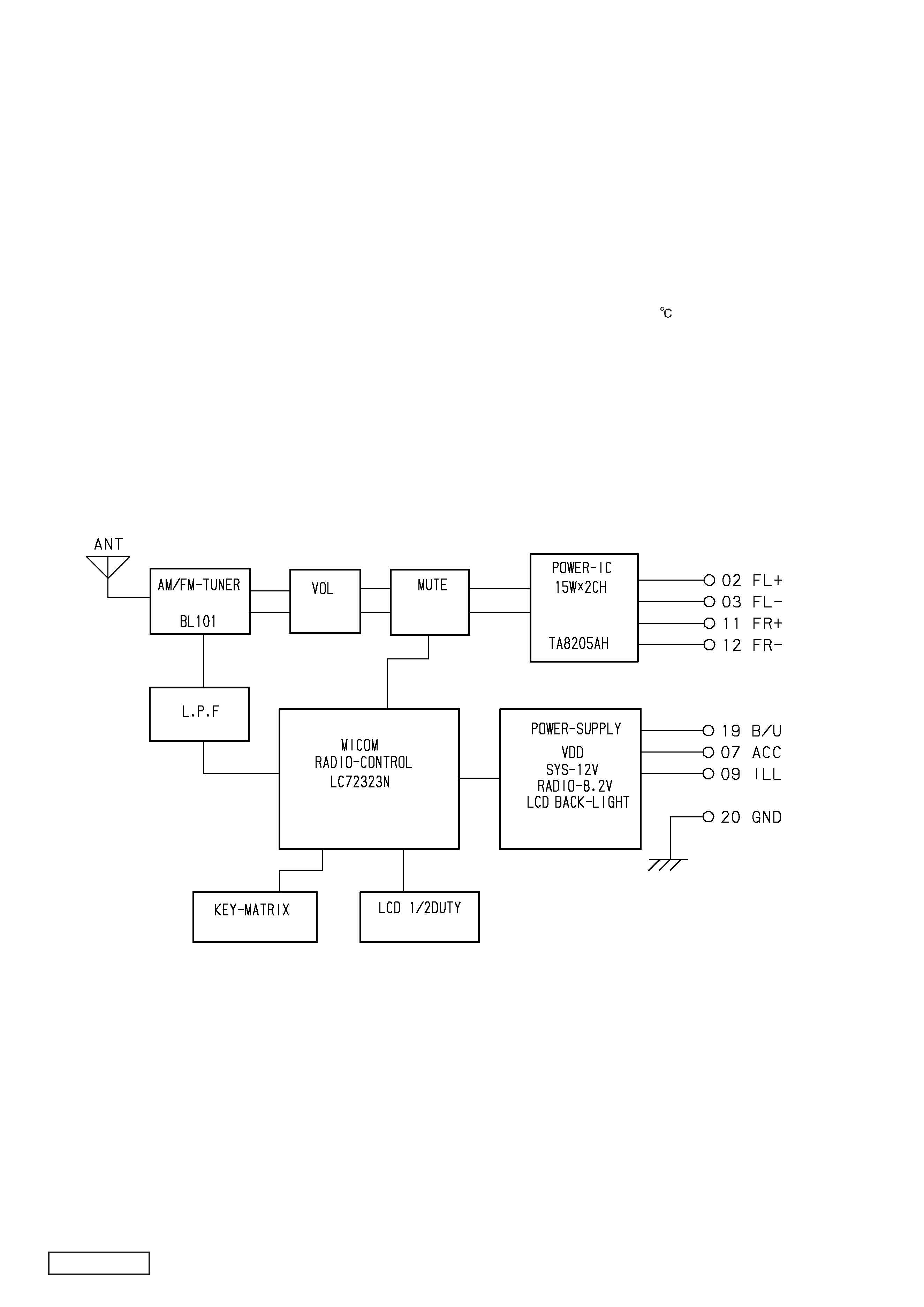

ADJUSTMENT

Item

Procedure

Measuring instrument

FM noise

convergence

1.Input the 98.1MHz/55dBu(400Hz 22.5kHz Div.) SSG signal.

2.Set the output to 0dBm(0.775V)by main volume.

3.Adjust VR102 so that the output level is -18 +3/-3 dB when the output of SSG is

set to -20dBu.

SSG

Milli-volt meter

Clock accuracy

1.Connect the Choronometer to TP201.

2.Adjust TC401 so that an output of TP201 becomes 0.0 +1.0/-0.0Sec./day.

Choronometer

EXPLANATION OF IC

052-1131-20

LC72323N-9055E

System Controller

Terminal Description

1: X IN

: IN : Crystal connection.

2: TEST

: IN : For the test.

3: ILL ON

: IN : Illumination ON signal input.

4: NC

: IN : Not in use.

5: NC

: IN : Not in use.

6: NC

: IN : Not in use.

7: SYS ON

: O : System ON signal output.

8: NC

: O : Not in use.

9: AM ON

: O : AM ON signal output.

pin 10: FM ON

: O : FM ON signal output.

pin 11: ST/TW/SD

:I/O: AM station receiving:

This port outputs a pulse by AM 900kHz

receiving.

FM station receiving:

This port detects the stereo signal. And

at seeking or scanning, this port detects

the SD signal.

pin 12: RF MUTE

: O : Radio frequency signal muting.

pin 13: DX/LO

: O : DX/Local select signal output.

pin 14: POWER SW

: IN : Power switch ON signal input.

pin 15: ANT ON

: O : Antenna ON command output.

pin 16: AMP ON

: O : Audio power amplifier ON signal output.

pin 17: AF MUTE

: O : Audio frequency signal muting.

pin 18: NC

: IN : Not in use.

pin 19: NC

: O : Not in use.

pin 20: NC

: O : Not in use.

pin 21: NC

: O : Not in use.

pin 22: NC

: O : Not in use.

pin 23: NC

: O : Not in use.

pin 24: NC

: O : Not in use.

pin 25: NC

: O : Not in use.

pin 26: NC

: O : Not in use.

pin 27: KS out 3

: O : Key scan output.

pin 28: KS out 2

: O : Key scan output.

pin 29: KS out 1

: O : Key scan output.

pin 30: KS out 0

: O : Key scan output.

pin 31: VDD

: - : Positive voltage supply.

pin 32: KS IN

: IN : Key scan input.

pin 33: KS IN

: IN : Key scan input.

pin 34: KS IN

: IN : Key scan input.

pin 35: KS IN

: IN : Key scan input.

pin 36: BACK LIGHT

: O : The back light ON signal output.

pin 37: NC

: O : Not in use.

pin 38: NC

: O : Not in use.

pin 39: NC

: O : Not in use.

pin 40: NC

: O : Not in use..

pin 41: NC

: O : Not in use.

pin 42: NC

: O : Not in use.

pin 43: NC

: O : Not in use.

pin 44: Seg out 20
