Caution on condensation
Condensation (of dew) may occur inside the unit when there is
a great difference in temperature between this unit and the out-
side.
This unit may not function properly if condensation occurs. In
this case, leave the unit for a few hours, and restart the opera-
tion after the condensation has dried up.
Be specially cautious against condensation in a fol-
lowing circumstances:
When this unit is carried from one place to another across a large
difference in temperature, when the humidity in the room where
this unit is installed increases, etc.
Stored contents which are
cleared in at least a week after
power plug is unplugged from
power outlet.
Amplifier section
Last input selection
Volume control value
Surround setting
ACTIVE EQ
Tuner section
Receiving band
Frequency
Preset stations
Tuning mode setting
DVD section
Menu setup
Power status
Memory backup function
WARNING NOTICE:
IN MOST CASES IT IS AN INFRINGEMENT OF COPY-
RIGHT TO MAKE COPIES OF TAPES OR DISCS WITH-
OUT THE PERMISSION OF THE COPYRIGHT OWN-
ERS. ANYONE WISHING TO COPY COMMERCIALLY
AVAILABLE TAPES OR DISC SHOULD CONTACT THE
MECHANICAL COPYRIGHT PROTECTION SOCIETY
LIMITED OR THE PERFORMING RIGHTS SOCIETY LIM-
ITED.
Note related to transportation and movement
Before transporting or moving this unit, carry out the
following operations.
1 Remove the disc from the unit.
2 Press the 6 key.
3 Wait a few seconds and turn the unit OFF.
Operation to reset
The microcomputer may fall into malfunction (impossibility
to operate, erroneous display, etc.) when the power cord is
unplugged while power is ON or due to an external factor. In
this case, execute the following procedure to reset the
microcomputer and return it to normal condition.
÷ Please note that resetting the microcomputer clears the
contents stored in and returns and to condition when it left
the factory.
Set the POWER switch to ON (set to Standby mode).
Then press the
¢ key, 4 key and STOP key in this
order.
The marking this product has been classified as Class
1. It means that there is no danger of hazardous radia-
tion outside the product.
Location: Back panel
CLASS 1
LASER PRODUCT
The marking of products using lasers
(Except for some areas)
DVR-605
2

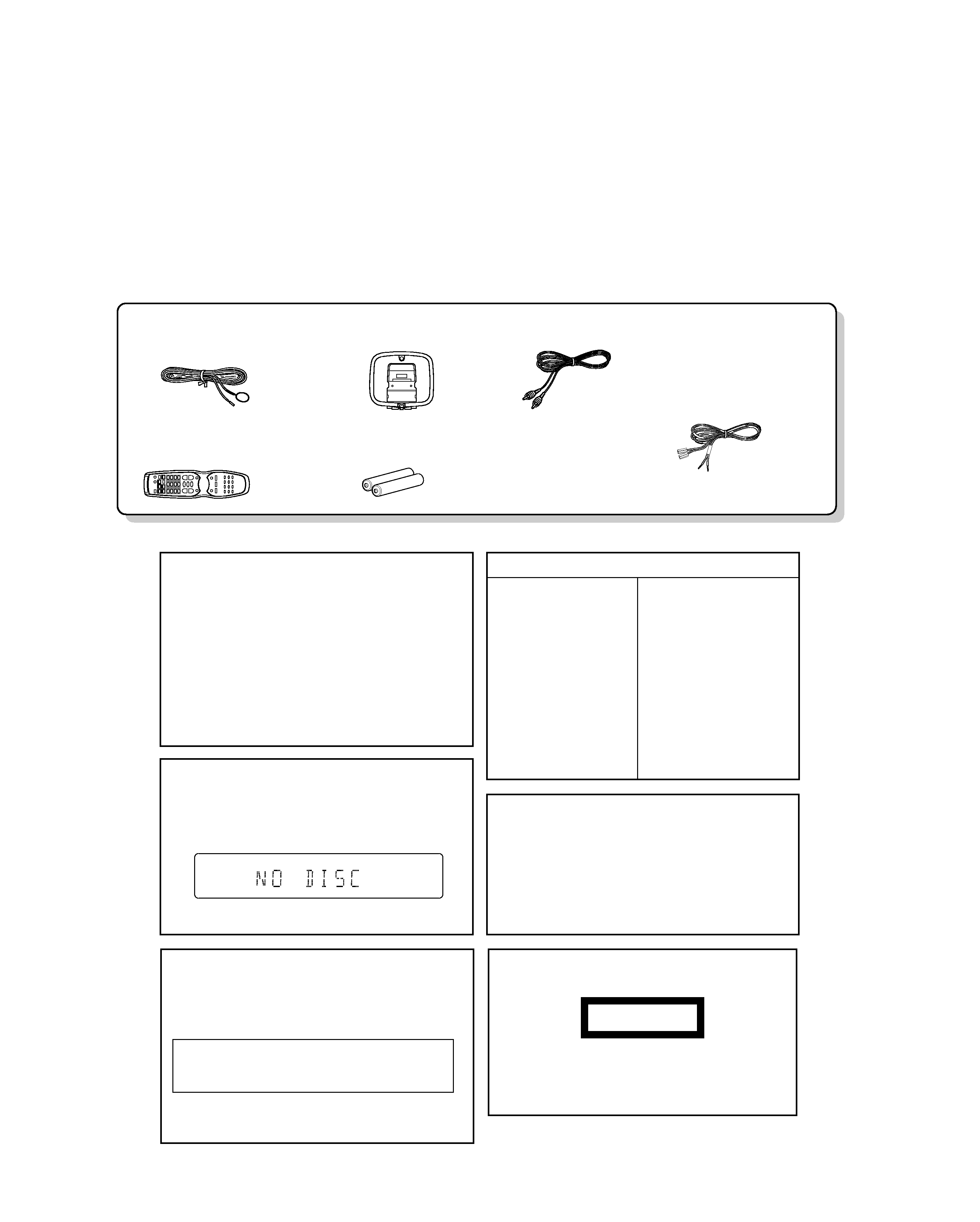

CONTENTS / ACCESSORIES / CAUTIONS
Contents
Cautions
FM indoor antenna (1)
Loop antenna (1)
Remote control unit (1)
Batteries (R6/AA) (2)
V ideo cord (1)
Speaker cords (6)
(T90-0882-08)
(A70-1607-08)
(E30-7265-08): RED
(E30-7283-08): GREEN
(E30-7284-08): BLUE
(E30-7285-08): VIOLET
(E30-7269-08): GREY
(E30-7286-08): WHITE
(T90-0896-08)
(E30-1427-05)
Accessories
CONTENTS / ACCESSORIES / CAUTIONS ............. 2
DISASSEMBLY FOR REPAIR....................................3
BLOCK DIAGRAM ......................................................3
CIRCUIT DESCRIPTION ............................................4
ADJUSTMENT ..........................................................13
INTERCONNECTION DIAGRAM .............................13
PC BOARD .............................................................. 14
SCHEMATIC DIAGRAM .......................................... 22
EXPLODED VIEW ....................................................35
PARTS LIST..............................................................36
SPECIFICATIONS ......................................Back cover
