KDC-V6090R
KDC-6090R
KDC-5090R
KDC-5090B
B64-1873-30 (EY)
CD-RECEIVER
INSTRUCTION MANUAL
COMPACT
DIGITAL AUDIO
KDC-6090/5090/V6090R(E-30
02.2.15
11:03 AM
Page 1
background image
KDC-V6090R
KDC-6090R
KDC-5090R
KDC-5090B
B64-1873-30 (EY)
CD-RECEIVER
INSTRUCTION MANUAL
COMPACT
DIGITAL AUDIO
KDC-6090/5090/V6090R(E-30
02.2.15
11:03 AM
Page 1
background image
-- 2 --
English
Contents
Safety precautions
Safety precautions .......................................................................................3
Handling Compact discs ..............................................................................6
General features
Power...........................................................................................................8
Switching Modes .........................................................................................8
Volume .........................................................................................................9
Attenuator ....................................................................................................9
Loudness .....................................................................................................9
Theft Deterrent Faceplate..........................................................................10
Clock display ..............................................................................................11
TEL Mute ...................................................................................................11
System Q ...................................................................................................12
Speaker Setting..........................................................................................12
Non-Fading Output.....................................................................................12
Audio control features
Audio Control Setting.................................................................................13
Bass Level..................................................................................................14
Middle Level ..............................................................................................14
Treble Level................................................................................................14
Balance Level.............................................................................................14
Fader Level ................................................................................................14
Non-Fading Level .......................................................................................14
High-pass Filter Frequency for Front Output .............................................14
High-pass Filter Frequency for Rear Output ..............................................14
Low-pass Filter Frequency for Non-Fading Output....................................15
Phase for Non-Fading Output ....................................................................15
Volume Offset............................................................................................15
Tuner features
Tuning.........................................................................................................16
Station Preset Memory..............................................................................16
Switching Display for Tuner .......................................................................16
RDS features
RDS (Radio Data System) ..........................................................................18
Enhanced Other Network ..........................................................................18
Alarm..........................................................................................................18
Traffic Information Function .......................................................................18
Presetting Volume for Traffic Information/News .......................................19
Radio Text Scroll ........................................................................................19
Programme Type (PTY) Function ...............................................................20
Changing Language for Programme Type(PTY) Function ..........................21
CD/External disc control features
Playing CDs................................................................................................22
Playing Other Disc mode ...........................................................................22
Fast Forwarding and Reversing Disc Play .................................................23
Track Search...............................................................................................23
Disc Search ................................................................................................23
Track / Disc Repeat ....................................................................................24
Track Scan ..................................................................................................24
Random Play ..............................................................................................24
Magazine Random Play .............................................................................24
Switching Display for Discs .......................................................................25
Text / Title Scroll.........................................................................................26
Presetting Disc Names (DNPS) .................................................................26
Menu settings
Menu System ............................................................................................28
Code Security Function..............................................................................28
Touch Sensor Tone ....................................................................................29
Manual Time Adjustment...........................................................................30
Automatic Time Adjustment ......................................................................30
Selectable Illumination ...............................................................................30
Switching Graphic Display .........................................................................30
Variable Illumination Colour Setting ...........................................................31
Contrast Adjustment..................................................................................31
Dimmer ......................................................................................................31
Switching preout........................................................................................32
External Amp Control.................................................................................32
News Bulletin Function with PTY News Timeout Setting .........................32
Local Seek Function...................................................................................33
Selecting Tuning Mode ..............................................................................33
Auto Memory Entry ...................................................................................33
AF (Alternative Frequency) Function..........................................................34
Restricting RDS Region (Region Restrict Function)...................................34
Auto TP Seek Function ..............................................................................34
Monaural Reception ..................................................................................34
Text Scroll ..................................................................................................34
Power OFF Timer.......................................................................................35
Installation
Accessories................................................................................................36
Installation Procedure ................................................................................36
Connecting Cables to Terminals ................................................................37
Installation ..................................................................................................38
Troubleshooting Guide........................................41
Specifications .....................................................44
KDC-6090R(EY)_U.K_30
02.2.15
11:06 AM
Page 2
background image
-- 3 --
To prevent injury and/or fire, take the
following precautions:
· Insert the unit all the way until it is fully
locked in place. Otherwise it may fly out of
place during collisions and other jolts.
· When extending the ignition, battery or
ground cables, make sure to use
automotive-grade cables or other cables
with an area of 0.75mm2 (AWG18) or more
to prevent cable deterioration and damage
to the cable coating.
·To prevent short circuits, never put or leave
any metallic objects (e.g., coins or metal
tools) inside the unit.
·If the unit starts to emit smoke or strange
smells, turn off the power immediately and
consult your Kenwood dealer.
· Make sure not to get your fingers caught
between the faceplate and the unit.
· Be careful not to drop the unit or subject it
to strong shock.
The unit may break or crack because it
contains glass parts.
· Do not touch the liquid crystal fluid if the
LCD is damaged or broken due to shock.
The liquid crystal fluid may be dangerous to
your health or even fatal.
If the liquid crystal fluid from the LCD
contacts your body or clothing, wash it off
with soap immediately.
2WARNING
To prevent damage to the machine,
take the following precautions:
· Make sure to ground the unit to a negative
12V DC power supply.
· Do not open the top or bottom covers of
the unit.
· Do not install the unit in a spot exposed to
direct sunlight or excessive heat or
humidity. Also avoid places with too much
dust or the possibility of water splashing.
· Do not subject the faceplate to excessive
shock, as it is a piece of precision
equipment.
· When replacing a fuse, only use a new one
with the prescribed rating. Using a fuse
with the wrong rating may cause your unit
to malfunction.
·To prevent short circuits when replacing a
fuse, first disconnect the wiring harness.
· Do not place any object between the
faceplate and the unit.
· During installation, do not use any screws
except for the ones provided. The use of
improper screws might result in damage to
the main unit.
· Do not apply excessive force to the moving
faceplate. Doing so will cause damage or
malfunction.
· Do not apply excessive force to the open
faceplate or place objects on it. Doing so
will cause damage or breakdown.
2CAUTION
IMPORTANT INFORMATION
About the disc changer to be
connected:
To connect a disc changer having the "O-N"
switch to this unit, set the "O-N" switch to
"N".
When you connect a model with no "O-N"
switch, the converter cord CA-DS100
available as an option may be required. For
details, consult your Kenwood dealer.
If a model with no "O-N" switch is
connected, some unavailable functions and
information that cannot be displayed are
generated, such as the DNPS, DNPP,
Magazine random play, and CD Text display.
Note that none of the KDC-C100, KDC-C302,
C205, C705, and non-Kenwood CD changers
can be connected.
You can damage both your unit and
the CD changer if you connect them
incorrectly.
Do Not Load 8-cm (3-in.) CDs in the
CD slot
If you try to load an 8-cm CD with its adapter
into the unit, the adapter might separate
from the CD and damage the unit.
2CAUTION
Safety precautions
KDC-6090R(EY)_U.K_30
02.2.15
11:06 AM
Page 3
background image
-- 4 --
English
· If you experience problems during
installation, consult your Kenwood dealer.
·Press the reset button if the CD auto
changer is first controlled and operates
incorrectly. The original operating condition
will return.
· Characters in the LCD may become difficult
to read in temperatures below 41 °F (5 °C).
·We strongly recommend the use of the
Code Security function (see p.28) to prevent
theft.
NOTE
· The illustrations of the display and the
panel appearing in this manual are
examples used to explain more clearly how
the controls are used. Therefore, what
appears on the display in the illustrations
may differ from what appears on the
display on the actual equipment, and some
of the illustrations on the display may
represent something impossible in actual
operation.
· The functions that can be used and the
information that can be displayed will differ
depending on the external disc players
being connected.
Safety precautions

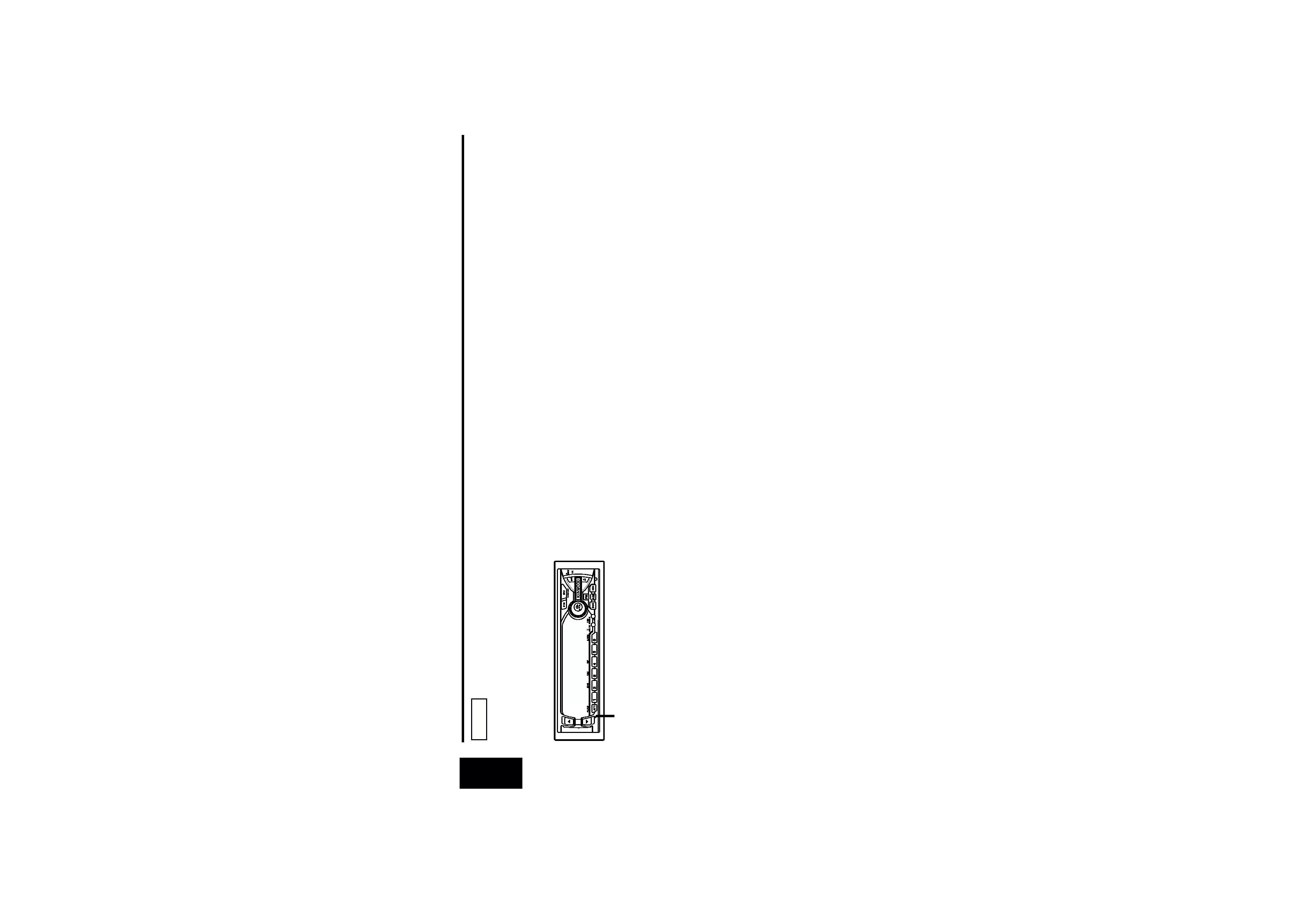

Reset button
KDC-6090R(EY)_U.K_30
02.2.15
11:06 AM
Page 4
background image
-- 5 --
Cleaning the Faceplate Terminals
If the terminals on the unit or faceplate get
dirty, wipe them with a dry, soft cloth.
Cleaning the CD Slot
As dust can accumulate in the CD slot, clean
it occasionally. Your CDs can get scratched if
you put them in a dusty CD slot.
The marking of products using lasers
(Except for some areas)
The label is attached to the chassis/case and
says that the component uses laser beams
that have been classified as Class 1. It
means that the unit is utilizing laser beams
that are of a weaker class. There is no
danger of hazardous radiation outside the
unit.
Lens Fogging
Right after you turn on the car heater in cold
weather, dew or condensation may form on
the lens in the CD player of the unit. Called
lens fogging, CDs may be impossible to play.
In such a situation, remove the disc and wait
for the condensation to evaporate. If the unit
still does not operate normally after a whilst,
consult your Kenwood dealer.
CLASS 1
LASER PRODUCT
KDC-6090R(EY)_U.K_30
02.2.15
11:06 AM
Page 5

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of KENWOOD KRC288/IJ4 Service Manual

This manual has 1 pages, file size: 0.02 MB. It's available in languages: English.

Cover page of KENWOOD MIDI M959 Service Manual

This manual has 77 pages, file size: 30.89 MB. It's available in languages: English.

Cover page of KENWOOD 1070KE Service Manual

This manual has 13 pages, file size: 4.33 MB. It's available in languages: English.

Cover page of KENWOOD SJ-9PC Owner's Manual

This manual has 134 pages, file size: 4.14 MB. It's available in languages: Japanese.

Cover page of KENWOOD KHS21 Service Manual

This manual has 1 pages, file size: 0.51 MB. It's available in languages: English.
