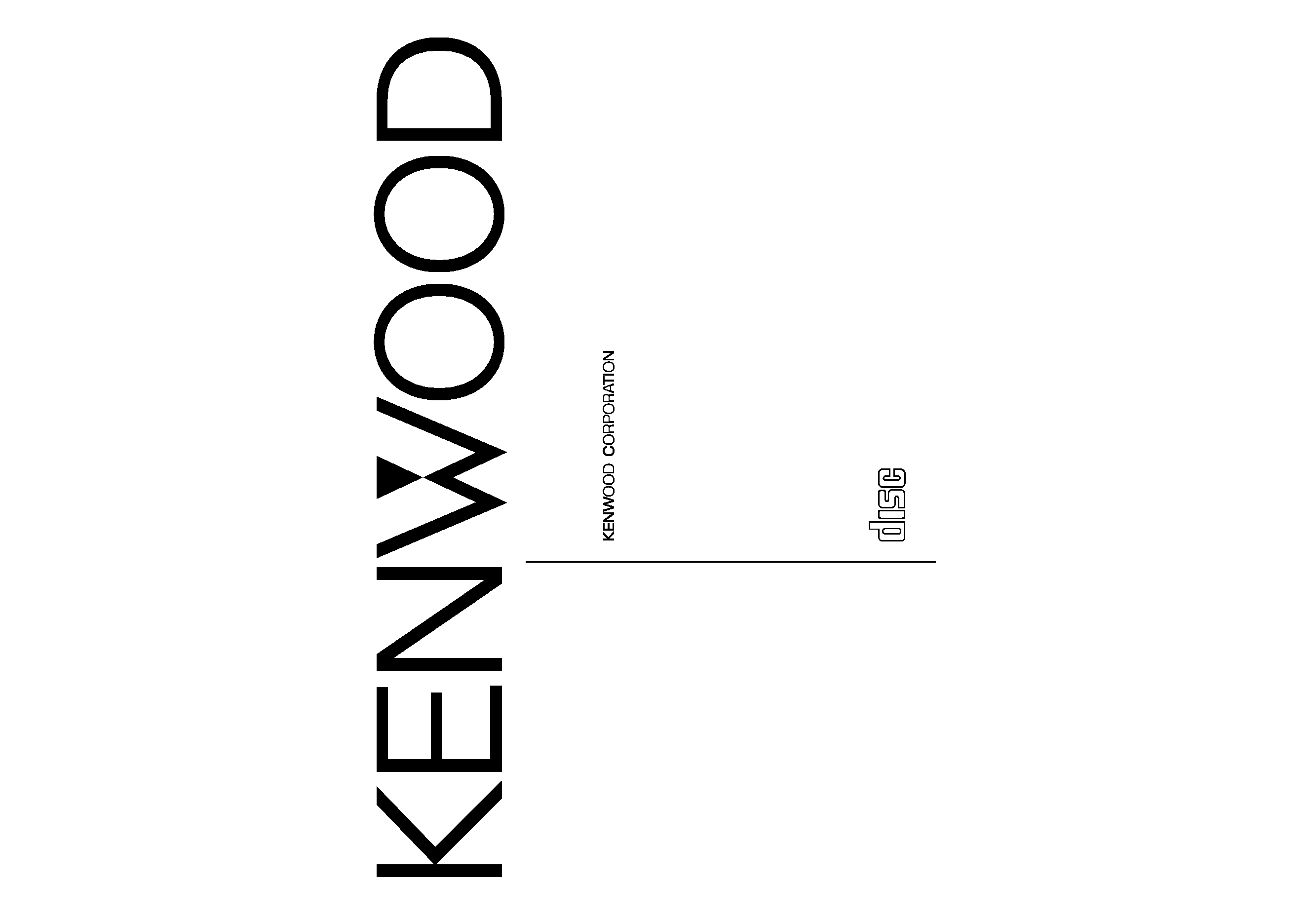

Cover page of KENWOOD KDC-6080RV Owner's Manual

Owner's Manual for KENWOOD KDC-6080RV, downloadable as a PDF file.

We also have service manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 42 pages
  • File size: 0.52 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
KDC-6080R
KDC-6080RV
KDC-5080R
B64-1627-00 (EN)
CD-RECEIVER
INSTRUCTION MANUAL
COMPACT
DIGITAL AUDIO
background image
KDC-6080R
KDC-6080RV
KDC-5080R
B64-1627-00 (EN)
CD-RECEIVER
INSTRUCTION MANUAL
COMPACT
DIGITAL AUDIO
background image
-- 2 --
English
Contents
Before use
Safety precautions ........................................................................3
Handling Compact discs ...............................................................6
General features
Power............................................................................................7
Volume ..........................................................................................7
Attenuator .....................................................................................7
Switching Modes ..........................................................................8
Loudness ......................................................................................8
Audio Control Setting....................................................................8
Mobile Preset................................................................................9
TEL Mute ......................................................................................9
Theft Deterrent Faceplate...........................................................10
Tuner features
Tuning .........................................................................................12
Station Preset Memory...............................................................12
Switching Display for Tuner........................................................12
RDS features
RDS (Radio Data System) ...........................................................14
Enhanced Other Network ...........................................................14
Alarm...........................................................................................14
Traffic Information Function........................................................14
Presetting Volume for Traffic Information/News ........................15
Radio Text Scroll .........................................................................15
Programme Type (PTY) Function ................................................16
CD/External disc control features
Playing CDs.................................................................................18
Playing Other Disc mode ............................................................19
Switching Display for Discs ........................................................19
Fast Forwarding and Reversing Disc Play ..................................20
Track Search ...............................................................................20
Disc Search .................................................................................20
Track / Disc Repeat.....................................................................20
Track Scan...................................................................................21
Disc Scan ....................................................................................21
Random Play ...............................................................................21
Magazine Random Play...............................................................22
Text Scroll ...................................................................................22
Presetting Disc Names (DNPS) ..................................................22
Menu settings
Menu System .............................................................................24
Touch Sensor Tone .....................................................................25
Manual Time Adjustment............................................................25
Calendar Adjustment ..................................................................25
Calendar Mode............................................................................25
Memo Mode ...............................................................................26
Automatic Time Adjustment .......................................................26
Code Security Function...............................................................28
Selectable Illumination ................................................................29
Contrast Adjustment...................................................................29
Dimmer .......................................................................................29
Switching Graphic Display ..........................................................29
Black Mask..................................................................................29
KEX/ec4/dB (Sound Coordinate system).....................................29
News Bulletin Function with PTY News Timeout Setting..........30
Local Seek Function....................................................................30
Selecting Tuning Mode ...............................................................30
Auto Memory Entry ....................................................................30
AF (Alternative Frequency) Function...........................................31
Restricting RDS Region (Region Restrict Function)....................31
Auto TP Seek Function ...............................................................31
Monaural Reception....................................................................31
Text Scroll ...................................................................................32
Installation
Accessories.................................................................................33
Installation Procedure .................................................................33
Connecting Cables to Terminals .................................................34
Installation ...................................................................................35
Locking the faceplate to the unit ................................................37
Troubleshooting Guide .......................................38
Specifications .....................................................41
background image
-- 3 --
To prevent injury and/or fire, take the
following precautions:
· Insert the unit all the way until it is fully
locked in place. Otherwise it may fly out of
place during collisions and other jolts.
· When extending the ignition, battery or
ground cables, make sure to use automotive-
grade cables or other cables with an area of
0.75mm2 (AWG18) or more to prevent cable
deterioration and damage to the cable
coating.
· To prevent short circuits, never put or leave
any metallic objects (e.g., coins or metal
tools) inside the unit.
· If the unit starts to emit smoke or strange
smells, turn off the power immediately and
consult your Kenwood dealer.
· Make sure not to get your fingers caught
between the faceplate and the unit.
· Be careful not to drop the unit or subject it to
strong shock.
The unit may break or crack because it
contains glass parts.
· Do not touch the liquid crystal fluid if the
LCD is damaged or broken due to shock. The
liquid crystal fluid may be dangerous to your
health or even fatal.
If the liquid crystal fluid from the LCD
contacts your body or clothing, wash it off
with soap immediately.
2WARNING
To prevent damage to the machine,
take the following precautions:
· Make sure to ground the unit to a negative
12V DC power supply.
· Do not open the top or bottom covers of the
unit.
· Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
· Do not subject the faceplate to excessive
shock, as it is a piece of precision
equipment.
· When replacing a fuse, only use a new one
with the prescribed rating. Using a fuse with
the wrong rating may cause your unit to
malfunction.
· To prevent short circuits when replacing a
fuse, first disconnect the wiring harness.
· Do not place any object between the
faceplate and the unit.
· During installation, do not use any screws
except for the ones provided. The use of
improper screws might result in damage to
the main unit.
· Do not apply excessive force to the moving
faceplate. Doing so will cause damage or
malfunction.
· Do not apply excessive force to the open
faceplate or place objects on it. Doing so will
cause damage or breakdown.
2CAUTION
IMPORTANT INFORMATION
You cannot connect the unit directly to the
following CD automatic changers. For users
who want to use older changers with the
unit, follow the directions below according to
the type of changer you own:
· KDC-C200 / KDC-C300 / KDC-C400
Use the extension cable and the control box
attached to the CD changer, and the optional
CA-DS100 converter cable.
· KDC-C301 / KDC-C600 / KDC-C800 / KDC-
C601 / KDC-C401
Use the extension cable attached to the CD
changer, and the optional CA-DS100
converter cable.
· KDC-C100 / KDC-C302 / C205 / C705 /
non-Kenwood CD changers
Cannot be used with this model.
You can damage both your unit and
the CD changer if you connect them
incorrectly.
Do Not Load 8-cm (3-in.) CDs in the
CD slot
If you try to load an 8-cm CD with its adapter
into the unit, the adapter might separate
from the CD and damage the unit.
2CAUTION
2CAUTION
Safety precautions
background image
-- 4 --
English
· If you experience problems during
installation, consult your Kenwood dealer.
· Press the reset button if the CD auto
changer is first controlled and operates
incorrectly. The original operating condition
will return.
· Characters in the LCD may become difficult
to read in temperatures below 41 °F (5 °C).
NOTE
· The illustrations of the display and the panel
appearing in this manual are examples used
to explain more clearly how the controls are
used. Therefore, what appears on the display
in the illustrations may differ from what
appears on the display on the actual
equipment, and some of the illustrations on
the display may represent something
impossible in actual operation.
· The functions that can be used and the
information that can be displayed will differ
depending on the external disc players being
connected.
Safety precautions
EJECT
PWR
OFF
TI
LOUD
VOL ADJ
MENU
DISP
NAME.S
SCAN
RDM
REP
D.SCN
M.RDM
DISC
DISC
PTY
DAB
AUD
Reset button
background image
-- 5 --
Cleaning the Faceplate Terminals
If the terminals on the unit or faceplate get
dirty, wipe them with a dry, soft cloth.
Cleaning the Unit
If the front panel gets dirty, turn off the
power and wipe the panel with a dry silicon
cloth or soft cloth.
Do not wipe the panel with a stiff cloth or a
cloth dampened by volatile solvents such as
paint thinner and alcohol. They can scratch
the surface of the panel and/or cause the
indicator letters to peel off.
Cleaning the CD Slot
As dust can accumulate in the CD slot, clean
it occasionally. Your CDs can get scratched if
you put them in a dusty CD slot.
2CAUTION
The marking of products using lasers
(Except for some areas)
The label is attached to the chassis/case and
says that the component uses laser beams
that have been classified as Class 1. It
means that the unit is utilizing laser beams
that are of a weaker class. There is no
danger of hazardous radiation outside the
unit.
Lens Fogging
Right after you turn on the car heater in cold
weather, dew or condensation may form on
the lens in the CD player of the unit. Called
lens fogging, CDs may be impossible to play.
In such a situation, remove the disc and wait
for the condensation to evaporate. If the unit
still does not operate normally after a whilst,
consult your Kenwood dealer.
CLASS 1
LASER PRODUCT

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of KENWOOD RMD-ES9DVD Owner's Manual

This manual has 120 pages, file size: 4.38 MB. It's available in languages: Japanese.

Cover page of KENWOOD ES-3MD Owner's Manual

This manual has 92 pages, file size: 10.14 MB. It's available in languages: Japanese.

Cover page of KENWOOD KDC-5050RA Owner's Manual

This manual has 36 pages, file size: 2.3 MB. It's available in languages: German.

Cover page of KENWOOD KRC430 Owner's Manual

This manual has 20 pages, file size: 0.63 MB. It's available in languages: English.

Cover page of KENWOOD KAC-7202 Owner's Manual

This manual has 20 pages, file size: 2.97 MB. It's available in languages: Portuguese, French, English, Spanish, Dutch, German, Chinese Traditional, Chinese Simplified, Italian.
