FRONT.CENTER,SURROUND SPEAKER SYSTEM
KS-706HT
SERVICE MANUAL
FRONT SPEAKER: 2-WAY 3-SPEAKER SYSTEM
SPECIFICATIONS
Grille assy
(B06-1658-08)
Woofer
(T10-1186-05)x2
Push terminal
(E21-0903-08):(R)
(E21-0938-08):(L)
Binding head
tapping screw
(N44-4016-45)x8
Tweeter
(T03-0856-05)
Enclosure ..................................................................................................Acoustic air suspension
Woofer .....................................................................................................100 mm, cone type x2
Tweeter .............................................................................................25 mm, balance dome type
Impedance ................................................................................................................................8
Maximum input level............................................................................................................60 W
Dimensions ..................................................................................................W: 190mm
(7-1/2")
H: 387mm (15-1/4")
D: 215mm (8-7/16")
Net Weight ..........................................................................................................................4.2 kg
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
Dressing panel
(A21-3499-08)x2
2002-5 PRINTED IN KOREA
B51-5800-00 (Z/K) 1812
Binding head
tapping screw
(N44-4016-45)x3
70%
background image
FRONT.CENTER,SURROUND SPEAKER SYSTEM
KS-706HT
SERVICE MANUAL
FRONT SPEAKER: 2-WAY 3-SPEAKER SYSTEM
SPECIFICATIONS
Grille assy
(B06-1658-08)
Woofer
(T10-1186-05)x2
Push terminal
(E21-0903-08):(R)
(E21-0938-08):(L)
Binding head
tapping screw
(N44-4016-45)x8
Tweeter
(T03-0856-05)
Enclosure ..................................................................................................Acoustic air suspension
Woofer .....................................................................................................100 mm, cone type x2
Tweeter .............................................................................................25 mm, balance dome type
Impedance ................................................................................................................................8
Maximum input level............................................................................................................60 W
Dimensions ..................................................................................................W: 190mm
(7-1/2")
H: 387mm (15-1/4")
D: 215mm (8-7/16")
Net Weight ..........................................................................................................................4.2 kg
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
Dressing panel
(A21-3499-08)x2
2002-5 PRINTED IN KOREA
B51-5800-00 (Z/K) 1812
Binding head
tapping screw
(N44-4016-45)x3
70%
background image
KS-706HT
EXTERNAL VIEW/SPECIFICATIONS/DIVIDING NETWORK UNIT
SPECIFICATIONS
Push terminal
(E21-0937-08)
CENTER SPEAKER: 2-WAY 3-SPEAKER SYSTEM
C1
RED
BLK
1.0
µ100
BLK
+
-
+
-
+
-
+
-
RED
RED
BLK
FRONT,CENTER SPEAKER
SP1
SP2
SP1
Grille assy
(B06-1657-08)
Woofer
(T10-1186-05)x2
Binding head
tapping screw
(N44-4016-45)x3
Tweeter
(T03-0856-05)
Dressing panel
(A21-3499-08)x2
Binding head
tapping screw
(N44-4016-45)x8
Enclosure ..................................................................................................Acoustic air suspension
Woofer .....................................................................................................100 mm, cone type x2
Tweeter .............................................................................................25 mm, balance dome type
Impedance ................................................................................................................................8
Maximum input level............................................................................................................60 W
Dimensions ...................................................................................................W: 350mm (13-3/4")
H: 150mm
(5-7/8")
D: 109mm
(7-1/2")
Net Weight ..........................................................................................................................2.9 kg
Note:
KENWOOD follows a policy of continuous advancements in development. For this reason
specifications may be changed without notice.

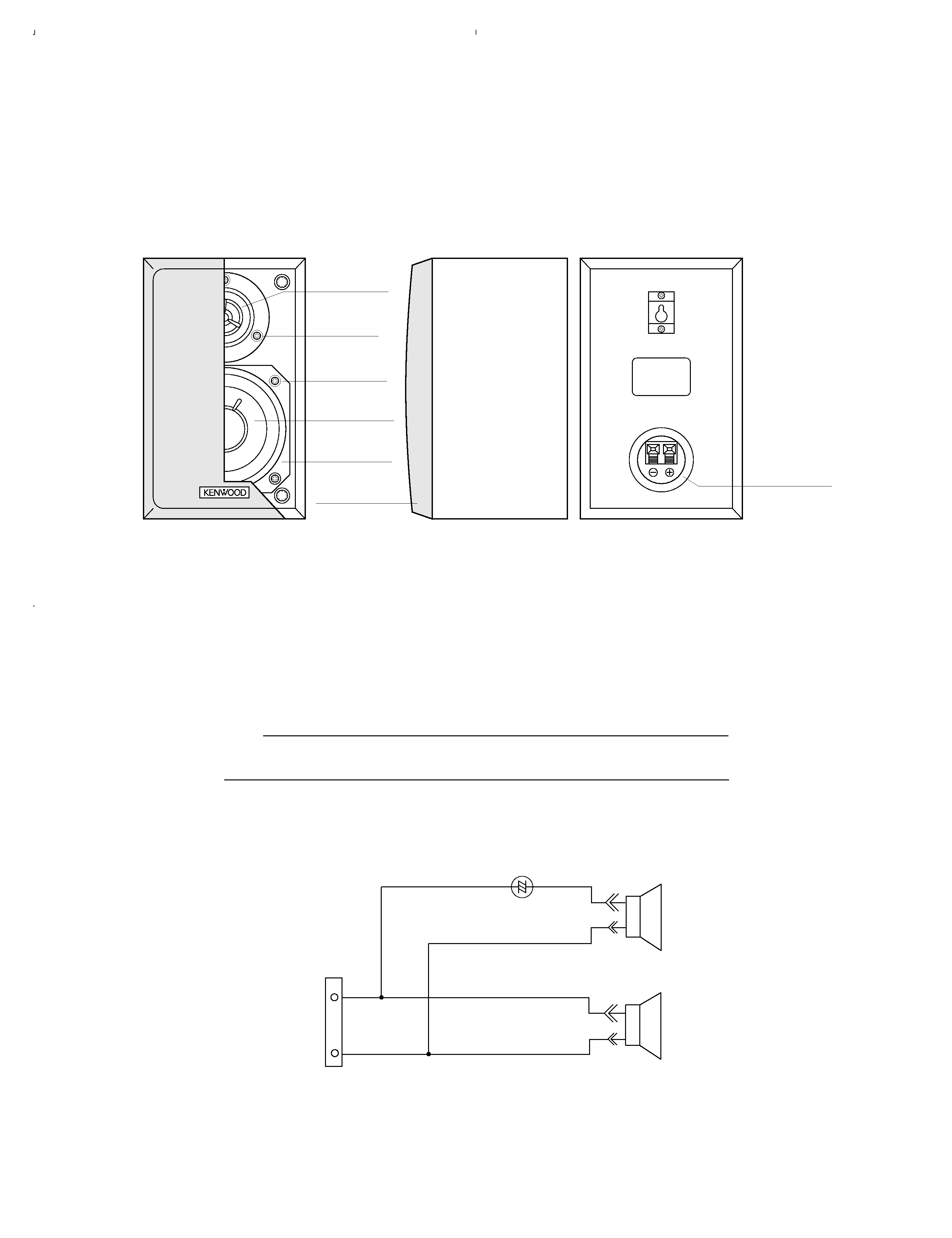

DIVIDING NETWORK UNIT
2
background image
EXTERNAL VIEW/SPECIFICATIONS/DIVIDING NETWORK UNIT
KS-706HT
C1
BLK
1.0
µ100
+
-
+
-
+
-
RED
RED
BLK
SURROUND SPEAKER
SURROUND SPEAKER: 2-WAY 2-SPEAKER SYSTEM
Enclosure ..........................................................................................Acoustic air suspension type
Woofer..........................................................................................................100 mm, cone type
Tweeter .............................................................................................25 mm, balance dome type
Impedance ................................................................................................................................8
Maximum input level............................................................................................................60 W
Dimensions .....................................................................................................W: 133mm (5-1/4")
H: 216mm (8-1/2")
D: 133mm (5-1/4")
Net Weight ..........................................................................................................................1.5 kg
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
SPECIFICATIONS
Grille assy
(B06-1659-08)
Woofer
(T10-1187-05)
Binding head
tapping screw
(N44-4016-45)x3
Tweeter
(T03-0857-05)
Dressing panel
(A21-3499-08)
Binding head
tapping screw
(N44-4016-45)x4
Push terminal
(E21-0939-08):(R)
(E21-0940-08):(L)
SP1
SP2
DIVIDING NETWORK UNIT
3
background image
PARTS LIST
-
B46-0310-03
WARRANTY CARD
E
-
B46-0328-03
WARRANTY CARD
K
-
B46-0347-03
WARRANTY CARD
P
-
*
B61-1150-00
INSTRUCTION MANUAL(ENGLISH)
-
*
B61-1160-00
INSTRUCTION MANUAL(ARABIC)
M
-
*
H10-8308-08
POLYSTYRENE FOAMED FIXTURE
-
*
H10-8309-08
POLYSTYRENE FOAMED FIXTURE
-
*
H10-8310-08
POLYSTYRENE FOAMED FIXTURE
-
*
H21-1376-08
PROTECTION SHEET (FRONT)
-
*
H21-1377-08
PROTECTION SHEET (CENTER)
-
*
H21-1378-08
PROTECTION SHEET (SURROUND)
-
*
H51-1825-08
ITEM CARTON CASE
KP
-
*
H51-1826-08
ITEM CARTON CASE
E
-
*
H51-1827-08
ITEM CARTON CASE
M
-
*
W01-1191-08
ACCESSORY(SPEAKER CORDx5)
X20-311
-
*
A21-3499-08
DRESSING PANEL
-
*
B06-1657-08
GRILLE ASSY (CENTER)
-
*
B06-1658-08
GRILLE ASSY (FRONT)
-
B06-1659-08
GRILLE ASSY (SURROUND)
C1
*
C90-5167-08
NP-ELEC
1.0UF
100WV
-
E21-0903-08
PUSH TERMINAL (FRONT)
-
*
E21-0937-08
PUSH TERMINAL (CENTER)
-
*
E21-0938-08
PUSH TERMINAL (FRONT)
-
*
E21-0939-08
PUSH TERMINAL (SURROUND)
-
*
E21-0940-08
PUSH TERMINAL (SURROUND)
-
*
J21-8891-08
MOUNTING HARDWARE
SP1
*
T10-1186-05
WOOFER (FRONT,CENTER)
SP1
*
T10-1187-05
WOOFER (SURROUND)
SP2
*
T03-0856-05
TWEETER (FRONT,CENTER)
SP2
*
T03-0857-05
TWEETER (SURROUND)
PARTS LIST
Ref. No.
Address
New
Parts
Parts No.
Description
Desti-
nation
Re-
marks
New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
KS-706HT
KS-706HT
L: Scandinavia
K: USA
P: Canada
R: Mexico
C: China
I: Malaysia
Y: PX(For East Hawaii) T: England
E: Europe
G: Germany
V: China(Shanghai)
Y: AAFES(Europe)
X: Australia
Q: Russia
H: Korea
M: Other Areas
indicates safety critical components.
FRONT/CENTER/SURROUND SPEAKER
