background image
MODEL
DESTINATION
FRONT
CENTER
SURROUND
LEFT
RIGHT
LEFT
RIGHT
BACK
KS-908HT
E
YES
YES
YES
YES
YES
NO
KS-908EX
K
YES
YES
YES
YES
YES
YES
SPEAKER SYSTEM
KS-908HT
KS-908EX
SERVICE MANUAL
EXTERNAL VIEW
SURROUND SPEAKER
FRONT SPEAKER
2004-5 PRINTED IN KOREA
B51-5902-00 (Z/K) 746
SYSTEM CONFIGURATIONS
CENTER SPEAKER
Push terminal
(E21-0960-05)
Binding head
taptite screw
(N89-3512-43)x12
Woofer
(T10-1251-15)x2
Protector
(F09-2008-08)
Flat head
tapping screw
(N47-3516-41)x2
Tweeter
(T03-0885-15)
Protector
(F09-2007-08)
Tweeter
(T03-0885-15)
Woofer
(T10-1251-15)x2
Binding head
taptite screw
(N89-3512-43)x12
Flat head
tapping screw
(N47-3516-41)x2
Push terminal
(E21-0960-05)
Binding head
machine screw
(N35-5010-41)x2
Tweeter
(T03-0885-15)
Woofer
(T10-1250-15)x4
Protector
(F09-2006-08)
Binding head
taptite screw
(N89-3512-43)x20
Flat head
tapping screw
(N47-3516-41)x2
Push terminal
(E21-0960-05)
Stand
(A09-0813-08)
Binding head
machine screw
(N35-6030-43)x3
Accessory
70%
background image
MODEL
DESTINATION
FRONT
CENTER
SURROUND
LEFT
RIGHT
LEFT
RIGHT
BACK
KS-908HT
E
YES
YES
YES
YES
YES
NO
KS-908EX
K
YES
YES
YES
YES
YES
YES
SPEAKER SYSTEM
KS-908HT
KS-908EX
SERVICE MANUAL
EXTERNAL VIEW
SURROUND SPEAKER
FRONT SPEAKER
2004-5 PRINTED IN KOREA
B51-5902-00 (Z/K) 746
SYSTEM CONFIGURATIONS
CENTER SPEAKER
Push terminal
(E21-0960-05)
Binding head
taptite screw
(N89-3512-43)x12
Woofer
(T10-1251-15)x2
Protector
(F09-2008-08)
Flat head
tapping screw
(N47-3516-41)x2
Tweeter
(T03-0885-15)
Protector
(F09-2007-08)
Tweeter
(T03-0885-15)
Woofer
(T10-1251-15)x2
Binding head
taptite screw
(N89-3512-43)x12
Flat head
tapping screw
(N47-3516-41)x2
Push terminal
(E21-0960-05)
Binding head
machine screw
(N35-5010-41)x2
Tweeter
(T03-0885-15)
Woofer
(T10-1250-15)x4
Protector
(F09-2006-08)
Binding head
taptite screw
(N89-3512-43)x20
Flat head
tapping screw
(N47-3516-41)x2
Push terminal
(E21-0960-05)
Stand
(A09-0813-08)
Binding head
machine screw
(N35-6030-43)x3
Accessory
70%
background image
2
Front
Center
Surround
System
2 way 5 speaker system
2 way 3 speaker system
Enclosure
Bass-reflex type
Acoustic air suspension type
Loudspeaker
Woofer
70 mm (2-3/4") cone type X 4
70 mm (2-3/4") cone type X 2
Tweeter
1.9 mm (3/4") dome type 1.9 mm (3/4") dome type
Nominal Impedance
8
8
Maximum Input Power
80 W
80 W
Frequency Response
75 - 40,000 Hz
110 - 40,000 Hz
Sensitivity
86 dB/W at 1 m
83 dB/W at 1 m
Dimensions
Width
220 mm (8-11/16")
280 mm (11")
76 mm (3")
Height
1154 mm (45-7/16")
104 mm (4-1/8")
230 mm (9-1/16")
Depth
220 mm (8-11/16")
81 mm (3-3/16")
78 mm (3-1/16")
Net Weight
5.3 kg (11.7 lb)
1.2 kg (2.7 lb)
1.1 kg (2.4 lb)
KS-908HT/908EX

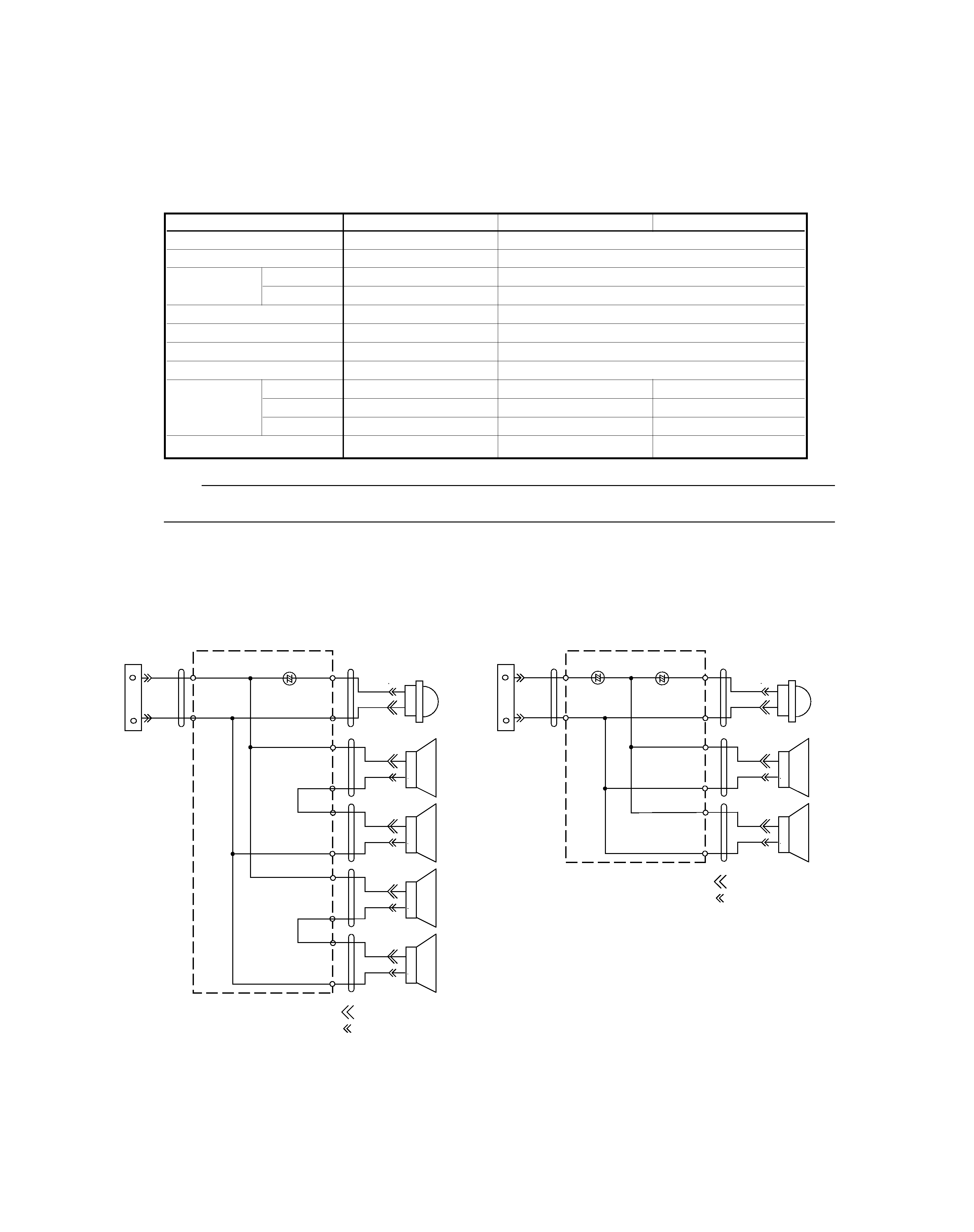

SPECIFICATIONS/DIVIDING NETWORK UNIT
INPUT
BLK
SP2
SP1
RED
BLK
+
-
+
-
+
-
GRN
BLK
; #. 205 FASTON
; #. 110 FASTON
BLU
SP1
BLK
+
-
BLU
SP1
BLK
+
-
BLU
SP1
BLK
+
-
BLU
C1
1
µ100
SPECIFICATIONS
FRONT SPEAKER
C2
INPUT
BLK
SP2
SP1
RED
BLK
+
-
100
µ100
+
-
+
-
GRN
BLK
; #. 205 FASTON
; #. 110 FASTON
BLU
SP1
BLK
+
-
BLU
C1
1
µ100
CENTER,SURROUND SPEAKER
Note:
KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without
notice.
DIVIDING NETWORK UNIT
background image
3
KS-908HT/908EX
DISASSEMBLY FOR REPAIR
SURROUND SPEAKER,CENTER SPEAKER
Replacing the protector or speaker driver
First, remove the top sub panel that is attached to the panel using
double-side adhesive tape.
Next, remove the protector by sliding it upwards
When replacing the protector or speaker driver of the center speaker,
remove the right panel in the same way as above.
Replacing the network component or push terminal
The network is attached on the bottom panel. Remove the bottom
panel in the same way as the method described in "Replacing the
protector or speaker driver".
To facilitate removal of the network, remove some speaker drivers.
The network for the center speaker is attached to the left panel.
The protector can also be removed by sliding it downwards (or
leftwards in case of the center speaker).
FRONT SPEAKER
Replacing the protector or speaker driver
First, remove the top sub panel that is attached to the panel using
double-side adhesive tape.
Next, remove the protector by sliding it upwards.
Replacing the network component
The network is attached on the top panel. Remove the top panel in the
same way as the method described in "Replacing the protector or
speaker driver."
To facilitate removal of the network, remove some speaker drivers.
Replacing the push terminal
Slide the protector upwards in the same way as the method described
in "Replacing the protector or speaker driver."
Slide the dressing plate upwards until it becomes possible to remove
the three screws clamping the joint.
Remove the screws clamping the joint and remove the bottom plate.
Disassembling this product results in damaging the panel and sub panel. Please prepare the spare panel and sub panel before
disassembly.
Sub panel
(A22-3502-08)
Panel
(A29-0976-08)
Flat head
taptite screw
(N88-3520-43)
Dressing plate
Joint
Sub panel
(A22-3502-08)
Panel
(A29-0976-08)
Flat head
taptite screw
(N88-3520-43)
background image
KS-908HT/908EX
PARTS LIST
CENTER SPEAKER
FRONT SPEAKER
KS-908HT/908EX
Ref.
No.
Address
New
Parts
Parts No.
Description
Desti-
nation
Re-
marks
New Parts
Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts
No. werden nicht geliefert.
SURROUND SPEAKER
L: Scandinavia
K: USA
P: Canada
R: Mexico
C: China
I: Malaysia
Y: PX(For East Hawaii) T: England
E: Europe
G: Germany
V: China(Shanghai)
Y: AAFES(Europe)
X: Australia
Q: Russia
H: Korea
M: Other Areas
-
*
B61-1216-00
INSTRUCTION MANUAL
E
-
*
B61-1218-00
INSTRUCTION MANUAL
K
-
*
E30-7061-05
SPEAKER CORD(WHITE FRONT L)
-
*
E30-7062-05
SPEAKER CORD(RED FRONT R)
-
*
E30-7063-05
SPEAKER CORD(GREEN CENTER)
-
*
E30-7064-05
SPEAKER CORD(BLUE SURROUND L)
-
*
E30-7065-05
SPEAKER CORD(GRAY SURROUND R)
-
*
E30-7066-05
SPEAKER CORD(BROWN SURROUND B)
K
-
*
G13-3042-05
CUSHION(ACCESSORY)
-
*
H10-8452-08
POLYSTYRENE FOAMED FIXTURE
-
*
H10-8453-08
POLYSTYRENE FOAMED FIXTURE
-
*
H10-8454-08
POLYSTYRENE FOAMED FIXTURE
-
*
H10-8469-08
POLYSTYRENE FOAMED FIXTURE
-
*
H10-8470-08
POLYSTYRENE FOAMED FIXTURE
K
-
*
H12-4009-08
PACKING FIXTURE
E
-
*
H13-1947-08
CARTON BOARD
-
*
H25-2598-08
PROTECTION BAG(FRONT)
-
*
H25-2599-08
PROTECTION BAG(CENTER)
-
*
H25-2600-08
PROTECTION BAG(SURROUND)
-
*
H25-2601-08
PROTECTION BAG(STAND)
-
*
H51-2063-08
ITEM CARTON CASE
E
-
*
H51-2066-08
ITEM CARTON CASE
K
-
*
J22-1012-05
MOUNTING HARDWARE(ACCESSORY)
-
*
N35-5010-41
BINDING HEAD SCREW(ACCESSORY)
-
*
N35-6030-43
BINDING HEAD SCREW(ACCESSORY)
-
*
A22-3502-08
SUB PANEL
-
*
A29-0976-08
PANEL
-
*
E21-0960-05
PUSH TERMINAL
-
*
F09-2006-08
PROTECTOR
C1
*
C90-6552-05
NP-ELEC 1.0UF 100WV
SP1
*
T10-1250-15
WOOFER
SP2
*
T03-0885-15
TWEETER
-
*
A09-0813-08
STAND
-
*
A22-3502-08
SUB PANEL
-
*
A29-0976-08
PANEL
-
*
E21-0960-05
PUSH TERMINAL
-
*
F09-2007-08
PROTECTOR
C1
*
C90-6552-05
NP-ELEC 1.0UF 100WV
C2
*
C90-6553-05
NP-ELEC 100UF
100WV
SP1
*
T10-1251-15
WOOFER
SP2
*
T03-0885-15
TWEETER
-
*
A22-3502-08
SUB PANEL
-
*
A29-0976-08
PANEL
-
*
E21-0960-05
PUSH TERMINAL
-
*
F09-2008-08
PROTECTOR
C1
*
C90-6552-05
NP-ELEC 1.0UF 100WV
C2
*
C90-6553-05
NP-ELEC 100UF
100WV
SP1
*
T10-1251-15
WOOFER
SP2
*
T03-0885-15
TWEETER
