background image
3-WAY 3-SPEAKER SYSTEM
KS-T335
SERVICE MANUAL
©1998-10/B51-5493-00 (Z/Z)

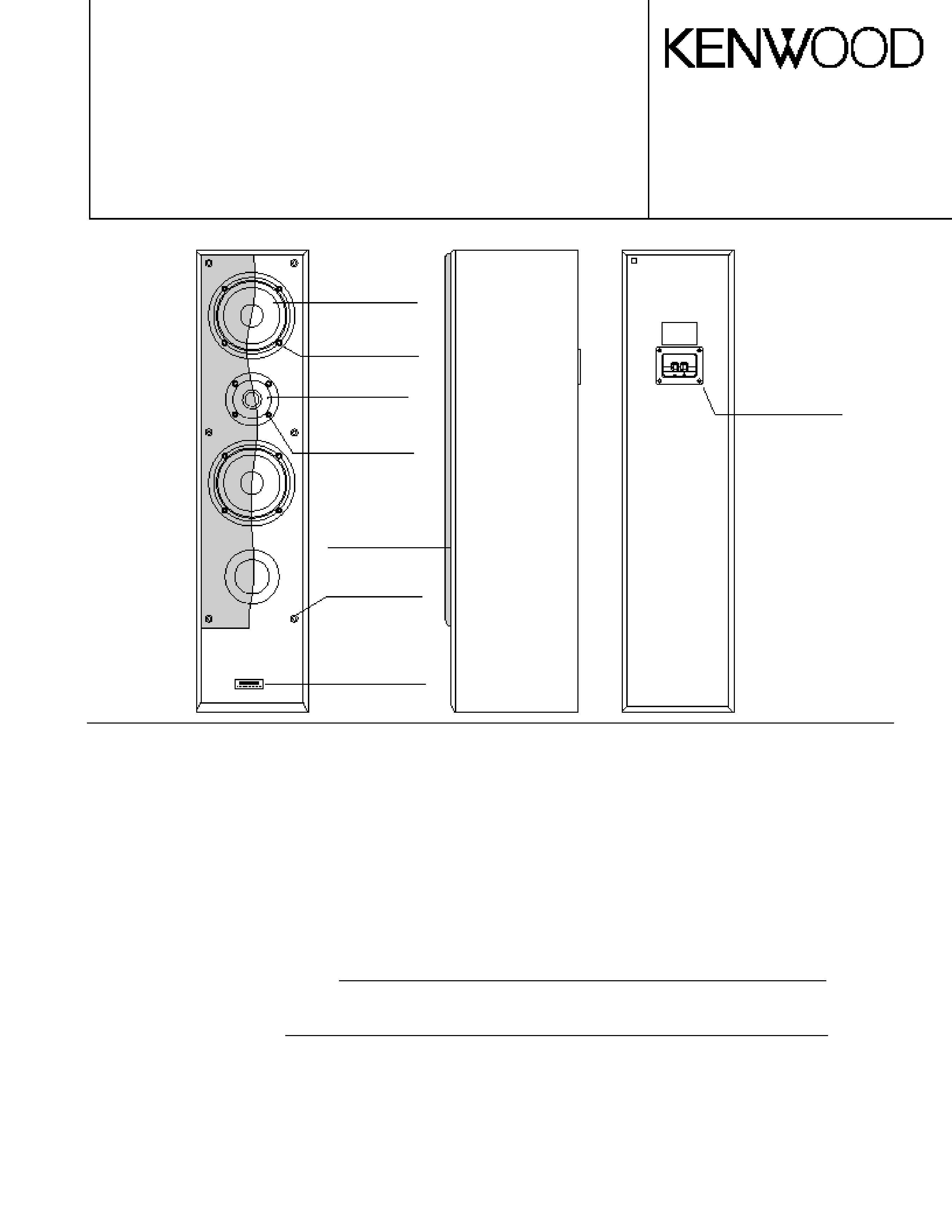

EXTERNAL VIEW
SPECIFICATIONS
Grille assy
(B06-1308-08)
Tweeter
(T03-0739-05)
Woofer
(T10-0873-05)x2
Grille holder
(J19-4094-05)x6
Enclosure ..............................................................................................................Bass-reflex type
Woofer ............................................................................................160 mm, (6-1/2 in) cone type
Tweeter....................................................................................................25 mm,(1 in) cone type
Impedance ...........................................................................................................................8 ohm
Maximum input level............................................................................................................80 W
Frequency response .........................................................................................40Hz ~ 25,000 Hz
Dimensions
W:230mm (9-1 / 16")
H: 965mm (38")
D: 260mm (10-1 / 4")
Net Weight ...............................................................................................17.0 kg (37.5 lb / piece)
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
Hexagon socket
head bolt
(N95-3020-45)x8
Flat head
tapping screw
(N47-3516-45)x4
Terminal
(E29-0973-05)
Badge
(B43-1326-04)
Hexagon socket
head bolt
(N95-3020-45)x4
background image
3-WAY 3-SPEAKER SYSTEM
KS-T335
SERVICE MANUAL
©1998-10/B51-5493-00 (Z/Z)
EXTERNAL VIEW
SPECIFICATIONS
Grille assy
(B06-1308-08)
Tweeter
(T03-0739-05)
Woofer
(T10-0873-05)x2
Grille holder
(J19-4094-05)x6
Enclosure ..............................................................................................................Bass-reflex type
Woofer ............................................................................................160 mm, (6-1/2 in) cone type
Tweeter....................................................................................................25 mm,(1 in) cone type
Impedance ...........................................................................................................................8 ohm
Maximum input level............................................................................................................80 W
Frequency response .........................................................................................40Hz ~ 25,000 Hz
Dimensions
W:230mm (9-1 / 16")
H: 965mm (38")
D: 260mm (10-1 / 4")
Net Weight ...............................................................................................17.0 kg (37.5 lb / piece)
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
Hexagon socket
head bolt
(N95-3020-45)x8
Flat head
tapping screw
(N47-3516-45)x4
Terminal
(E29-0973-05)
Badge
(B43-1326-04)
Hexagon socket
head bolt
(N95-3020-45)x4
background image
-
*
B06-1308-08
GRILLE ASSY
B
-
B43-1326-04
BADGE
J
-
B46-0329-03
WARRANTY CARD
B
-
*
B61-0997-00
INSTRUCTION MANUAL
B
-
E29-0973-05
TERMINAL
B
-
E30-5508-05
SPEAKER CORD
B
-
H10-6524-08
POLYSTYRENE FOAMED FIXTURE
B
-
H10-6534-08
POLYSTYRENE FOAMED FIXTURE
B
-
*
H21-1311-08
PROTECTION SHEET
B
-
*
H51-1227-08
ITEM CARTON CASE
B
-
J19-4095-05
GRILLE HOLDER
B
-
*
N14-0909-08
BUILD-IN NUT
B
SP1
*
T10-0873-05
WOOFER
B
SP2
*
T03-0739-05
TWEETER
B
X21-763
C1
*
C90-5033-08
NP-ELEC
10UF
100WV
B
C2
*
C90-5034-08
NP-ELEC
4.7UF
100WV
B
C3
*
C90-5036-08
FILM
2.2UF
250WV
B
C4
*
C90-5035-08
FILM
1UF
250WV
B
-
*
G13-1144-08
CUSHION
B
-
*
J61-0237-08
WIRE BAND
B
L1
*
L38-0720-08
COIL
0.5mH
B
L2
*
L38-0721-08
COIL
0.45mH
B
L3
*
L38-0722-08
COIL
0.25mH
B
L4
*
L38-0723-08
COIL
1.0mH
B
R1
*
R92-2307-08
CEMENT
4.7
5W
B
KS-T335
DIVIDING NETWORK UNIT/PARTS LIST
PARTS LIST
Ref. No.
Address
New
Parts
Parts No.
Description
Desti-
nation
Re-
marks
New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
DIVIDING NETWORK UNIT(X21-7632-10)
KS-T335
(X21-7632-10)
DIVIDING NETWORK UNIT
L: Scandinavia
K: USA
P: Canada
R: Mexico
C: China
I: Malaysia
Y: PX(For East Hawaii) T: England
E: Europe
G: Germany
V: China(Shanghai)
Y: AAFES(Europe)
X: Australia
Q: Russia
H: Korea
M: Other Areas
indicates safety critical components.
KENWOOD CORPORATION
14-6, Dogenzaka 1-chome, Shibuya-ku, Tokyo, 150 Japan
