DIPOLE SURROUND TYPE 2-WAY 3-SPEAKER SYSTEM
RS-552/610
SERVICE MANUAL
©1998-6/B51-5447-00 (Z/K)404
EXTERNAL VIEW
SPECIFICATIONS
Woofer
(T10-0856-05)
Dividing network unit
(X21-7540-20)
Grille holder
(J19-3988-08)x4
Full range
(T07-0458-05)x2
Grille assy
(B06-1276-03)
Enclosure.......................................................................................................Acoustic air suspension type
Woofer...............................................................................................................100 mm, (4 in) cone type
Full range............................................................................................................80 mm, (3 in) cone type
Impedance............................................................................................................................................8
Maximum input level ........................................................................................................................70 W
Dimensions ...........................................................................................................W:170mm (6-11/16")
H: 235mm (9-1/4")
D: 125mm (4-15/16")
Net Weight ..............................................................................................................2.5 kg (5.5 lbs / piece)
Note:
KENWOOD follows a policy of continuous advancements in development. For this reason
specifications may be changed without notice.
Binding head
tapping screw
(N44-4016-45)x4
Flat head
tapping screw
(N47-3516-45)x4
Binding head
tapping screw
(N44-4016-45)x8
Grille assy
(B06-1278-03)x2
Grille holder
(J19-3988-08)x8
Binding head
tapping screw
(N44-4016-45)x2
Mounting hardware
(J21-8768-05)
RS-552 : C type
RS-610 : M type
RS-610 98.12.1115:43 y[W 2
background image
DIPOLE SURROUND TYPE 2-WAY 3-SPEAKER SYSTEM
RS-552/610
SERVICE MANUAL
©1998-6/B51-5447-00 (Z/K)404
EXTERNAL VIEW
SPECIFICATIONS
Woofer
(T10-0856-05)
Dividing network unit
(X21-7540-20)
Grille holder
(J19-3988-08)x4
Full range
(T07-0458-05)x2
Grille assy
(B06-1276-03)
Enclosure.......................................................................................................Acoustic air suspension type
Woofer...............................................................................................................100 mm, (4 in) cone type
Full range............................................................................................................80 mm, (3 in) cone type
Impedance............................................................................................................................................8
Maximum input level ........................................................................................................................70 W
Dimensions ...........................................................................................................W:170mm (6-11/16")
H: 235mm (9-1/4")
D: 125mm (4-15/16")
Net Weight ..............................................................................................................2.5 kg (5.5 lbs / piece)
Note:
KENWOOD follows a policy of continuous advancements in development. For this reason
specifications may be changed without notice.
Binding head
tapping screw
(N44-4016-45)x4
Flat head
tapping screw
(N47-3516-45)x4
Binding head
tapping screw
(N44-4016-45)x8
Grille assy
(B06-1278-03)x2
Grille holder
(J19-3988-08)x8
Binding head
tapping screw
(N44-4016-45)x2
Mounting hardware
(J21-8768-05)
RS-552 : C type
RS-610 : M type
RS-610 98.12.1115:43 y[W 2
background image
-
*
B06-1276-03
GRILLE ASSY
-
*
B06-1278-03
GRILLE ASSY
-
*
B46-0343-03
WARRANTY CARD
C
-
*
B61-0976-00
INSTRUCTION MANUAL
M
-
*
B61-0994-00
INSTRUCTION MANUAL
C
-
*
E30-5507-05
SPEAKER CORD
C
-
*
H10-6581-08
PORYSTYRENE FOAMED FIXTURE
-
*
H25-2180-08
PROTECTION BAG
C
-
*
H25-2231-08
PROTECTION BAG
-
*
H51-1185-08
ITEM CARTON CASE
M
-
*
H51-1221-08
ITEM CARTON CASE
C
-
J19-3988-08
GRILLE HOLDER
-
*
J21-8768-05
MOUNTING HARDWARE
SP1
*
T10-0856-05
WOOFER
SP2
*
T07-0458-05
FULL RANGE
X21-754
C1
C90-2495-05
NP-ELEC
8.2UF
100WV
RS-552/610
PARTS LIST
Ref. No.
Address
New
Parts
Parts No.
Description
Desti-
nation
Re-
marks
New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
RS-552/610
DIVIDING NETWORK UNIT/PARTS LIST
L: Scandinavia
K: USA
P: Canada
R: Mexico
C: China
I: Malaysia
Y: PX(For East Hawaii) T: England
E: Europe
G: Germany
V: China(Shanghai)
Y: AAFES(Europe)
X: Australia
Q: Russia
H: Korea
M: Other Areas
indicates safety critical components.

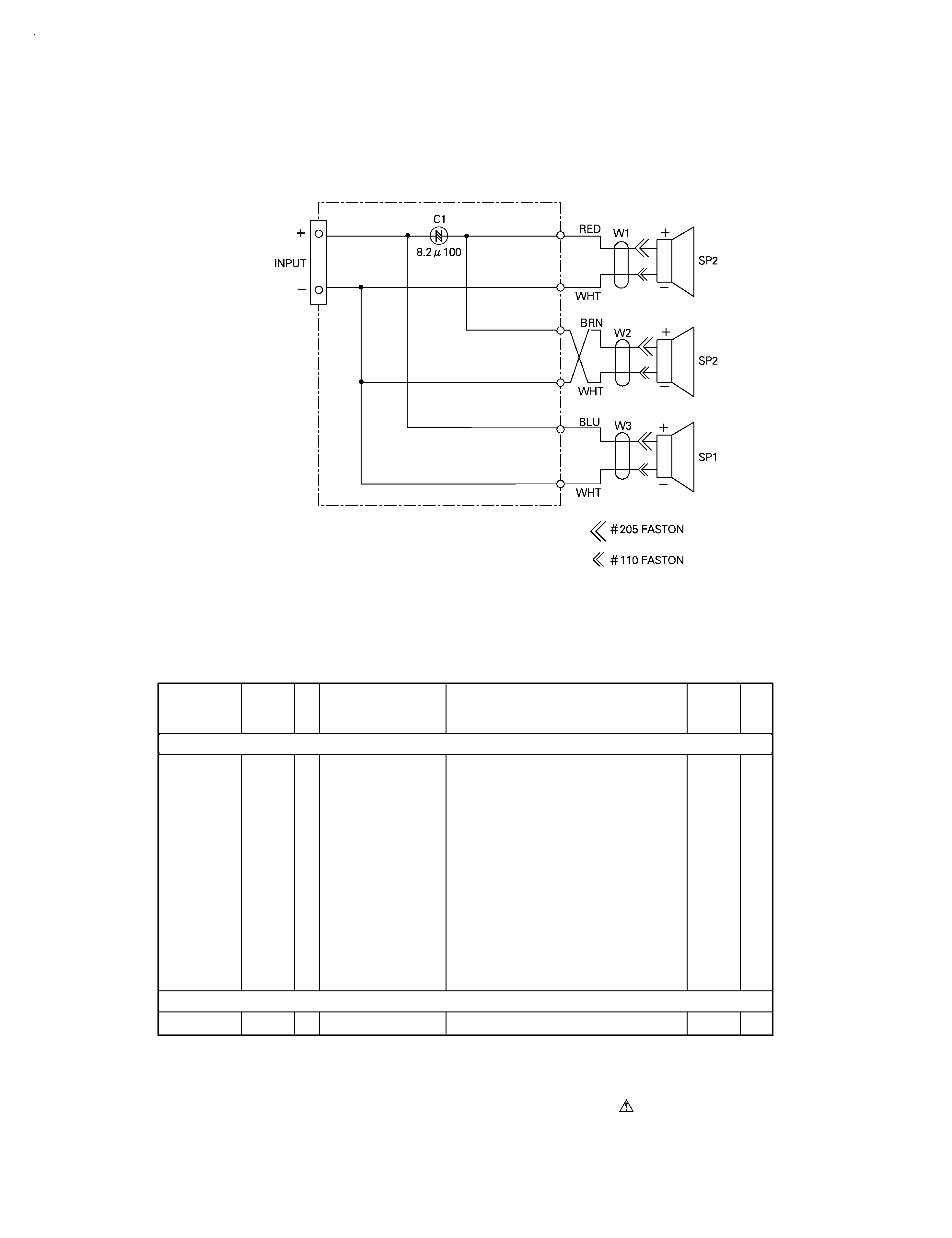

DIVIDING NETWORK UNIT(X21-7540-20)
DIVIDING NETWORK UNIT
2
RS-610 98.12.1115:43 y[W 1
