KENWOOD SW-18HT Service Manual

Cover page of KENWOOD SW-18HT Service Manual

Service Manual for KENWOOD SW-18HT, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 2 pages
  • File size: 0.06 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6
background image
SW-18HT
SERVICE MANUAL
2004-5 PRINTED IN KOREA
B51-5896-10 (Z/K) 153

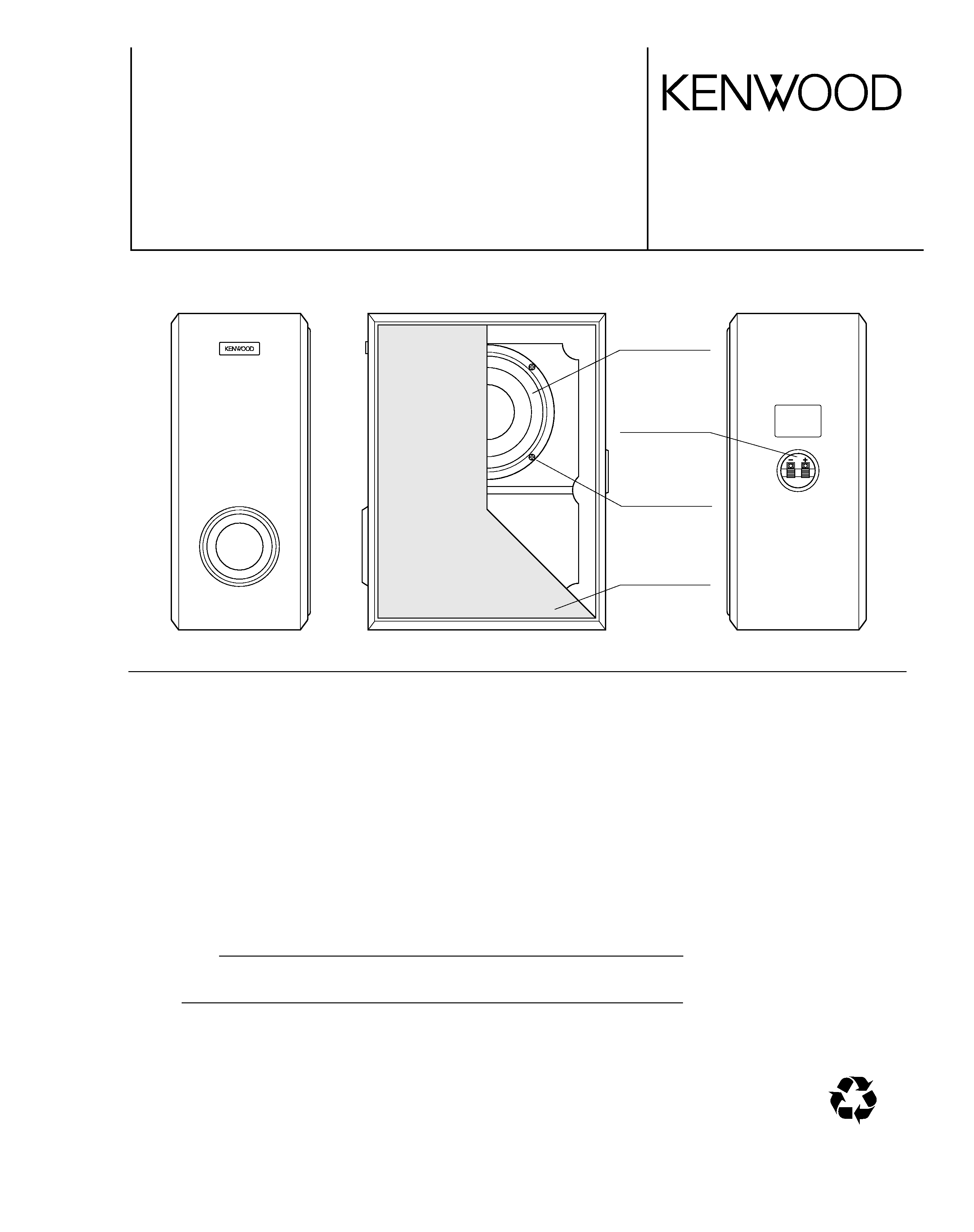

SPECIFICATIONS
CAUTION: THE GRILLE ASSY CANNOT BE REMOVED.
Grille ass'y
(B06-1786-08)
Push terminal
(E21-0903-08)
Woofer
(T10-1247-05)
Binding head
tapping screw
(N44-4020-45)x4
Enclosure ..............................................................................................................Bass-reflex type
Loudspeaker ...........................................................................Woofer 160 mm (6-1/2") cone type
Impedance ................................................................................................................................8
Maximum input power.........................................................................................................80 W
Sensitivity .............................................................................................................83 dB/W at 1m
Frequency response .............................................................................................40 Hz ~ 700 Hz
Dimensions.................................................................................................W :
175 mm (6-7/8")
H : 400 mm (15-3/4")
D : 306 mm (12-1/16")
Net Weight ............................................................................................................5.2 kg (11.5 lb)
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
SUBWOOFER
EXTERNAL VIEW
70%
background image
SW-18HT
SERVICE MANUAL
2004-5 PRINTED IN KOREA
B51-5896-10 (Z/K) 153
SPECIFICATIONS
CAUTION: THE GRILLE ASSY CANNOT BE REMOVED.
Grille ass'y
(B06-1786-08)
Push terminal
(E21-0903-08)
Woofer
(T10-1247-05)
Binding head
tapping screw
(N44-4020-45)x4
Enclosure ..............................................................................................................Bass-reflex type
Loudspeaker ...........................................................................Woofer 160 mm (6-1/2") cone type
Impedance ................................................................................................................................8
Maximum input power.........................................................................................................80 W
Sensitivity .............................................................................................................83 dB/W at 1m
Frequency response .............................................................................................40 Hz ~ 700 Hz
Dimensions.................................................................................................W :
175 mm (6-7/8")
H : 400 mm (15-3/4")
D : 306 mm (12-1/16")
Net Weight ............................................................................................................5.2 kg (11.5 lb)
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
SUBWOOFER
EXTERNAL VIEW
70%
background image
SW-18HT
DISASSEMBLY FOR REPAIR/DIVIDING NETWORK UNIT/PARTS LIST
INPUT
RED
BLK
+
-
+
-
SP1
New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
-
*
B06-1786-08
GRILLE ASS'Y
-
*
B61-1212-00
INSTRUCTION MANUAL
-
E21-0903-08
PUSH TERMINAL
-
*
E30-7059-05
SPEAKER CORD
-
G13-1187-08
CUSHION(ACCESSORY)
-
*
H10-8435-08
POLYSTYRENE FOAMED FIXTURE
-
*
H51-2055-08
ITEM CARTON CASE
SP1
*
T10-1247-05
WOOFER
Ref. No.
Address
New
Parts
Parts No.
Description
Desti-
nation
Re-
marks
SW-18HT
PARTS LIST
DIVIDING NETWORK UNIT
DISASSEMBLY FOR REPAIR
Replacing the grille ass'y or woofer
To remove the grill ass'y from the cabinet, cut the cloth
covering the grille ass'y and take it out as shown in the
following figure.
