SPECIFICATIONS
Type .......................................... Subwoofer system with built-in
amplifier
[Amplifier]
100 watts RMS, at 4 W, from 20 Hz to 200 Hz with no more
than 0.09 % total harmonic distortion.
Phase Switching ..................... NORMAL, REVERSE
Input Sensitivity & Input Impedance
RCA-type pin-plug jack ....... 45 mV (12 kW)
Push-type terminals ............ 0.7 V (5 kW)
Supply Voltage ....................... U.S.A. and Canada
AC 120 V
Other countries AC 110 V - 120 V/ AC 220 V - 240 V
Rated Power Consumption .. 110 W
[Speaker]
Enclosure ................................. Bass-Reflex,
Floor
Standing
Type
Speaker Units ......................... 250 mm Cone type
Nominal Impedance .............. 4 W
Dimensions .............................. Width : 300 mm (11-13/16")
Height : 420 mm (16-9/16")
Depth : 444 mm (17-1/2")
Net Weight .............................. 16 kg (35.3 lb)
Supplied Accessories ............ Pin-plug cord
× 1
.................................................... Pads
(
× 4)
NOTE: DO NOT REMOVE THE GRILLE.
Note:
KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
LINE
PHASE
LEVEL CONTROL
REVERSE
NORMAL
FROM AMPLIFIER
+­­+
+­­+
TO SPEAKERS
POWER
ON
RL
R
L
INPUT
OFF
SERIAL NO.
Level control knob
(K29-0576-08)
POWER SUBWOOFER
SW-3HT
SERVICE MANUAL
© 1997-11/B51-5394-00 (K/K) 1396
* Refer to parts list on page 7.

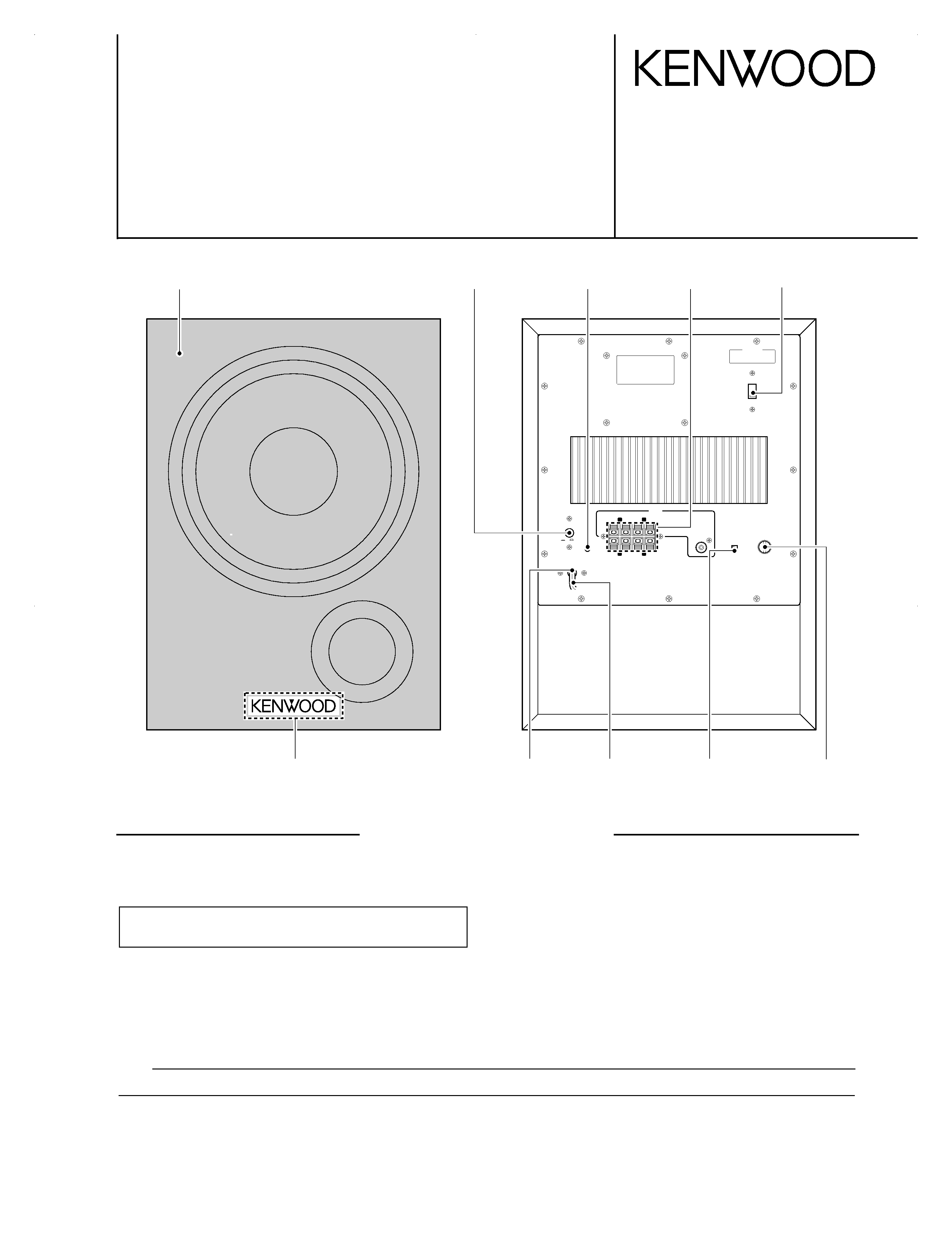

LED
