POWERED SUBWOOFER
SW-508-ML/508-B
SERVICE MANUAL
© 2004-8 PRINTED IN KOREA
B51-5920-00 (K/K) 1055
SPECIFICATIONS
Type ............. Subwoofer system with built-in amplifier
[Amplifier]
Dynamic Power ........................... 75 W + 75 W (6
)
Rated Output Power 60 W + 60 W RMS (100 Hz,6
)
Input Sensitivity / Impedance
LINE INPUT .................................. 230 mV (22 k
)
SPEAKER INPUT (1ch input)......... 2.0 V (6.5 k
)
Frequency Responce
TURNOVER ON ........................... 15 Hz ~ 200 Hz
TURNOVER OFF......................... 15 Hz ~ 3.5 kHz
Rated Power Consumption ............................ 100 W
Notes:
1. Kenwood follows a policy of continuous advancements in development. For this reason, specifications may be changed without
notice.
2. Full performance may not be exhibited in extremely cold locations (below 0 deg. C).
[Speaker]
Enclosure .............. Bass-Reflex, Floor Standing Type
Speaker Units ......... 160 mm (6-5/16") Cone type x 2
Nominal Impedance ............................................ 6
Dimensions
Width ........................................ : 219 mm (8-5/8 ")
Height ................................... : 439 mm (17-5/16 ")
Depth .................................... : 392 mm (15-7/16 ")
Net Weight ....................................... 14.5 kg (32.0 lb)
70%
Knob
(K29-0595-18)x2
Protector
(F09-2010-08)
Cord bushing
(J42-0261-08)
Switch vol sel
(S62-0221-05)
AC power cord *
(E30-)
Woofer
(T10-1252-05)x2
Knob
(K29-0594-08)
Panel
(A29-0977-08)
SPK jack
(E21-0962-05)
Switch auto off
(S62-0220-05)
Knob
(K29-0594-08)
* Refer to parts list on page 6.
RCA
(E63-0223-08)
background image
POWERED SUBWOOFER
SW-508-ML/508-B
SERVICE MANUAL
© 2004-8 PRINTED IN KOREA
B51-5920-00 (K/K) 1055
SPECIFICATIONS
Type ............. Subwoofer system with built-in amplifier
[Amplifier]
Dynamic Power ........................... 75 W + 75 W (6
)
Rated Output Power 60 W + 60 W RMS (100 Hz,6
)
Input Sensitivity / Impedance
LINE INPUT .................................. 230 mV (22 k
)
SPEAKER INPUT (1ch input)......... 2.0 V (6.5 k
)
Frequency Responce
TURNOVER ON ........................... 15 Hz ~ 200 Hz
TURNOVER OFF......................... 15 Hz ~ 3.5 kHz
Rated Power Consumption ............................ 100 W
Notes:
1. Kenwood follows a policy of continuous advancements in development. For this reason, specifications may be changed without
notice.
2. Full performance may not be exhibited in extremely cold locations (below 0 deg. C).
[Speaker]
Enclosure .............. Bass-Reflex, Floor Standing Type
Speaker Units ......... 160 mm (6-5/16") Cone type x 2
Nominal Impedance ............................................ 6
Dimensions
Width ........................................ : 219 mm (8-5/8 ")
Height ................................... : 439 mm (17-5/16 ")
Depth .................................... : 392 mm (15-7/16 ")
Net Weight ....................................... 14.5 kg (32.0 lb)
70%
Knob
(K29-0595-18)x2
Protector
(F09-2010-08)
Cord bushing
(J42-0261-08)
Switch vol sel
(S62-0221-05)
AC power cord *
(E30-)
Woofer
(T10-1252-05)x2
Knob
(K29-0594-08)
Panel
(A29-0977-08)
SPK jack
(E21-0962-05)
Switch auto off
(S62-0220-05)
Knob
(K29-0594-08)
* Refer to parts list on page 6.
RCA
(E63-0223-08)
background image
SW-508-ML/508-B
2
CONTENTS / ACCESSORIES / DISASSEMBLY FOR REPAIR
CONTENTS
SPECIFICATIONS ...............................FRONT COVER
CONTENTS / ACCESSORIES ....................................2
DISASSEMBLY FOR REPAIR .....................................2
PC BOARD ..................................................................3
SCHEMATIC DIAGRAM ..............................................4
EXPLODED VIEW .......................................................5
PARTS LIST.................................................................6
Pin-plug cord (1)
(E30-7068-05)
Cushion (1 sheet)
(G13-3043-05)
AC plug adapter (1)
Use to adapt the plug on the power cord to
the shape of the wall outlet.
(Accessory only for regions where use is
necessary.)
ACCESSORIES
DISASSEMBLY FOR REPAIR
Amplifier
unit
HOW TO REMOVE THE AMPLIFIER UNIT
1. Remove the woofer from the cabinet (see "EXPLOD-
ED VIEW" on page 5)
2. Disconnect the cable from the amplifier unit.
3. Remove the amplifier unit from the cabinet (see
"EXPLODED VIEW" on page 5).
background image
3
AC
E
BD
2
1
3
5
7
4
6
Refer to the schematic diagram for the value of resistors and capacitors.

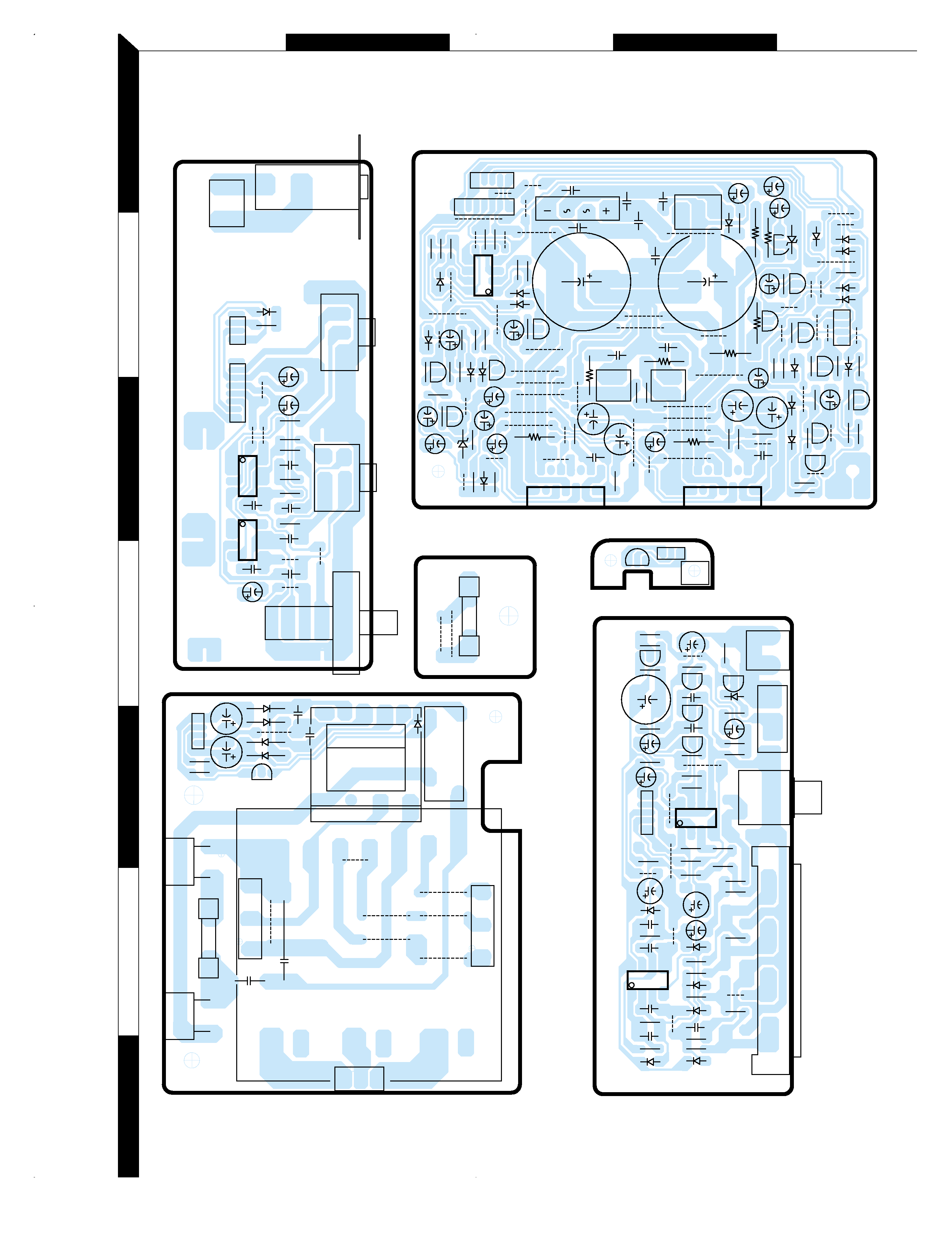

PC BOARD (Component side view)
