CD MECHANISM ASSY
SERVICE MANUAL
X92-4430-0x
X92-4450-0x
DESCRIPTION MECHANISM
X92-4430-00 (DXM-6010W)
X92-4430-01 (DXM-6011W)
X92-4430-02 (DXM-6012W)
X92-4430-03 (DXM-6013W)
X92-4450-00 (DXM-6110W)
X92-4450-01 (DXM-6111W)
X92-4450-02 (DXM-6112W)
X92-4450-03 (DXM-6113W)
outer-chassis
dumper (X4)
floating spring (X4)
traverse chassis assy
Mecha PCB
roller spring
roller lever assy
damper bracket
disc guide assy

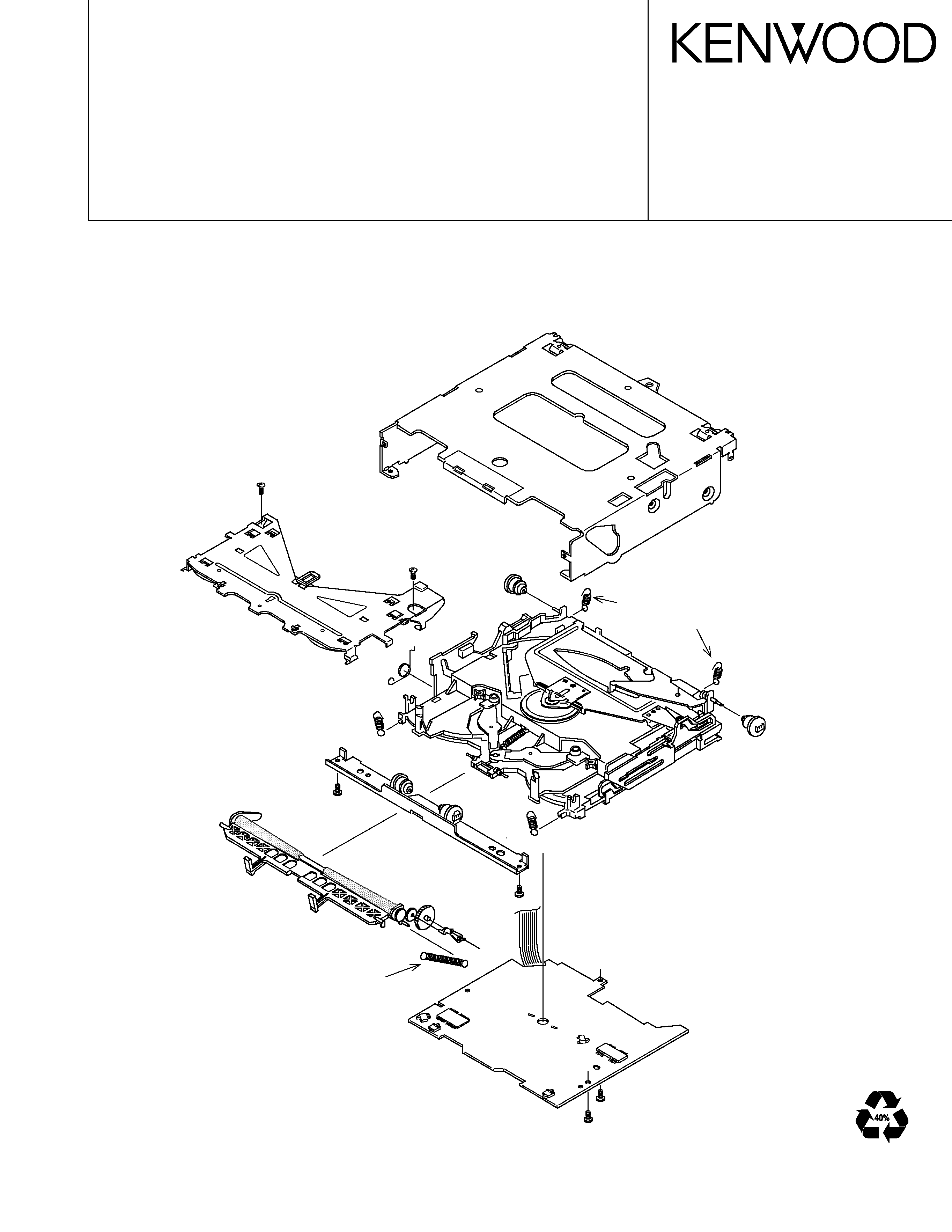

CONSTRUCTION OF MAJOR PARTS
background image
© 2002-1 PRINTED IN JAPAN
B51-7889-00 (N) 3415
CD MECHANISM ASSY
SERVICE MANUAL
X92-4430-0x
X92-4450-0x
DESCRIPTION MECHANISM
X92-4430-00 (DXM-6010W)
X92-4430-01 (DXM-6011W)
X92-4430-02 (DXM-6012W)
X92-4430-03 (DXM-6013W)
X92-4450-00 (DXM-6110W)
X92-4450-01 (DXM-6111W)
X92-4450-02 (DXM-6112W)
X92-4450-03 (DXM-6113W)
outer-chassis
dumper (X4)
floating spring (X4)
traverse chassis assy
Mecha PCB
roller spring
roller lever assy
damper bracket
disc guide assy
CONSTRUCTION OF MAJOR PARTS
background image
2
X92-4430-0x
X92-4450-0x
NOTE FOR HANDLING MECHANISM ASSY
Trigger Lever
Pick is under the finger, it
may touch.
NG
Don't touch the lever be-
cause the trigger lever
comes off.
NG
Don't have the center of
entrance because the disc
insertion mouth is trans-
formed.
NG
OK
OK
PICK UP
SPINDLE MOTOR
SLIDER ASSY
ROLLER
OK
OK
NG
· Don't touch in the frame, since grease is
applied to the parts.
· Don't applied grease to the roller.
· Don't touched PICK and SPINDLE MOTOR.
background image
X92-4430-0x
X92-4450-0x
3
EF
A
C
B
TR COIL
FO COIL
APC
1 CHIP IC
SERVO
MI-COM
IC2
Q1
16.93MHz
CLOCK
X1
DRIVER
MOTOR
IC4
PROCESSOR
SPINDLE
MOTOR
MOTOR
& SLED
LPF
IC6
8V SW
Q3
Q2
SW
S3
S4
S1
S2
D. GND
(0-01)
ONLY
RF AMP
IC1
LOADING
REF
5V REG
D2
S. GND
A. GND
D. GND
SLED
LOADING
Q5
SW
5V SW
Q4
D. GND
PICK-UP
MOTHER BOARD
6
VREF
L-ch
R-ch
A. GND
A. +8V
D. GND
BU. +5V
LOE/LIM SW
8EJE SW
12EJE SW
LOS SW
S7.5V
LO/EJ
MOTOR
S. GND
VREF
VREF
2
2
7
DRV MUTE
MUTE
DOUT
DATA
4
2
CLK
MSTOP
MRST
MUTE L
MUTE R
2
2
H
L
11
D+5V
24
4
3
1
2
22
23
11
10
8
9
17
19
16
18
15
14
13
12
20
21
BLOCK DIAGRAM
COMPONENTS DESCRIPTION
Ref.No.
Component Name
Application/Function
Operation/Condition/Compatibility
Generation of RF signal based on the sig-
nals from the APC circuit and pickup, and
generation of servo error (focusing error
and tracking error) signals.
Detection of dropout, anti-shock, track
crossing and off-track conditions, included
gain control function during CD-RW.
Focusing, tracking, sled and spindle servo
processing. Automatic adjustment (focus-
ing, tracking, gain, offset and balance) oper-
ations. Digital signal processing (DSP, PLL,
sub-codes, CIRC error correction, audio
data interpolaration) operations, and
Microcomputer function.
Focusing, tracking, sled and spindle servo
processing. Automatic adjustment (focus-
ing, tracking, gain, offset and balance) oper-
ations. Digital signal processing (DSP, PLL,
sub-codes, CIRC error correction, audio
data interpolaration) operations, included
CD-text decoder and Microcomputer func-
tion.
Focusing coil, tracking coil, spindle motor
and sled motor driver, disc loading and
eject operation.
2nd low pass filter for audio signals
LD power control
When D.5V SW is turned on, Q2 and Q3
are turned on, and A.+8V is supplied to low
pass filter circuit and D/A converter.
When PON goes Hi, Q4 and Q5 are turned
on, and BU+5V is supplied to microproces-
sor peripheral circuit, IC1 and the pickup.
qCD PLAYER UNIT (X32-5180-0X, X32-5200-0X)
IC1
IC2
IC2
IC4
IC6
Q1
Q2
Q3
Q4
Q5
AN22000AA
MN662774KJ2
(X32-5180-0X)
MN662773KH2
(X32-5200-0X)
BA5824FP
NJM4580M1
MCH6101
DTC124EUA
DTA143XUA
2SA1362(Y)
DTC124EUA
RF amplifier adapted for CD-RW
CD signal processor bult-in MI-COM.
CD signal processor bult-in MI-COM.
4CH BTL driver
Low pass filter
APC
A.8V SW
D.5V SW
background image
X92-4430-0x
X92-4450-0x
4
MICROCOMPUTER'S TERMINAL DESCRIPTION
qIC2(CD PLAYER UNIT : X32-5180-0X, X32-5200-0X)
Pin No.
Pin Name
I/O
Description
Processing Operation
1
BDO
I
Dropout signal input
Hi : Dropout detected
2
OFT
I
Off-track signal input
Hi : Off-track detected
3
/RFDET
I
RF detection input
Hi : RF signal detected
4
VDET
I
Vibration detection input
Hi : Vibration detected
5
LDON
O
Laser diode ON signal output
Hi : Laser diode ON
6,7
NC
-
Not used (N.C.)
8
AVSS3
-
Ground connection terminal for analogue circuits
Connected to GND lines.
9
AVDD3
-
Positive power supply connection terminal for analogue circuits
Connected to BU 5V lines.
10
FBAL
O
Focusing balance adjustment output
11
TBAL
O
Tracking balance adjustment output
12
FE
I
Focusing error signal input
13,14
NC
-
Not used (N.C.)
15
TE
I
Tracking error signal input
16-18
NC
-
Not used (N.C.)
19
RFENV
I
RF envelope signal input
20
VREF
I
VREF input terminal
21
ARF
I
RF signal input (for DSL)
22
DRF
I
DSL bias terminal
23
DSLF
I/O
DSL loop filter terminal
24
IREF
I
Reference current input terminal
25
PLLF
I/O
PLL loop filter terminal
26
PLLF2
I/O
PLL loop filter characteristic switching terminal
27
VCOF
I/O
VCO loop filter terminal
28
VCOF2
I/O
VCO loop filter terminal
Digital servo 33.8688MHz generation
29
TRV
O
Traverse forced feed output
30
TVD
O
Traverse drive output
31
PC
O
Spindle motor ON/OFF output (Lo : ON)
Not used (N.C.)
32
ECM
O
Spindle motor drive output (forced mode output)
33
ECS
O
Spindle motor drive output
34
KICK
O
Kick pulse output
35
TRD
O
Tracking drive output
36
FOD
O
Focusing drive output
37
TOFS
O
Tracking off-set adjustment output
38
AVDD2
-
Positive power supply connection terminal for analogue circuits
(for DSL, PLL, AD, DA)
Connected to BU 5V lines.
39
AVSS2
-
Ground connection terminal for analogue circuits
(for DSL, PLL, AD, DA)
Connected to GND lines.
40
DVSS2
-
Ground connection terminal for digital circuits
Connected to GND lines.
41
EFM or CK384
O
EFM signal output
Not used (N.C.)
42
PCK or DSLB
O
PLL sampling clock output
43
/CLDCK
O
Sub-code frame clock signal output
Not used (N.C.)
44
FCLK
O
Crystal frame clock signal output
Not used (N.C.)
45
IPFLAG
O
Interpolation flag signal output (Hi : Interpolated)
Not used (N.C.)
46
FLAG
O
Flag signal output
Not used (N.C.)
47
TRCRS
I
Track crossing signal input
48
STOUT
O
Serial data output for monitor signal
Not used (N.C.)
49
STLD
O
Load output for monitor signal
Not used (N.C.)
50
SMCK
O
Bit clock signal output for monitor signal
Not used (N.C.)
51
CSEL
I
Crystal oscillation frequency selection terminal
Hi : 33.8688MHz, Lo : 16.9344MHz
