NAD

510

· OWNER'S MANUAL

· MANUEL D'INSTALLATION

· BEDIENUNGSANLEITUNG

· MANUAL DEL USUARIO

· MANUALE DELLE ISTRUZIONI

· BRUKSANVISNINGARNA

NAD

510

· OWNER'S MANUAL

· MANUEL D'INSTALLATION

· BEDIENUNGSANLEITUNG

· MANUAL DEL USUARIO

· MANUALE DELLE ISTRUZIONI

· BRUKSANVISNINGARNA

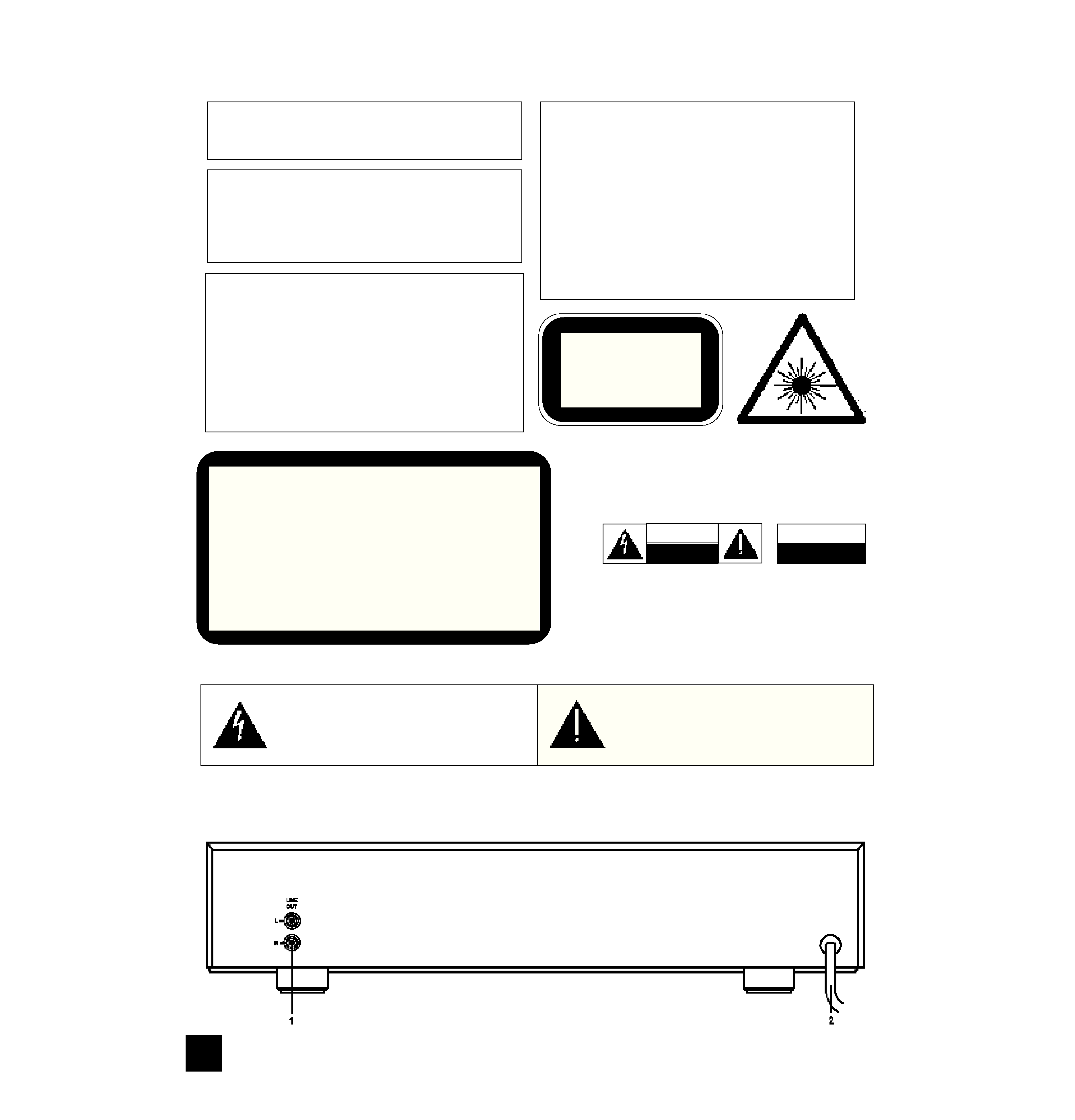

REAR PANEL CONNECTIONS (Figure 1.)

WARNING:TO PREVENT FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE

CAUTION: TO PREVENT ELECTRIC SHOCK DO

NOT USE THIS POLARISED PLUG WITH AN

EXTENSION CORD RECEPTACLE OR OTHER

OUTLET UNLESS THE BLADES CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE.

ATTENTION: POUR PREVENIR LES CHOCS ELEC-

TRIQUES NE PAS UTILISER CETTE FICHE

POLARISEE AVEC UN PROLONGATEUR, UNE

PRISE DE COURANT OU UNE AUTRE SORTIE DE

COURANT, SAUF SI LES LAMES PEUVENT ETRE

INSEREES A FOND SANS EN LAISSER AUCUNE

PARTIE A DECOUVERT.

The lightning flash with arrowhead, within an equilateral tri-

angle is intended to alert the user of the presence of unin-

sulated "dangerous voltage" within the product's enclo-

sure; that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intend-

ed to alert the user of the presence of important operating

and maintenance (servicing) instructions in the literature

accompanying the appliance

Note to CATV system installer: This reminder is provided

to call the CATV installer's attention to Article 820-40 of the

NEC , which provides guidelines for proper grounding and,

in particular, specifies that the cable should be connected

to the grounding system of the building, as close to the

point of cable entry as practical.

NAD

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERPLAITE

KLASS 1 LASERAPPARAT

WARNING! INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.

AVOID EXPOSURE TO BEAM.

VORSICHT! UNSICHTBARE LASERSTRAHLEN TRITT AUS, WENN DECKEL GEÖFFNET

UND WENN SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT IST. NICHT DEM STRAHL

AUSSETZEN.

ADVARSEL - USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE

ER UDE AF FUNKTION.UNDGÅ UDSÆTTELSE FOR STRÅLUNG.

ADVARSEL - USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG SIKKERHEDSLÅS

BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.

VARNING - OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRRAR

ÄR URKOPPLADE. STRÅLEN ÄR FARLIG.

VARO! - AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA

NÄKYMÄTÖNNTÄ LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

ATTENTION:

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SEVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

AFIN DEVITER UN CHOC

ELECTRIQUE, ET LES

CONSEQUENCES GRAVES

QUI POURRAIENT EN

RESULTER, TENTEZ PAS

D'OUVRIR L'APPAREIL ET

DE TOUCHER AUX

COMPOSANTS INTERNES

SANS LA PRESENCE D'UNE

SERVICE PERSONNEL.

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B

LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL

APPARATUS AS SET OUT IN THE RADIO INTERFERENCE

REGULATIONS OF THE CANADIAN DEPARTMENT OF

COMMUNICATIONS.

LE PRESENT APPAREIL NUMVERIQUE N'EMET PAS DE

BRUITS RADIOELECTRIQUES DEPASSANT LES LIMITES

APPLICABLES AUX APPAREILS NUMERIQUES DE LA CLASSE

B PRESCRITES DANS LE REGLEMENT SUR LE BROUILLAGE

RADIO ELECTRIQUE EDICTE PAR LE MINISTERE DES

COMMUNICATIONS DU CANADA.

NAD

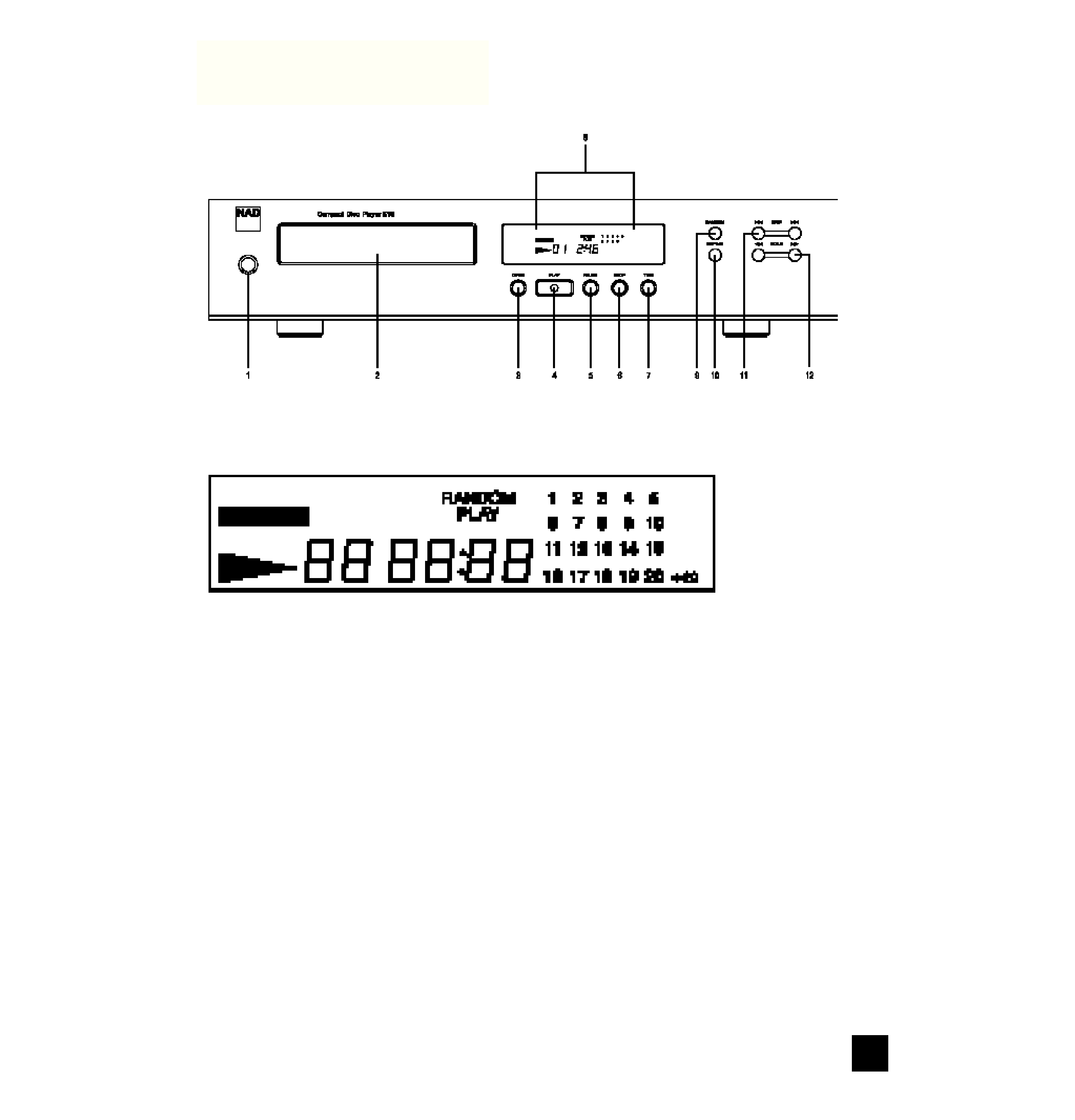

FRONT PANEL CONTROLS (Figure 2.)

DISPLAY (Figure 3.)

QUICK START

1. Use the phono-to-phono lead to connect the

NAD 510's left & right outputs to the CD Input of your

amplifier or receiver.

2. Plug in the AC power cord.

3. Press the POWER button to turn the NAD 510

on.

4. Press OPEN to open the CD drawer and place

the CD in the tray, label side up.

5. Press PLAY to close CD tray and start playing

from the first track.

6. Press PAUSE to stop the CD playing but keep-

ing the current position on the CD. To resume playing

the CD press PLAY.

7. Press Skip

to go to other tracks on

the CD.

8. Press Stop to stop the CD playing and return to

the start of the CD.

NOTES ON INSTALLATION.

Your NAD 510 should be placed on a firm, level

surface. Avoid placing the unit in direct sunlight, near

sources of heat and damp or in poorly ventilated posi-

tions.

The CD player comes with phono leads for connec-

tion to your amplifier or receiver. Switch the unit off

before making any connections. Ensure that leads

and connectors are not damaged in any way and all

connectors are firmly pushed home.

If the unit is not going to be used for some time,

disconnect the plug from the AC socket. Should water

get into your NAD 510, shut off the power to the unit

and remove the plug from the AC socket. Have the

unit inspected by a qualified service technician before

attempting to use it again.

Do not remove the cover, there are no user-ser-

viceable parts inside.

Use a dry soft cloth to clean the unit and the CD

Tray. If necessary, lightly dampened the cloth with

soapy water. Do not use solutions containing benzol

or other volatile agents.

As with most digital circuits, the processor inside

your CD player may radiate a small amount of electri-

cal `noise' which could interfere with reception of very

weak radio or TV signals. If this occurs, move the CD

player away from the other devices or switch it off

when viewing or listening to broadcasts.

WARNING TO UK USERS. If this appartus is not

fitted with a UK three-pin plug, do not attempt to

insert the attached plug into a UK mains socket.

Instead, cut the plug from the mains lead and attach

a fused UK three-pin plug using the following safety

advice on wiring.

IMPORTANT. The wires in this mains lead are

coloured BLUE and BROWN;

BLUE: NEUTRAL

BROWN: LIVE

The colours of these mains lead wires may not cor-

respond with the coloured markings identifying the

terminals in your plug. In this case the BROWN wire

must be connected to the terminal which is marked

L(ive) or coloured RED. The BLUE wire must be con-

nected to the terminal marked N(eutral) or coloured

BLACK. No connection should be made to the termi-

nal marked E or coloured green or green and yellow

REAR PANEL CONNECTIONS

1. LINE OUTPUT

The 510's analogue audio output. Using the sup-

plied twin phono-to-phono leads, connect to the left

(white) and right (red) outputs of the NAD 510 to the

`CD' input or other line-level input such as `Aux In' of

your amplifier or receiver. Do not connect this cable

to the amplifier's PHONO input jacks.

2. AC LINE CORD.

Connect this power cord to an AC mains wall outlet

Plug the AC power cord into a live AC wall socket

or to an AC convenience outlet at the rear of your

amplifier.

FRONT PANEL CONTROLS

1. POWER ON/OFF.

POWER switches the player on or off. Pressing the

power switch turns the CD player on, indicated by the

Display Panel becoming active. Pressing the POWER

button again will switch the player off.

When switched Off, no power is supplied to the

NAD 510's electronics.

CAUTION: Disconnect your NAD 510 from the AC

outlet when it is not being used for long periods of

time.

2. CD TRAY

CDs should be placed in the CD Tray, label side

up. The CD Tray has two recesses to securely hold

either 5" or 3" CDs. 5" CDs sit in the larger recess

and 3" CD singles in the smaller central recess.

Use only Audio CDs in your NAD 510. Do not use

CD-V, CD-ROM CD-i or Photo-CD discs in this play-

er, it will not be able to decode and play them.

CAUTION: Do not put anything except a compact

disc into the tray. Foreign objects can damage the

mechanism.

3. OPEN

The OPEN button controls the CD Tray. Press

OPEN to open the Tray. The Display Panel will show

the word `OPEN'.

Press OPEN again to close the tray. The NAD 510

will then close the tray completely. Do not use physi-

cal force to close the tray as this can damage the

drawer mechanism. Always use the OPEN button to

open or close the disc drawer.

With a CD loaded and the tray closed, the CD

Player will scan the disc and Display Panel will show

NAD

NAD 510 COMPACT DISC PLAYER

the number of tracks and the total playing time of the

disc. If the CD Tray is empty, then the Display Panel

will display the words `no disc'.

Pressing OPEN when a CD is playing will stop the

playback and open the CD Tray.

Caution: The NAD 510 is not designed for use with

`damping discs' placed on the CD, or two CDs

stacked together in the CD Tray.

Do not close the CD Tray by hand with the power

off. This may result in damage to the mechanism.

4. PLAY

Press PLAY to start playing the CD from the start of

the track shown in the Display Panel. Pressing PLAY

with the CD Tray open and a CD loaded, will close

the CD Tray and start playing the CD from Track 1.

Pressing Play again when the CD is already play-

ing, will re-start playback from the beginning of the

current track.

When the 510 is in Play mode, the Play mode indi-

cator

will be shown in the Display Panel. This will

also show the current track number and position in

the track in minutes and seconds.

5. PAUSE

Pressing PAUSE stops CD playback, without loos-

ing the current position on the CD. Press PLAY to

continue playback from that position on the CD.

Pressing PAUSE twice will cue up the beginning of

the current track, whilst keeping the NAD 510 in

Pause mode. Press PLAY to start playing the CD.

Both SCAN and SKIP can be used in the Pause

mode to select other tracks, or another position on

the current track before returning to play the CD.

When the 510 is in Pause mode, the Play mode

indicator

will flash and the Display Panel will show

the current track number and position in the track in

minutes and seconds.

6. STOP.

The STOP button stops disc playing, cancels any

Repeat mode, and returns the 510 to the start of the

disk. In Stop mode, the Display Panel will show the

total number of tracks and the total playing time of the

disc.

7. TIME

The TIME button switches the Time Display

through three different modes, showing either:

The time played of the current track, in minutes and

seconds.

The playing time remaining for the current track, in

minutes and seconds.

The total time played so far on the disc, in minutes

and seconds.

The total playing time remaining on the CD, in min-

utes and seconds.

The 510 will normally display the current track num-

ber and position in the track in minutes, and seconds

(the default display). Pressing the TIME button will

cycle through the alternative display options and back

to the default display.

8. DISPLAY PANEL

The Display Panel shows information about the

NAD 510's operating modes and information about

the CD currently loaded.

OPEN. The CD Tray is open

no disc. There is no disc in the CD Tray

The unit is in Play mode

[Flashing] The unit is in Pause mode

RANDOM PLAY. The unit is in Random Play Mode

REPEAT. The unit is in Track Repeat mode

REPEAT. [Flashing] The unit is in Disc Repeat

Mode

TRACK NUMBER. Displays the current track num-

ber being played or the track number that will be

played when PLAY is pressed. When the disc is first

loaded, Track Number shows the total number of

tracks available on the disc.

TIME. Is used in conjunction with the TIME button.

Normally in Play mode the Time Display shows the

time played so far on the current track. The TIME but-

ton can switch this to display playing time remaining

on the current track, time played so far on the disc, or

playing time remaining on the disc current track. (See

TIME Button)

TRACK LISTING. Displays a list of tracks available

on the disc. As each track is played its number is

blanked out on the Track Listing, giving a simple indi-

cation of how much of the disc has been played and

how much remains. The display shows up to 20 num-

bered tracks. For CDs with more than 20 tracks, the

20+ indicator illuminates until all the tracks have been

played.

The track Listing display does not operate in

Random mode.

ERROR The Error indicator is displayed when an

`illegal' button sequence is used, such as pressing

any of the controls apart from OPEN/CLOSE when

there is no disc in the CD Tray.

Other common `illegal' button sequences that will

produce the Error display are pressing PAUSE,

TIME or SCAN when the NAD 510 is in Stop mode.

Press STOP to clear the Error message.

9. RANDOM

Pressing RANDOM will play all the tracks on the

CD in a random order. Press RANDOM either from

Stop or Play modes and the 510 will play the tracks

on the CD in random order until all the tracks have

been played.

Press RANDOM button again to cancel Random

play and return the 510 to the normal Play mode.

When the 510 is in Random mode `RANDOM

PLAY' will be shown in the Display Panel.

10. REPEAT

The REPEAT Button switches the NAD 510

between Track Repeat and Disc Repeat modes.

Pressing REPEAT once puts the player into Track

Repeat mode. This will continuously repeat the cur-

rent track as shown in the Display Panel. In Track

Repeat mode, `REPEAT' is shown in the Display

Panel.

NAD

Reviews

There are no reviews of this manual yet.

Related Products

NAD L40 Service Manual

This manual has 44 pages, file size: 4.63 MB. It's available in languages: English.

NAD T571AH Service Manual

This manual has 67 pages, file size: 27.39 MB. It's available in languages: English.

NAD 917 Owner's Manual

This manual has 13 pages, file size: 0.97 MB. It's available in languages: English.

NAD 4150 Service Manual

This manual has 44 pages, file size: 5.03 MB. It's available in languages: English.

NAD 912 Owner's Manual

This manual has 20 pages, file size: 0.07 MB. It's available in languages: Portuguese, French, English, German, Italian.
