NAD C521I Service Manual

Cover page of NAD C521I Service Manual

Service Manual for NAD C521I, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 33 pages
  • File size: 1.8 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
NAD
C 521i
COMPACT
DISC PLAYER
C
521i
COMP
ACT
DISC
PLA
YER
SER
VICE
MANUAL
background image
NAD
C 521i
COMPACT
DISC PLAYER
C
521i
COMP
ACT
DISC
PLA
YER
SER
VICE
MANUAL
background image
2
CATUION
HGKJDHSGKJHGSJK
ADVARSEL
HGKJDHSGKJHGS
KBVNCLKNBCVLKNLKNVLKNCVNCL
VK JK
ADVARSEL
HGKLFH;L;HJMNMD
HFKLJHJLDKLJLKDJLKFHJHSGMMKJHGSJK
VARIN
G
HGKJDHSGKJHGKLGDJH
KLH
KFG
;LKNG;LKJGF;LKJG
F;LKJFL;SJK
VARO
!
HGKJDHSGKJHJBJKBKJBJKGS
KBVN
CLKNBCVLKNLKN
VLKNCVNCL
VK JK
VORSICT!
HGKLFH;L;H
HBH
HJD
JHFKLJHJLDKLJLKD
JLKFHJHSG
KJHGSJK
SAFETY INFORMATION
CAUTION
CAUTION - INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED.AVOID EXPOSURE TO BEAM.
ADVARSEL - USYNLIG LASERSTRÅLING NÅR DEKSELÅPNES OG
SIKKERHEDSLÅS BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.
ADVARSEL- USYNLIG LASERSTRÅLINGVED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDEAF FUNKTION. UNDGÅ
UDSÆTTELSE FOR STRÅLING.
VARING - OSYNLING LASERSTRÅLNING NÄR DENNADELÄR
ÖPPNAD OCH SPÄRRAR ÄR URKOPPLADE. STRÅLEN ÄR FARLIG.
VARO! -AVATTAESSAJASUOJALUKITUS OHITETTAESSAOLET
ALTTIINANÄKTMÄTÖNTÄ LASERSÄTEILYLLE. ÄLÄ KAISO
SÄTEESEEN.
VORSICT!- UNSICHTBARE LASERSTRAHLUNG TRITTAUS,WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT DEM STRAHLAUSSETZEN.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:-
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
The lightning flash with arrowhead, within an equilateral tri-
angle is intended to alert the user of the presence of
uninsulated "dangerous voltage" within the product's
enclosure; that may be of sufficient magnitude to consti-
tute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intend-
ed to alert the user of the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
CLASS 1
LASER PRODUCT
background image
3
SERVICE SAFETY PRECAUTIONS
1.
Replacing the fuses
CAUTION: FOR CONTINUED PROTECTION AGAINST THE RISK OF FIRE REPLACE ONLY WITH SAME TYPE
OF FUSE.
Reference No
Part Number
Description
M502-M504
*AH
5120-0020-0
FU T1A 250V UL/CSA 5x20MM
M502-M504
*C
5120-0018-0
FU T1A 250V SEMKO/UDE 5x20MM
M505
*AH
5120-0052-0
FUSE T1.6A 250V 5x20MM UL/CSA
M505
*C
5120-0050-0
FUSE T1.6A 250V 5x20MM SEMKO/VDE
NOTE:
<*AH > : USA, CANADIAN MODEL ONLY.
<*C > : EUROPEAN MODEL ONLY.
2.
Safety check out
(Only U.S.A. model)
Before returning the product to the customer, make leakage current or resistance measurements to determine that
exposed parts are acceptably insulated from the supply circuit.
Parts marked with the symbol
are critical with regard to the risk of fire and electric shock.
Replace only with parts recommended by the manufacturer.
CONTENTS
DESCRIPTION
PAGE
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
REAR PANEL / FRONT PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
DISASSEMBLY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
RF PATTERN TESTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
IMPORTANT NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
PCB LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14
SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-21
IC BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22-25
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27-31
MECHANISM EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
MECHANISM EXPLODED VIEW PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
EXPLODED VIEW PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
PACKING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
background image
4
SPECIFICATIONS
Disc Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . One Disc, 120 or 80 mm
Decoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BURR-BROWN Delta Sigma 20bit
Digital Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Times oversample
Analog Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 pole active
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +/- 0.5 dB, 5Hz - 20kHz
De-Emphasis Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +/- 0.3 dB
THD (at 0 dB, 1kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.003%
Intermodulation Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . < - 100 dB
(19 + 20 kHz)
Dynamic Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 dB
Linearity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +/- 0.5 dB, 0 dB to -80 dB
Signal / Noise Ratio (A-Weight) . . . . . . . . . . . . . . . . . . . . . . . 106 dB, De-Emphasis on
106 dB, De-Emphasis off
Channel Separation 1kHz . . . . . . . . . . . . . . . . . . . . . . . . . . >90 dB
10 kHz . . . . . . . . . . . . . . . . . . . . . . . . >80 dB
Wow and Flutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unmeasurable (Quartz Crystal Accuracy)
Output Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Output Level at 0 dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.1 V rms
Digital Error Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IRC with double error correction in C1 and C2
Digital Code Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sony / Philips Serial data format
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12W
CONTROLS
Play / Pause, Stop, Random, Skip (< >), Scan (< >), Open, Time, Repeat.
PHYSICAL SPECIFICATIONS
Dimensions
435 x 80 x 285 mm
(Width x Height x Depth)
Net weight
4 kg (8.8 lbs)
Shipping weight
5.1 kg (11.22 lbs)
background image
5
i
1
1.
LINE OUT
2.
DIGITAL OUT
3.
AC LINE CORD
1.
POWER ON / OFF
2.
DISC DRAWER
3.
DISPLAY
4.
OPEN
5.
PLAY / PAUSE
6.
TIME
7.
STOP
8.
REPEAT
9.
RANDOM
10. SCAN Back (
) / Forward (
)
11. SKIP Back (
) / Forward (
)
12. STANDBY LED
i
1
i

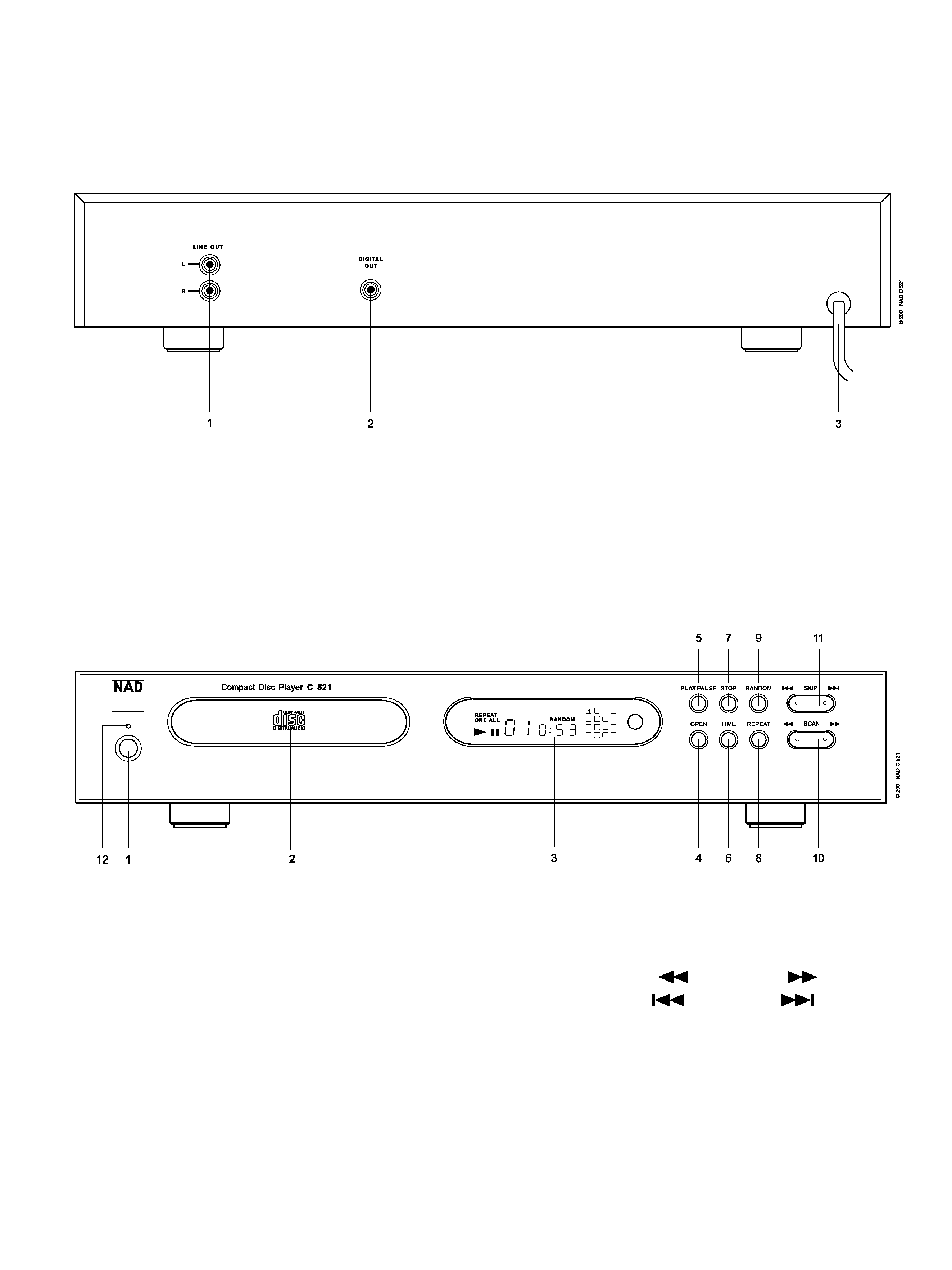

REAR PANEL / FRONT PANEL
REAR PANEL
FRONT PANEL
