background image
C 555
Turntable
ENGLISH
FRANÇAIS
DEUTSCH
NEDERLANDS
ESP
AÑOL
IT
ALIANO
POR
TUGUÊS
SVENSKA
NAD C 555 Turntable - Owner's Manual
Platine Tourne-disques NAD C 555 - Manuel d'Installation
Der Plattenspieler NAD C 555 - Bedienungsanleitung
De NAD C 555 platenspeler - Gebruikershandleiding
El Tocadiscos NAD C 555 - Manual del Usuario
Piattaforma girevole NAD C 555 - Manuale delle Istruzioni
O Gira-discos NAD C 555 - Manual do Proprietário
NAD C 555 Skivspelare - Bruksanvisning
®
C555_8lang_v03.qxd
10/13/2004
5:33 PM
Page 1
background image
C 555
Turntable
ENGLISH
FRANÇAIS
DEUTSCH
NEDERLANDS
ESP
AÑOL
IT
ALIANO
POR
TUGUÊS
SVENSKA
NAD C 555 Turntable - Owner's Manual
Platine Tourne-disques NAD C 555 - Manuel d'Installation
Der Plattenspieler NAD C 555 - Bedienungsanleitung
De NAD C 555 platenspeler - Gebruikershandleiding
El Tocadiscos NAD C 555 - Manual del Usuario
Piattaforma girevole NAD C 555 - Manuale delle Istruzioni
O Gira-discos NAD C 555 - Manual do Proprietário
NAD C 555 Skivspelare - Bruksanvisning
®
C555_8lang_v03.qxd
10/13/2004
5:33 PM
Page 1
background image
IMPORTANT SAFETY INSTRUCTIONS
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
PRECAUTIONS
Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the
Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and
on the unit should be strictly followed, as well as the safety suggestions below.
INSTALLATION
1 Water and Moisture - Do not use this unit near water, such as near a bathtub, washbowl, swimming
pool, or the like.
2 Heat - Do not use this unit near sources of heat, including heating vents, stoves, or other appliances
that generate heat. It also should not be placed in temperatures less than 5°C (41°F) or greater then
35°C (95°F).
3 Mounting surface - Place the unit on a flat, even surface.
4 Ventilation - The unit should be situated with adequate space around it so that proper ventilation is
assured. allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from
each side. - Do not place on a bed, rug, or similar surface that may block the ventilation openings. -
Do not install the unit in a bookcase cabinet, or airtight rack where ventilation may be impeded.
5 Objects and liquid entry - Take care that objects or liquids do not get inside the unit through the
ventilation openings.
6 Carts and stands - When placed or mounted on a stand or cart, the unit should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the unit and cart to overturn or fall.
7 Condensation - Moisture may form on the CD pickup lens when:
· The unit is moved from a cold spot to a warm spot.
· The heating system has just been turned on.
· The unit is used in a very humid room.
· The unit is cooled by an air conditioner.
When this unit has condensation inside, it may not function normally. Should this occur, leave the unit
for a few hours, then try to operate again.
8 Wall or ceiling mounting - The unit should not be mounted on a wall or ceiling, unless specified in
the Operating Instructions.
WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE
This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE
89/68/EEC and 73/23/EEC
C555_8lang_v03.qxd
10/13/2004
5:33 PM
Page 2
background image
INPORTANT SAFETY INSTRUCTIONS
ELECTRIC POWER
1 Power Sources - Connect this unit only to power sources specified in the Operating Instructions, and
as marked on the unit.
2 Polarization - As a safety feature, some units are equipped with polarized AC power plugs which can
only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug
into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please
call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature
of the polarized plug, do not force it into a power outlet.
3 AC power cord - When disconnecting the AC power cord, pull it out by the AC power plug. Do not
pull the cord itself.
· Never handle the AC power plug with wet hands, as this could result in fire or shock.
· Power cords should be routed to avoid being severely bent, pinched, or walked upon. Pay particular
attention to the cord from the unit to the power socket.
· Avoid overloading AC outlets and extension cords beyond their capacity, as this could result in fire
or shock.
4 Extension cord - To help prevent electric shock, do not use a polarized AC power plug with an
extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to
prevent exposure of the blades of the plug.
5 When not in use - The primary method of isolating the turntable from the mains supply is to
disconnect the mains plug. Ensure that the mains plug remains accessible at all times. Unplug the AC
power cord from the AC outlet if the unit will not be used for several months or more.
CAUTION
Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may
void the user's right or authority to operate this product.
MAINTENANCE
Clean the unit only as recommended in the Operating Instructions.
DAMAGE REQUIRING SERVICE
Have the unit serviced by a qualified service technician if
· The AC power plug has been damaged.
· Foreign objects or liquid have got inside the unit.
· The unit has been exposed to rain or water - The unit does not seem to operate normally.
· The unit exhibits a marked change in performance.
· The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF
OWNER'S RECORD
For your convenience, record the model number and serial number (you will find them on the rear of your
set) in the space provided below. Please refer to them when you contact your dealer in case of difficulty.
Model No. :
Serial No. :
C555_8lang_v03.qxd
10/13/2004
5:33 PM
Page 3
background image
4
ENGLISH
FRANÇAIS
DEUTSCH
ESP
AÑOL
IT
ALIANO
POR
TUGUÊS
SVENSKA
This turntable has been engineered to give extremely good musical reproduction. Inherent in the design
are several features that improve sound quality and focus the manufacturing costs where they are most
needed.
Example: Speed change is achieved by manually moving the drive belt from one pulley to another as
shown below.
The cost saving from the use of manual speed change allows a very expensive low vibration motor with
an accuracy exceeding that of conventional designs to be employed.
TIPS AND SUGGESTIONS
1 Try to mount the turntable on a rigid, level surface. A light shelf screwed to the wall or in an alcove
would be ideal. Avoid mounting on hollow or heavy cabinets, or anything mounted on a wooden
floor.
2 Try to keep the lid closed whilst playing records. This will prevent dust falling onto the records and
make cleaning unnecessary. There may also be a sound improvement.
3 Don't use a record cleaner that works as the record plays, or any cleaners that use water or fluids.
Don't touch the playing surface of records. Visible dust on the record surface is simply brushed aside
by the stylus, and any that collects there can easily be blown away.
4 Try to leave the turntable running during a record playing session. Switch on before the start, and only
switch off after the last record has finished. Changing records whilst the platter revolves is easier than
it sounds!
5 DO NOT lift the centre hub from its bearing. The bearing is factory assembled with a film of thick
lubricant. Disturbance of this can cause serious problems with speed variation and wear.
6 When switching on the turntable, especially at 45rpm, it is recommended to give the platter a quick
spin clockwise as the `ON' switch is pressed. This relieves strain on the motor and belt.
7 No maintenance should be necessary. If the turntable is working well, leave it alone. Some settling of
the anti-vibration feet may cause the turntable to lean backwards slightly after a few months, but this
is nothing to worry about.
8 Don't use any polishes on the turntable or lid. To clean or dust, wipe gently with a soft cotton duster
(slightly damp, only if necessary).
9 The tonearm is automatically earthed (or ground) through the arm cable screening. No other earthing
should be necessary.
10 Save the packing, in case the turntable has to be transported in the future.
11 When the record reaches the end of one side, remember to lift the stylus off the surface of the record
using the lift/lower mechanism.
ENJOY THE MUSIC!
33rpm
45rpm
C555_8lang_v03.qxd
10/13/2004
5:33 PM
Page 4
background image
5
ENGLISH
FRANÇAIS
DEUTSCH
ESP
AÑOL
IT
ALIANO
POR
TUGUÊS
SVENSKA
GOLDRING ELEKTRA CARTRIDGE
Your NAD C 555 turntable comes with a factory fitted Goldring Elektra moving magnet cartridge.
When following the setting-up instructions, please note that the optimum tracking weight is 1.7 grams
for the cartridge. The bias adjustor should then be set to the same setting.
Replacement styli are available from your NAD dealer.
ARM WIRING
Blue = LH earth
Green = RH earth
Red = RH signal
White = LH signal
SETTING UP THE CARTRIDGE
With the cartridge fitted using the alignment protractor supplied and the wiring chart (shown left), next
set the tracking force and thrust bias.
First, slide off the plastic protection shroud from the cartridge - carefully! Unclip the arm from its holder
and make sure that the bias adjuster is set to zero, use the balance weight to `float' the stylus about 1mm
clear of a record, then dial inwards with the weight, (1 complete turn = 2g) until the cartridge's tracking
weight is achieved. Finally, set the bias adjuster to the same setting.

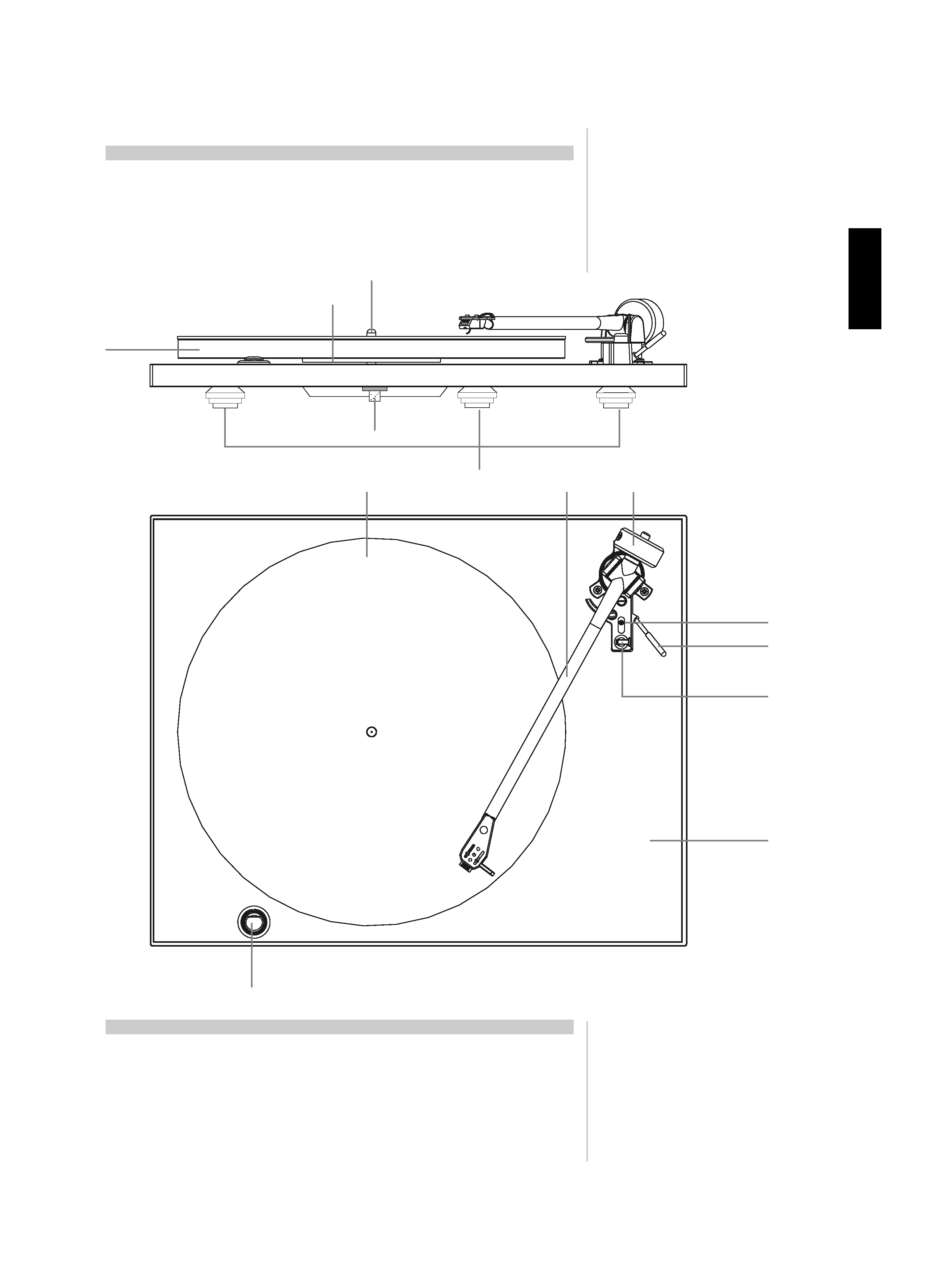

Spindle
Sub platter
Platter
Bearing
Anti-vibration feet
Mat
Tonearm
Counterweight
Bias adjustment
Lift/lower
mechanism
Arm clip
Plinth
On/off switch
C555_8lang_v03.qxd
10/13/2004
5:33 PM
Page 5
