background image
Type
2way , Bass Reflex
Impedance
4 ohm
Maximum Input Power
30W
Output sound pressure level 83dB/W/m
Frequency Response
63Hz - 35kHz
Crossover Frequency
3000Hz
Cabinet Capacity
2.6 Litter
Woofer
9cm OMF Cone Type
Tweeter
2.5cm Soft Dome Type
Dimensions (W x H x D)
165x271x160 mm
Weight
1.7kg
SPECIFICATION
Ref. No.SS0124
082001
SERVICE MANUAL
SERVICE MANUAL
D-N1
SPEAKER SYSTEM
D-N1(B)
background image
Type
2way , Bass Reflex
Impedance
4 ohm
Maximum Input Power
30W
Output sound pressure level 83dB/W/m
Frequency Response
63Hz - 35kHz
Crossover Frequency
3000Hz
Cabinet Capacity
2.6 Litter
Woofer
9cm OMF Cone Type
Tweeter
2.5cm Soft Dome Type
Dimensions (W x H x D)
165x271x160 mm
Weight
1.7kg
SPECIFICATION
Ref. No.SS0124
082001
SERVICE MANUAL
SERVICE MANUAL
D-N1
SPEAKER SYSTEM
D-N1(B)
background image
Speaker(R)
A22
A18
A15
A14
A24
A20
A19
A21
A3
Speaker(L)
A6
A23
A24
A6
A23
A18
A19
A20
A22
A4
A15
A21
A14
A7
A7
A5
A16
A16
A16
A16
A1
A2
D-N1

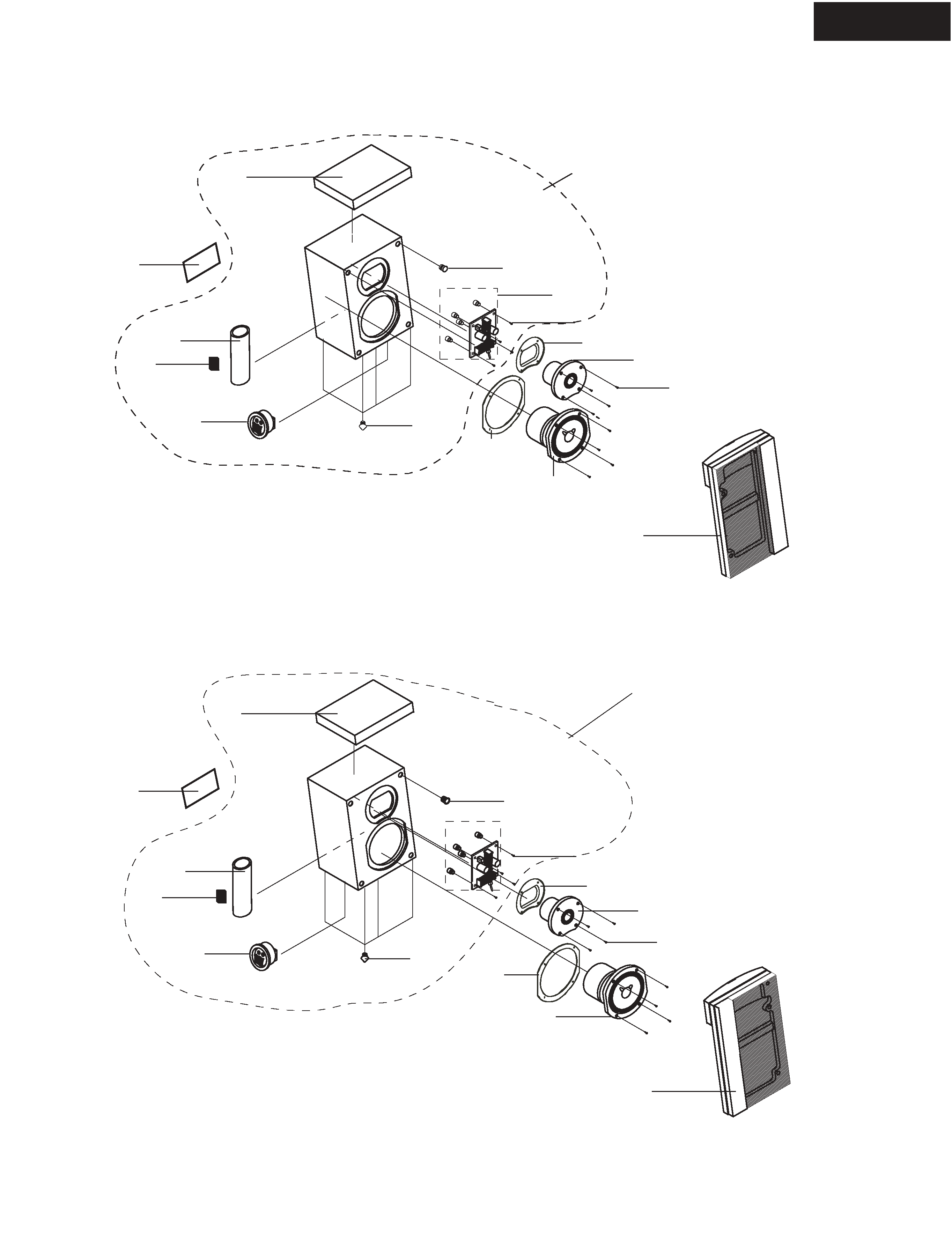

EXPLODED VIEW
background image
REF NO. DESCRIPTION
PART NO.
DESTINATION
A1
Cabinet -ass'y-R
505-RD-N1MD
MD/MR
(Cabinet+Paper duct+Terminal+Absober)
A2
Cabinet -ass'y-L
505-LD-N1MD
MD/MR
(Cabinet+Paper duct+Terminal+Absober)
A1
Cabinet -ass'y-R
505-RD-N1MP
MP
(Cabinet+Paper duct+Terminal+Absober)
A2
Cabinet -ass'y-L
505-LD-N1MP
MP
(Cabinet+Paper duct+Terminal+Absober)
A3
Grille ass'y-R
903-RGD-N1MD
MD/MR
(Plate-R+Cloth frame ass'y-R+Top panel-R)
A4
Grille ass'y-L
903-LGD-N1MD
MD/MR
(Plate-L+Cloth frame ass'y-L+Top panel-L)
A3
Grille ass'y-R
903-RGD-N1MP
MP
(Plate-R+Cloth frame ass'y-R+Top panel-R)
A4
Grille ass'y-L
903-LGD-N1MP
MP
(Plate-L+Cloth frame ass'y-L+Top panel-L)
A5
Network ass'y
190-NS-300
MD/MP/MR
A6
Paper duct (34-30 L150)
625-NS-300
MD/MP/MR
A7
Label
610-D-N1
MD/MP
Label
610-D-N1MR
MR
A14
Woofer
W901C
MD/MP/MR
A15
Tweeter
TW3183B
MD/MP/MR
A16
Cushion
902-D-105F
MD/MP/MR
A18
Terminal
203-DHJ-12
MD/MP/MR
A19
Foot
429-FT-EX1
MD/MP/MR
A20
Catch black
430-1C-638-73
MD/MP/MR
A21
Self tapping screw 3.5 x 16
300-B2351600
MD/MP/MR
A22
Self tapping screw 4 x 14
300-B8401400
MD/MP/MR
A23
Butyl 3tx5x10
WS2954
MD/MP/MR
A24
Acoustic absorber,Polyfill KH400:30tx140x80436-NS-300
MD/MP/MR
D-N1
PARTS LIST
EXPLODED VIEW
background image
L1
: Choke coil 0.56mH , Silicon core
L2
: Choke coil 0.22mH , Silicon core
C1
: 15uF/100V , Non-polar Capacitor
C2
: 0.47uF/63V , Film Capacitor
C3
: 4.7uF/100V , Non-polar Capacitor
C4
: 0.47uF/63V , Film Capacitor
C5
: 100pF/50V , ECQ-Q Film Capacitor
R1
: Short
W
: Woofer Unit , W901C
TW : Tweeter Unit , TW3183B
PARTS LIST
C5
+
W9 01 C
W
W-
W+
IN PUT
TW 3 1 83 B
TW
T-
T+
C2
L2
L1
C1
C4
IN +
IN -
C3
R1
D-N1
SCHEMATIC DIAGRAM
background image
Short
Short
0.22mH
0.22mH
0.22mH
1.5 ohm
5W
4.7 uF
100V
4.7 uF
100pF
C5
15uF
100V
0.47uF
C2
0.56mH
L1
L2
C4
C3
C1
R1
R1
0.56mH
L1
C1
C2
C3
C4
C5
L2
0.22mH
R1
0.56mH
L1
C1
C2
C3
C4
C5
L2
D-N1
PRINTED CIRCUIT BOARD VIEW
