background image
D-N3XA
SERVICE MANUAL
SERVICE MANUAL
2WAY BASS REFLEX SPEAKER SYSTEM
MODEL
D-N3XA
Ref. No. SS0214
082002
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
background image
D-N3XA
SERVICE MANUAL
SERVICE MANUAL
2WAY BASS REFLEX SPEAKER SYSTEM
MODEL
D-N3XA
Ref. No. SS0214
082002
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
background image
D-N3XA
SPECIFICATIONS

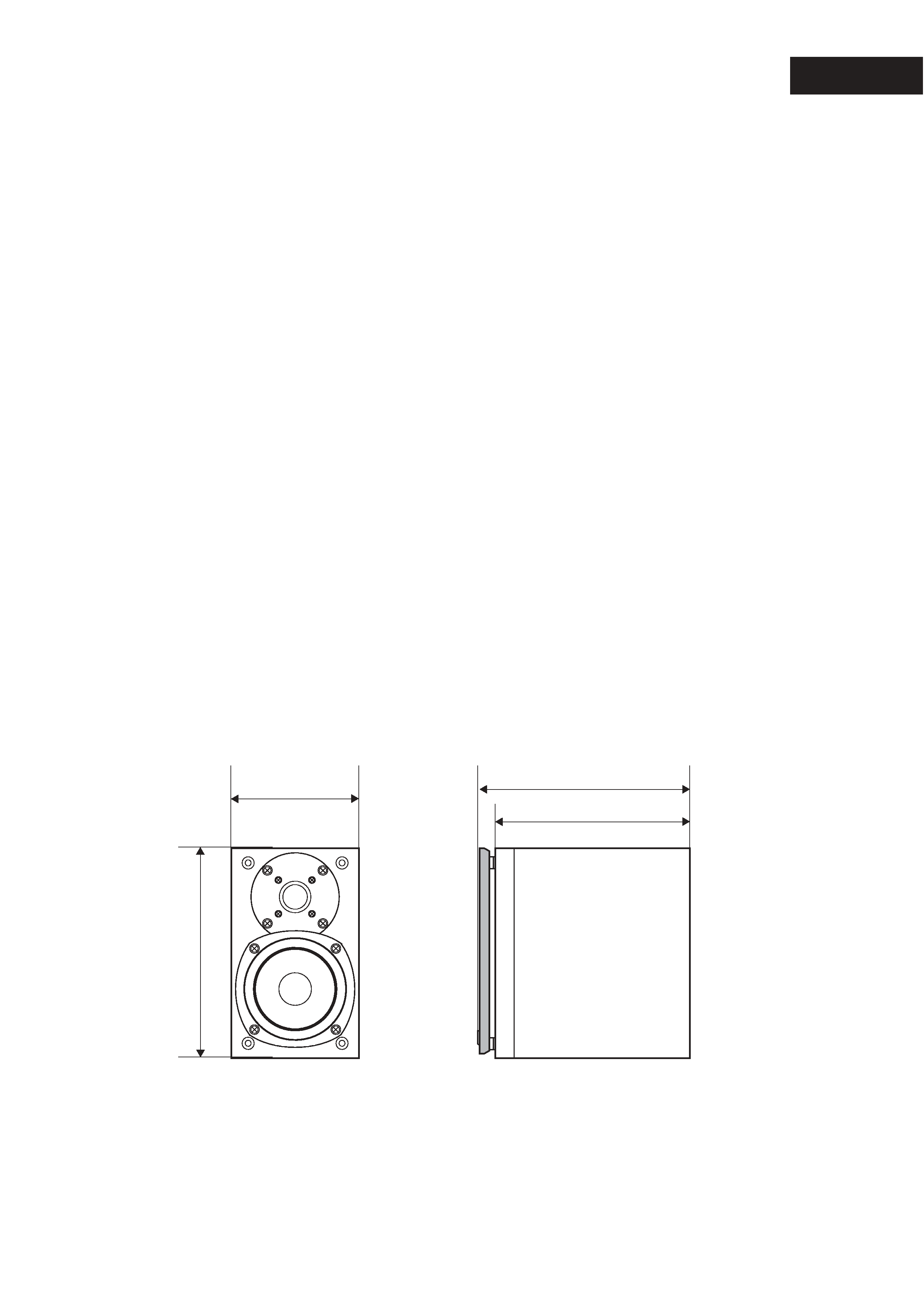

DIMENSIONAL DRAWING
138
237
219
220
Type
: 2way , Bass Reflex
Impedance
: 5 ohm
Maximum Input Power
: 70W
Output sound pressure level
: 84dB/W/m
Frequency Response
: 60Hz - 35kHz
Crossover Frequency
: 10000Hz
Cabinet Capacity
: 4.5 Litter
Woofer
: 12cm OMF Cone Type
Tweeter
: 2.5cm Dome Type
Dimensions (W x H x D)
: 138 x 220 x 237 mm
Weight
: 3.0kg
background image
D-N3XA
CONTITUTION VIEW
NET WORK
1.5uF
1.5uF
100pF
100pF
+
-
+
-
+
-
FOR TERMINAL
FOR WOOFER
FOR TWEETER
background image
D-N3XA
EXPLODED VIEW
A
1
2
3
4
5
BCD
S11
S13
S12
S1
S2
S5
S8
S4
S9
S7
S7
S6
S3
S10
background image
REF.No. Part No.
Description
S1
505-D-N3XA
Cabinet ass'y
S2
190-NS-327
Cord ass'y
S3
203-DHJ-12
Terminal
S4
429-ANS-327
Cushion
S5
902-NS-327
Cushion
S6
903-1GNS-342
Net ass'y
S7
430-1C-638-73
Catcher
S8
W1270A
Woofer
S9
TW3198A
Tweeter
S10
610-D-N3XAMD Back label
S11
300-B8402000A
Screw(4x20)
S12
322-NS-293
Washer (7 x 4.2 x 1.0t)
S13
430-NS-291
Washer (7 x 4 x 0.5t)
REF.No. Part No.
Description
A1
600-D-N3XAMD Carton
A2
404-NS-342
Pad
A3
610-PD-N3XAMD Barcode label
A4
617-NS-307
Speaker cord (1.8m x 2)
A5
29100097-1A
Poly bag (350 x 250 x 0.035t)
A6
402-NS-342
Poly bag (500 x 400 x 0.025t)
A7
612-D-N3XAMD Instruction manual
D-N3XA Parts list
- 1 -
