ONKYO DV-L5 Service Manual

Cover page of ONKYO DV-L5 Service Manual

Service Manual for ONKYO DV-L5, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 41 pages
  • File size: 2.82 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
DV-L5
Ref. No. 3695
082001
DVD Player
DV-L5
MDD
120V AC, 60Hz
MUP, MUT,
MUS, MUR
100 - 240V, 50/60Hz
Silver and Titanium color models
LAST M
COND. M
DIMMER
DISPLAY
STANDBY
ON
ANGLE
AUDIO
SUBTITLE
MENU
TOP MENU
SETUP
RETURN
STOP
PAUSE
FUNCTION M
OPEN/CLOSE
DOWN
UP
FR
FF
CLEAR
PROGRAM
RANDOM
REPEAT
A-B
STEP/SLOW
SEARCH
REMOTE CONTROLLER RC-
449DV
PLAY
23
456
78
9
1
0
+10
+
-
ENTER
TV
ON/STANDBY
VOL +
VOL -
TV/ VCR
CH +
CH -
TV
DVD
LAST M
COND. M
DIMMER
DISPLAY
STANDBY
ON
ANGLE
AUDIO
SUBTITLE
MENU
TOP MENU
SETUP
RETURN
STOP
PAUSE
FUNCTION M
OPEN/CLOSE
DOWN
UP
FR
FF
CLEAR
PROGRAM
RANDOM
REPEAT
A-B
STEP/SLOW
SEARCH
REMOTE CONTROLLER RC-
450DV
PLAY
23
456
78
9
1
0
+10
+
-
ENTER
TV/ VCR
RC-449DV
<MDD>
RC-450DV
<MUP,MUT,
MUS,MUR>
background image
DV-L5
Ref. No. 3695
082001
DVD Player
DV-L5
MDD
120V AC, 60Hz
MUP, MUT,
MUS, MUR
100 - 240V, 50/60Hz
Silver and Titanium color models
LAST M
COND. M
DIMMER
DISPLAY
STANDBY
ON
ANGLE
AUDIO
SUBTITLE
MENU
TOP MENU
SETUP
RETURN
STOP
PAUSE
FUNCTION M
OPEN/CLOSE
DOWN
UP
FR
FF
CLEAR
PROGRAM
RANDOM
REPEAT
A-B
STEP/SLOW
SEARCH
REMOTE CONTROLLER RC-
449DV
PLAY
23
456
78
9
1
0
+10
+
-
ENTER
TV
ON/STANDBY
VOL +
VOL -
TV/ VCR
CH +
CH -
TV
DVD
LAST M
COND. M
DIMMER
DISPLAY
STANDBY
ON
ANGLE
AUDIO
SUBTITLE
MENU
TOP MENU
SETUP
RETURN
STOP
PAUSE
FUNCTION M
OPEN/CLOSE
DOWN
UP
FR
FF
CLEAR
PROGRAM
RANDOM
REPEAT
A-B
STEP/SLOW
SEARCH
REMOTE CONTROLLER RC-
450DV
PLAY
23
456
78
9
1
0
+10
+
-
ENTER
TV/ VCR
RC-449DV
<MDD>
RC-450DV
<MUP,MUT,
MUS,MUR>
background image
DV-L5

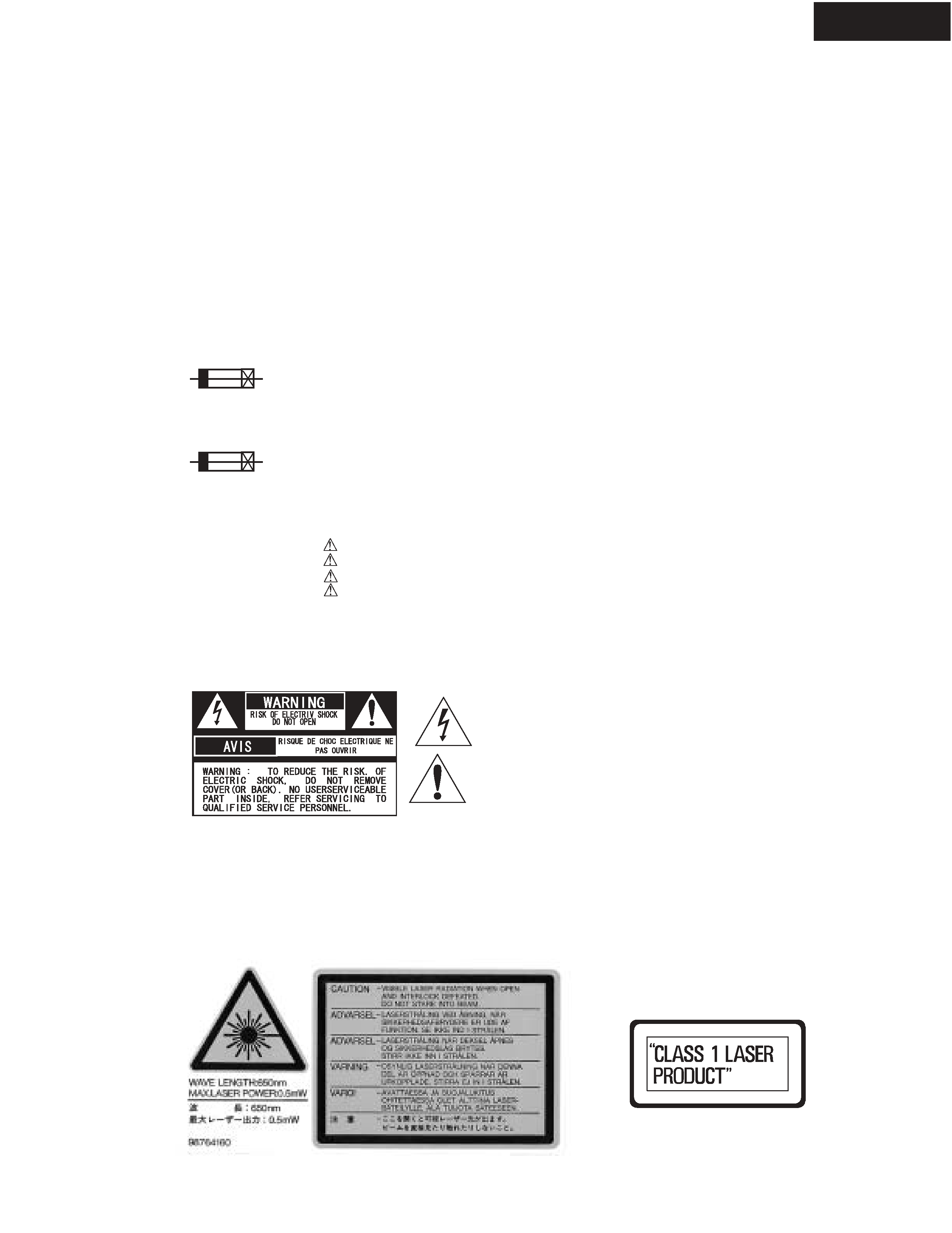

SERVICE NOTE
1. Replacing the fuses
2. Safety-check out
(Only U.S.A. model)
After correcting the original service problem perform the
following safety check before releasing the set to the customer
Connect the insulating-resistance tester between the plug of
power supply cord and terminal GND on the back panel.
Specifications: More than 10M ohm at 500V
REF.NO.
PART NO.
DESCRIPTION
F1
2522152 or
1.6A-T/UL-ST2 or
2522147
1.6A-TSC, Fuse <MDD>
This symbol located near the fuse indicates that the
fuse used is show operating type, For continued protection against
fire hazard, replace with same type fuse , For fuse rating, refer to
the marking adjust to the symbol.
Ce symbole indique que le fusible utilise est e lent.
Pour une protection permanente, n'utiliser que des fusibles de meme
type. Ce demier est indique la qu le present symbol est apposre.
252273 or
1.6A-SE-TL250V or
252077
1.6A-SE-EAK Fuse
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DA LA FICHE DANS LA
BORNE CORRESPONDANTE DA LA PRISE ET POUSSER JUSQU' AU FOND.
WARNING :
CAUTION :
ATTENTION :
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instruction
in the literature accompanying the appliance.
<MUP,MUS,MUT,MUR>
1.Ground for the work-desk.
Place a conductive sheet such as a sheet of copper (with impedance lower than 10Mohm) on the work-desk and
place the set on the conductive sheet so that the chassis.
2.Grounding for the test equipments and tools.
Test equipments and toolings should be grounded in order that their ground level is the same the ground of the power source.
3. Grounding for the human body.
Be sure to put on a wrist-strap for grounding whose other end is grounded.
Be particularly careful when the workers wear synthetic fiber clothes, or air is dry.
4. Select a soldering iron that permits no leakage and have the tip of the iron well-grounded.
5. Do not check the laser diode terminals with the probe of a circuit tester or oscilloscope.
PRECAUTIONS
LASER CAUTION
background image
DV-L5
SERVICE NOTES
1. Remove the solder of Laser Diode shorting
1-1
Connect Pickup and DVD main circuit PC board by FFC(3 pcs).
1-2
Fix it with the DVD Mecha
1-3
Remove the solder of Laser Diode shorting on Pickup.
1-4
Connect total unit of DVD Mechanism (DVD Main PCB + Mechanism) to output terminal.
PC board (NCAR7181) at CN102 and CN106
2. Check the FL display
Press the [STOP] and [DISPLAY] keys at the same time .
FL display light up, and check the FL display.
To cancel this process, Please press the [STOP] and [DISPLAY] keys at the same time again.
3. Factory setting
3-1 Push the power switch "ON" (Mechanical switch)
3-2 Press the [STOP] and [POWER ON] keys at same time (Wait for until FL display "No Disc") .
3-3 Standby button is "OFF".
Rear View
Short
DVDM Assy
Side
Short SW
Open
background image
DV-L5
Specifications and features are subject to change without notice.
DVD Player
Power supply
USA and Canadian models: AC 120 V, 60 Hz
Other models:
AC 100 -240 V , 50/60 Hz
Power consumption
USA and Canadian models:
13 W
Other models:
12 W
Weight
3.7 kg, 8.2 lbs.
External dimensions
USA and Canadian models:
435
81
353.5 mm (W/H/D), 17-1/8" 3-3/16" 13-15/16"
Chinese models:
435
81
361 mm (W/H/D)
Other models:
435
81
359 mm (W/H/D)
Signal system
USA and Canadian models:
NTSC
Other models:
PAL/NTSC
Regional restriction code
USA and Canadian area:
1
South-east Asian area:
3
Australian and South American area:
4
PRC:
6
Laser
Semiconductor laser, wavelength 650 nm
Frequency range (digital audio)
DVD linear sound:
48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 44 kHz
Audio CD:
4 Hz to 20 kHz
Signal-to-noise ratio (digital audio)
More than 100 dB
Audio dynamic range (digital audio)
More than 96 dB
Harmonic distortion (digital audio)
Less than 0.015 %
Wow and flutter
Below measurable level (less than ±0.001 % (W.PEAK))
Operating conditions
Temperature: 5 C to 35 C (41 F to 95 F), Operation status: Horizontal
Outputs
Video output
1.0 V (p-p), 75 ohm, negative sync., pin jack
1
S-video output
(Y) 1.0 V (p-p), 75 ohm, negative sync., Mini DIN 4-pin
1
(C) 0.286 V (p-p), 75 ohm
Component video output
(Y) 1.0 V (p-p), 75 ohm, negative sync., pin jack
1
(P B)/(P R) 0.7 V (p-p), 75 ohm, pin jack
2
Audio output (digital output Optical)
-22.5 dBm
1
Audio output (digital output Coaxial)
0.5 V (p-p), 75 ohm, pin jack
1
Audio output (2-Channel Audio)
2.0 V (rms), 470 ohm, pin jack (L, R, MONO)
1
SPECIFICATIONS
European area:
2
background image
DV-L5
POWER switch
Turns on the main power supply for the DV-L5. The DV-L5 enters
standby state. Pressing the switch again to the off position (
OFF) shuts down the main power supply into the DV-L5.
Before turning on the power, make sure all cables are properly
connected.
STANDBY/ON button / STANDBY/ON indicator
When STANDBY/ON button is pressed to ON while the POWER
switch is set to ON, the DV-L5 turns on. The STANDBY indicator
turns off and the ON indicator lights up. Pressing the button again
returns the DV-L5 to the standby state. This state turns off the
display, disables control functions.
Disc tray
When loading a disc, place discs in the disc tray with the label
side facing up.
Remote control sensor
Point the remote control toward the remote sensor to operate the
player.
Display
TOP MENU button
Press to call up the top menu programmed on the DVD.
Depending on the DVD, the top menu may be identical to the
DVD menu.
Cursor button/ENTER button
Use cursor button to move through the options on menu screens
and to change settings. Use ENTER to implement settings
selected with the cursor buttons or to set items highlighted in a
menu.
MENU button
Use to display or close the DVD menu or MP3 Navigator screen.
button
Press to stop playback. Pressing once enables playback to
resume from a point shortly before the location where it stopped.
Pressing twice causes the disc to return to the beginning of the
disc if playback starts again.
button
Press to start or resume playback.
button
Press to open and close the disc tray.
CLEAR button
Works in conjunction with a number of player functions. Use to
cancel repeat and random playback, and to edit programs.
REPEAT button
Use to set the repeat mode.
RANDOM button
Press to play chapters/tracks in random order.
LAST MEMORY button
You can resume DVD or Video CD playback from the point you
last watched even if the disc is removed from the player. Press
LAST MEMORY during playback to set a Last Memory point.
When you want to resume playback of that disc, press LAST
MEMORY in the stop mode and playback starts from the
memorized point. Last Memory locations can be stored for up to 5
DVDs and 1 Video CD.
DISPLAY button
Press during playback to display statistical disc information.
Press repeatedly to display different information.
/
button
Press to go back or advance to previous chapters/tracks. Press
and hold to perform fast-reverse/fast-forward playback scanning.
RETURN button
Use to go one menu back (current settings are maintained). Use
RETURN when you do not want to change the option setting in a
menu.
SETUP button
Press when the player is in either play or stop mode to open and
close the Setup screen.
button
Press during playback to pause. Press again to resume playback.
FRONT PANEL
PANEL VIEW

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of ONKYO TX-27 Owner's Manual

This manual has 24 pages, file size: 3.05 MB. It's available in languages: French, English, Spanish, Dutch, German.

Cover page of ONKYO TX-SV313PRO Service Manual

This manual has 36 pages, file size: 2.56 MB. It's available in languages: English.

Cover page of ONKYO DSR-4.8 Service Manual

This manual has 70 pages, file size: 10.43 MB. It's available in languages: English.

Cover page of ONKYO DX-C34 Owner's Manual

This manual has 28 pages, file size: 1 MB. It's available in languages: English.

Cover page of ONKYO A8850 Owner's Manual

This manual has 11 pages, file size: 0.69 MB. It's available in languages: German.
