background image
HTP-520/SKS-HT520
SERVICE MANUAL
SERVICE MANUAL
6.1-CH HOME THEATER SPEAKER PACKAGE
Black and Silver models
MODEL
HTP-520(B)/(S)
MODEL
SKS-HT520(B)/(S)
Ref. No. 3812
042004
120V AC, 60Hz
120V AC, 60Hz
BMDD
BMDC
120V AC, 60Hz
120V AC, 60Hz
SMDD
SMDC
- - - - - - - - - - Front Speakers (L / R) - - - - - - - - - -
"SKF-520F"
- - - Center Speaker - - -
"SKC-520C"
- - - - - Surround Speakers (L / R) - - - - -
"SKM-520S"
- Surround Back Speaker -
"SKB-520"
- - Powered Subwoofer - -
"SKW-520"
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
background image
HTP-520/SKS-HT520
SERVICE MANUAL
SERVICE MANUAL
6.1-CH HOME THEATER SPEAKER PACKAGE
Black and Silver models
MODEL
HTP-520(B)/(S)
MODEL
SKS-HT520(B)/(S)
Ref. No. 3812
042004
120V AC, 60Hz
120V AC, 60Hz
BMDD
BMDC
120V AC, 60Hz
120V AC, 60Hz
SMDD
SMDC
- - - - - - - - - - Front Speakers (L / R) - - - - - - - - - -
"SKF-520F"
- - - Center Speaker - - -
"SKC-520C"
- - - - - Surround Speakers (L / R) - - - - -
"SKM-520S"
- Surround Back Speaker -
"SKB-520"
- - Powered Subwoofer - -
"SKW-520"
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
background image
SPECIFICATIONS
HTP-520/SKS-HT520
Type :
Input sensitivity/impedance :
Maximum output power :
Frequency response :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Driver unit :
Power supply :
Power consumption :
Other :
Bass-reflex
330 mV / 100 kohm
220 W (Dynamic Power)
25 Hz - 150 Hz
1.35 cubic feet (38.5 L)
10-13/16" x 20-3/8" x 16-3/16"
(275 x 518 x 411 mm)
30 lbs. (13.6 kg)
10 inch Cone Woofer
AC 120 V, 60 Hz
128 W
Auto Standby function
Front Speaker (SKF-520F)
Type :
Impedance :
Maximum input power :
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Drivers unit :
Terminal :
Other :
2 Way Bass-reflex
8 ohm
130 W
87 dB/W/m
55 Hz - 50 kHz
4.5 kHz
0.38 cubic feet (10.8 L)
7-7/16" x 16-1/2" x 9-5/16"
(189 x 419 x 236 mm)
12.1 lbs. (5.5 kg)
5-1/4 inch OMF Cone woofer
x 2
1 inch Balanced Dome
tweeter
Color-coded push type
Magnetic shielding
Type :
Impedance :
Maximum input power :
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Drivers unit :
Terminal :
Other :
2 Way Bass-reflex
8 ohm
130 W
85 dB/W/m
60 Hz - 50 kHz
4.5 kHz
0.27 cubic feet (7.7 L)
15-1/4" x 6-3/16" x 7-15/16"
(387 x 157 x 202 mm)
8.2 lbs. (3.7 kg)
4 inch OMF Cone Woofer
x 2
1 inch Balanced Dome
tweeter
Color-coded push type
Magnetic shielding
Surround Speaker (SKM-520S/SKB-520)
Type :
Impedance :
Maximum input power :
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Drivers unit :
Terminal :
Other :
2 Way Bass-reflex
8 ohm
130 W
82 dB/W/m
60 Hz - 50 kHz
5 kHz
0.09 cubic feet (2.7 L)
6-7/8" x 10-7/16" x 4-15/16"
(175 x 265 x 125 mm)
3.7 lbs. (1.7 kg)
4 inch Cone Woofer
1 inch Balanced Dome
tweeter
Color-coded push type
Magnetic shielding
Specifications and appearance are subject to change
without prior notice.
Powered Subwoofer (SKW-520)
Center Speaker (SKC-520C)
background image
HTP-520/SKS-HT520
HTP-520/SKS-HT520

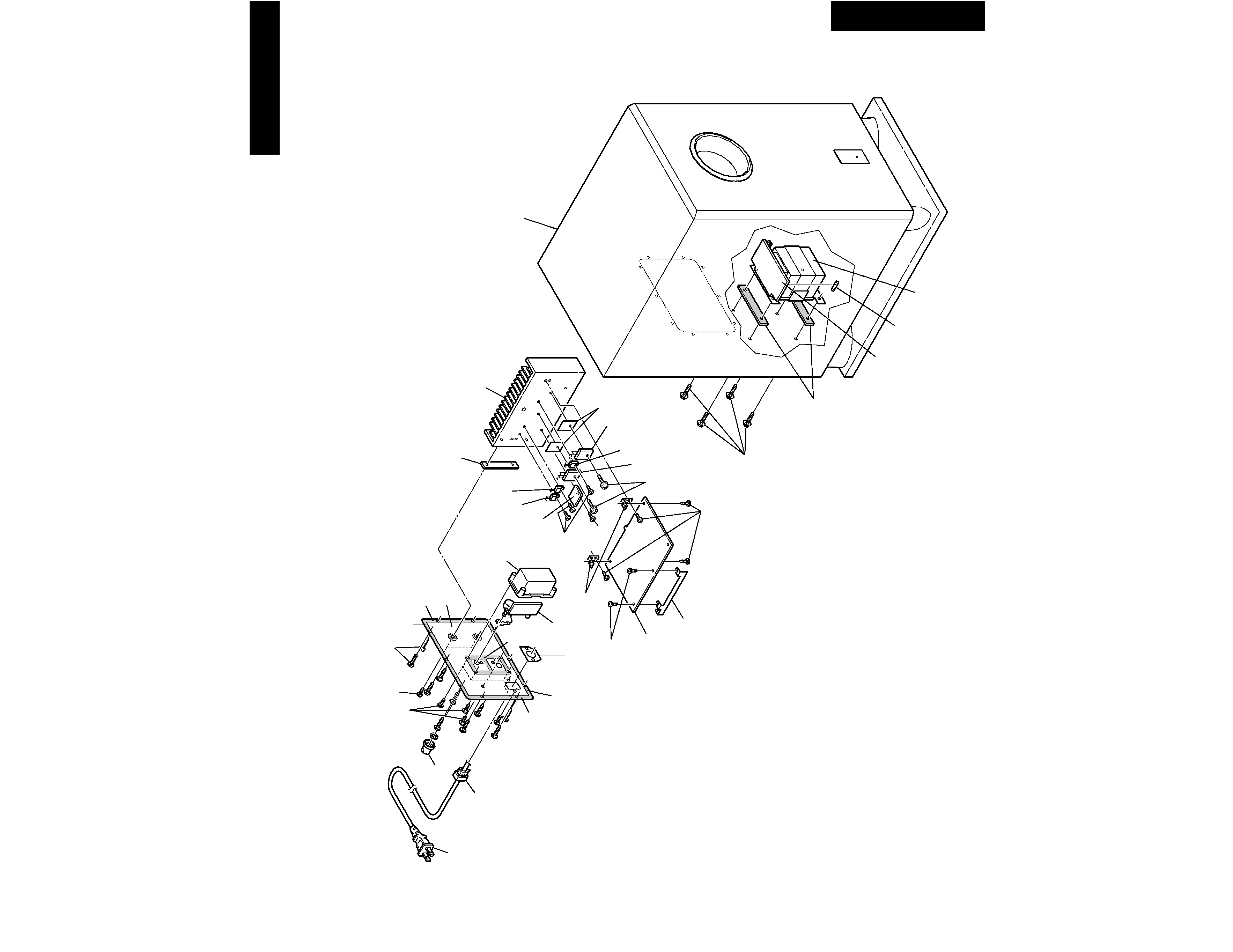

EXPLODED VIEWS-1
SKW-520 : POWERED SUBWOOFER
SP06
x10pcs.
A05
x8pcs.
SP07
x4pcs.
A08
x2pcs.
A07
A10
x4pcs.
A05
x3pcs.
A10
x2pcs.
A06
x2pcs.
A13
A10
A15
A102
A101
A103
P902
SP11
x2pcs.
A11
A01
U05
A03
U03
U01
U02
Q515
Q951
Q952
Q541
Q516
U04
F901
T901
A02
A04
A16
x2pcs.
A03
A02
Refer to "EXPLODED VIEWS-2"
background image
HTP-520/SKS-HT520
HTP-520/SKS-HT520
EXPLODED VIEWS-2
SKW-520 : POWERED SUBWOOFER
SP06
x 6 pcs.
SP08
SP04
SP01a / SP01b
SP03a / SP03b
SP05
x 8 pcs.
SP02
x 4 pcs.
SP09
background image
HTP-520/SKS-HT520
HTP-520/SKS-HT520
EXPLODED VIEWS-3
SKF-520F <L> / SKF-520F <R>
SP29a / SP29b
SP28
SP31a / SP31b
SP21a / SP21b / SP21c / SP21d
with Catching Holder (SP22)
SP23
SP33a / SP33b
SP24
SP23
SP22
x 4 pcs.
SP26
x 6 pcs.
SP26
x 6 pcs.
SP27
x 4 pcs.
Lch
TERMINAL
:
White
/ Black
Rch
TERMINAL
:
Red
/ Black
