ONKYO HT-R510 Service Manual

Cover page of ONKYO HT-R510 Service Manual

Service Manual for ONKYO HT-R510, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 55 pages
  • File size: 3.53 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
HT-R510
SERVICE MANUAL
SERVICE MANUAL
Ref. No. 3778
062003
120V AC, 60Hz
AV RECEIVER
MODEL
HT-R510
Black models
BMDD
STANDBY/ON
PHONES
MASTER VOLUME
VIDEO
2
TAPE
TUNER
C D
VIDEO
3
DVD
AB
SPEAKERS
DIMMER
SURROUND
VIDEO
1
VCR
AUDIO
SELECTOR
DSP
STEREO
STANDBY
DISPLAY
AUDIO ADJUST
SPEAKER ADJUST
FM MODE
SUBWOOFER
MODE
DIGITAL INPUT
MEMORY
DIRECT
S VIDEO
AUDIO
VIDEO
L
R
TUNING
CLEAR
PRESET/ADJUST
VIDEO
3 INPUT
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
background image
HT-R510
SERVICE MANUAL
SERVICE MANUAL
Ref. No. 3778
062003
120V AC, 60Hz
AV RECEIVER
MODEL
HT-R510
Black models
BMDD
STANDBY/ON
PHONES
MASTER VOLUME
VIDEO
2
TAPE
TUNER
C D
VIDEO
3
DVD
AB
SPEAKERS
DIMMER
SURROUND
VIDEO
1
VCR
AUDIO
SELECTOR
DSP
STEREO
STANDBY
DISPLAY
AUDIO ADJUST
SPEAKER ADJUST
FM MODE
SUBWOOFER
MODE
DIGITAL INPUT
MEMORY
DIRECT
S VIDEO
AUDIO
VIDEO
L
R
TUNING
CLEAR
PRESET/ADJUST
VIDEO
3 INPUT
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
background image
2. To initialize the unit
This device employs a microprocessor to perform various
functions and operations. If interference generated by an external
power supply, radio wave, or other electrical source results in
accident which causes the specified operations and functions to
operate abnormally.
To perform a result, please follow the procedure below.
1.Press and hold down the VIDEO-1 button, then press the
STANDBY/ON button.
2.After "CLEAR" is displayed, the preset memory and each
mode stored in the memory, such as surround, are
initialized and will return to the factory setting.
3. Unplug the power supply cord.
3. Safety-check out
(U.S.A. model only)
After correcting the original service problem, perform the
following safety check before releasing the set to the customer.
Leakage Current Check
Measure leakage current to a known earth ground(water pipe,
conduit, etc.) by connecting a leakage current tester between
the earth ground and exposed metal parts of the appliance
(input/output terminals, screwheads,metal overlays, etc.).
Plug the power supply cord directly into a 120V AC 60 Hz outlet
and turn Standby switch on. Any current meausred must not
exceed 0.5mA.
1. Replacing the fuses
This symbol located near the fuses indicates that the
fuse used is fast operating type. For continued protection against
fire hazard, replace with same type fuse. For fuse rating refer to
the marking adjacent to the symbol.
Ce symbole indique que le fusible utlise est a rapide.
Pour une protection permanente, n'untiliser que fusibles de
meme type. Ce darnier est la qu le present symbol est
appse.
CIRCUIT NO.
PART NO
.
DESCRIPTION
F6901,F6902
252198 or
!
8A-UL or
252261
!
8A-T/UL-ST2,Fuse
F901
252198 or
!
8A-UL or
252261
!
8A-T/UL-ST2,Fuse
HT-R510
SERVICE PROCEDURES
background image
HT-R510
EXPLODED VIEW
HT-R510
P901
11
33
33
31
U9
U31
U17
U26
2
2
17
17
17
16
P7502
P7503
24
53
51
1
2
25
U3
U6
P101
53
52
2
U5
U1
2
U15
33
F901
U24
9
U23
T901
9
U25
U13
13
Q6050
Q6065
55
12
21
22
23
21
22
23
8
8
7
6
U21
F6901
F6902
U14
2
U12
10
2
U4
5
54
2
56
U27
U28
2
18
63
Q6060
Q6055
U10
background image
HT-R510
WIRING VIEW
JL6952B
JL695
1B
P911A
P912A
P913A
7
3
1
5
JL9501B
P6072
JL6804A
P6922
P6923
P6301
P995A
P931
JL6952
A
JL6951
A
D6706
D6705
C6708
P6907
P6909
JL6805A
P997A
P996A
P6906
P995B
P6910
P6801
JL6803A
P6011A
P6073A
JL640
2A
COM
TH1
P6072A
ID-
ID+
-B1
ID-
ID+
ID-
ID+
ID-
ID+
ID-
ID+
ID-
ID+
ID+
P6931
P6083
P6084
P6085
P6082
P6081
P6003
P6004
P6005
P6002
P6001
P6000
R6043
R6044
R6045
R6042
R6041
R6040
P6802
R
L
TH2
P6903
P6080
JL7502A
P7501
JL7502B
NADIS-7403,Display circui
NASW-7404,
Standby switch
PC board ass'y
NAETC-7405,
Headphone
terminal PC
board ass'y
NAETC-783
circuit PC b
NAETC-7834,
Secondary
PC board ass'y
NAETC-7835,Speaker
terminal PC board ass'y
NAAF-7842,
Power amplifier
PC board ass'y
NAPS-7844,
Transformer
terminal
PC board ass'y
U24
NAPS-7845,Primary circuit
PC board ass'y
NAPS-7846,
Secondary
terminal
PC board ass'y
U13
U25
U23
T901
POWER
TRANS-
FORMER
NPT-1465D
U3
U4
U5
U21
U14
U28
P902
P901A
P909
P908
T902
AC-G
S902
P917
P918
P911
P922
P923
E921
AC-H
P931A
120V
220V
P921A
P921
P922A
P923A
P913
P912
P926
P925
AC-G
AC-H
15
16
17
18
19
JL7501B
NCSW-7404
JL7501A
14
13
12
11
10
9
8
JL6805B
JL6803B
JL6804B
NCETC-7835
P6800
P6802
P6801
P6931A
JL9501
A
1
2
3
4
5
BCD
background image
HT-R510

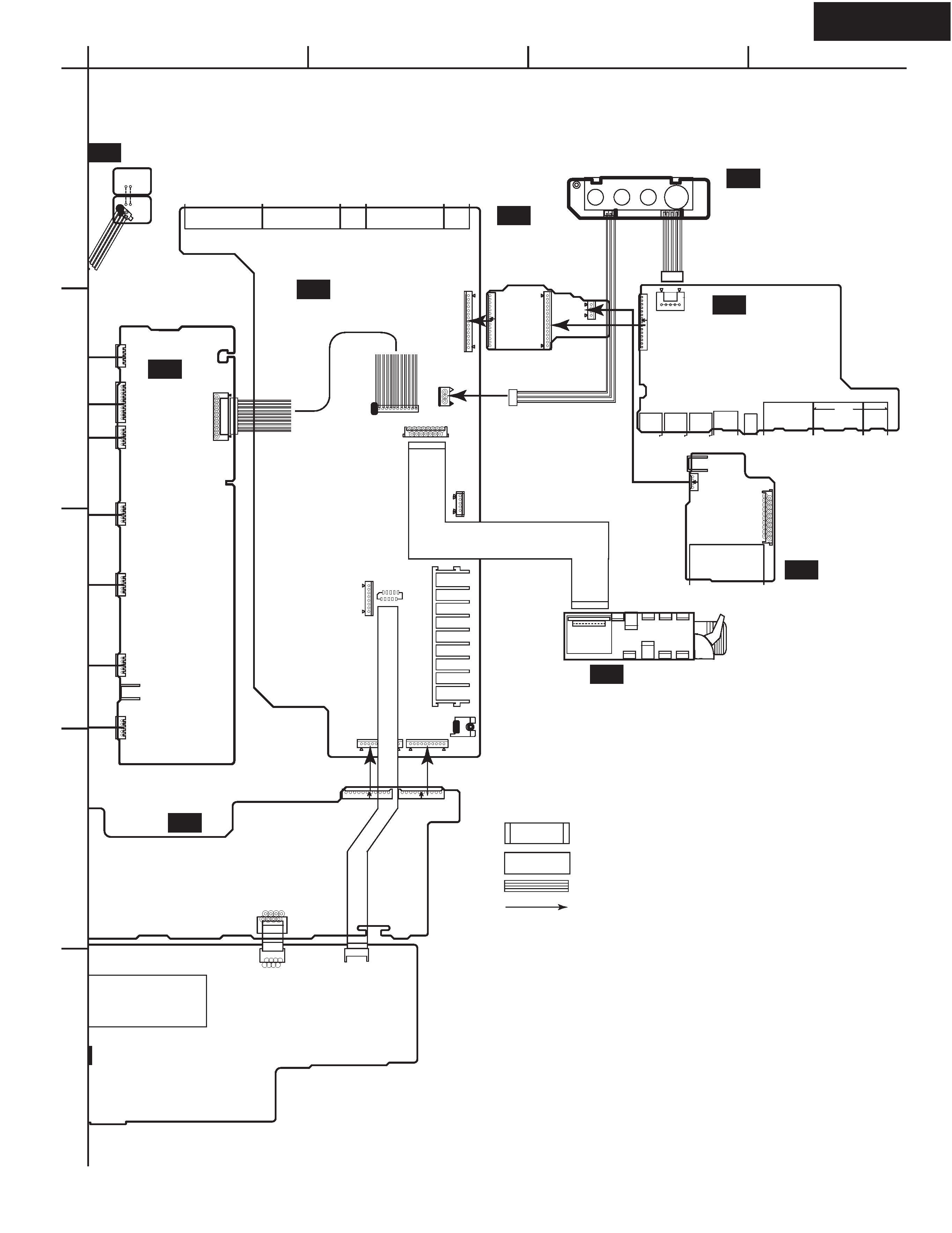

WIRING VIEW
P7701
P253B
P261B
V4C
GND
GND
V4Y
V4
P101
P301
P302
P304
P305
P306
P261A
P351
P801
P410B
P411B
P412B
P6403
P7502B
P7701
P7502A
P7503A
FLAC
FLAC
GND
GND
HPL
HPE
HPR
+5.6V
NADG-7821,
DSP circuit
PC board ass'y
ircuit PC board ass'y
NAETC-7406,
Front video
PC board ass'y
NAETC-7838,
Connector PC
board ass'y
NAAF-7830,
Driver circuit
PC board ass'y
-7833,Const. voltage
PC board ass'y
NAVD-7847,Video
circuit PC board ass'y
TUNER
PACK
U12
U6
U17
U26
U1
U9
U28
: Flat cable
: Jumper Wire
: Socket
: PC board to PC board
P282
P201
P203
P204
P202
P253A
P281
U281
U282
U283
JL
6402B
NAETC-7849,
Thermal detector
PC board ass'y
U31
P242A
P243B
P241
P801B
P206A
P243A
P6011A
P6000A
P6001A
P6002A
P6003A
P6004A
P6005A
P306A
A
P7503B
P410A
P411A
NAVD-7831,Component
video PC board ass'y
U10
P206B
A
1
2
3
4
5
BCD
