ONKYO TXSR701E Service Manual

Cover page of ONKYO TXSR701E Service Manual

Service Manual for ONKYO TXSR701E, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 80 pages
  • File size: 6.35 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
TX-SR701/E
SERVICE MANUAL
SERVICE MANUAL
Ref. No. 3774
062003
120V AC, 60Hz
230-240V AC, 50Hz
120/220-230V AC, 50/60Hz
220-230V AC, 50Hz
AV RECEIVER
MODEL
TX-SR701/E
Black, Golden and Silver models
BMDD
BMPP,SMPP,BMPA,GMPA
BMWT,GMWT,GMWR,GMWQ
GMGK
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
STANDBY/ON
PHONES
VIDEO
4 INPUT
DIGITAL
VIDEO
3
TAPE
VIDEO
4
SURROUND
THX
DSP
STEREO
STANDBY
DISPLAY
VIDEO
2
DVD
VIDEO
1
AUDIO
SELECTOR
LISTENING MODE
MASTER VOLUME
RETURN
ENTER
AUDIO
ADJUST
SETUP
RT/PTY/TP
VCR
2
VCR
1
S VIDEO
VIDEO
AUDIO
LR
OFF
ON
POWER
TUNER
CD
PHONO
DIRECT/
PURE AUDIO
PURE AUDIO
REC OUT
ZONE
2
OFF
LEVEL
MEMORY
CLEAR
FM MODE
PRESET
TUNING
Page 1
background image
TX-SR701/E
SERVICE MANUAL
SERVICE MANUAL
Ref. No. 3774
062003
120V AC, 60Hz
230-240V AC, 50Hz
120/220-230V AC, 50/60Hz
220-230V AC, 50Hz
AV RECEIVER
MODEL
TX-SR701/E
Black, Golden and Silver models
BMDD
BMPP,SMPP,BMPA,GMPA
BMWT,GMWT,GMWR,GMWQ
GMGK
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
STANDBY/ON
PHONES
VIDEO
4 INPUT
DIGITAL
VIDEO
3
TAPE
VIDEO
4
SURROUND
THX
DSP
STEREO
STANDBY
DISPLAY
VIDEO
2
DVD
VIDEO
1
AUDIO
SELECTOR
LISTENING MODE
MASTER VOLUME
RETURN
ENTER
AUDIO
ADJUST
SETUP
RT/PTY/TP
VCR
2
VCR
1
S VIDEO
VIDEO
AUDIO
LR
OFF
ON
POWER
TUNER
CD
PHONO
DIRECT/
PURE AUDIO
PURE AUDIO
REC OUT
ZONE
2
OFF
LEVEL
MEMORY
CLEAR
FM MODE
PRESET
TUNING
Page 1
background image
TX-SR701
Specifications (TX-SR701/701E)
AMPLIFIER SECTION
Continuous average power output (FTC)
All channels:
100 W per channel min. RMS at 8
,
2 channels driven from 20 Hz to 20
kHz with no more than 0.08% total
harmonic distortion.
125 W min. RMS at 6
, 2 channels
driven from 1 kHz with no more
than 0.1% total harmonic distortion.
Continuous power output (DIN)
130 W at 6
Maximum power output (EIAJ)
160 W at 6
Dynamic power output (stereo)
2
× 230 W at 3
2
× 170 W at 4
2
× 115 W at 8
Total harmonic distortion:
0.08% at rated power
0.08% at 1 W output
IM distortion:
0.08% at rated power
0.08% at 1 W output
Damping factor:
60 at 8
Input sensitivity and impedance
PHONO:
2.5 mV, 47 k
LINE (CD, TAPE, DVD,
VIDEO 1-4):
200 mV, 47 k
MULTICHANNEL INPUT
(FRONT L/C/R, SURROUND
L/R):
200 mV, 47 k
(SUBWOOFER):
36 mV, 47 k
COAXIAL (DIGITAL):
0.5 Vp-p, 75
DVD, VIDEO 1, 2, 3, 4:
1 Vp-p, 75
1 Vp-p, 75
(Y)
0.28 Vp-p, 75
(C)
COMPONENT VIDEO 1, 2:
1 Vp-p, 75
(Y)
0.7 Vp-p, 75
(PB, PR)
Output level and impedance
Rec out (TAPE, VIDEO 1, 2):
200 mV, 470
Line out:
100 mV, 470
(Zone 2)
Pre out:
1 V, 470
VIDEO (VIDEO 1, 2,
MONITOR OUT):
1 Vp-p, 75
1 Vp-p, 75
(Y)
0.28 p-p, 75
(C)
COMPONENT VIDEO OUT:
1 Vp-p, 75
(Y)
0.7 Vp-p, 75
(PB, PR)
Phono overload:
70 mV RMS at 1 kHz, 0.5% T.H.D.
Frequency response:
10 Hz to 100 kHz: +1/­3 dB
(CD in Direct mode)
RIAA deviation:
20 Hz to 20 kHz: ±0.8 dB
Tone control
Bass:
±10 dB at 50 Hz
Treble:
±10 dB at 20,000 Hz
Signal-to-noise ratio (stereo)
Phono:
80 dB (IHF A, 5 mV input, Direct mode)
Line:
106 dB (IHF A, 0.5 V input, Direct mode)
Muting:
­50 dB
TUNER SECTION
FM
Tuning range:
USA & Canadian models:
87.50­108.00 MHz (100-kHz steps)
Other area models:
87.50­108.00 MHz (50-kHz steps)
Usable sensitivity
Mono:
11.2 dBf, 1.0 µV (75
IHF)
0.9 µV (75
DIN)
Stereo:
17.2 dBf, 2.0 µV (75
IHF)
23 µV (75
DIN)
50 dB quieting sensitivity
Mono:
17.2 dBf, 2.0 µV (75
)
Stereo:
37.2 dBf, 20 µV (75
)
Capture ratio:
2.0 dB
Image rejection ratio
USA & Canadian models:
40 dB
Other area models:
85 dB
IF rejection ratio:
90 dB
Signal-to-noise ratio
Mono:
76 dB
Stereo:
70 dB
Alternate channel attenuation:
55 dB
Selectivity:
50 dB (DIN)
AM suppression ratio:
50 dB
Total harmonic distortion
Mono:
0.2%
Stereo:
0.3%
Frequency response:
30 Hz­15 kHz, ±1.0 dB
Stereo separation:
45 dB at 1 kHz
30 dB at 100 Hz­10 kHz
AM
Tuning range
USA & Canadian models:
530 to 1,710 kHz (10-kHz steps)
European & Australian models:
522 to 1,611 kHz (9-kHz steps)
Worldwide models:
522 to 1,611 kHz (9-kHz steps)
530 to 1,710 kHz (10-kHz steps)
Usable sensitivity:
30 µV
Image rejection ratio:
40 dB
IF rejection ratio:
40 dB
Signal-to-noise ratio:
40 dB
Total harmonic distortion:
0.7%
GENERAL
Power supply
USA & Canadian models:
AC 120 V, 60 Hz
European & Australian models:
AC 230­240 V, 50 Hz
Some Asian models:
AC 220­230 V, 50/60 Hz
Worldwide models:
AC 220­230 and 120 V switchable,
50/60 Hz
Power consumption
USA & Canadian models:
6.0 A
Other models:
620 W
Dimensions (W
× H × D):
435
× 175 × 431.5 mm
17-1/8"
× 6-7/8" × 16-15/16"
Weight
USA & Canadian models:
26.9 lbs.
Other models:
13.0 kg
REMOTE CONTROLLER
Transmitter:
Infrared
Signal range:
Approx. 16 ft., 5 meters
Power supply:
Two "AA" batteries (1.5 V
× 2)
Specifications and features are subject to change without notice.
Page 2
background image

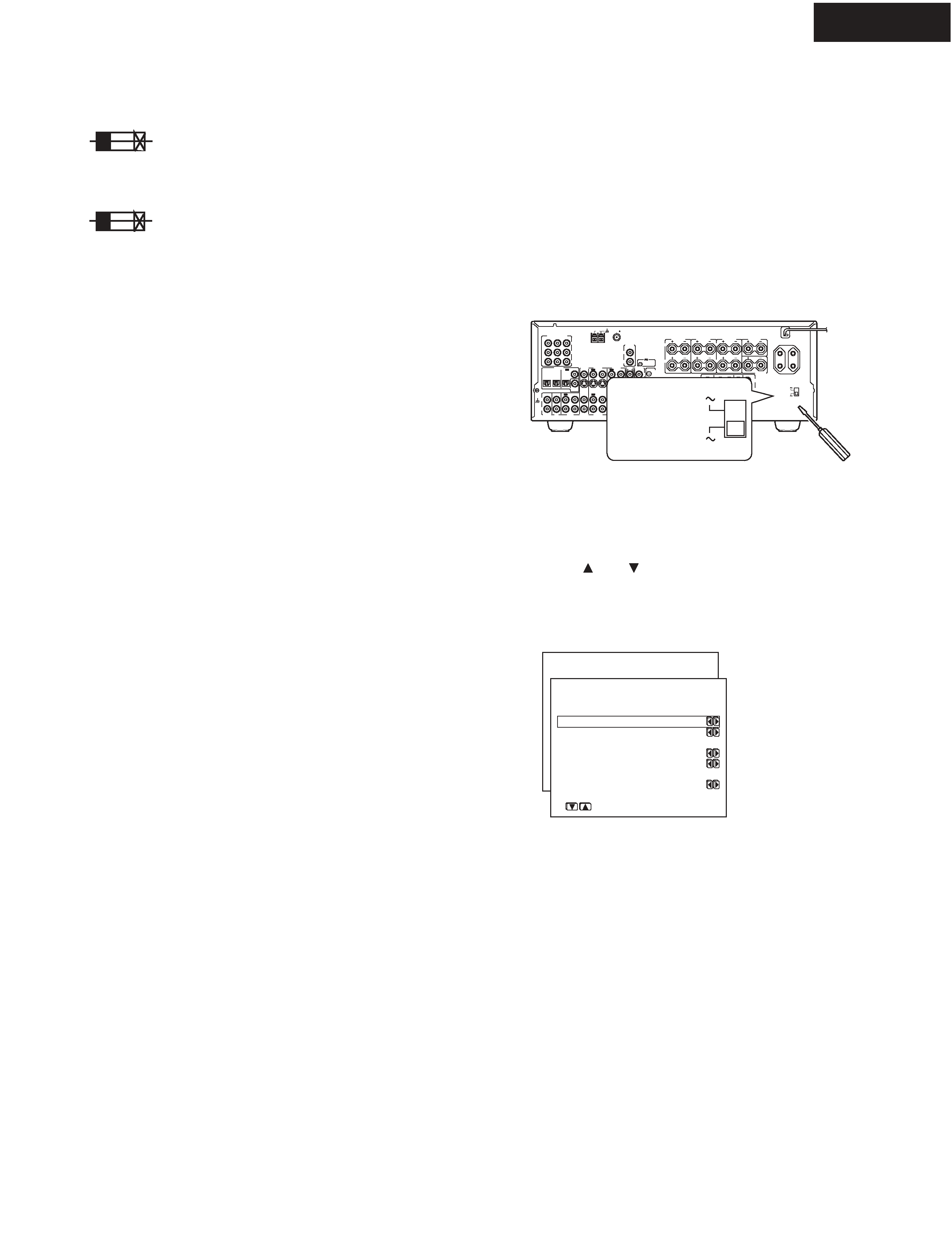

2. To initialize the unit
This device employs a microprocessor to perform various
functions and operations. If interference generated by an external
power supply, radio wave, or other electrical source results in
accident which causes the specified operations and functions to
operate abnormally.
To perform a result, please follow the procedure below.
1.Press and hold down the VIDEO-1 button, then press the
STANDBY/ON button.
2.After "CLEAR" is displayed, the preset memory and each
mode stored in the memory, such as surround, are
initialized and will return to the factory setting.
3. Safety-check out
(U.S.A. model only)
After correcting the original service problem, perform the
following safety check before releasing the set to the customer.
Leakage Current Check
Measure leakage current to a known earth ground(water pipe,
conduit, etc.) by connecting a leakage current tester between
the earth ground and exposed metal parts of the appliance
(input/output terminals, screwheads,metal overlays, etc.).
Plug the power supply cord directly into a 120V AC 60 Hz outlet
and turn Standby switch on. Any current meausred must not
exceed 0.5mA.
1. Replacing the fuses
This symbol located near the fuses indicates that the
fuse used is fast operating type. For continued protection against
fire hazard, replace with same type fuse. For fuse rating refer to
the marking adjacent to the symbol.
Ce symbole indique que le fusible utlise est a rapide.
Pour une protection permanente, n'untiliser que fusibles de
meme type. Ce darnier est la qu le present symbol est
appse.
4.Setting the voltage selector (Worldwide models
only)
Worldwide models are equipped with a voltage selector to conform
with local power supplies. Be sure to set this switch to match the
voltage of the power supply in your area before plugging in the unit.
Determine the proper voltage for your area: 220-230 V or 120 V. If
the preset voltage is not correct for your area, insert a screwdriver
into the groove in the switch. Slide the switch all the way to the
upper (120 V) or to the lower (220-230 V), whichever is appropriate.
5.Setting the AM tuning step frequency
(Worldwide models only)
CIRCUIT NO. PART NO.
DESCRIPTION
Note: <D>:120V model only
<O>: Other models except 120V model
<T>: Asian model only for 230V
<R>: Chinese model only
<Q>: Hongkong model only
To display the Hardware Config menu:
1. Display the main menu.
2. Use the
and
cursor buttons to select "1. Hard
Config" and then pr ess the ENTER b utton. The
"Hardware Config" menu appears.
e. AM Fr equency Step
This setting only appears on the worldwide model.
It determines the increment amount or decrement amount
when adjusting the AM tuner frequency.
.
The initial setting is 9 kHz, and this needs only to be changed
unit in a 10-kHz region.
if you are using the
* Menu *****************
1.Speaker Config
2.Speaker Distance
3.Level Calibration
4.Input Setup
5.OSD Setup
6.Preference
1.Hardware Config
***********************
a.Surr/Zone 2:Surr
b.Surr Back : 1ch
c.IR IN Position
:Main
d.TV Format
:Auto
e.AM Frequency Step
:9kHz
Quit:|SETUP|
INPUT 1
INPUT 2
OUTPUT
COMPONENT VIDEO
Y
OPTICAL
1
2
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
VIDEO 2
VIDEO 1
VIDEO 2
DVD
MONITOR
OUT
DVD
TAPE
IN
L
R
VIDEO 3
VIDEO 1
V
VIDEO 3
OPTICAL
IN
IN
IN
IN
IN
IN
OUT
OUT
OUT
OUT
OUT
S
DIGITAL
OUT
AC OUTLETS
CD
COAXIAL
L
R
IN
GND
PHONO
COAXIAL
PR
PB
12V
TRIGGER
OUT
ZONE 2
IR IN
12V
TRIGGER
OUT
ANTENNA
FM 75
AM
REMOTE
CONTROL
R
L
ZONE 2
LINE OUT
AV RECEIVER
MODEL NO.
TX-SR701
FRONT
SPEAKERS
ZONE 2
SPEAKERS
SURROUND
SPEAKERS
CENTER
SPEAKER
R
L
R
L
SURROUND
BACK
SPEAKER
FRONT
SURR
CENTER SURR BACK
(SB)
ZONE 2
SUB
WOOFER
PRE OUT
R
L
R
L
CAUTION: SPEAKER IMPEDANCE
6 OHMS MIN. /SPEAKER
120V
220-230V
VOLTAGE
SELECTOR
SWITCHED
TOTAL 100W MAX.
120V
VOLTAGE
SELECTOR
220-230V
F6901,F6902
252196 or
12A-UL/T-314 or
252301
12A-TUL-250V, Fuse <D>
252100 or
10A-EAK or
252307
10A-TL250V, Fuse <O>
F901
252199
10A-UL, Fuse <D/T/Q/R>
F902
252078,
5A-SE-EAK,
252244 or
5A-SE-TL250V or
252278
5A-SE-TL250V, Fuse <O>
F903
252164 or
5A-UL/T-237 or
252258
5A-T/UL-ST2,Fuse <D>
252075,
2.5A-SE-EAK,
252241 or
2.5A-SE-TL250V or
252275
2.5A-SE-TL250V,Fuse <O>
F9501
252160 or
2.5A-UL/T-237 or
252254
2.5A-T/UL-ST2,Fuse <D>
252075,
2.5A-SE-EAK,
252241 or
2.5A-SE-TL250V or
252275
2.5A-SE-TL250V, Fuse <O>
TX-SR701/E
SERVICE PROCEDURES
Page 3
background image
TX-SR701
Front panel facilities
Here is an explanation of the controls and displays on the front panel of the TX-SR701/701E/601/601E.
Front panel
<TX-SR701E>
<TX-SR601E>
STANDBY/ON
PHONES
VIDEO
4 INPUT
DIGITAL
VIDEO
3
TAPE
VIDEO
4
SURROUND
THX
DSP
STEREO
STANDBY
DISPLAY
VIDEO
2
DVD
VIDEO
1
AUDIO
SELECTOR
LISTENING MODE
MASTER VOLUME
RETURN
ENTER
AUDIO
ADJUST
SETUP
RT/PTY/TP
VCR
2
VCR
1
S VIDEO
VIDEO
AUDIO
LR
OFF
ON
POWER
TUNER
CD
PHONO
DIRECT/
PURE AUDIO
PURE AUDIO
REC OUT
ZONE
2
OFF
LEVEL
MEMORY
CLEAR
FM MODE
PRESET
TUNING
STANDBY/ON
PHONES
REC OUT
ZONE
2
OFF
VIDEO
4 INPUT
DIGITAL
VIDEO
3
TAPE
TUNER
VIDEO
4
SURROUND
DSP
STEREO
DISPLAY
MEMORY
DIRECT
VIDEO
2
DVD
VIDEO
1
AUDIO
SELECTOR
CLEAR
FM MODE
LISTENING MODE
TUNING
PRESET
MASTER VOLUME
RETURN
ENTER
AUDIO
ADJUST
SETUP
OFF
ON
POWER
RT/PTY/TP
VCR
2
VCR
1
LEVEL
S VIDEO
VIDEO
AUDIO
LR
STANDBY
C D
Page 4
background image
TX-SR701
Front panel facilities
POWER switch (for all models other than USA and
Canadian models, and Australian models)
Press to turn on and off the main power supply for the TX-SR701/
701E/601/601E. When the TX-SR701/701E/601/601E is turned on
with the POWER switch, the STANDBY indicator lights.
· Before turning on the power, check to make sure that all cords
are properly connected.
· When the power is turned on, a sudden surge of current will
occur that may adversely affect the operation of other devices.
To prevent this, do not plug the TX-SR701/701E/601/601E into
the same circuit used by sensitive equipment, e.g., computers.
STANDBY/ON button
If pressed with the POWER switch turned on (with the receiver
plugged in for US models and Australian models), the TX-SR701/
701E/601/601E turns on and the display lights up. If pressed again,
the TX-SR701/701E/601/601E returns to the standby state. In the
standby state, the display is turned off and the TX-SR701/701E/
601/601E cannot be operated.
STANDBY indicator
Lights when the TX-SR701/701E/601/601E is in the standby state
and when a signal is received from the remote controller.
DISPLAY button
Press to display information about the current input source signal.
Each time you press the display button, the screen changes to show
you different information concerning the input signal.
RT/PTY/TP (European models only) button
This button is only available on European models. Press this button
to tune into the Radio Data System (RDS) for FM broadcasting.
RDS was developed within the European Broadcasting Union
(EBU) and is available in most European countries. Each time the
button is pressed, the display changes from RT (radio text) to PTY
(program type) to TP (traffic program) and then back to RT again.
DIMMER button
(other than European models)
Press to set the brightness of the front display.
There are three settings available: normal, dark,
and very dark.
· The brightness of the front display can also
be adjusted using the remote controller.
LISTENING MODE buttons
Press these buttons to select a listening mode for the current input
source. Press the DIRECT (TX-SR601/601E), THX (TX-SR701/
701E), STEREO, and SURROUND buttons to select a listening
mode directly. Press the DSP button to select any of the possible
listening modes for the input source currently selected.
Note:
During playback of a multichannel source, press the DIRECT
button to turn off the tone control and the SURROUND button to
turn on the tone control.
Front display
MEMORY button
Press to assign the radio station that you are currently tuned into to a
preset channel or press to delete a previously preset station.
FM MODE button
Press to change the stereo mode from AUTO to MONO and vice
versa. Each time this button is pressed, the AUTO indication turns
on and off indicating the current mode. If you are listening to an FM
radio station in stereo and the sound cuts out or there is a great deal
of noise, switch from AUTO to MONO.
Remote control sensor
AUDIO ADJUST button
Press to adjust the sound quality and the listening mode.
SETUP button
Press to enter the Setup Menu. The OSD Menu will appear on the
TV monitor as well as the front display on the TX-SR701/701E/
601/601E.
RETURN button
When in the Setup Menu, press to go back one level. If pressed
while at the Main Menu, you will exit the Setup Menu.
TUNING
/ , PRESET
/ , cursor ( / / / ) buttons
To tune into a radio station, press the TUNING
/
buttons. The
tuner frequency is displayed in the front display and it can be
changed in 100-kHz (or 50-kHz) increments for FM and 10-kHz (or
9-kHz) increments for AM.
When FM is selected as the input source, you can hold down either
the TUNING
or
button and then release it to activate the auto-
search feature. It will search for a station in the direction of the
button you pressed and stop when it tunes into one. When
navigating through the menu settings, these buttons move the cursor
up or down (or change the highlighted item).
To select a radio station that was stored using the MEMORY button,
press the PRESET
/
buttons.
When navigating through the menu settings, these buttons select the
value or item that you selected with the TUNING
/
buttons.
When you press the SETUP button, the TUNING and PRESET
buttons become cursor buttons to be used for Setup Menu
operations.
ENTER button [31]
Press to display the screen for the item that is selected in the Setup
Menu.
MASTER VOLUME dial
Use to control the volume in the main zone. The volume for the
remote zone (Zone 2) is independent.
VIDEO 4 INPUT terminals
For connecting a video camera or game device.
STANDBY
DISPLAY
DIMMER
Page 5

Reviews

There are no reviews of this manual yet.
