ONKYO TX-SR803 Service Manual

Cover page of ONKYO TX-SR803 Service Manual

Service Manual for ONKYO TX-SR803, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 143 pages
  • File size: 9.16 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
TX-SR803/E
SERVICE MANUAL
SERVICE MANUAL
Ref. No. 3912
112005
120V AC, 60Hz
230-240V AC, 50Hz
120/220-230V AC, 50/60Hz
220-230V AC, 50Hz
AV RECEIVER
MODEL
TX-SR803/E
Black, Golden and Silver models
BMDD,BMDC,SMDC
BMPP,SMPP,BMPA,SMPA
GMWT
GMGK,GMGR
SAFETY-RELATED COMPONENT
WARNING!!
THE MARK
FOUND ON SOME COMPONENT
PARTS INDICATES THE CRITICAL FOR RISK OF
FIRE AND ELECTRIC SHOCK.
WHEN REPLACING, BE SURE TO USE PARTS OF
IDENTICAL DESIGNATION.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
RC-620M
THX
10
--/---
11
12
REMOTE MODE
HDD
RECEIVER
TAPE/AMP
DVD
CD
ZONE2
SAT
TV
VCR
CABLE
MD
CDR
STEREO
SURR
DIRECT
SUBTITLE
AUDIO
ALLST
PLAY MODE
VIDEO OFF
REPEAT
RANDOM
REC
PLAYLIST
OPEN/CLOSE
Re-EQ
+
-
TV CH
TV VOL
ENTER
SET
UP
TO
P M
ENU
MEN
U
VOL
+
-
CH
DISPLAY
PREV
CH
DIMMER
SLEEP
MUTING
LISTENING MODE
INPUT SELECTOR
3
2
MACRO
1
+10
0
CLEAR
12
3
45
6
78
9
INPUT
I
ON
STANDBY
TV
CD
V1
V2
V3
MULTI CH
DVD
TUNER
PHONO
DISC
ALBUM
V4
TAPE
PURE A
TEST TONE
CH SEL
LEVEL
LEVEL
L NIGHT
RE
TURN
RC-620M
STANDBY/ON
STANDBY
MASTER VOLUME
PHONO
ZONE 2
DISPLAY
PURE AUDIO
TUNER
TAPE
VIDEO 4
VIDEO 3
VIDEO 2
VIDEO 1
DVD
MULTI CH
CD
OFF
ON
POWER
PUSH TO OPEN
TX-SR803
background image
TX-SR803/E
SERVICE MANUAL
SERVICE MANUAL
Ref. No. 3912
112005
120V AC, 60Hz
230-240V AC, 50Hz
120/220-230V AC, 50/60Hz
220-230V AC, 50Hz
AV RECEIVER
MODEL
TX-SR803/E
Black, Golden and Silver models
BMDD,BMDC,SMDC
BMPP,SMPP,BMPA,SMPA
GMWT
GMGK,GMGR
SAFETY-RELATED COMPONENT
WARNING!!
THE MARK
FOUND ON SOME COMPONENT
PARTS INDICATES THE CRITICAL FOR RISK OF
FIRE AND ELECTRIC SHOCK.
WHEN REPLACING, BE SURE TO USE PARTS OF
IDENTICAL DESIGNATION.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
RC-620M
THX
10
--/---
11
12
REMOTE MODE
HDD
RECEIVER
TAPE/AMP
DVD
CD
ZONE2
SAT
TV
VCR
CABLE
MD
CDR
STEREO
SURR
DIRECT
SUBTITLE
AUDIO
ALLST
PLAY MODE
VIDEO OFF
REPEAT
RANDOM
REC
PLAYLIST
OPEN/CLOSE
Re-EQ
+
-
TV CH
TV VOL
ENTER
SET
UP
TO
P M
ENU
MEN
U
VOL
+
-
CH
DISPLAY
PREV
CH
DIMMER
SLEEP
MUTING
LISTENING MODE
INPUT SELECTOR
3
2
MACRO
1
+10
0
CLEAR
12
3
45
6
78
9
INPUT
I
ON
STANDBY
TV
CD
V1
V2
V3
MULTI CH
DVD
TUNER
PHONO
DISC
ALBUM
V4
TAPE
PURE A
TEST TONE
CH SEL
LEVEL
LEVEL
L NIGHT
RE
TURN
RC-620M
STANDBY/ON
STANDBY
MASTER VOLUME
PHONO
ZONE 2
DISPLAY
PURE AUDIO
TUNER
TAPE
VIDEO 4
VIDEO 3
VIDEO 2
VIDEO 1
DVD
MULTI CH
CD
OFF
ON
POWER
PUSH TO OPEN
TX-SR803
background image
TX-SR803/E
SPECIFICATIONS
Amplifier Section
Video Section
Tuner Section
FM
AM
General
Video Inputs
Video Outputs
Audio Inputs
Audio Outputs
Specifications and features are subject to change without
notice.
Power Output
2 channels driven:
North American: 105 W + 105 W
(8
, 20 Hz-20 kHz, FTC)
European: 140 W + 140 W
(6
, 1 kHz, DIN)
Others: 170 W + 170 W
(6
, 1 kHz, JEITA)
Dynamic Power
240 W + 240 W (3
, Front)
180 W + 180 W (4
, Front)
125 W + 125 W (8
, Front)
THD (Total Harmonic
Distortion)
0.08% (Power Rated)
Damping Factor
60 (Front, 1 kHz, 8 )
Input Sensitivity and
Impedance
200 mV/ 47 k
(LINE)
2.5 mV/47 k
(PHONO MM)
Output Level and
Impedance
200 mV/ 470
(REC OUT)
Phono Overload
70 mV (MM 1 kHz, 0.5%)
Frequency Response
10 Hz-100 kHz/ +1 dB-3 dB (LINE)
Tone Control
±10 dB, 50 Hz (BASS)
±10 dB, 20 kHz (TREBLE)
Signal to Noise Ratio
106 dB (LINE, IHF-A)
80 dB (PHONO, IHF-A)
Speaker Impedance
4
min. or 6
Input Sensitivity/Output
Level and Impedance
1 Vp-p /75
(Component and S-Video Y)
0.7 Vp-p /75
(Component Pb/Cb,Pr/Cr)
0.28 Vp-p /75
(S-Video C)
1 Vp-p /75
(Composite)
Component Video
Frequency Response
5 Hz - 100 MHz
Tuning Frequency
Range
North American: 87.5 MHz- 107.9 MHz
Other: 87.5 MHz-108.0 MHz
Usable Sensitivity
Stereo: 22.2 dBf (75
IHF)
Mono: 15.2 dBf (75
IHF)
Signal to Noise Ratio
Stereo: 67 dB (IHF-A)
Mono: 73 dB (IHF-A)
THD
Stereo: 0.5% (1 kHz)
Mono:0.3% (1 kHz)
Frequency Response
30 Hz-15 kHz / ±1 dB
Stereo Separation
40 dB (1 kHz)
Tuning Frequency
Range
North American: 530 kHz-1710 kHz
European: 522 kHz-1611 kHz
Asian: 530/522 kHz-1710/1611 kHz
Usable Sensitivity
300 µV/m
Signal to Noise Ratio
40 dB
THD
0.70%
Power Supply
North American: AC 120 V, 60 Hz
Australian and European:
AC 230-240 V, 50 Hz
Others: AC 120/220-240 V, 50/60 Hz
AC 230-240 V, 50Hz
AC 220-230 V, 50/60 Hz
Power Consumption
North American: 7.5 A
Others: 680 W
Standby Power
Consumption
North American: 0.1 W
Australian and European: 0.2 W
Others: 0.5 W
Dimensions
(W
× H × D)
435
× 173.5 × 430 mm
17-1/8"
× 6-13/16" × 16-15/16"
Weight
North American: 13.3 kg
29.3 lbs.
European: 13.5 kg
29.8 lbs.
Others: 13.3 kg
29.3 lbs.
Component
IN1, IN2, IN3
S-Video
DVD, VIDEO1, VIDEO2, VIDEO3,
VIDEO4
Composite
DVD, VIDEO1, VIDEO2, VIDEO3,
VIDEO4
Component
OUT
S-Video
MONITOR OUT, VIDEO1, VIDEO2
Composite
MONITOR OUT, VIDEO1, VIDEO2
Digital Inputs
Optical: 5 (1 on Front Panel)
Coaxial: 2
Analog Inputs
DVD (MULTICHANNEL), VIDEO1,
VIDEO2, VIDEO3, VIDEO4, TAPE, CD,
PHONO
Multichannel Input
7.1 ch (DVD)
Digital Output
Optical: 1
Analog Outputs
TAPE, VIDEO1, VIDEO2, ZONE2
Multichannel Pre
Outputs
7.1 ch
Speaker Outputs
L, R, C, SL, SR, SBL, SBR
ZONE2 (L, R)
Phones
1
RS232
1 (Other than North American and
Australian)
IR Input/Output
1/1
12 V Trigger Out
ZONE2
min.
HDMI
OUT
HDMI
IN1, IN2
background image
TX-SR803/E
SERVICE PROCEDURES

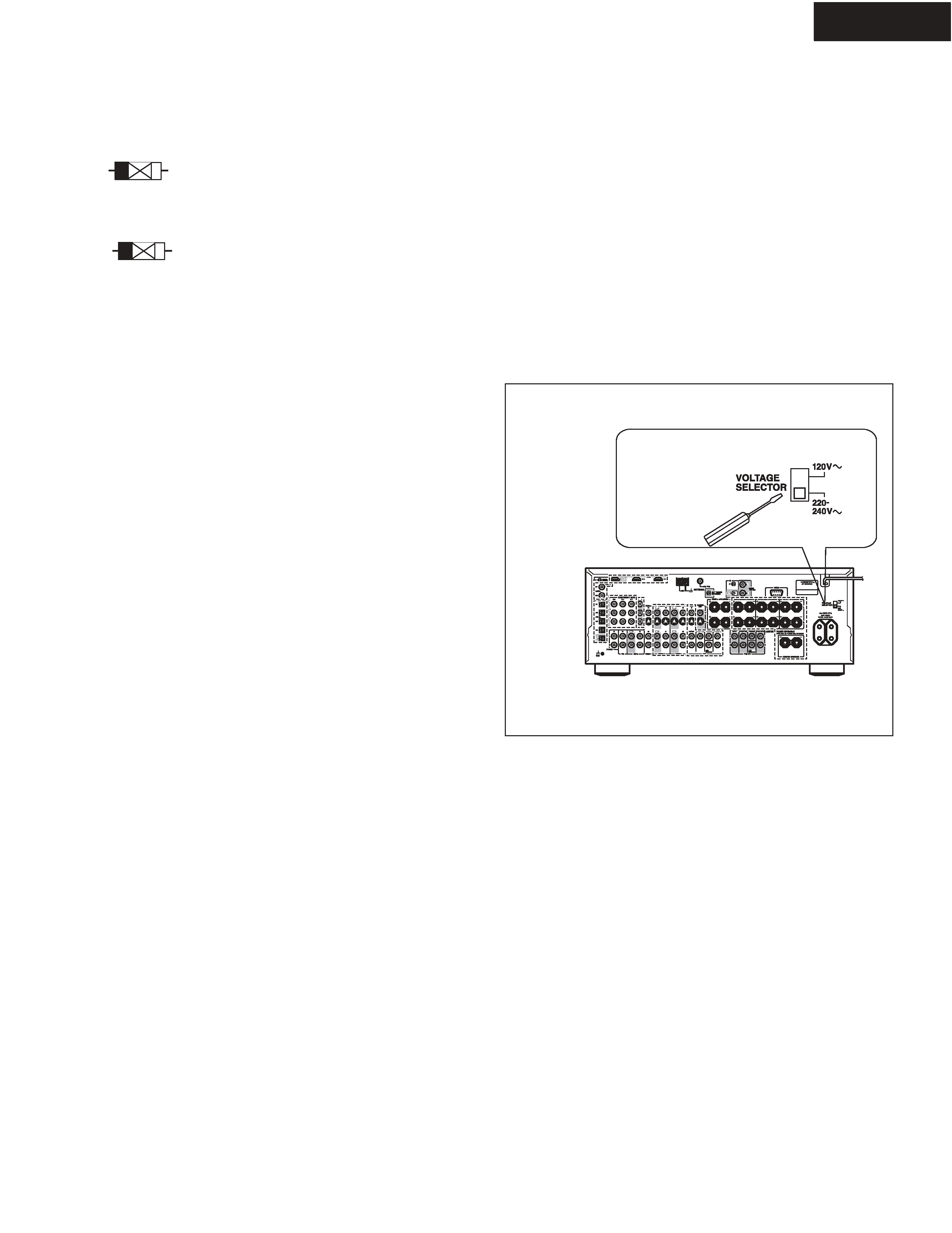

Worldwide models are equipped with a voltage selector to conform with
local power supplies. Be sure to set this switch to match the voltage of
the power supply in your area before plugging in the unit.
1. Determine the proper voltage for your area: 220-240 V or
120 V.
2. If the preset voltage is not correct for your area, insert a screw-
driver into the groove in the switch. Slide the switch all the way
to the upper (120 V) or to the down side (220-240 V), whichever is
appropriate.
4.Setting the Voltage selector (Worldwide models
only)
1. Replacing the fuses
This symbol located near the fuses indicates that the
fuse used is fast operating type. For continued protection against
fire hazard, replace with same type fuse. For fuse rating refer to
the marking adjacent to the symbol.
Ce symbole indique que le fusible utlise est a rapide.
Pour une protection permanente, n'untiliser que fusibles de
meme type. Ce darnier est la qu le present symbol est
appse.
CIRCUIT NO.
PART NO.
DESCRIPTION
2. To initialize the unit
This device employs a microprocessor to perform various
functions and operations. If interference generated by an external
power supply, radio wave, or other electrical source results in
accident which causes the specified operations and functions to
operate abnormally.
To perform a result, please follow the procedure below.
1.Press and hold down the VIDEO-1 button, then press the
STANDBY button.
2.After "Clear" is displayed, the preset memory and each
mode stored in the memory, such as surround, are
initialized and will return to the factory setting.
5. Changing the AM band step
With the exception of the worldwide models, a tuning step selector
switch is not provided. When you change the band step, change
the parts as shown below.
To 10kHz
To 9kHz
R714
Open
10 k
Note: <D>:120V model only
<P>: European model only
<R>: 230V model only
<T>:Worldwide model only
<A>: Australian model only
F6901,F6902
F901
F902
F903
252301GR
12A-TUL-250V,Fuse
252079GR
6.3A-SE-EAK,Fuse <P/A/R/T>
252330GR
10A-UL/T-233,Fuse <D>
252079GR
6.3A-SE-EAK,Fuse <T>
252075GR
2.5A-SE-EAK,Fuse <P/A/R/T>
252326GR
5A-UL/T-233,Fuse <D>
F931,F932
252073GR
1.6A-SE-EAK,Fuse
F951,F952
252079GR
6.3A-SE-EAK,Fuse
3. Safety-check out
(U.S.A. model only)
After correcting the original service problem, perform the
following safety check before releasing the set to the customer.
Leakage Current Check
Measure leakage current to a known earth ground(water pipe,
conduit, etc.) by connecting a leakage current tester between
the earth ground and exposed metal parts of the appliance
(input/output terminals, screwheads,metal overlays, etc.).
Plug the power supply cord directly into a 120V AC 60 Hz outlet
and turn Standby switch on. Any current meausred must not
exceed 0.5mA.
TX-SR803/E
background image
TX-SR803/E
EXPLODOED VIEW
A
1
2
3
4
5
B
C
DE
FG
H
Q6050
Q6051
Q6053
Q6055
Q6052
Q6054
Q6060
Q6061
Q6063
Q6066
Q6065
Q6062
Q6064
Q6056
A080
A095
A040
A035
A025
A022
A036
A029
A010
A019
A412
A009
A032
A021
A027
A039
A030
A038
A031
A033
A023
A410
A005
A001
A003
A002
A418
U047
U063
A080
A105
A050
A052
A060
T901
A065
x 3 pcs.
A051
F6901
F901
F902
F903
F6902
A077
A090
A059
A401
A405
A404
A403
P691
P7534
U033
U053
U05
U046
U044
U04
U02
U06
U062
U064
U045
U03
U01
U032
U11
U042
P701
P901
F951
F952
F932
F931
U043
U052
A008
Q6050a
x 13 sheets
Q6050a
x 2 sheets
A096
A100
x 4 pcs.
A037
x 5 pcs.
A003
x 5 pcs.
A003
x 2 pcs.
A416
x 2 pcs.
A088
x 2 pcs.
A056
x 4 pcs.
A105
x 3 pcs.
A105
x 2 pcs.
A105
x 3 pcs.
A082
x 2 pcs.
A105
x 3 pcs.
A105
x 4 pcs.
A087
x 2 pcs.
A082
x 13 pcs.
A092
x 2 pcs.
A057
x 2 pcs.
A407
x 3 pcs.
A402
x 44 pcs.
A062
x 4 pcs.
A417
x 2 pcs.
A119
x 4 pcs.
A111
x 4 pcs.
A114
x 4 pcs.
A054
x 3 pcs.
A053
x 3 pcs.
A055
x 11 pcs.
A003
x 3 pcs.
A003
x 15 pcs.
A011
x 3 pcs.
A037
x 2 pcs.
A101
x 4 pcs.
A081
A110
D/C models
U08
P/T/R/K
models
A406
R model
A099
A096
A020
A020
A044
x 4 pcs.
A063
A089
A106
x 2 pcs.
A081
background image
TX-SR803/E
BLOCK DIAGRAM
AMPLIFIER
SECTION
SOURCE_R
SOURCE_L
Z2_L
Z2_R
TAPE_OUT_L
TAPE_OUT_R
MIX_L
MIX_R
VOLIN_
SBL
VOLIN_
SBR
V1_OUT_R
V2_OUT_L
V2_OUT_R
V1_OUT_L
ADLT+
ADLT-
ADRT-
ADRT+
MCH_CT
MCH_SW
MCH_SL
MCH_SBL
MCH_SBR
MCH_SR
SPDIF
ADLT-
ADLT+
ADRT+
ADRT-
TX
RX5
RX2
RX7
RX6
RX4
RX1
RX3
DAC_FR
DAC_FL
DAC_SW
DAC_SL
DAC_SR
DAC_SBL
DAC_CT
DAC_SBR
RX0
MCLK
LRCLK
BCLK
-6dB
NJW1157
MSBL/MSBR
+9.7dB
-6dB
Inv.
NJU7311AM
TUNER PACK
VIDEO1 IN
VIDEO1 OUT
VIDEO2 OUT
VIDEO2 IN
TAPE IN
TAPE OUT
CD
PHONO
DVD
MC/MSW
MSL/MSR
RIAA
VIDEO3 IN
VIDEO4 IN
MIC
MIC AMP
MICDET
ANTENNA
UNIT
XM/DT IC
AK4384
DAC
Micro
Controller
XM-RADIO
OPT FRNT
COAX 2
COAX 1
OPT2
OPT3
OPT4
OPT OUT
OPT1
2ch ADC
RX
HDMI
IN1
IN2
2ch ADC
2ch ADC
CS5340
TC74VHT157F
+6dB
VLSC
LPF
+6dB
+6dB
VLSC
LPF
+6dB
VLSC
LPF
VLSC
LPF
VLSC
LPF
2ch ADC
DIR
8ch DAC
TC74VHT157F
DSP
CS494003
SD_RAM
IC42S16100
2M Byte
FLASH ROM
MX29LV040
4M Bit
CS42528
2
3
4
80
81
82
87
83
84
88
89
90
95
91
92
47
48
45
46
11
10
12
8
9
42
44
30
28
29
27
21
26
24
22
25
23
43
41
70
69
68
67
66
65
64
63
62
61
59
58
57
60
85
93
94
86
7
21
19
20
24
29
28
27
23
22
6
5
26
25
51
52
53
54
55
56
71
72
73
74
30
31
32
33
36
37
35
34
28
16
14
13
15
49
48
43
42
47
46
45
44
50
81
82
80
79
86
85
127
56
60
61
63
62
64
118
110
109
1
106
107
117
111
3
2
59
54
119
134
131
A
A
+
+
HDMI
Controller
Micro
Q3001
Q3003
Q331,341,351
Q141,Q161
Q211
Q285
Q201
Q361
Q3002
Q3004
North American models
A
1
2
3
4
5
BCD

Reviews

There are no reviews of this manual yet.
