PIONEER AVD-W6000 Service Manual

Cover page of PIONEER AVD-W6000 Service Manual

Service Manual for PIONEER AVD-W6000, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 77 pages
  • File size: 5.8 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2001
K-ZZY. MAY 2001 Printed in Japan
ORDER NO.
CRT2692
COLOR LCD DISPLAY
Service
Manual
AVD-W6000/UC
AVD-W6000
UC
AVD-W6000 EW
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................2
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.....8
4. PCB CONNECTION DIAGRAM ................................30
5. ELECTRICAL PARTS LIST ........................................39
6. ADJUSTMENT..........................................................48
7. GENERAL INFORMATION .......................................57
7.1 DIAGNOSIS ........................................................57
7.1.1 TEST MODE ..............................................57
7.1.2 DISASSEMBLY .........................................59
7.1.3 CONNECTOR FUNCTION DESCRIPTION61
7.2 IC ........................................................................62
7.3 OPERATIONAL FLOW CHART...........................71
8. OPERATIONS AND SPECIFICATIONS ....................73
- This product has the unit part numbers as below.
Unit Part No. (AVD-W6000/UC)
Unit Part No. (AVD-W6000/EW)
Description
CPN1733
CPN1754
Monitor Assy
CPN1734
CPN1755
Power Supply Assy
*) The unit part numbers listed above are not for the service components.
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2001
K-ZZY. MAY 2001 Printed in Japan
ORDER NO.
CRT2692
COLOR LCD DISPLAY
Service
Manual
AVD-W6000/UC
AVD-W6000
UC
AVD-W6000 EW
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................2
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.....8
4. PCB CONNECTION DIAGRAM ................................30
5. ELECTRICAL PARTS LIST ........................................39
6. ADJUSTMENT..........................................................48
7. GENERAL INFORMATION .......................................57
7.1 DIAGNOSIS ........................................................57
7.1.1 TEST MODE ..............................................57
7.1.2 DISASSEMBLY .........................................59
7.1.3 CONNECTOR FUNCTION DESCRIPTION61
7.2 IC ........................................................................62
7.3 OPERATIONAL FLOW CHART...........................71
8. OPERATIONS AND SPECIFICATIONS ....................73
- This product has the unit part numbers as below.
Unit Part No. (AVD-W6000/UC)
Unit Part No. (AVD-W6000/EW)
Description
CPN1733
CPN1754
Monitor Assy
CPN1734
CPN1755
Power Supply Assy
*) The unit part numbers listed above are not for the service components.
background image
2
AVD-W6000

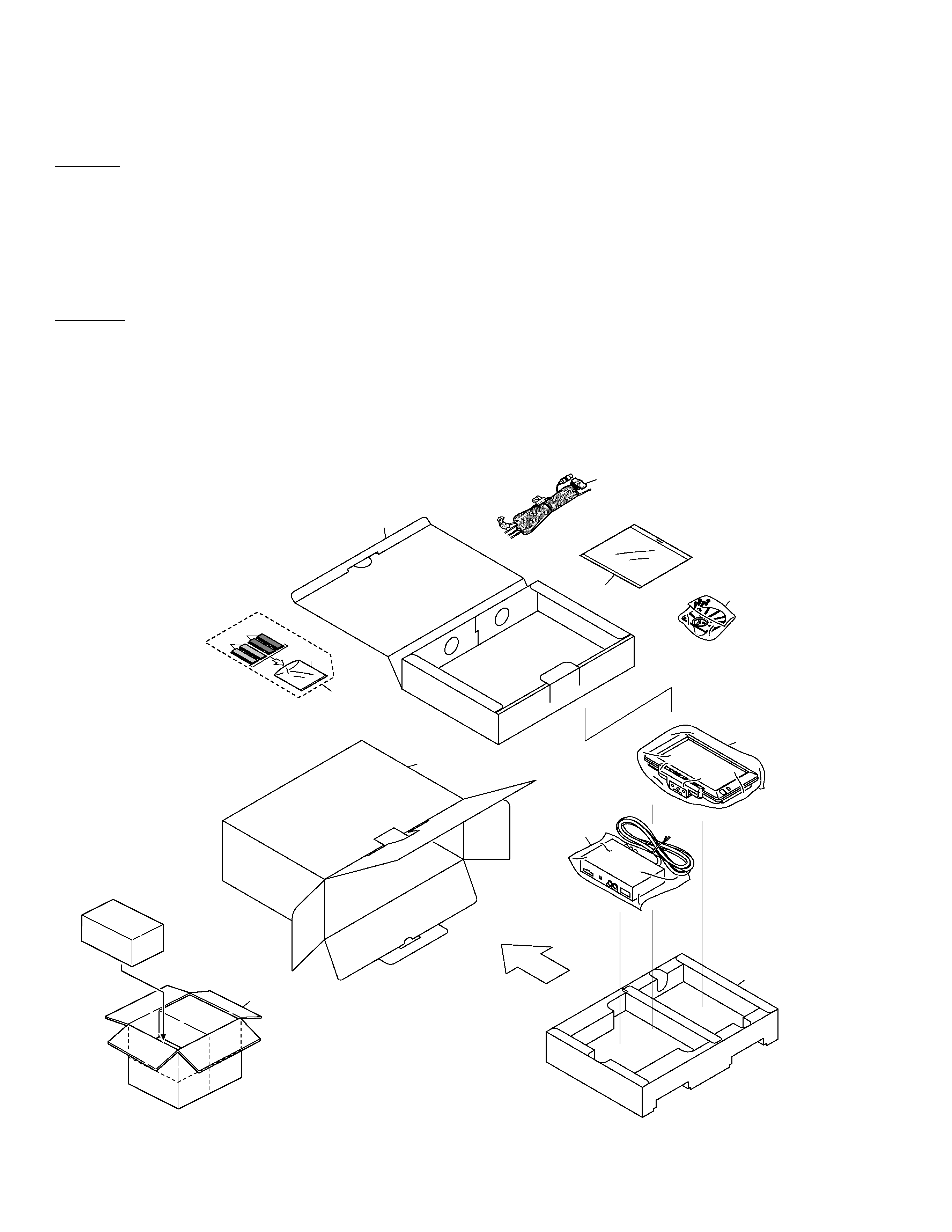

2. EXPLODED VIEWS AND PARTS LIST
