AVIC-8DVD
1. SAFETY INFORMATION
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
1. Safety Precautions for those who Service this Unit.
· Follow the adjustment steps (see pages 115 through 119)in the service manual when servicing this unit. When
checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST .......................6
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12
4. PCB CONNECTION DIAGRAM ................................82
5. ELECTRICAL PARTS LIST ........................................98
6. ADJUSTMENT........................................................114
7. GENERAL INFORMATION .....................................120
7.1 DIAGNOSIS ......................................................120
7.1.1 TEST MODE ............................................120
7.1.2 USING THE TEST MODE .......................136
7.1.3 DISASSEMBLY .......................................143
7.1.4 CONNECTOR FUNCTION DESCRIPTION .....146
7.2 IC ......................................................................147
7.3 EXPLANATION .................................................166
7.3.1 CIRCUIT DESCRIPTION..........................166
7.3.2 OPERATIONAL FLOW CHART ...............167
8. OPERATIONS AND SPECIFICATIONS...................168
- High voltage is generated in the inverter when the power is supplied to the system. To avoid an electric shock,
reconfirm that the power switch is set to OFF before starting operation.

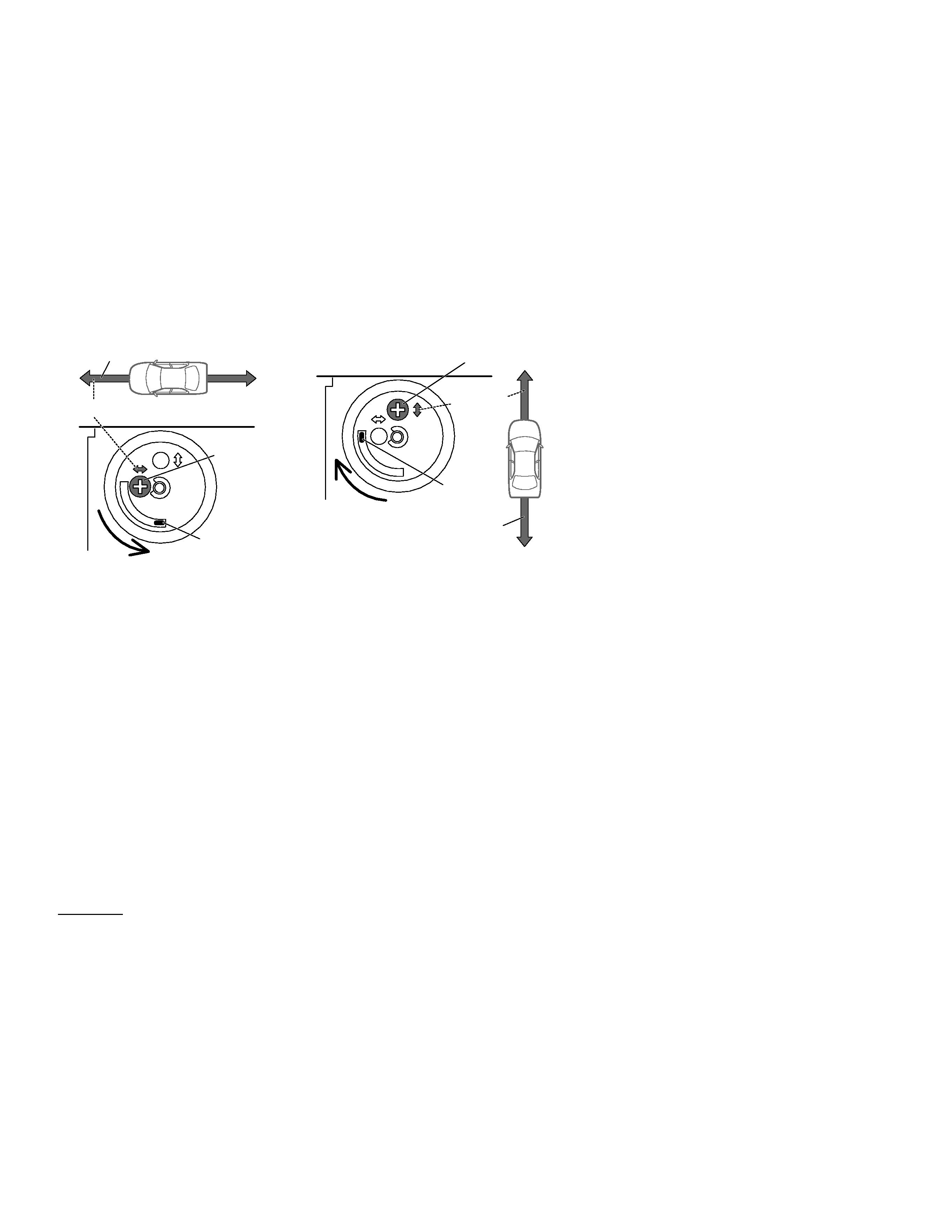

- Check of installation direction when G-Sensor Unit was after repair.
Lock-screw
Lock-screw
Parallel
Parallel
Lever
Lever
Forward / Aft direction of vehicle
Forward / Aft direction
of vehicle
Front
Front
- DVD Player Service Precautions
1.
Never adjust the LD VR in the pickup unit to protect the pickup from electrical damages.
2. For pickup unit(service)(CXX1530) handling, please refer to"Disassembly"(see page 143).
During replacement, handling precautions shall be taken to prevent an electrostatic discharge(set the short switch
of the pickup unit to the SHORT side).
3. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a connector is
plugged or unplugged.
4. Please adjusting the skew after changing the pickup unit(see page 118).
