ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2000
c
DBR-S200F
ARP3056
T ­ ZZV MAR. 2000 Printed in Japan
DIGITAL SATELLITE RECEIVER
Type
Model
Power Requirement
Remarks
DBR-S200F
NYXK/FR
AC230V
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
This service manual should be used together with the following manual(s):
Remarks
Order No.
TS4/NYXK/FR
ARP3039
Model
1. CONTRAST OF MISCELLANEOUS PARTS ........... 2
2. SCHEMATIC DIAGRAM ........................................... 6
3. PCB CONNECTION DIAGRAM ............................. 23
CONTENTS
background image
2
DBR-S200F
PCB SECTION
P4-6
MAIN ASSY
BWE1055
BWE1061 *1
*1 Refer to page3,4,
IC3001 16M FLASH ROM ( I )
BGC1002-A-AV
BGC1018-A-AV
8-20,26-29.
NSP
ANALOG AV BLOCK
B4E1055
B4E1061
NSP
SRS AUDIO BLOCK
Not Used
B7E1061
R6026
Not Used
RS1/16S0R0J *2
*2 Refer to page18.
P4-2
FRONT ASSY
BWE1079
BWE1082 *3
*3 Refer to page4,21,23.
VCR ASSY
Not Used
BWE1088 *4
*4 Refer to page4,22,24.
PACKING SECTION
P3-7
INSTRUCTION MANUAL
BRC1003
BRC1016
(French)
(French)
P3-3
REMOTE CONTROL UNIT
BXD1010
BXD1041
REMOTE CONTROL CABLE
Not used
BDH1019
P3-11
NSP
MODEM APPROVAL CARD
BRM1022
Not used
NSP
WHITE CARD
Not used
BPK1019
NSP
WARRANTY CARD
Not used
BRY1028
P3-10
NSP
STICKER(PAP)
BAX1271
Not used
NSP
SERIAL PAPER
Not used
RRW-168
P3-6
NSP
BATTERY 2P (R03,AAA)
VEM1018
Not used
NSP
BATTERY 2P (R6P,AA)
Not used
VEM1017
P3-1
PACKING CASE(PAP)
BHD1369
BHD1460
EXTERIOR SECTION
P4-1
FRONT PANEL ASSY
BWX1144
BWX1151
P4-9
REAR PANEL (MET)
BNC1137
BNC1150
P4-18
BONNET CASE (MET)
BNE1090
BNE1096
P4-4
CHASSIS (MET)
BNA1149
BNA1151
P4-17
BARRIER (PLS)
BEC1173
Not used
PIONEER BADGE (AL)
Not used
BAM1004
MODEM HOLDER (MET)
Not used
BNG1328
P4-10
NSP
NAME LABEL
BAL1366
BAL1375
NSP
BARCODE LABEL
Not used
BAL1310
*5 MAIN ASSY
20P FLEXIBLE FLAT CABLE
BDD1032
BDD1037 *5
FRONT ASSY
P4-19
SCREW (For Bonnet
×5)
BBZ30P080FZK
BBZ30P080FNI
SCREW (For Modem Holder,
Not used
BBZ30P080FZK *6
*6 Refer to page3.
VCR Assy
×3)
CONTRAST TABLE
DBR-S200F/NYXK/FR and TS4/NYXK/FR are constructed the same except for the following:
Mark
Symbol and Description
Part No.
Remarks
TS4/NYXK/FR
DBR-S200F/NYXK/FR
Ref. No.
1. CONTRAST OF MISCELLANEOUS PARTS
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to
mark on product are used for disassembly.
Reference Nos. indicate the pages and Nos. in the service manual for the base model.
NOTES:
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
561
473
R50
1R0
5621
560
47k
0.5
1
RD1/4PU
J
RD1/4PU
J
RN2H
K
RS1P
K
56 x 101
47 x 103
R50
1R0
561
473
5.62k
RN1/4PC
F
562 x 101
5621
background image
3
DBR-S200F
MAIN ASSY
Mark No.
Description
Part No.
Mark No.
Description
Part No.
SEMICONDUCTORS
IC5001
73K321L-IH
IC4002
AK4319A-VM
IC1001
BA05SFP
IC5005
BA10324AF
IC3001
BGC1018-A-AV
IC6005
CAT24WC16JI
IC2002
HD74HCT125FP
IC5006
HIN211CB
IC3003
HYB3118165BST-60
IC3005
HYB39S16160AT-10
IC3002
MBM29LV400TC-90PFTN
IC7101
NJM2179M
IC1002
NJM317DL1
IC4003
NJM3404AM
IC5004
P80C52
IC5007
PACS1284-04Q
IC5002
PC123F2
IC6001
PE5128A
IC6002
PST9124N
IC2003
SN74LVU04ANS
IC2001
STI5510
IC4001
STV6411A
IC2004
TC74ACT04F
IC5003
TLP127
Q2001,Q2002
2SA1036K
Q1006,Q2003,Q2004,Q6033,Q6036 2SA1037K
Q1012
2SB1132
Q5007
2SC4061K
Q1007,Q2011,Q4015,Q4018-Q4023 2SC4081
Q4025-Q4027,Q5003,Q5004,Q6031 2SC4081
Q6035
2SC4081
Q5001,Q5002
2SC4793
Q1011
2SD1664
Q6017
2SK2103
Q6018
2SK2503
Q5005
DTA113TKA
Q1014
DTA124EK
Q5006
DTA143EK
Q6001-Q6004
DTB113ZK
Q4008-Q4013,Q4028,Q4029
DTC123TKA
Q1004,Q1008-Q1010,Q1013,Q6032 DTC124EUA
Q6034
DTC124EUA
Q4030
DTC124TKA
Q2005-Q2010,Q2012,Q6005-Q6012 DTC143EK
Q1005
IRFR9024N
Q5008
MMSTA13
Q4014,Q4016,Q4017
UMD2N
D5002
1SR154-400
D1001,D1007,D1009,D1010,D5004
1SS355
D6002,D6003,D6011,D6013
1SS355
D1008,D6017
DA204U
D4012,D4013
DAN202K
D2001
HVU356
D4011
PDZ4.7B
D1005,D1011
RB160L-40
D5003
S1ZB60-4072
D4016
UDZ11B
D4017-D4036
UDZ12B
D6016
UDZS5.1B
COILS AND FILTERS
F1001
BTF1072
F5018
BTF1087
L4005
BTH1065
T5001
BTX1032
L2002,L2004
DTL1038
SWITCHES AND RELAYS
RY5001
BSR1014
PCB PARTS LIST

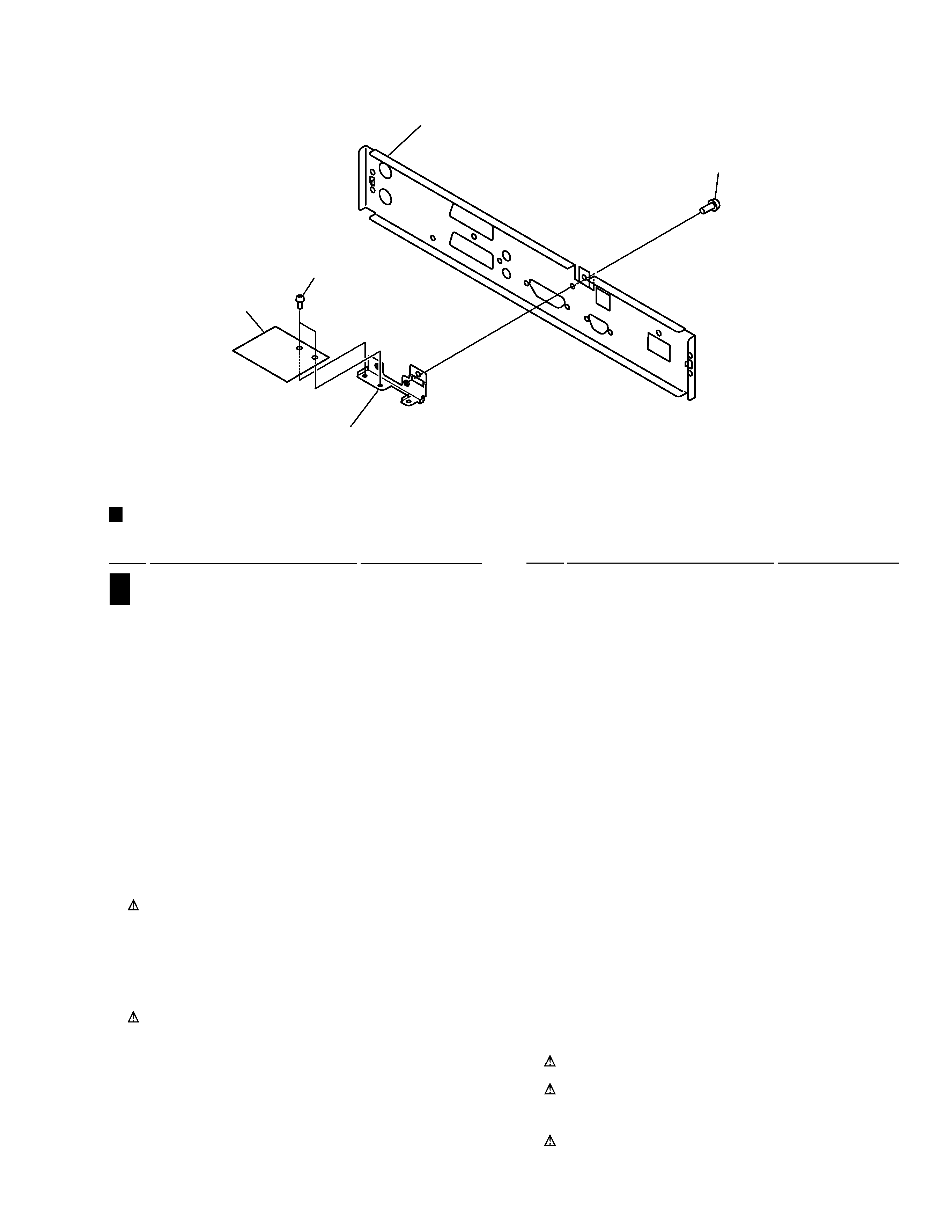

REAR PANEL
VCR ASSY
MODEM HOLDER
BNG1328
BBZ30P080FZK
BBZ30P080FZK
A F
background image
4
DBR-S200F
CAPACITORS
C6013 (0.047F/5.5V)
ACH1246
C4050,C4051
CCSRCH100D50
C2009
CCSRCH180J50
C2012-C2014
CCSRCH101J50
C5015
CCSRCH150J50
C4021,C4022,C6015,C6016
CCSRCH220J50
C2005-C2008,C2010,C2011
CCSRCH221J50
C2019
CCSRCH330J50
C2003,C2004
CCSRCH331J50
C5028
CCSRCH391J50
C5016
CCSRCH8R0D50
C4070
CEAT100M50
C1009,C2056
CEAT101M10
C1006
CEAT101M16
C1007
CEAT101M50
C5026
CEAT1R0M50
C4023,C4030-C4035,C4037
CEAT220M50
C4061
CEAT221M16
C2001,C2002,C4038-C4041
CEAT2R2M50
C4045,C4046,C4074,C4075
CEAT2R2M50
C7201,C7202
CEAT2R2M50
C6022
CEAT330M35
C4065
CEAT470M10
C1010,C1012
CEAT470M16
C6019
CEAT470M25
C4060,C6025,C6026
CEAT471M10
C5012,C5025,C5047
CEAT4R7M50
C5046
CKSQYB273K50
C5023,C5024
CKSQYB471K50
C2034,C2058,C4047,C4048
CKSRYB102K50
C4052-C4059,C5020,C5022
CKSRYB102K50
C1001-C1005,C1011,C1016,C2031
CKSRYB103K50
C2037
CKSRYB103K50
C1015
CKSRYB332K50
C2062,C4071,C6036,C6037
CKSRYB471K50
C5029,C7108
CKSRYB472K50
C6056,C6063
CKSRYB473K16
C5030
CKSRYB821K50
C1017,C1020,C2016,C2033,C2035
CKSRYF103Z50
C4009,C4066,C4068,C6031,C6035
CKSRYF103Z50
C2015,C2017,C2026,C2028,C2032
CKSRYF104Z16
C2038-C2043,C2045,C2046
CKSRYF104Z16
C2048-C2050,C2052,C2053,C2055
CKSRYF104Z16
C2063,C3001-C3004,C3007-C3009
CKSRYF104Z16
C4001-C4008,C4010-C4015
CKSRYF104Z16
C4017-C4020,C4062,C4069
CKSRYF104Z16
C4072,C4073,C5013,C5014
CKSRYF104Z16
C5017-C5019,C5021,C5031-C5035
CKSRYF104Z16
C5044,C5045,C6014,C6033
CKSRYF104Z16
C6052,C6053,C6057-C6059,C6062
CKSRYF104Z16
C7102,C7104,C7203,C7204
CKSRYF104Z16
C1018
CKSRYF105Z10
C5027
CKSRYF333Z50
C1019,C7107,C7109
CKSRYF474Z10
RESISTORS
R5020,R5021 (680 /1/2W)
BCN1046
R6001,R6002
RAB4C102J
R2054,R2069,R6019
RAB4C103J
R2107-R2115
RAB4C180J
R2030-R2032,R2056,R2059
RAB4C220J
R2089-R2093
RAB4C220J
R6003
RAB4C333J
R2001,R2002
RD1/2VM3R3J
R1014
RS1/10S1200F
R1016
RS1/10S1202F
R1015
RS1/10S1801F
R1017
RS1/10S3601F
R2137
RS1/10S331J
R4142,R6026
RS1/16S0R0J
R2038,R4140,R4141
RS1/16S100J
R4001,R4004,R4007,R4010,R4013
RS1/16S101J
R4016,R4019,R4047,R4048,R6022
RS1/16S101J
R6027,R6028,R6052,R6053
RS1/16S101J
R1020,R2006,R2012,R2131,R4090
RS1/16S102J
R6055,R7111
RS1/16S102J
R1011,R1024,R2004,R2009
RS1/16S103J
R2024-R2027,R2041,R2044
RS1/16S103J
R2050,R2051,R2053,R2086,R2098
RS1/16S103J
R2100-R2102,R2125-R2128,R3004
RS1/16S103J
R3023,R4057,R4059,R4083,R4089
RS1/16S103J
R5010,R5901,R5902,R6063-R6065
RS1/16S103J
R1012,R2036,R2040,R4030-R4035
RS1/16S104J
R4084,R6004,R6023,R6024
RS1/16S104J
R2039
RS1/16S105J
R4064,R4065,R4068
RS1/16S111J
R2078-R2081
RS1/16S113J
R7110
RS1/16S114J
R2003,R2008,R6007-R6013
RS1/16S121J
R2019,R2020
RS1/16S131J
R1021,R7106,R7112
RS1/16S152J
R5016
RS1/16S153J
R4050,R4051,R4118,R4119
RS1/16S154J
R5015
RS1/16S182J
R4136
RS1/16S183J
R4063,R4066,R4067
RS1/16S201J
R5012,R5013,R5017-R5019
RS1/16S203J
R2116-R2123,R2130,R3005
RS1/16S220J
R1009,R1013,R2013,R2014,R2021
RS1/16S222J
R2042
RS1/16S222J
R1026,R1027,R2022,R2023,R4133
RS1/16S223J
R4082
RS1/16S224J
R4058,R4060
RS1/16S242J
R6005
RS1/16S330J
R4069-R4080,R4147,R5007
RS1/16S331J
R6057,R6058,R6071
RS1/16S332J
R4135,R6059,R7109
RS1/16S333J
R5014
RS1/16S363J
R7107
RS1/16S392J
R2028,R7105
RS1/16S432J
R2070,R6037
RS1/16S470J
R2005,R2011,R4014,R4015
RS1/16S471J
R4017,R4018,R4020,R4021,R4029
RS1/16S471J
R4086,R5011
RS1/16S471J
R1010,R1025,R2132,R3001-R3003
RS1/16S472J
R3006,R4049,R4085,R4091,R5003
RS1/16S472J
R6049,R6061,R6062
RS1/16S472J
R3007-R3009,R4038,R4039
RS1/16S473J
R4044,R4045,R6039,R6089,R6091
RS1/16S473J
R7108
RS1/16S473J
R7114,R7115
RS1/16S512J
R2129
RS1/16S560J
R2135,R4097-R4100,R4103-R4106
RS1/16S562J
R6088
RS1/16S563J
Mark No.
Description
Part No.
Mark No.
Description
Part No.

Reviews

There are no reviews of this manual yet.

Related Products

Cover page of PIONEER XV-HTD7 Owner's Manual

This manual has 90 pages, file size: 5.84 MB. It's available in languages: English.

Cover page of PIONEER A-Z470 Owner's Manual

This manual has 152 pages, file size: 9.66 MB. It's available in languages: French, English, German, Italian.

Cover page of PIONEER VSX-D2S Service Manual

This manual has 104 pages, file size: 117.83 MB. It's available in languages: English.

Cover page of PIONEER DVR-320-S/RDXU/RD Owner's Manual

This manual has 98 pages, file size: 4.07 MB. It's available in languages: English, Spanish.

Cover page of PIONEER TSWX75A Service Manual

This manual has 7 pages, file size: 1.56 MB. It's available in languages: English.
