DBR-S400F, DBR-S400I, DBR-S400NL
2
1
23
4
12
3
4
C
D
F
A
B
E
PCB ASSEMBLIES
P9-1
MAIN ASSY
BWE1129
BWE1139
BWE1140
BWE1141
IC3001(16M FLASH Memory)*
BGC1079-A-RD* BGC1086-A-RD* BGC1087-A-RD* BGC1088-A-RD* *Set service part
RETAIL BLOCK
B9E1135
B9E1135
B9E1135
B9E1135
P9-2
FRONT ASSY
BWX1216
BWX1222
BWX1222
BWX1222
PACKING SECTION
P7-1
Packing Case
BHD1507
BHD1544
BHD1545
BHD1546
Pulp Mold F (
Design change from Side Pad L)
BHX1028
Not used
Not used
Not used
Pulp Mold R (
Design change from Side Pad R)
BHX1029
Not used
Not used
Not used
P7-2
Side Pad L
Not used
BHA1146
BHA1146
BHA1146
P7-3
Side Pad R
Not used
BHA1147
BHA1147
BHA1147
P7-5
Remote Control Unit
BXD1010
BXD1059
BXD1060
BXD1061
P7-6
NSP
Battery 2P (R03/AAA)
VEM1018
Not used
Not used
Not used
P7-6
NSP
Battery 2P (R6P/AA)
Not used
VEM1017
VEM1017
VEM1017
P7-7
Instruction Manual
BRC1054
BRC1062
BRC1063
BRC1064
(French)
(French)
(Italian)
(Dutch)
P7-9
NSP
CE Declaration Sheet
BRM1057
Not used
Not used
Not used
NSP
White Card
Not used
BPK1019
Not used
Not used
NSP
Warranty Card
Not used
BRY1052
BRY1053
BRY1054
NSP
Brochure (Dutch)
Not used
Not used
Not used
BRY1025
NSP
Registration Form
Not used
Not used
Not used
BRY1026
NSP
Seca Smart Card Kit
Not used
Not used
Not used
BPK1020
P7-13
Modem Cable
BDH1040
BDH1040
BDH1041
BDH1037
P7-14
NSP
Modem Adapter
Not used
Not used
Not used
BKP1140
EXTERIOR SECTION
P9-7
19P FFC
BDD1057
BDD1059
BDD1059
BDD1059
P9-9
Front Panel Assy
BWX1217
Not used
Not used
Not used
P9-9
Front Panel Assy
Not used
BMB1183
BMB1184
BMB1185
Display Panel
Not used
BAK1196
BAK1197
BAK1198
Pioneer Name Plate
Not used
VAM1129
VAM1129
VAM1129
P9-11
Rear Panel Assy
BWX1221
BWX1234
BWX1235
BWX1236
P9-12
Bonnet Case
BNE1136
BNE1138
BNE1138
BNE1138
P9-16
NSP
Name Label
BAL1449
BAL1477
BAL1478
BAL1479
P9-30
Serial No. Label
BAX1145
BAX1145
BAX1189
BAX1258
Screw (for SR Pin Jack)
Not used
BBZ30P080FZK BBZ30P080FZK BBZ30P080FZK
No.1
CONTRAST TABLE
DBR-S400F/NYXK/FR, DBR-S400I/NYXK/IT, DBR-S400NL/NYXK/NL and TS7/NYXK/FR are constructed the
same except for the following:
Remarks
Part No.
TS7
/NYXK/FR
Ref.
No.
Mark
Symbol and Description
DBR-S400F
/NYXK/FR
DBR-S400I
/NYXK/IT
DBR-S400NL
/NYXK/NL
1. CONTRAST OF MISCELLANEOUS PARTS
jp
f
y
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to
mark on product are used for disassembly.
Reference Nos. indicate the pages and Nos. in the service manual for the base model.
NOTES:
·When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560
56
× 101
561 ........................................................ RD1/4PU 5 6 1 J
47k
47
× 103
473 ........................................................ RD1/4PU 4 7 3 J
0.5
R50 ..................................................................................... RN2H R 5 0 K
1
1R0 ..................................................................................... RS1P 1 R 0 K
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k
562
× 101
5621 ...................................................... RN1/4PC 5 6 2 1 F
Notes:
÷ The numbers in the remarks column correspond to the numbers on "EXTERIOR".

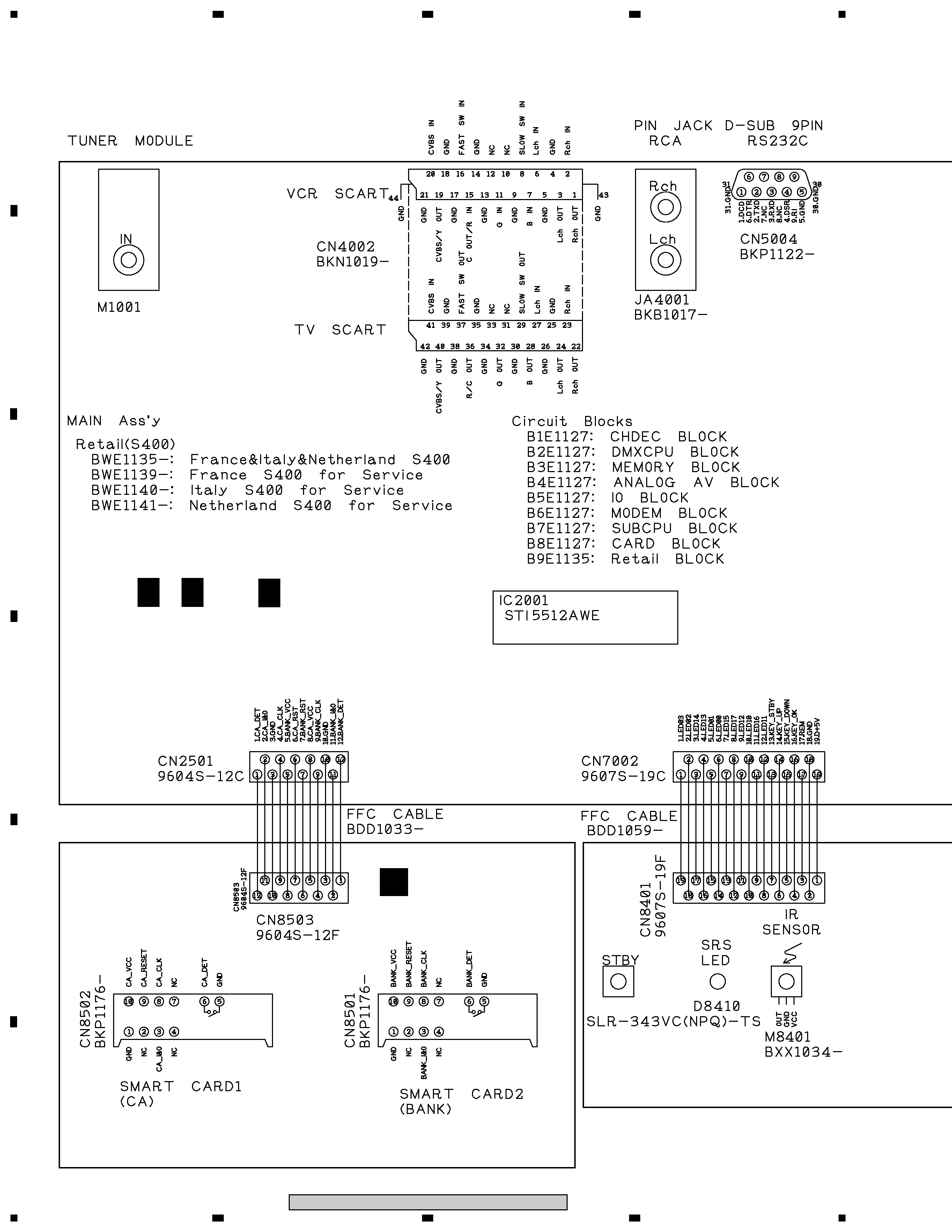

÷ For ASSEMBLIES, refer to "CONTRAST OF PCB ASSEMBLIES" , "2. SCHEMATIC DIAGRAM" and "3. PCB CONNECTION
DIAGRAM".
