PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000
K-ZZA. DEC. 2000 Printed in Japan
ORDER NO.
CRT2593
HIGH POWER CD PLAYER WITH FM/AM TUNER
DEH-1350B
X1M/ES
Service
Manual
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module Remarks
DEH-1350/X1M/ES
CRT2559
CX-958
CRT2423
S8.1
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000
K-ZZA. DEC. 2000 Printed in Japan
ORDER NO.
CRT2593
HIGH POWER CD PLAYER WITH FM/AM TUNER
DEH-1350B
X1M/ES
Service
Manual
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module Remarks
DEH-1350/X1M/ES
CRT2559
CX-958
CRT2423
S8.1
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
background image

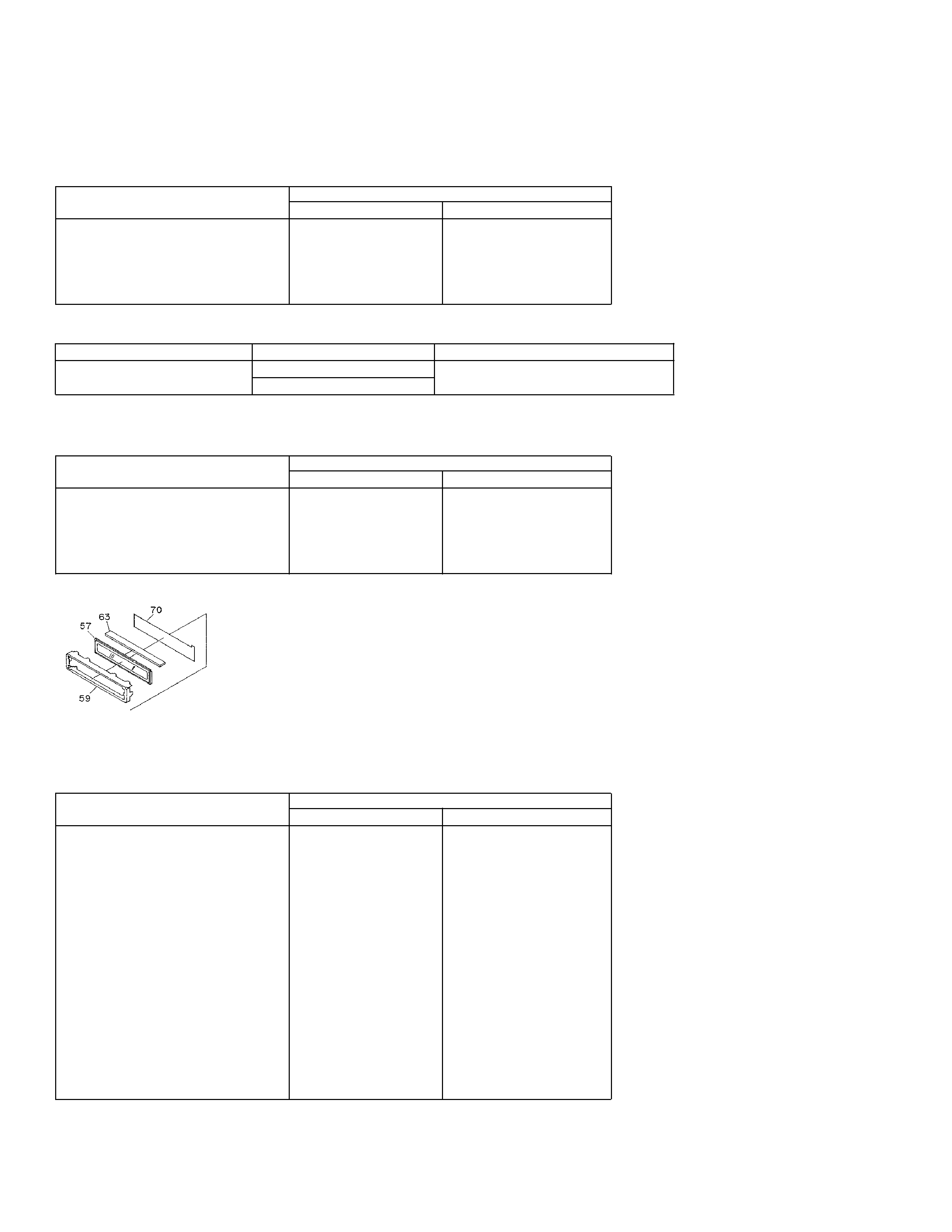

DEH-1350B
EXPLODED VIEWS AND PARTS LIST
PACKING(Page 2)
- PACKING SECTION PARTS LIST
* : Non spare part
Part No.
Mark No. Symbol and Description DEH-1350/X1M/ES
DEH-1350B/X1M/ES
11-2 Owner's Manual
CRD3281
CRD3407
11-3 Installation Manual
CRD3283
CRD3408
12 Carton
CHG4157
CHG4317
13 Contain Box
CHL4157
CHL4317
16 Case Assy
Not used
CXB3520
ELECTRICAL PARTS LIST(Page 32)
- KEYBOARD UNIT
Part No.
Symbol and Description
DEH-1350/X1M/ES
DEH-1350B/X1M/ES
D 1701 LED
SML210PT
SML210VT
D 1702 LED
SML210PT
SML210VT
D 1703 LED
SML210PT
SML210VT
D 1704 LED
SML210PT
SML210VT
D 1705 LED
SML210PT
SML210VT
D 1706 LED
SML210PT
SML210VT
D 1707 LED
SML210PT
SML210VT
D 1708 LED
SML210PT
SML210VT
IL 1801 Lamp 14V 40mA
CEL1651
CEL1662
IL 1802 Lamp 14V 40mA
CEL1651
CEL1662
LCD
CAW1633
CAW1688
R 1708
RS1/16S151J
RS1/16S181J
R 1710
RS1/16S151J
RS1/16S181J
R 1712
RS1/16S151J
RS1/16S181J
EXTERIOR(Page 4)
- EXTERIOR SECTION PARTS LIST
Part No.
Mark No. Symbol and Description DEH-1350/X1M/ES
DEH-1350B/X1M/ES
45 Detach Grille Assy
CXB6150
CXB7395
56 Keyboard Unit
CWM7307
CWM7795
57 LCD
CAW1633
CAW1688
65 Grille Unit
CXB7186
CXB7288
70 Sheet
Not used
CNM7294
- Owner's Manual, Installation Manual
Model
Part No.
Language
DEH-1350B/X1M/ES
CRD3407
English, Spanish, Portuguese(B)
CRD3408
