PIONEER DEH-P4300R Service Manual

Cover page of PIONEER DEH-P4300R Service Manual

Service Manual for PIONEER DEH-P4300R, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 65 pages
  • File size: 3.42 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000
K-ZZB. DEC. 2000 Printed in Japan
ORDER NO.
CRT2578
MULTI-CD CONTROL HIGH POWER CD PLAYER WITH RDS TUNER
DEH-P4300R
X1N/EW
Service
Manual
DEH-P4300RB X1N/EW
DEH-P4300R/X1N/EW
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module
Remarks
CX-958
CRT2423
S8.1
CD Mech. Module:Circuit Description, Mech. Description, Disassembly
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST .......................3
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .....8
4. PCB CONNECTION DIAGRAM ................................26
5. ELECTRICAL PARTS LIST ........................................34
6. ADJUSTMENT..........................................................39
7. GENERAL INFORMATION .......................................43
7.1 DIAGNOSIS ........................................................43
7.1.1 TEST MODE ..............................................43
7.1.2 DISASSEMBLY .........................................47
7.1.3 CONNECTOR FUNCTION DESCRIPTION ...51
7.2 PARTS .................................................................52
7.2.1 IC................................................................52
7.2.2 DISPLAY ....................................................57
7.3 OPERATIONAL FLOW CHART ...........................58
8. OPERATIONS AND SPECIFICATIONS.....................59
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000
K-ZZB. DEC. 2000 Printed in Japan
ORDER NO.
CRT2578
MULTI-CD CONTROL HIGH POWER CD PLAYER WITH RDS TUNER
DEH-P4300R
X1N/EW
Service
Manual
DEH-P4300RB X1N/EW
DEH-P4300R/X1N/EW
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module
Remarks
CX-958
CRT2423
S8.1
CD Mech. Module:Circuit Description, Mech. Description, Disassembly
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST .......................3
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .....8
4. PCB CONNECTION DIAGRAM ................................26
5. ELECTRICAL PARTS LIST ........................................34
6. ADJUSTMENT..........................................................39
7. GENERAL INFORMATION .......................................43
7.1 DIAGNOSIS ........................................................43
7.1.1 TEST MODE ..............................................43
7.1.2 DISASSEMBLY .........................................47
7.1.3 CONNECTOR FUNCTION DESCRIPTION ...51
7.2 PARTS .................................................................52
7.2.1 IC................................................................52
7.2.2 DISPLAY ....................................................57
7.3 OPERATIONAL FLOW CHART ...........................58
8. OPERATIONS AND SPECIFICATIONS.....................59
background image
2
DEH-P4300R,P4300RB
- CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(see page 47).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 41).
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
1. Safety Precautions for those who Service this Unit.
· When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.
2. A "CLASS 1 LASER PRODUCT" label is affixed to the
bottom of the player.
3. The triangular label is attached to the mechanism
unit frame.
4. Specifications of Laser Diode
Specifications of laser radiation fields to which human access is possible during service.
Wavelength
=
800 nanometers
CLASS 1
LASER PRODUCT
background image
DEH-P4300R,P4300RB
3
1 Cord Assy
CDE6435
2 Inner Box
CHW1754
*
3 Accessory Assy
CEA2397
4 Screw
CBA1002
5 Handle
CNC5395
6 Bush
CNV3930
*
7 Polyethylene Bag
E36-615
8 Polyethylene Bag
CEG-162
9 Carton(P4300R)
CHG4263
Carton(P4300RB)
CHG4264
10 Contain Box(P4300R)
CHL4263
Contain Box(P4300RB)
CHL4264
11 Protector
CHP2251
12 Protector
CHP2252
13-1 Polyethylene Bag
CEG1116
13-2 Owner's Manual
CRD3297
13-3 Owner's Manual
CRD3298
13-4 Owner's Manual
CRD3299
13-5 Installation Manual
CRD3308
* 13-6 Passport
CRY1013
* 13-7 Warranty Card
CRY1157
* 13-8 Caution Card
CRP1241
14 Case Assy
CXB3520
Mark No. Description
Part No.
Mark No. Description
Part No.
- PACKING SECTION PARTS LIST
NOTE:
- Parts marked by "*" are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to
mark on the product are used for disassembly.
- Owner's Manual, Installation Manual
Model
Part No.
Language
DEH-P4300R/X1N/EW
CRD3297
English, Spanish
DEH-P4300RB/X1N/EW
CRD3298
German, French
CRD3299
Italian, Dutch
CRD3308
English, Spanish, German, French, Italian, Dutch

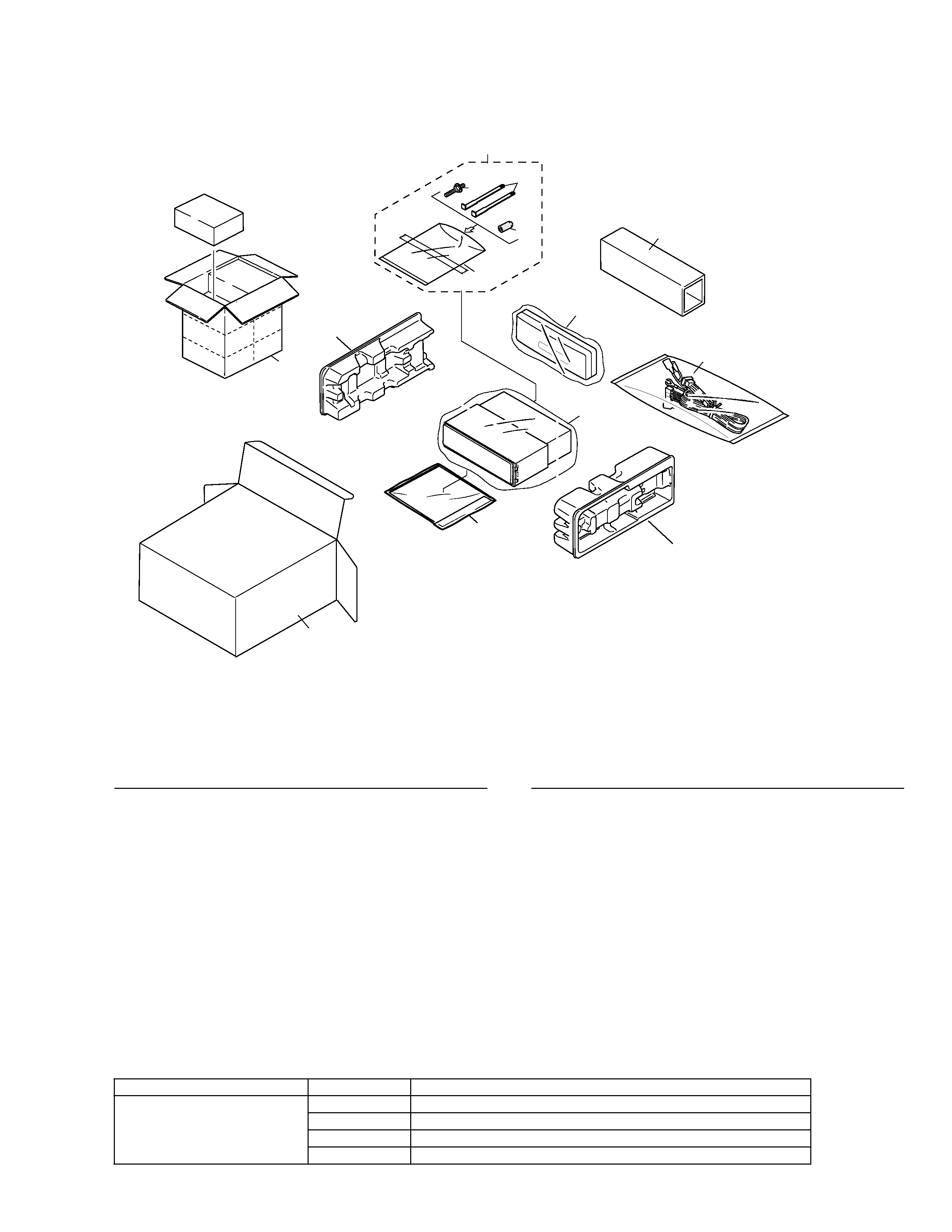

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
13
14
10
8
12
11
9
1
2
6
5
7
4
3
background image
4
DEH-P4300R,P4300RB
A
C
B
2.2 EXTERIOR
background image
5
DEH-P4300R,P4300RB
1 Screw
BMZ30P040FZK
2 Screw
BMZ30P100FMC
3 Screw
BSZ26P060FMC
4 Screw
BSZ30P060FMC
5 Cord Assy
CDE6435
6 Cap
CKX-003
7 Cable
CDE6444
8 Cord Assy
CDE6494
9 Cord Assy
CDE6495
10 Fuse(10A)
CEK1136
11 IC(IC361)
PAL006A
12 Case
CNB2686
13 Holder
CNC5704
14 Holder
CNC8659
15 Cushion
CNM4870
16 Insulator
CNM6948
17 Panel
CNS6332
18 Tuner Amp Unit(P4300R) CWM7377
Tuner Amp Unit(P4300RB) CWM7380
19 Screw
ASZ26P060FMC
20 Screw
BPZ26P100FMC
21 Screw
BSZ26P160FMC
22 Clamper
CEF1007
23 Pin Jack(CN351)
CKB1035
24 Plug(CN901)
CKM1330
*
25 Plug(CN201)
CKS1052
26 Connector(CN701)
CKS3408
27 Plug(CN750)
CKS3537
28 Connector(CN331)
CKS3598
29 Connector(CN501)
CKS4398
30 Antenna Jack(CN402)
CKX1056
31 Holder(CN403)
CNC5399
32 Holder
CNC8615
33 Holder
CNC9469
34 Insulator
CNM6949
35 Heat Sink
CNR1583
36 FM/AM Tuner Unit
CWE1562
37 Holder
CNC8815
38 Chassis Unit(P4300R)
CXB6098
Chassis Unit(P4300RB)
CXB6099
39 Detach Grille Assy(P4300R) CXB6289
Detach Grille Assy(P4300RB)
CXB6292
40 Screw
BPZ20P100FZK
41 Button(1-6)
CAC6773
42 Knob(VOLUME)
CAC6775
43 Button(FUNC/AUDIO)
CAC6776
44 Button(SOURCE/DISP)
CAC6777
45 Button(EQ)
CAC6778
46 Button(SFEQ)
CAC6779
47 Button(OPEN)
CAC6780
*
48 Badge
CAH1754
49 Spring
CBH2430
50 Spring
CBH2431
51 Spring
CBH2491
52 Cover
CNS6282
53 Holder
CNV6505
54 Holder
CNV6506
55 Keyboard Unit(P4300R)
CWM7399
Keyboard Unit(P4300RB) CWM7402
56 LCD(P4300R)
CAW1624
LCD(P4300RB)
CAW1625
57 Connector(CN1901)
CKS4205
58 Holder
CNC9053
59 Sheet
CNM6969
60 Cushion
CNM6984
61 Connector
CNV6440
62 Lighting Conductor
CNV6441
63 Sub Grille Assy(P4300R) CXB7150
Sub Grille Assy(P4300RB) CXB7151
64 Button(EJECT)
CAC6839
65 Screw(M2x2)
CBA1176
66 Washer
CBF1038
67 Washer
CBF1039
68 Spring
CBH2428
69 Spring
CBH2429
70 Spring
CBL1512
71 Holder
CNC9096
72 Cover
CNM6854
73 Panel
CNS6278
74 Pin
CNV6486
75 Lighting Conductor
CNV6487
76 Gear
CNV6507
77 Arm
CNV6508
78 Panel Unit
CWM7375
79 Socket(CN1950)
CKS3550
80 Connector(CN1951)
CKS4206
81 Damper Unit
CXB5070
82 Holder Unit
CXB6356
83 Holder Unit
CXB6357
84 Clutch Unit
CXB6358
85 Screw
IMS20P045FZK
86 CD Mechanism Module(S8.1) CXK5201
87 Screw
ISS26P055FUC
88 Transistor(Q510,Q910)
2SD2396
89 IC(IC1902)
SBX8035-H
90 Film(P4300RB)
CNM6983
- EXTERIOR SECTION PARTS LIST
Mark No. Description
Part No.
Mark No. Description
Part No.
