PIONEER DVD-V555 Service Manual

Cover page of PIONEER DVD-V555 Service Manual

Service Manual for PIONEER DVD-V555, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 81 pages
  • File size: 5.43 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1998
c
DVD-V555
RRV2051
1. SAFETY INFORMATION ...................................... 2
2. EXPLODED VIEWS AND PARTS LIST ................ 3
3. SCHEMATIC DIAGRAM ..................................... 10
4. PCB CONNECTION DIAGRAM .......................... 27
5. PCB PARTS LIST ............................................... 37
6. ADJUSTMENT .................................................... 42
CONTENTS
7. GENERAL INFORMATION ................................ 45
7.1 PARTS ......................................................... 45
7.1.1 IC ........................................................... 45
7.2 DISASSEMBLY ........................................... 49
7.3 BLOCK DIAGRAM ....................................... 50
8. PANEL FACILITIES AND SPECIFICATIONS .... 52
T ­ IZE NOV. 1998 Printed in Japan
DVD PLAYER
· Refer to the service guide RRV2004 for DV-515.
Type
Model
Power Requirement
Remarks
DVD-V555
KU
AC120V
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
DVD PLAYER
DVD-V555
1
2
3
4
5
6
7890
+10
PLAYBACK
CONTROL
ONE-TOUCH
KARAOKE
KARAOKE
MODE
ON/OFF
OPEN/CLOSE
STANDBY
MIN
MAX
MIN
MAX
MIN
MAX
MIC CONTROL
PREVIOUS
NEXT
RETURN
SELECT
STOP
PLAY
PAUSE
STANDBY/ ON
LOW CONTROL HIGH
KEY
ECHO
MIC 1
MIC 2
MIC 1
MIC 2
0
41
¡ ¢
78
3
Î
DIGITAL VIDEO
DIGITAL VIDEO
MC
background image
ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1998
c
DVD-V555
RRV2051
1. SAFETY INFORMATION ...................................... 2
2. EXPLODED VIEWS AND PARTS LIST ................ 3
3. SCHEMATIC DIAGRAM ..................................... 10
4. PCB CONNECTION DIAGRAM .......................... 27
5. PCB PARTS LIST ............................................... 37
6. ADJUSTMENT .................................................... 42
CONTENTS
7. GENERAL INFORMATION ................................ 45
7.1 PARTS ......................................................... 45
7.1.1 IC ........................................................... 45
7.2 DISASSEMBLY ........................................... 49
7.3 BLOCK DIAGRAM ....................................... 50
8. PANEL FACILITIES AND SPECIFICATIONS .... 52
T ­ IZE NOV. 1998 Printed in Japan
DVD PLAYER
· Refer to the service guide RRV2004 for DV-515.
Type
Model
Power Requirement
Remarks
DVD-V555
KU
AC120V
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
DVD PLAYER
DVD-V555
1
2
3
4
5
6
7890
+10
PLAYBACK
CONTROL
ONE-TOUCH
KARAOKE
KARAOKE
MODE
ON/OFF
OPEN/CLOSE
STANDBY
MIN
MAX
MIN
MAX
MIN
MAX
MIC CONTROL
PREVIOUS
NEXT
RETURN
SELECT
STOP
PLAY
PAUSE
STANDBY/ ON
LOW CONTROL HIGH
KEY
ECHO
MIC 1
MIC 2
MIC 1
MIC 2
0
41
¡ ¢
78
3
Î
DIGITAL VIDEO
DIGITAL VIDEO
MC
background image
2
DVD-V555
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause
cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols
(fast operating fuse) and/or
(slow operating fuse) on PCB indicate that replacement parts must
be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible
(fusible de type rapide) et/ou
(fusible de type lent) sur CCI indiquent que les pièces
de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED BEFORE
RETURNING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this Service Manual.
Electrical components having such features are identified
by marking with a
on the schematics and on the parts list
in this Service Manual.
The use of a substitute replacement component which does
not have the same safety characteristics as the PIONEER
recommended replacement one, shown in the parts list in
this Service Manual, may create shock, fire, or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Service
Manual. A subscription to, or additional copies of, PIONEER
Service Manual may be obtained at a nominal charge from
PIONEER.
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
such as Simpson Model 229-2 or equivalent between the
earth ground and all exposed metal parts of the appliance
(input/output terminals, screwheads, metal overlays, control
shaft, etc.). Plug the AC line cord of the appliance directly
into a 120V AC 60Hz outlet and turn the AC power switch
on. Any current measured must not exceed 0.5mA.
(FOR USA MODEL ONLY)
Leakage
current
tester
Reading should
not be above
0.5mA
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)
Earth
ground
AC Leakage Test
background image
DVD-V555
3
Mark No.
Description
Part No.
· PACKING PARTS LIST
1
AC Power Cord
ADG7021
2
Microphone
VPM1008
3
Operating Instructions (English) VRB1210
NSP
4
Warranty Card
ARY7030
5
Audio Cord
VDE1033
6
Video Cord
VDE1048
NSP
7
Dry Cell Battery (R6P,AA)
VEM-013
8
Remote Control Unit(CU-V157) VXX2616
9
Battery Cover
VNK3703
10
Polyethylene Bag
Z21-038
11
Protector A
VHB1063
12
Protector B
VHB1064
13
Packing Case
VHG1776
14
Mirror Mat Sheet 750x600x0.5 Z23-007
2.1 PACKING
2. EXPLODED VIEWS AND PARTS LIST
NOTES:
· Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
· The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
· Screws adjacent to mark on the product are used for disassembly.
10
3
4
2
11
14
10
12
1
6
5
13
7
9
8
background image
DVD-V555
4
2
4
3
10
11
Refer to "2.3 FRONT PANEL SECTION"
10
8
9
7
6
11
14
13
12
15
16
5
16
1
2.2 EXTERIOR SECTION
Mark No.
Description
Part No.
Mark No.
Description
Part No.
· EXTERIOR SECTION PARTS LIST
1
Bonnet Case S
VXX2618
2
Tray Panel
VNK4158
3
DVD Plate
VAM1080
4
Tray Panel Plate
VNK4268
5
65 Label
ORW1069
6
Tray
VNL1731
7
Tray Stopper
VNL1739
8
Spring
VBH1277
9
Tray Label
VRW1628
10
Screw
IBZ30P080FMC
11
Screw
BCZ40P060FZK
12
Clamper Plate
VNE2068
13
Bridge
VNE2069
14
Clamper
VNL1738
15
Screw
BPZ26P080FZK
16
Screw
BBZ30P080FMC
background image
DVD-V555
5

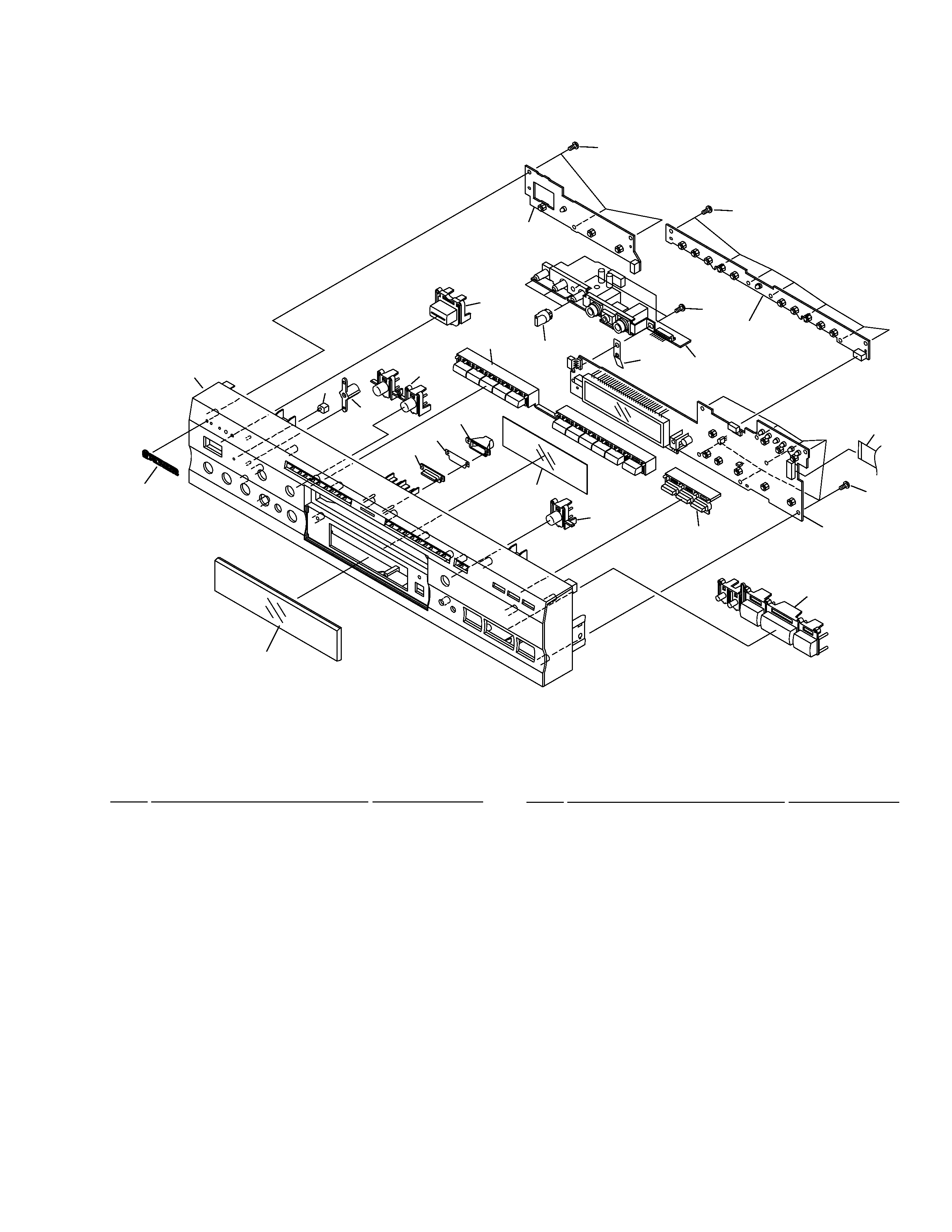

2.3 FRONT PANEL SECTION
Mark No.
Description
Part No.
Mark No.
Description
Part No.
· FRONT PANEL SECTION PARTS LIST
6
4
7
23
19(1/2)
8
15
3
1
16
10
14
11
13
12
5
16
2
16
9
18
20
16
22
21
19(2/2)
1
FLKY Assy
VWG2022
NSP
2
PWSB Assy
VWG2020
3
KYLB Assy
VWG2019
4
Front Panel
VNK4378
5
FL Lens
VNK4263
6
Name Plate
PAM1776
7
LED Lens
PNW2019
8
Main Key
VNK4258
9
11 Key
VNK4262
10
MICB Assy
VWV1644
11
FL Filter
VEC1722
12
Illumination Lens
VNK4264
13
Illumination Filter
VEC1983
14
Illumination Holder
VNK4265
15
Flexible Cable (14P)
VDA1646
(FLKY CN101 ­ DVDM CN602)
16
Screw
BBZ30P080FMC
17
· · · · ·
18
Headphone Knob
VNK3756
19
3 Key
VNK4259
20
Light Key
VNK4261
21
Earth Plate
VBK1075
22
Power Button
VNK4101
23
Lens Holder
VNK4266
