PIONEER DVR-A04/KB Service Manual

Cover page of PIONEER DVR-A04/KB Service Manual

Service Manual for PIONEER DVR-A04/KB, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 70 pages
  • File size: 6.79 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2002
PHONES
BUSY
DVR-104
RRV2590
DVD-R/RW CD-R/RW WRITER
DVR-104
DVR-A04
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
Power Requirement
Remarks
DVR-104
KBXV/2
DC Power supply from other system
DVR-104
KB/2
DC Power supply from other system
DVR-104
KB
DC Power supply from other system
DVR-A04
KBXV
DC Power supply from other system
DVR-A04
KB
DC Power supply from other system
For details, refer to "Important symbols for good services" on the next page.
T-ZZY APR.2002.printed in Japan
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2002
PHONES
BUSY
DVR-104
RRV2590
DVD-R/RW CD-R/RW WRITER
DVR-104
DVR-A04
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
Power Requirement
Remarks
DVR-104
KBXV/2
DC Power supply from other system
DVR-104
KB/2
DC Power supply from other system
DVR-104
KB
DC Power supply from other system
DVR-A04
KBXV
DC Power supply from other system
DVR-A04
KB
DC Power supply from other system
For details, refer to "Important symbols for good services" on the next page.
T-ZZY APR.2002.printed in Japan
background image
DVR-104
2
12
34
1
234
C
D
F
A
B
E

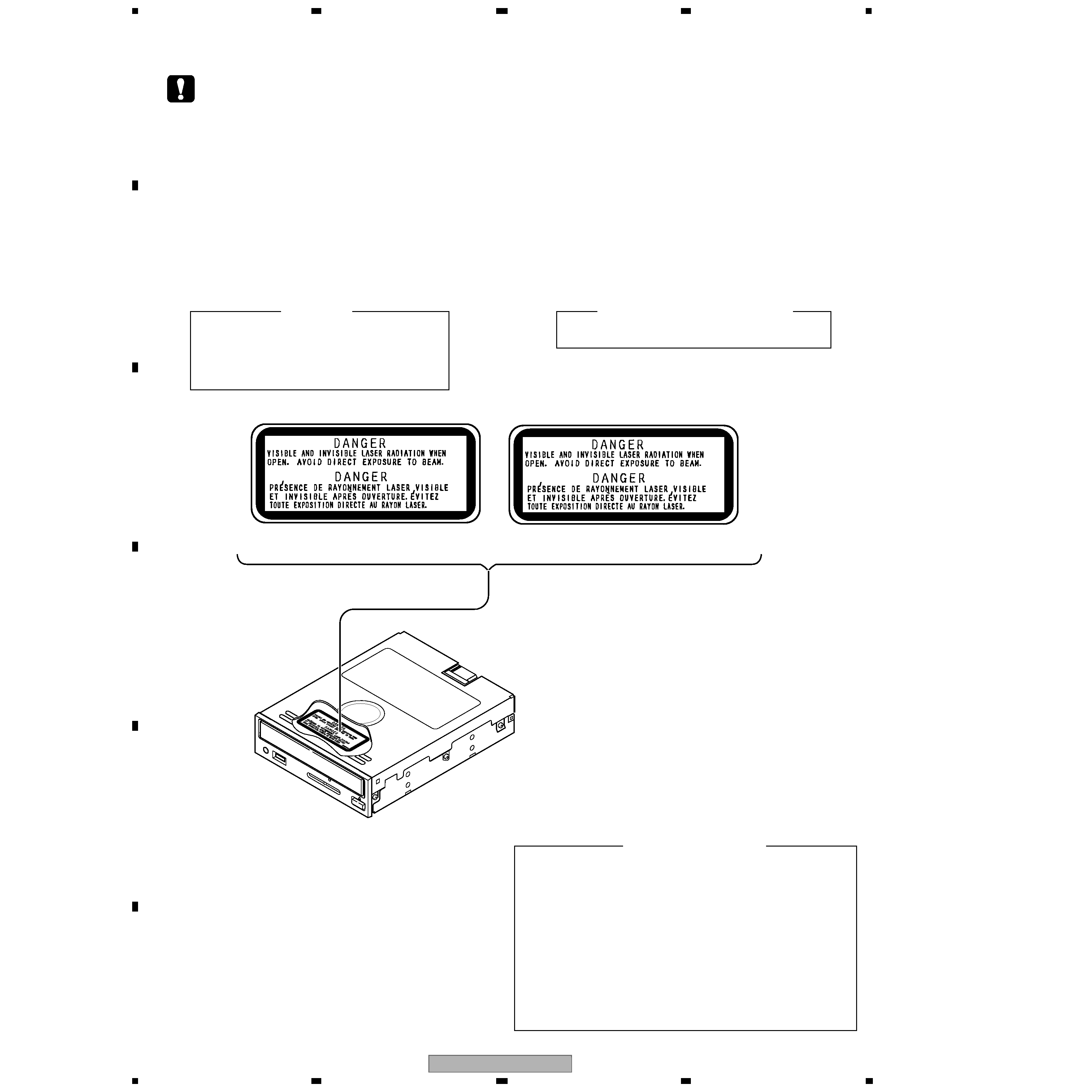

SAFTY INFORMATION
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 7 mw
WAVELENGTH: 650 nm (DVD) , 780 nm (CD-ROM)
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have
been trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely,
you should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
(DRW2080)
DRW2080
(DRW2069)
DRW2069
1. The ON/OFF(ON:low level,OFF:high level) status of the
CLAMP signals for detcting the loading state are detected
by the drive CPUs, and the design prevents
laser diode oscillation when the CLAMP signal turns OFF.
In normal operation, if no disc is clamped, the laser diode
oscillation is disabled.
However, the interlock does not always operate in the test
mode. *
2. When the cover is opened, close viewing of the objective
lens with the naked eye will cause exposure to a Class 3A
laser beam.
Additional Laser Caution
* Refer to pages 38.
DVR-104/KB, DVR-104/KB/2 and DVR-A04/KB only
DVR-104/KBXV/2 and DVR-A04/KBXV only
background image
DVR-104
3
5
678
56
7
8
C
D
F
A
B
E
[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:
2. Adjustments
To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.
3. Cleaning
For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
proper cleaning should be performed to restore their performances.
5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.
4. Shipping mode and shipping screws
To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
1. Product safety
You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.
background image
DVR-104
4
12
34
1
234
C
D
F
A
B
E
CONTENTS
SAFTY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. EXPLODED VIEWS AND PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 PACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 EXTERIOR (1/2) SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 EXTERIOR (2/2) SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4 TRAVERSE MECHANISM ASSY-S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.1 BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.2 OVERALL WIRING DIAGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.3 DVR R4 MAIN ASSY (1/5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.4 DVR R4 MAIN ASSY (2/5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.5 DVR R4 MAIN ASSY (3/5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.6 DVR R4 MAIN ASSY (4/5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.7 DVR R4 MAIN ASSY (5/5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4. PCB CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.1 DVR R4 MAIN ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5. PCB PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6. ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6.1 TEST MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6.1.1 Sending Test Mode Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6.1.2 Disc Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6.2 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6.2.1 VCO Free-running Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6.2.2 BPF Center frequency Adjustment / Wobull Dely Adjustment . . . . . . . . . . . . . . . . . . . . . 39
6.2.3 Power Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.2.4 Radial Tilt Circuit Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.2.5 Focus Position Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.2.6 Playback Ability Confirmation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
6.2.7 Recording Ability Confirmation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
6.3 Release the Test mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
7. GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
7.1 DIAGNOSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
7.1.1 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
7.1.2 CLEANING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
7.2 PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
7.2.1 IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
8. PANEL FACILITIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
background image
DVR-104
5
5
678
56
7
8
C
D
F
A
B
E
1. SPECIFICATIONS
[Setting]
This drive is Horizontal and Vertical Use.
[Disc Size]
· 12 cm (4.72") / 8 cm (3.15")*
*8 cm (3.15") discs cannot be used at upright position.
[Data Transfer Rate]
Data Read (Sustained)
DVD Max. 8,100 KBytes/sec.
CD Max. 3,600 KBytes/sec.
(10.3 ­ 24X CAV Mode over 16 block transfer)
Data Write (Sustained)
DVD Max. 2,700 KBytes/sec. (2X DVD-R)
CD Max. 1,200 KBytes/sec. (8X CD-R)
Host Interface specification
PIO Mode 4, Multi word DMA Mode 2 16.6 Mbytes/sec.
Ultra DMA mode 2 33.3 MBytes/sec.
· The data transfer rate may not be output due to disc conditions (scratches, etc.).
[Access Time/ Seek Time]
Access time (Random average)
DVD-ROM 200 ms CD-ROM 180 ms
Seek time (Random average)
DVD-ROM 150 ms CD-ROM 130 ms
[Audio Characteristic]
Line Out 0.7
± 0.5 Vrms (at 10 k load)
Headphone Out 0.6
± 0.5 Vrms (at 32 load)
[Others]
Power Supply
DC +12 V, 0.7 A
DC +5 V, 1.4 A
Dimensions
148 (W) x 42.3 (H) x 197.7 (D) mm
(including front panel)
5-27/32 (W) x 1-11/16 (H) x 7-25/32 (D) in.
Weight
1.2 kg (2.65 lb)
Operation temperature
+5
°C to +45°C (41°F to 113°F)
Operation humidity
5% to 85% (no condensation)
Storage temperature
­ 40
°C to +60°C (­ 40°F to 140°F)
Storage humidity
5% to 90% (no condensation)
[Accessories] (DVR-A04 only)
Push Rod
x1
Short-circuit socket
x2
Audio cable
x1
Mounting screw
x4
Operating instructions
x1
NOTE:
· Specifications and design subject to possible modifications without notice, due to improvements.
[DVR-104 and DVR-A04]
Mounting screw x4
(AMZ30P060FMC)
Short-circuit socket x2
(DKX1042)
Audio cable x1
(DKP3369)
Push Rod
(DEX1008)
Accessories
(DVR-A04 only)
