PIONEER DVR-S606/TKBXV Service Manual

Cover page of PIONEER DVR-S606/TKBXV Service Manual

Service Manual for PIONEER DVR-S606/TKBXV, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 21 pages
  • File size: 3.96 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
BUSY
DVR-S606
RRV2857
DVD-R/RW CD-R/RW WRITER
DVR-S606
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
CONTENTS
SAFETY INFORMATION................................................................................................................... 2
1. SPECIFICATIONS .......................................................................................................................... 4
2. EXPLODED VIEWS AND PARTS LIST .......................................................................................... 5
2.1 PACKING.................................................................................................................................... 5
2.2 EXTERIOR SECTION................................................................................................................ 6
2.3 DVD-R/RW WRITER SECTION ................................................................................................. 8
3. GENERAL INFORMATION............................................................................................................. 9
3.1 DIAGNOSIS ............................................................................................................................... 9
3.1.1 EMERGENCY DISC REMOVAL .......................................................................................... 9
3.1.2 CASE and DVD-R/RW WRITER DISASSMBLY ................................................................ 10
3.1.3 PICKUP LENS CLEANING................................................................................................ 11
3.1.4 CLEANING ........................................................................................................................ 12
3.1.5 Failure Test (Diagnosis) Method ........................................................................................ 13
3.1.6 How to Write the GUID ...................................................................................................... 15
3.1.7 How to Check and Update the Version of the Firmware .................................................... 19
Model
Type
Power Requirement
Remarks
DVR-S606
TKBXV
DC Power supply from AC Adapter
For details, refer to "Important symbols for good services".
T-ZZR NOV. 2003 printed in Japan
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
BUSY
DVR-S606
RRV2857
DVD-R/RW CD-R/RW WRITER
DVR-S606
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
CONTENTS
SAFETY INFORMATION................................................................................................................... 2
1. SPECIFICATIONS .......................................................................................................................... 4
2. EXPLODED VIEWS AND PARTS LIST .......................................................................................... 5
2.1 PACKING.................................................................................................................................... 5
2.2 EXTERIOR SECTION................................................................................................................ 6
2.3 DVD-R/RW WRITER SECTION ................................................................................................. 8
3. GENERAL INFORMATION............................................................................................................. 9
3.1 DIAGNOSIS ............................................................................................................................... 9
3.1.1 EMERGENCY DISC REMOVAL .......................................................................................... 9
3.1.2 CASE and DVD-R/RW WRITER DISASSMBLY ................................................................ 10
3.1.3 PICKUP LENS CLEANING................................................................................................ 11
3.1.4 CLEANING ........................................................................................................................ 12
3.1.5 Failure Test (Diagnosis) Method ........................................................................................ 13
3.1.6 How to Write the GUID ...................................................................................................... 15
3.1.7 How to Check and Update the Version of the Firmware .................................................... 19
Model
Type
Power Requirement
Remarks
DVR-S606
TKBXV
DC Power supply from AC Adapter
For details, refer to "Important symbols for good services".
T-ZZR NOV. 2003 printed in Japan
background image
DVR-S606
2
1234
123
4
C
D
F
A
B
E

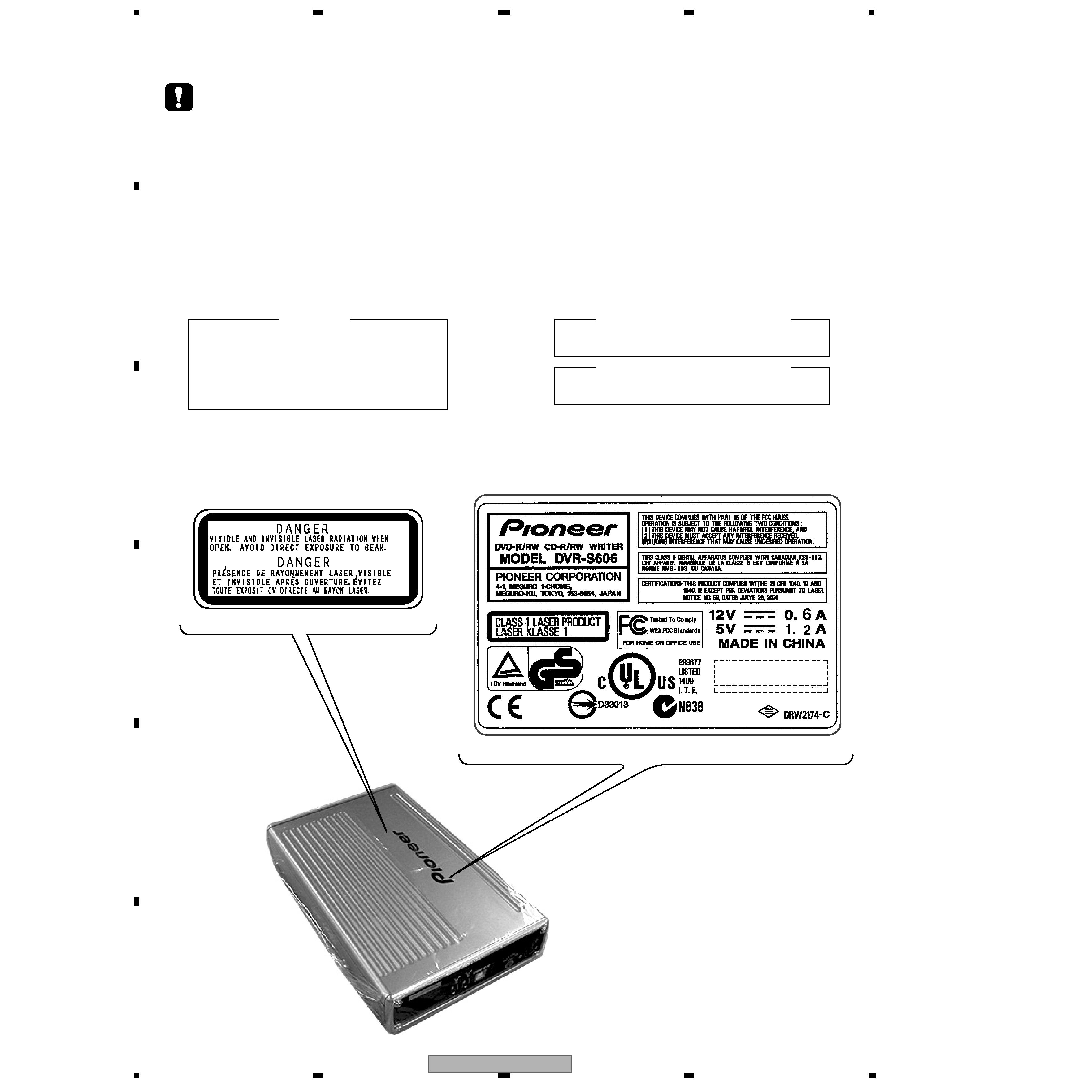

SAFETY INFORMATION
IMPORTANT
THIS
PIONEER
APPARATUS
CONTAINS
INVISIBLE LASER OF CLASS 3b and VISIBLE
LASER OF CLASS
2.
SERVICING OPERATION OF THE APPARATUS
SHOULD
BE
DONE
BY
A
SPECIALLY
INSTRUCTED PERSON.
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 25 mW
WAVELENGTH: 654 - 662 nm
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 36 mW
WAVELENGTH: 780 - 787 nm
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have
been trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely,
you should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 ­ Proposition 65
(DRW2080)
DRW2080
(DRW2174)
Bottom
background image
DVR-S606
3
5
678
56
7
8
C
D
F
A
B
E
[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:
2. Adjustments
To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.
3. Cleaning
For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
proper cleaning should be performed to restore their performances.
5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.
4. Shipping mode and shipping screws
To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
1. Product safety
You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.
background image
DVR-S606
4
1234
123
4
C
D
F
A
B
E

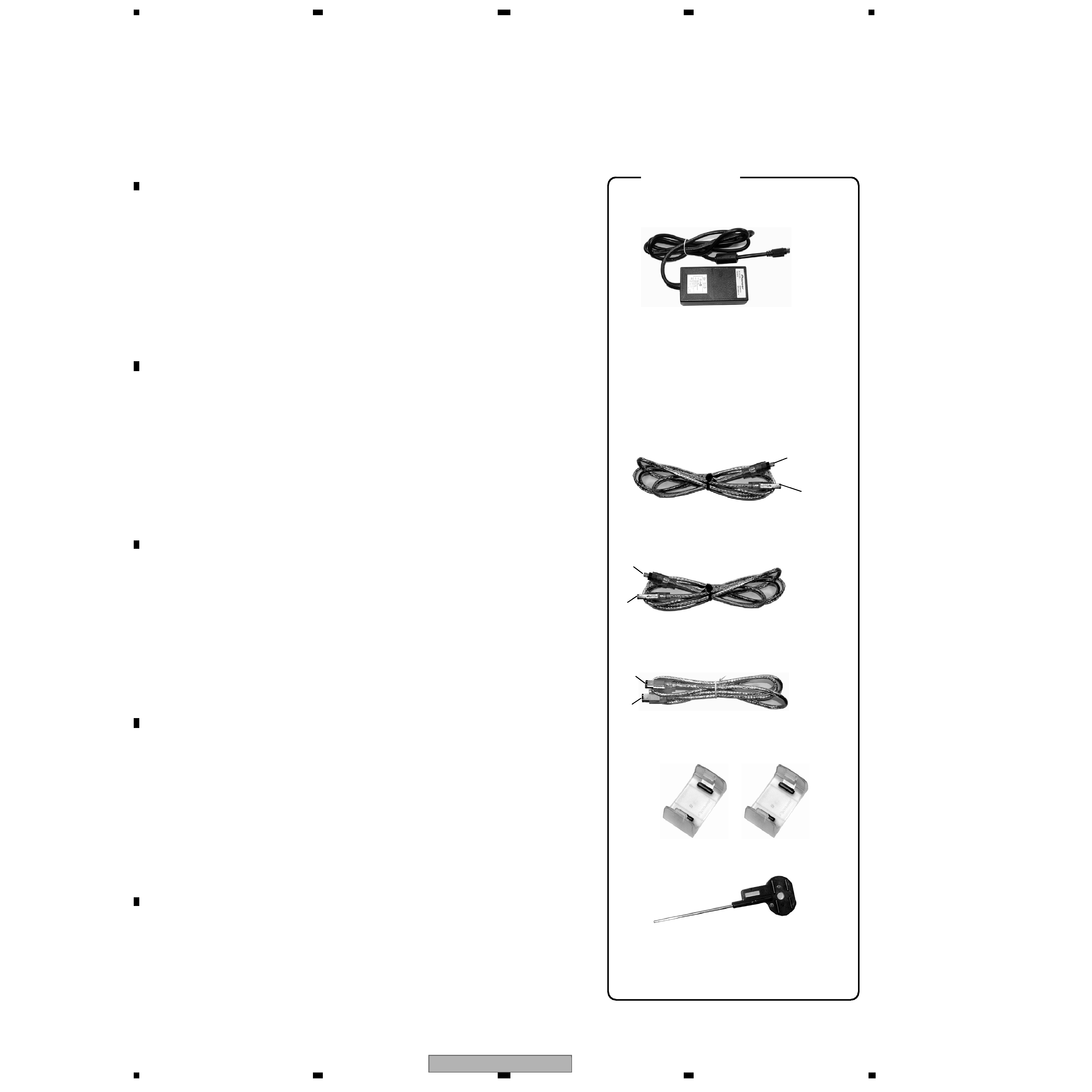

1. SPECIFICATIONS
· AC adapter ..... x 1
(DWX2325).
· IEEE1394 cable (6p - 4p) ..... x 1
(DDC1011) (1.5 m)
· USB cable (USB - USB2) ..... x 1
(DDC1013) (1.0 m)
· IEEE1394 cable (6p - 6p) ..... x 1
(DDC1012) (1.5 m)
· Vertical stand ..... x2
(DXB1802)
· Operating instructions..... x 1
· Manual eject pin..... x1
(DEX1008)
4p
6p
USB2
USB
6p
6p
[DVR-S606/ TKBXV]
Accessories
[Setting]
This drive is Horizontal and Vertical Use.
Use the supplied stand to place the unit in vertical position.
[Interface]
USB 2.0 or IEEE 1394a
[Disc Size]
12 cm (4.72") / 8 cm (3.15")*
* 8 cm (3.15") discs cannot be used at upright position.
[Data Transfer Rate]
Data Read (Sustained)
DVD
Max. 16.62 MBytes/sec.
CD
Max. 4.92 MBytes/sec.
(13.7 ­ 32X CAV Mode over 16 block transfer)
Data Write (Sustained)
DVD
Ave. 5.54 MBytes/sec. (4X DVD-R)
CD
Ave. 2.46 MBytes/sec. (16X CD-R)
· The data transfer rate may not be output due to disc conditions (scratches, etc.).
[Access Time/ Seek Time]
Access time (Random average)
DVD-ROM 140 ms
CD-ROM 130 ms
Seek time (Random average)
DVD-ROM 120 ms
CD-ROM 100 ms
[Power Supply]
AC adapter (supplied):
+12 V DC / 0.5 A, +5 V DC / 0.9 A
[AC Adapter]
Power source:
100 ­ 240 V AC, 50 / 60 Hz
Rated output:
+12 V DC / 1.5 A, +5 V DC / 1.5 A
[Power Consumption]
When playing DVD-ROM:
24 W (100 V) ­ 37 W (240 V)
Idle:
8 W (100 V) ­ 17 W (240 V)
[Other]
Supported operating systems: Windows 98SE, Windows 2000,
Windows Me, Windows XP
Dimensions
167 (W) x 56.2 (H) x 272.8 (D) mm
(including front panel)
6-9/16 (W) x 2-7/32 (H) x 10-3/4 (D) in.
Weight
2.1 kg (4.63 lb)
Operation temperature
+5
°C to +35°C (41°F to 95°F)
Operation humidity
5% to 85% (no condensation)
Storage temperature
­ 40
°C to +60°C (­ 40°F to 140°F)
Storage humidity
5% to 90% (no condensation)
[Accessories]
AC adapter:
1
USB cable (1.0 m):
1
IEEE 1394 cable (1.5 m):
2
Vertical stand:
2
Manual eject pin:
1
Operating instructions:
1
NOTE:
· Specifications and design subject to possible modifications without notice, due to improvements.
background image
DVR-S606
5
5
678
56
7
8
C
D
F
A
B
E

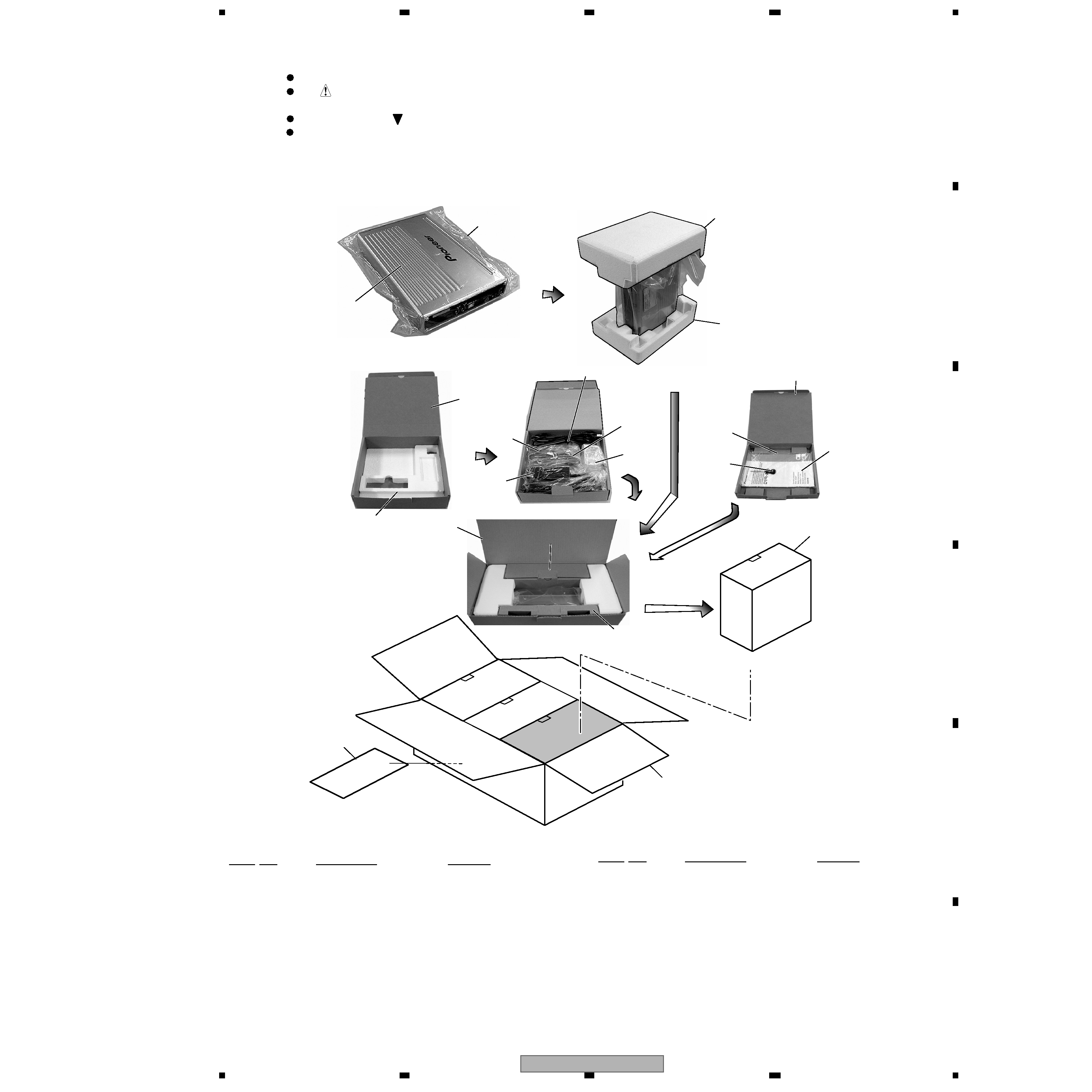

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
PACKING parts List
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to
mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
NOTES:
x3 set
8
10
9
13
13
17
16
12
6
4
17
DVR-S606
11
5
3
14
14
7
2
12
1
15
16
Mark No.
Description
Part No.
1
IEEE1394 Cable (6-4)
DDC1011
2
IEEE1394 Cable (6-6)
DDC1012
3
USB Cable
DDC1013
4
Manual Eject pin
DEX1008
>
5AC Adapter
DWX2325
6
Operating Instructions
DRC1209
(English, French, German, Italian, Spanish, Swedish)
7Vertical Stand Assy
DXB1802
NSP 8
Poly Bag
DHL1137
9Pad F
DHA1588
10
Pad R
DHA1589
11
Partition
DHA1590
12
Case U
DHG2407
13
Case L
DHG2408
14
Packing Case(S606)
DHG2418
15
Master Carton(S606)
DHG2409
16
Spacer
DHG2412
NSP 17
Poly Bag
DHL1119
Mark No.
Description
Part No.
