PIONEER FH-P4000 Owner's Manual

Cover page of PIONEER FH-P4000 Owner's Manual

Owner's Manual for PIONEER FH-P4000, downloadable as a PDF file.

We also have service manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 106 pages
  • File size: 6.55 MB
  • Available language versions: French, English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2001
K-ZZA. MAR. 2001 Printed in Japan
ORDER NO.
CRT2674
MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH FM/AM TUNER
MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH RDS TUNER
FH-P4000
X1N/UC,X1N/ES
Service
Manual
CONTENTS
1. SAFETY INFORMATION ............................................3
2. EXPLODED VIEWS AND PARTS LIST .......................4
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...16
4. PCB CONNECTION DIAGRAM ................................40
5. ELECTRICAL PARTS LIST ........................................50
6. ADJUSTMENT..........................................................67
7. GENERAL INFORMATION .......................................72
7.1 DIAGNOSIS ........................................................72
7.1.1 TEST MODE ..............................................72
7.1.2 DISASSEMBLY .........................................76
7.1.3 CONNECTOR FUNCTION DESCRIPTION .......80
7.2 PARTS .................................................................81
7.2.1 IC................................................................81
7.2.2 DISPLAY ....................................................96
7.3 OPERATIONAL FLOW CHART ...........................97
8. OPERATIONS AND SPECIFICATIONS.....................98
FH-P4000R X1N/EW
FH-P4000/X1N/UC
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module Remarks
CX-977
CRT2624
S9
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CX-1011
CRT2406
3L
Cassette Mech. Module:Mech.Description, Disassembly, Adjustment
- Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
ENT
ENT
DISP
DISP
CLOCK
CLOCK
LOUD
LOUD
SOURCE
SOURCE / OFF
OFF
6
5
4
3
2
1
F
D
A
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2001
K-ZZA. MAR. 2001 Printed in Japan
ORDER NO.
CRT2674
MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH FM/AM TUNER
MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH RDS TUNER
FH-P4000
X1N/UC,X1N/ES
Service
Manual
CONTENTS
1. SAFETY INFORMATION ............................................3
2. EXPLODED VIEWS AND PARTS LIST .......................4
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...16
4. PCB CONNECTION DIAGRAM ................................40
5. ELECTRICAL PARTS LIST ........................................50
6. ADJUSTMENT..........................................................67
7. GENERAL INFORMATION .......................................72
7.1 DIAGNOSIS ........................................................72
7.1.1 TEST MODE ..............................................72
7.1.2 DISASSEMBLY .........................................76
7.1.3 CONNECTOR FUNCTION DESCRIPTION .......80
7.2 PARTS .................................................................81
7.2.1 IC................................................................81
7.2.2 DISPLAY ....................................................96
7.3 OPERATIONAL FLOW CHART ...........................97
8. OPERATIONS AND SPECIFICATIONS.....................98
FH-P4000R X1N/EW
FH-P4000/X1N/UC
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module Remarks
CX-977
CRT2624
S9
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CX-1011
CRT2406
3L
Cassette Mech. Module:Mech.Description, Disassembly, Adjustment
- Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
ENT
ENT
DISP
DISP
CLOCK
CLOCK
LOUD
LOUD
SOURCE
SOURCE / OFF
OFF
6
5
4
3
2
1
F
D
A
background image
2
FH-P4000,P4000R
- CD Player Service Precautions
1. For pickup unit(CXX1480) handling, please refer
to"Disassembly"(see page 76).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a jumper-solder).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 70).
background image
3
FH-P4000,P4000R
1. Safety Precautions for those who Service this Unit.
· When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.

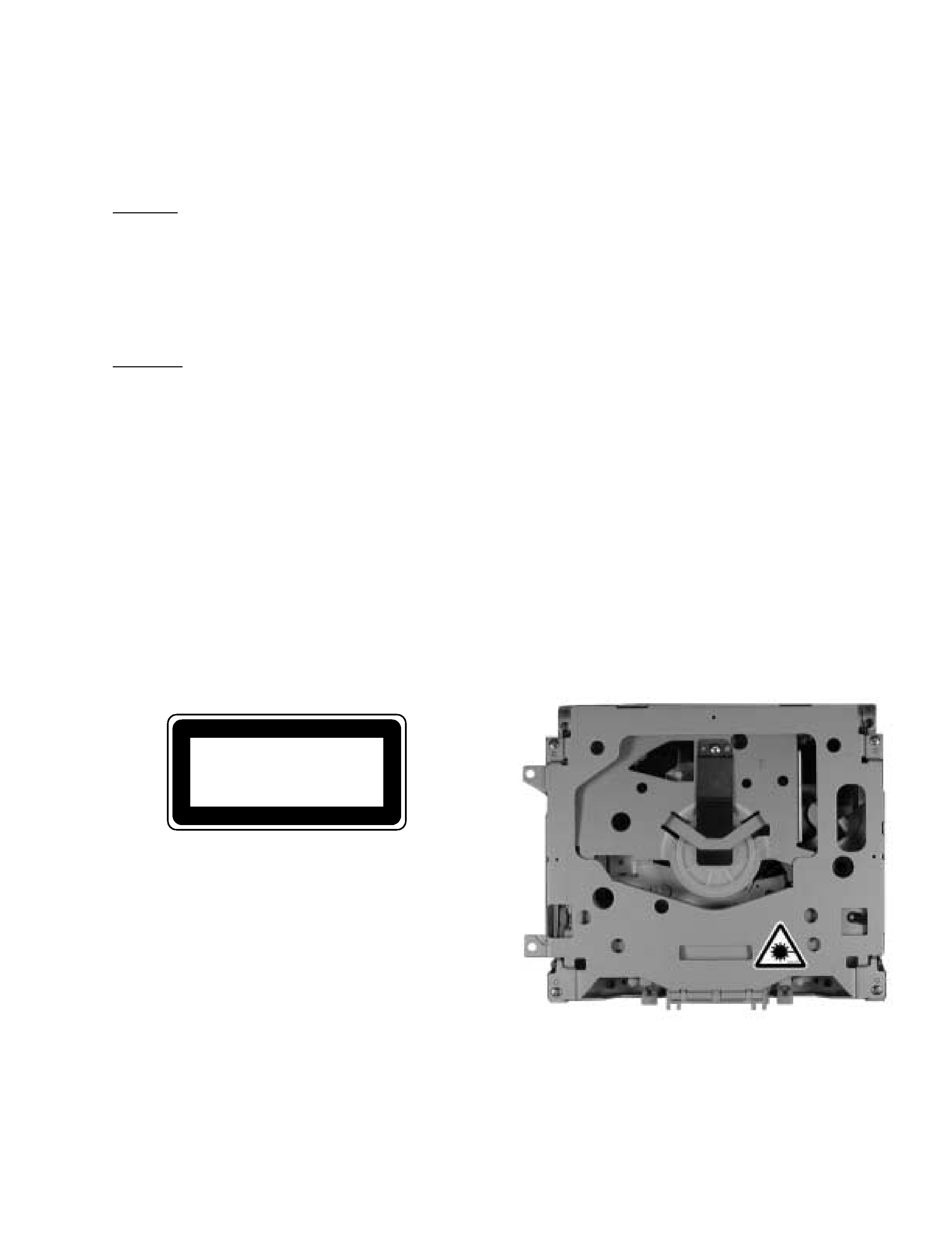

1. SAFETY INFORMATION
2. A "CLASS 1 LASER PRODUCT" label is affixed to the
bottom of the player.
3. The triangular label is attached to the mechanism
unit frame.
4. Specifications of Laser Diode
Specifications of laser radiation fields to which human access is possible during service.
Wavelength
=
800 nanometers
CLASS 1
LASER PRODUCT
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
background image
4
FH-P4000,P4000R
1 Cord Assy
See Contrast table(2)
2 Screw Assy
See Contrast table(2)
3 Screw
BMZ50P080FMC
4 Screw(M2x4)
See Contrast table(2)
*
5 Polyethylene Bag
CEG-127
6 Screw
CMZ50P080FMC
7 Cover
See Contrast table(2)
*
8 Battery
See Contrast table(2)
9 Carton
See Contrast table(2)
10 Contain Box
See Contrast table(2)
11 Protector
CHP2361
12 Protector
CHP2362
13 Protector
CHP2363
14-1 Polyethylene Bag
CEG1116
* 14-2 Card
See Contrast table(2)
14-3 Owner's Manual
See Contrast table(2)
14-4 Installation Manual
See Contrast table(2)
14-5 Panel
See Contrast table(2)
14-6 Owner's Manual
See Contrast table(2)
14-7 Installation Manual
See Contrast table(2)
14-8 Passport
See Contrast table(2)
* 14-9 Warranty Card
See Contrast table(2)
15 Remote Control Unit
See Contrast table(2)
*
16 Cover
See Contrast table(2)
Mark No. Description
Part No.
Mark No. Description
Part No.
(1) PACKING SECTION PARTS LIST
NOTE:
- Parts marked by "*" are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to
mark on the product are used for disassembly.
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
background image
5
FH-P4000,P4000R
Part No.
Mark No. Symbol and Description FH-P4000/X1N/UC
FH-P4000R/X1N/EW
FH-P4000/X1N/ES
1 Cord Assy
CDE6438
CDE6435
CDE6603
2 Screw Assy
CEA2789
CEA2788
CEA2788
4 Screw(M2x4)
CBA1488
Not used
Not used
7 Cover
CEG1177
CEG1074
CEG1074
*
8 Battery
CEX1065
Not used
Not used
9 Carton
CHG4348
CHG4347
CHG4346
10 Contain Box
CHL4348
CHL4347
CHL4346
* 14-2 Card
ARY1048
Not used
Not used
14-3 Owner's Manual
CRD3403
CRD3397
CRD3401
14-4 Installation Manual
CRD3404
CRD3398
CRD3402
14-5 Panel
CNS6675
CNS6675
Not used
14-6 Owner's Manual
Not used
CRD3399
Not used
14-7 Installation Manual
Not used
CRD3400
Not used
14-8 Passport
Not used
CRY1013
Not used
* 14-9 Warranty Card
Not used
CRY1157
Not used
15 Remote Control Unit
CXB6796
Not used
CXB6796
*
16 Cover
CEG1302
CEG1302
Not used
(2) CONTRAST TABLE
FH-P4000/X1N/UC, FH-P4000R/X1N/EW and FH-P4000/X1N/ES are constructed the same except for the
following:
- Owner's Manual, Installation Manual
Model
Part No.
Language
FH-P4000/X1N/UC
CRD3403
English, French
CRD3404
English, French
FH-P4000R/X1N/EW
CRD3397
English, Italian, Spanish
CRD3398
English, Italian, Spanish
CRD3399
French, Dutch, German
CRD3400
French, Dutch, German
FH-P4000/X1N/ES
CRD3401
English, Spanish, Korean
CRD3402
English, Spanish, Korean
As materials for on-site adjustment, the following items are contained in the package:
CRD3397 (Owner's manual in English, Italian and Spanish) *A
CRD3398 (Installation manual in English, Italian and Spanish) *A
CRD3399 (Owner's manual in French, Dutch and German) *B
CRD3400 (Installation manual in French, Dutch and German) *B
When the products are shipped from our factory, the above manuals are not included. A
pair of manuals (*A or *B) will be attached to the product package on the site (PEE)
according to the language used in the country or area to which the product is delivered.
