PIONEER FH-P4100R Service Manual

Cover page of PIONEER FH-P4100R Service Manual

Service Manual for PIONEER FH-P4100R, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 15 pages
  • File size: 0.65 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2002
K-ZZU. MAR. 2002 Printed in Japan
ORDER NO.
CRT2825
MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH FM/AM TUNER
FH-P4100
XN/UC,XN/ES
Service
Manual
- This service manual should be used together with the manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following
manual(s).
Model No.
Order No. Mech. Module
Remarks
FH-P4000/X1N/UC
CRT2674
CX-977
CRT2624
S9
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CX-1011
CRT2406
3L
Cassette Mech. Module:Mech.Description, Disassembly, Adjustment
FH-P4100R
XN/EW
MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH RDS TUNER
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2002
K-ZZU. MAR. 2002 Printed in Japan
ORDER NO.
CRT2825
MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH FM/AM TUNER
FH-P4100
XN/UC,XN/ES
Service
Manual
- This service manual should be used together with the manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following
manual(s).
Model No.
Order No. Mech. Module
Remarks
FH-P4000/X1N/UC
CRT2674
CX-977
CRT2624
S9
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CX-1011
CRT2406
3L
Cassette Mech. Module:Mech.Description, Disassembly, Adjustment
FH-P4100R
XN/EW
MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH RDS TUNER
background image
2
FH-P4100,P4100R
EXPLODED VIEWS AND PARTS LIST
PACKING (Page 4)
- PACKING SECTION PARTS LIST
Part No.
Mark
No.
Description
FH-P4000/X1N/UC
FH-P4100/XN/UC
9
Carton
CHG4348
CHG4698
10
Contain Box
CHL4348
CHL4698
14-3
Owner's Manual
CRD3403
CRD3580
14-4
Installation Manual
CRD3404
CRD3581
- PACKING SECTION PARTS LIST
Part No.
Mark
No.
Description
FH-P4000R/X1N/EW
FH-P4100R/XN/EW
9
Carton
CHG4347
CHG4697
10
Contain Box
CHL4347
CHL4697
14-3
Owner's Manual
CRD3397
CRD3576
14-4
Installation Manual
CRD3398
CRD3577
14-6
Owner's Manual
CRD3399
CRD3578
14-7
Installation Manual
CRD3400
CRD3579
- PACKING SECTION PARTS LIST
Part No.
Mark
No.
Description
FH-P4000/X1N/ES
FH-P4100/XN/ES
9
Carton
CHG4346
CHG4699
10
Contain Box
CHL4346
CHL4699
14-3
Owner's Manual
CRD3401
CRD3582
14-4
Installation Manual
CRD3402
CRD3583
background image
3
FH-P4100,P4100R
EXTERIOR (Page 6-8)
- EXTERIOR SECTION PARTS LIST
Part No.
Mark
No.
Description
FH-P4000/X1N/UC
FH-P4100/XN/UC
16
Audio Amp Unit
CWM7526
CWM8203
42
Panel Unit
CXB7289
CXB8347
43
Button
CAC6904
CAC7677
44
Door
CAT2223
CAT2336
76
Remote Control Unit
CXB6796
CXB8744
77
Cover
CNS6439
CNS7068
78
CD Mechanism Module
CXK5500(S9)
CXK5501(S9ANA)
- EXTERIOR SECTION PARTS LIST
Part No.
Mark
No.
Description
FH-P4000R/X1N/EW
FH-P4100R/XN/EW
16
Audio Amp Unit
CWM7523
CWM8202
33
Chassis Unit
CXB6786
CXB8722
42
Panel Unit
CXB7289
CXB8347
43
Button
CAC6904
CAC7677
44
Door
CAT2223
CAT2336
78
CD Mechanism Module
CXK5500(S9)
CXK5501(S9ANA)
- EXTERIOR SECTION PARTS LIST
Part No.
Mark
No.
Description
FH-P4000/X1N/ES
FH-P4100/XN/ES
14
Audio Amp Unit
CWM7529
CWM8204
58
CD Mechanism Module
CXK5500(S9)
CXK5501(S9ANA)
65
Remote Control Unit
CXB6796
CXB8744
66
Cover
CNS6439
CNS7068
background image
4
FH-P4100,P4100R
Mark No. Description
Part No.
Mark No. Description
Part No.
101 Screw
BPZ20P080FZK
102 Keyboard Unit(UC)
CWM8417
Keyboard Unit(EW)
CWM8416
103 Holder
CNC9168
104 Connector(CN1000)
CKS3580
105 IC(IC1401)
TS04840SB1
106 Spacer
CNM7603
107 Sheet
CNM7084
108 Connector
CNV6586
109 LCD
CAW1664
110 Lighting Conductor
CNV6582
111 Grille Unit(UC)
CXB9548
Grille Unit(EW)
CXB9547
112 Button(TAPE EJ)
CAC7438
113 Button(CD EJ)
CAC7433
114 Button(SEL)
CAC7441
115 Button(VOLUME)
CAC7434
116 Button(1-6)(UC)
CAC7443
Button(1-6)(EW)
CAC7440
117 Button(DISP,AUDIO)
CAC7442
118 Lighting Conductor
CNV7021
119 Button(DETACH)
CAC7439
120 Spring
CBH2210
121 Cover
CNS6926

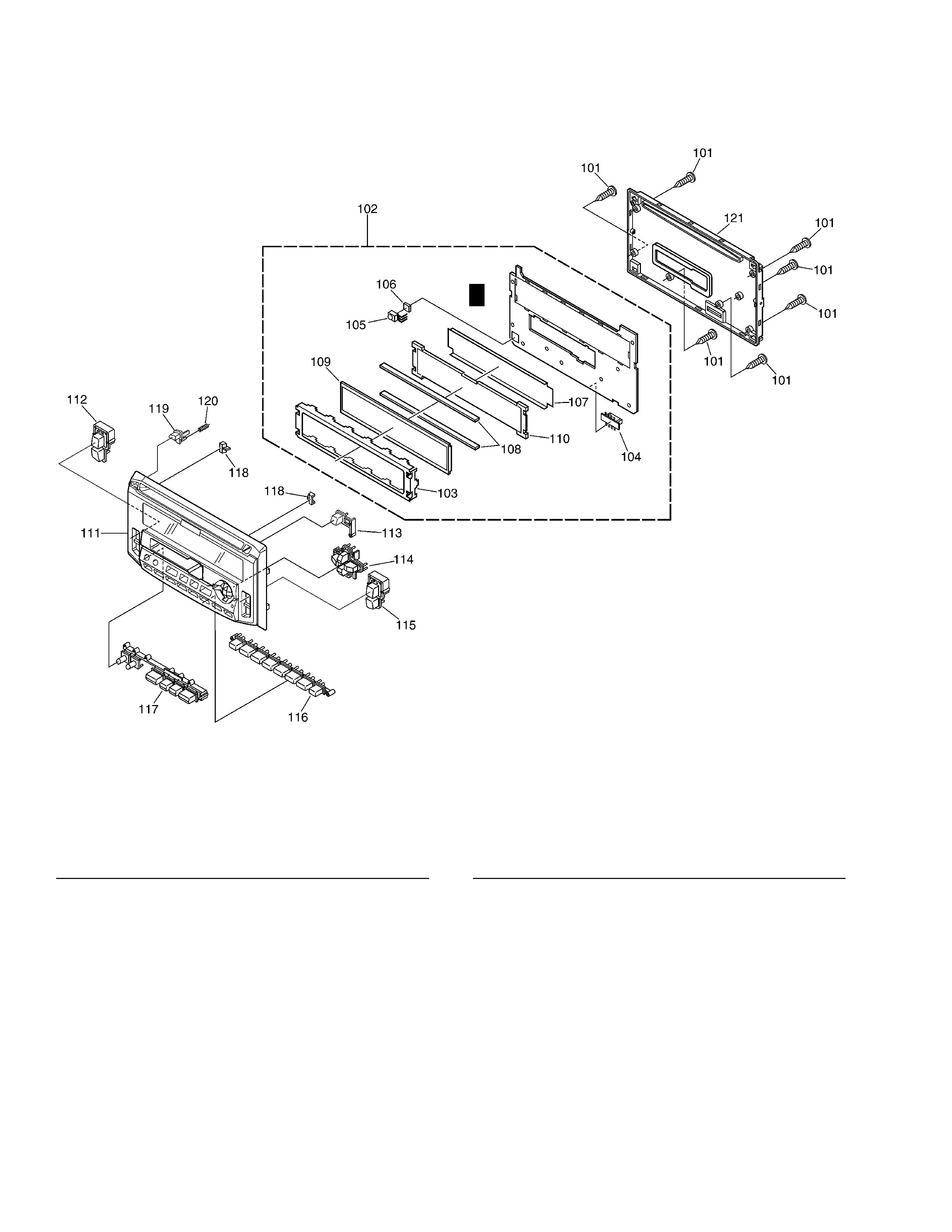

- DETACH GRILLE ASSY SECTION PARTS LIST
(UC , EW model)
B F
DETACH GRILLE ASSY(UC,EW model)
NOTE:
- Parts marked by "*" are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to
mark on the product are used for disassembly.
background image
5
FH-P4100,P4100R
Mark No. Description
Part No.
Mark No. Description
Part No.
101 Screw
BPZ20P080FZK
102 Keyboard Unit
CWM8418
103 Holder
CNC9168
104 Connector(CN1000)
CKS3580
105 Cover
CNS6926
106 Guide
CNV6580
107 Sheet
CNM7084
108 Connector
CNV6586
109 LCD
CAW1664
110 Lighting Conductor
CNV6582
111 Grille Unit
CXB9549
112 Door
CAT2336
113 Spring
CBH1838
114 Button(TAPE EJ)
CAC7438
115 Button(CD EJ)
CAC7433
116 Button(SEL)
CAC7435
117 Button(VOLUME)
CAC7434
118 Button(1-6)
CAC7443
119 Button(DISP,AUDIO)
CAC7442
120 Lighting Conductor
CNV7021
121 IC(IC1401)
TS04840SB1
122 Spacer
CNM7603
- DETACH GRILLE ASSY SECTION PARTS LIST
(ES model)
B F
DETACH GRILLE ASSY(ES model)
