PIONEER FH-P4400 Service Manual

Cover page of PIONEER FH-P4400 Service Manual

Service Manual for PIONEER FH-P4400, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 15 pages
  • File size: 0.61 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE N.V.
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000
K-ZZS. MAR. 2000 Printed in Japan
ORDER NO.
CRT2517
MULTI-CD CONTROL HIGH POWER CD CASSETTE PLAYER WITH FM/AM TUNER
FH-P4400
UC,ES
Service
Manual
- This service manual should be used together with the following manual(s):
Model No.
Order No. Mech. Module Remarks
FH-P404/UC
CRT2247
CX-597
CRT1829
S7
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CX-631
CRT1640
2L
Cassette Mech. Module:Mech.Description
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE N.V.
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000
K-ZZS. MAR. 2000 Printed in Japan
ORDER NO.
CRT2517
MULTI-CD CONTROL HIGH POWER CD CASSETTE PLAYER WITH FM/AM TUNER
FH-P4400
UC,ES
Service
Manual
- This service manual should be used together with the following manual(s):
Model No.
Order No. Mech. Module Remarks
FH-P404/UC
CRT2247
CX-597
CRT1829
S7
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CX-631
CRT1640
2L
Cassette Mech. Module:Mech.Description
background image
2
FH-P4400
EXPLODED VIEWS AND PARTS LIST
PACKING
1
2
5
3
4
13 14
6
12
7
8
9
10
11
background image
3
FH-P4400
Mark No. Description
Part No.
Mark No. Description
Part No.
(1) PACKING SECTION PARTS LIST
NOTE:
- Parts marked by "*" are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to
mark on the product are used for disassembly.
Part No.
Mark No. Symbol and Description FH-P4400/UC
FH-P4400/ES
1 Cord Assy
CDE5793
CDE5788
6-1 Owner's Manual
CRD3247
CRD3245
6-2 Installation Manual
CRD3248
CRD3246
*
6-3 Card
ARY1048
Not used
6-4 Panel
CAH1543
Not used
8 Cover
CEG1177
CEG1074
10 Carton
CHG4079
CHG4080
12 Contain Box
CHL4079
CHL4080
(2) CONTRAST TABLE
FH-P4400/UC and FH-P4400/ES are constructed the same except for the following:
- Owner's Manual, Installation Manual
Model
Part No.
Language
FH-P4400/ES
CRD3245
English, Spanish, Korean
CRD3246
English, Spanish, Korean
FH-P4400/UC
CRD3247
English, French
CRD3248
English, French
1 Cord Assy
See Contrast table(2)
2 Screw Assy
CEA1991
*
3 Polyethylene Sheet
CNM4338
4 Screw
CRZ50P090FMC
5 Screw
TRZ50P080FMC
6-1 Owner's Manual
See Contrast table(2)
6-2 Installation Manual
See Contrast table(2)
*
6-3 Card
See Contrast table(2)
6-4 Panel
See Contrast table(2)
6-5 Polyethylene Bag
CEG1116
7 Protector
CHP2227
8 Cover
See Contrast table(2)
9 Protector
CHP2229
10 Carton
See Contrast table(2)
11 Protector
CHP2272
12 Contain Box
See Contrast table(2)
13 Battery
CEX1030
14 Remote Control Unit
CXB4286
background image
4
FH-P4400

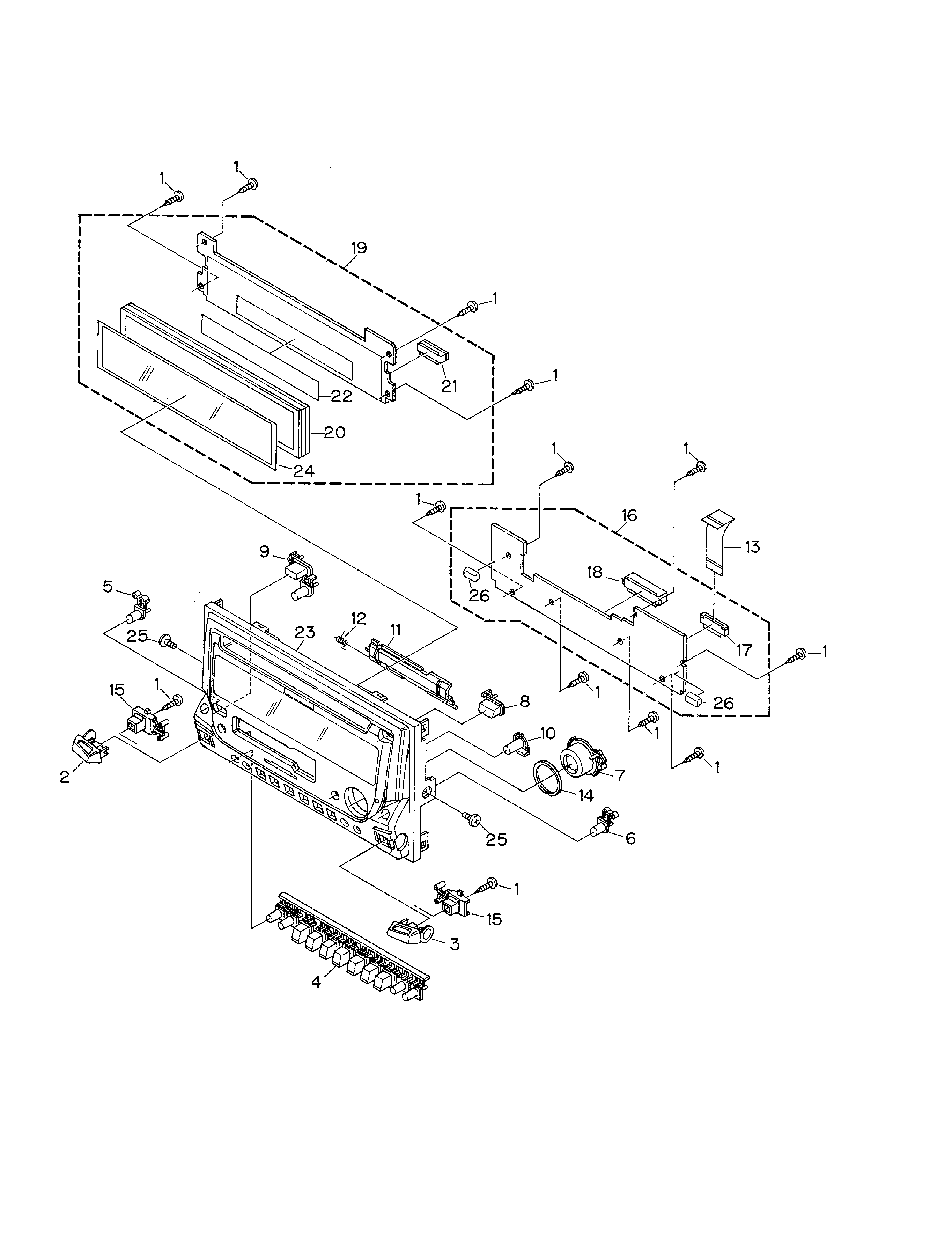

GRILLE ASSY
background image
5
FH-P4400
1 Screw
BPZ20P080FMC
2 Lever(SOURCE)
CAC6539
3 Lever(VOLUME)
CAC6540
4 Button
CAC6660
5 Button(ATT)
CAC6668
6 Button(EQ)
CAC6663
7 Button(SEL)
CAC6664
8 Button(CDEJ)
CAC6665
9 Button(S/A,EJ)
CAC6666
10 Button(< >)
CAC6667
11 Door
CAT1955
12 Spring
CBH2211
13 Connector
CDE5642
14 Cushion
CNM6962
15 Holder
CNV6136
16 SW Unit
CWM7201
17 Connector(CN1903)
CKS2412
18 Socket(CN1901)
CKS3553
19 FL Unit
CWM7236
20 FL Tube(CN1902)
CAW1482
21 Connector(CN1904)
CKS2762
22 Tape
CNM5759
23 Grille Unit
CXB5696
24 Plate
CAH1661
25 Screw
BSZ30P060FMC
26 Spacer
CNM6940
Mark No. Description
Part No.
- GRILLE ASSY SECTION PARTS LIST
