PIONEER FH-P8900MD/ES Service Manual

Cover page of PIONEER FH-P8900MD/ES Service Manual

Service Manual for PIONEER FH-P8900MD/ES, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 110 pages
  • File size: 8.52 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2001
K-ZZU. MAY 2001 Printed in Japan
ORDER NO.
CRT2673
MULTI-CD/MD CONTROL DSP HIGH POWER CD MD PLAYER WITH FM/AM TUNER
FH-P8900MD
ES
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST .......................2
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12
4. PCB CONNECTION DIAGRAM ................................40
5. ELECTRICAL PARTS LIST ........................................57
6. ADJUSTMENT..........................................................67
7. GENERAL INFORMATION .......................................78
7.1 DIAGNOSIS ........................................................78
7.1.1 ERROR CODE(CD) ....................................78
7.1.2 ERROR CODE(MD) ...................................82
7.1.3 DISASSEMBLY .........................................83
7.1.4 CONNECTOR FUNCTION DESCRIPTION .......90
7.2 IC ........................................................................91
7.3 OPERATIONAL FLOW CHART .........................105
8. OPERATIONS AND SPECIFICATIONS...................106
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module Remarks
CX-977
CRT2624
S9
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CX-1020
CRT2653
MD-4LP
MD Mech. Module:Circuit.Description, Mech.Description, Disassembly
- US and foreign patents licensed from Dolby Laboratories Licensing Corporation.
Service
Manual
background image
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC.
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV
Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2001
K-ZZU. MAY 2001 Printed in Japan
ORDER NO.
CRT2673
MULTI-CD/MD CONTROL DSP HIGH POWER CD MD PLAYER WITH FM/AM TUNER
FH-P8900MD
ES
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST .......................2
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12
4. PCB CONNECTION DIAGRAM ................................40
5. ELECTRICAL PARTS LIST ........................................57
6. ADJUSTMENT..........................................................67
7. GENERAL INFORMATION .......................................78
7.1 DIAGNOSIS ........................................................78
7.1.1 ERROR CODE(CD) ....................................78
7.1.2 ERROR CODE(MD) ...................................82
7.1.3 DISASSEMBLY .........................................83
7.1.4 CONNECTOR FUNCTION DESCRIPTION .......90
7.2 IC ........................................................................91
7.3 OPERATIONAL FLOW CHART .........................105
8. OPERATIONS AND SPECIFICATIONS...................106
- This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech. Module Remarks
CX-977
CRT2624
S9
CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CX-1020
CRT2653
MD-4LP
MD Mech. Module:Circuit.Description, Mech.Description, Disassembly
- US and foreign patents licensed from Dolby Laboratories Licensing Corporation.
Service
Manual
background image
2
FH-P8900MD
2. EXPLODED VIEWS AND PARTS LIST

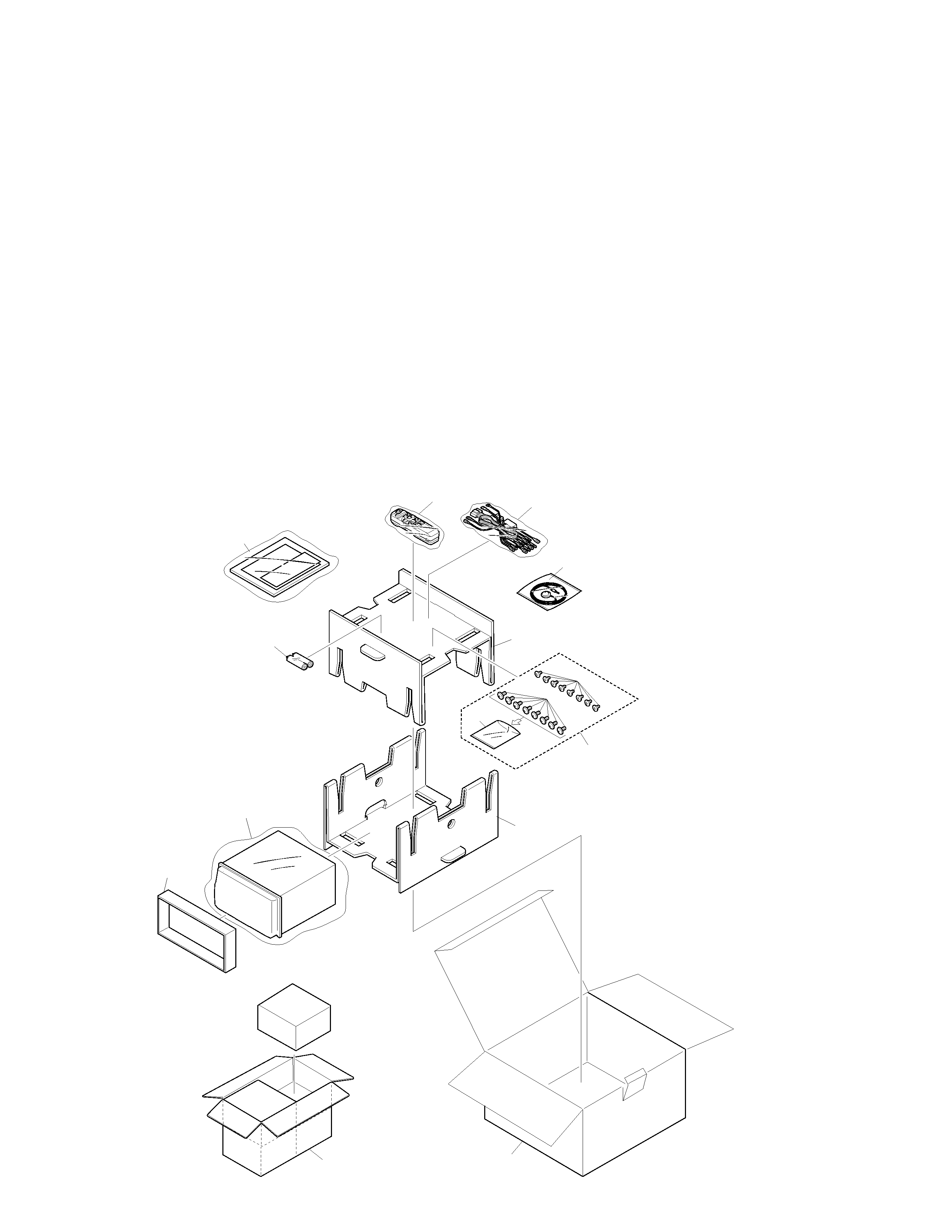

2.1 PACKING
8
9
14
11
13
1
2
4
3
12
10
5
7
6
;;
@@
;;
@@
;;
@@
;;
@@
;;
@@
;;
@@
;;
@@
;;
@@
15
- CD and MD Players Service Precautions
1. For pickup unit(CXX1480:CD) handling, please refer
to"Disassembly"(see page 87).
For pickup unit(CGY3000:MD) handling, please refer
to"Disassembly"(see page 89).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a jumper-solder).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 69:CD ,see page 76:MD).
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
background image
3
FH-P8900MD
1 Screw Assy
CEA2719
2 Screw
BMZ50P060FMC
*
3 Polyethylene Bag
CEG-127
4 Screw
CMZ50P060FMC
5 Remote Control Assy
CXB3875
6-1 Polyethylene Bag
CEG1116
6-2 Owner's Manual
CRB1651
6-3 Owner's Manual
CRB1652
*
6-4 Caution Card
CRP1244
*
7 Battery
CEX1006
8 Carton
CHG4380
9 Contain Box
CHL4380
10 Cord Assy
CDE5893
11 Protector
CHP2273
12 Protector
CHP2227
13 Protector
CHP2272
14 Cover
CEG1074
15 Microphone Assy
CPM1054
Mark No. Description
Part No.
- PACKING SECTION PARTS LIST
NOTE:
- Parts marked by "*" are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to
mark on the product are used for disassembly.
- Owner's Manual
Part No.
Language
CRB1651
English
CRB1652
Korean
background image
4
FH-P8900MD

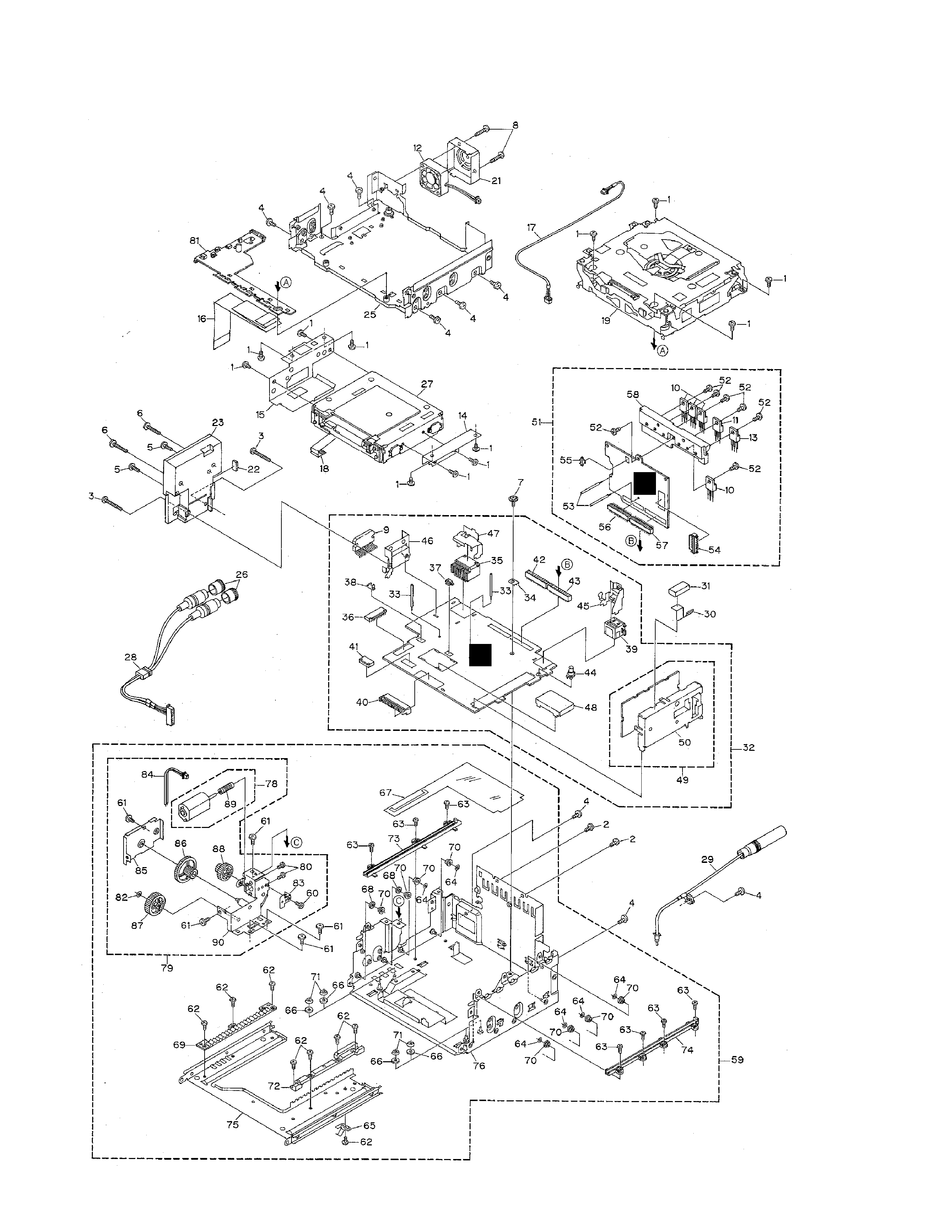

2.2 EXTERIOR(1/2)
A
B
background image
5
FH-P8900MD
1 Screw
BMZ26P040FMC
2 Screw
BMZ26P060FMC
3 Screw
BMZ26P250FMC
4 Screw
BSZ30P060FMC
5 Screw
BSZ30P080FMC
6 Screw
BSZ30P160FMC
7 Screw
ISS26P055FUC
8 Screw(M2.6x14)
CBA1384
9 IC(IC334)
PAL005A
10 Transistor(Q909,912,915,921) 2SD2396
11 IC(IC907)
PQ20RX1S-L
12 Fan Motor
CXM1169
13 IC(IC903)
BA033T
14 Bracket
CNC8729
15 Bracket
CNC9324
16 Cable
CDE6531
17 Cord
CDE6636
18 Cable
CDE6532
19 CD Mechanism Module(S9) CXK5510
20 ·····
21 Holder
CNC8971
*
22 Cushion
CNM6997
23 Heat Sink
CNR1580
24 ·····
25 Chassis Unit
CXB7050
26 Cap
CNV6727
27 MD Mechanism Module(MD-4LP) CXK3320
28 Cord
CDE6261
29 Antenna Cable
CDH1284
30 Earth Plate
CNC9006
31 Cushion
CNM6870
32 Audio Amp Unit
CWM7640
33 Clamper
CEF1007
34 Terminal(CN453)
CKF1059
35 Plug(CN852)
CKM1278
36 Connector(CN171)
CKS2224
37 Connector(CN201)
CKS3124
38 Connector(CN802)
CKS3124
39 Connector(CN101)
CKS3408
40 Plug(CN801)
CKS3540
41 Connector(CN132)
CKS4060
42 Connector(CN851)
CKS4322
43 Connector(CN853)
CKS4322
44 Pin Jack(CN451)
CKX1046
45 Holder
CNC8724
46 Holder
CNC8725
47 Holder
CNC8727
48 Case
CNC8873
49 FM/AM Tuner Unit
CWE1563
50 Holder
CNC8815
51 Power Supply Unit
CWM7650
52 Screw
BMZ26P060FMC
53 Clamper
CEF1007
54 Plug(CN901)
CKS1242
55 Connector(CN904)
CKS2191
56 Connector(CN902)
CKS4321
57 Connector(CN903)
CKS4321
58 Heat Sink
CNR1579
59 Drive Unit
CXB7046
60 Screw
BMZ20P025FMC
61 Screw
BSZ30P060FMC
62 Screw(M2x3)
CBA1154
63 Screw(M2x2.5)
CBA1521
64 Washer
CBF1038
65 Spring
CBL1361
66 Spacer
CNM6202
67 Insulator
CNM6661
68 Spacer
CNM6923
69 Rack
CNV5299
70 Roller
CNV5301
71 Roller
CNV5814
72 Rack
CNV6149
73 Guide
CNV6291
74 Guide
CNV6399
75 Frame Unit
CXB5321
76 Chassis Unit
CXB7049
77 ·····
78 Motor Unit For Service
CXX1456
79 Gear Unit For Service
CXX1464
80 Screw
JFZ20P025FMC
81 Holder
CNV6741
82 Washer
CBF1039
83 Spring
CBL1493
84 Cord
CDE6282
85 Bracket
CNC8737
86 Gear
CNV5297
87 Gear
CNV5298
88 Gear
CNV6164
89 Gear
CNV6401
90 Bracket Unit
CXB5422
- EXTERIOR(1/2) SECTION PARTS LIST
Mark No. Description
Part No.
Mark No. Description
Part No.
