PIONEER GM-X544 Owner's Manual

PIONEER GM-X544 Owner's Manual
0 Rating(s)
Read reviews

Owner's Manual for PIONEER GM-X544, downloadable as a PDF file.

We also have service manual to this model.

Manual details

Immediate download after payment.
Delivered as a PDF file.
The manual has 8 pages
File size: 0.83 MB
Available language versions: Portuguese, French, Arabic, English, Spanish
Different language versions may vary sligthly in file size and page count.

We guarantee that...

our manuals are complete,
our manuals are checked with antivirus,
We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

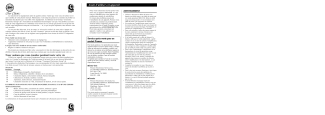

Sample pages

Thank you for purchasing this PIONEER

product. It is designed to give you many

years of enjoyment.

PIONEER SUGGESTS USING A PRO-

FESSIONAL INSTALLER DUE TO THE

COMPLEXITY OF THIS PRODUCT.

Please read all instructions and WARN-

INGS in this manual before attempting

operation. Should you have any questions,

contact your nearest Pioneer authorized

dealer or installation specialist.

Important

The serial number of this amplifier is writ-

ten on the bottom of the unit. For your

own security and convenience, write it

down on the enclosed warranty card. Keep

the card handy for future reference.

WARNING

· Always use the special red battery and ground

wire [RD-223], which is sold separately. Connect

the battery wire directly to the car battery positive

terminal (+) and the ground wire to the car body.

· Do not touch the amplifier with wet hands.

Otherwise you may get an electric shock. Also, do

not touch the amplifier when it is wet.

· For traffic safety and to maintain safe driving

conditions, keep the volume low enough so that

you can still hear normal traffic sound.

· Check the connections of the power supply and

speakers if the fuse of the separately sold battery

wire or the amplifier fuse blows. Detect the cause

and solve the problem, then replace the fuse with

another one of the same size and rating.

· To prevent malfunction of the amplifier and

speakers, the protective circuit will cut the power

supply to the amplifier (sound will stop) when an

abnormal condition occurs. In such a case, switch

the power to the system OFF and check the

connection of the power supply and speakers.

Detect the cause and solve the problem.

· Contact the dealer if you cannot detect the cause.

· To prevent an electric shock or short-circuit

during connection and installation, be sure to

disconnect the negative () terminal of the battery

beforehand.

· Confirm that no parts are behind the panel when

drilling a hole for installation of the amplifier. Be

sure to protect all cables and important equipment

such as fuel lines, brake lines and the electrical

wiring from damage.

Before Using This Product

After-sales service for Pioneer

products

Please contact the dealer or distributor from where

you purchased the product for its after-sales ser-

vice (including warranty conditions) or any other

information. In case the necessary information is

not available, please contact the companies listed

below:

Please do not ship your product to the companies

at the addresses listed below for repair without

advance contact.

7 U.S.A.

Pioneer Electronics Service, Inc.

CUSTOMER SERVICE DEPARTMENT

P.O. Box 1760

Long Beach, CA 90801

800-421-1404

7 CANADA

Pioneer Electronics of Canada, Inc.

CUSTOMER SERVICE DEPARTMENT

300 Allstate Parkway

Markham, Ontario L3R 0P2

(905) 479-4411

1-877-283-5901

For warranty information please see the Limited

Warranty sheet included with your product.

Selecting fine audio equipment such as the unit you've just purchased is only the start of your

musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your

equipment offers. This manufacturer and the Electronic Industries Association's Consumer

Electronics Group want you to get the most out of your equipment by playing it at a safe level.

One that lets the sound come through loud and clear without annoying blaring or distortion--and,

most importantly, without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of

sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard against

this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

· Start your volume control at a low setting.

· Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

· Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all,

we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since

hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the

Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged

exposure to excessive noise. This list of sound levels is included for your protection.

Decibel

Level

Example

Quiet library, soft whispers

Living room, refrigerator, bedroom away from traffic

Light traffic, normal conversation, quiet office

Air conditioner at 20 feet, sewing machine

Vacuum cleaner, hair dryer, noisy restaurant

Average city traffic, garbage disposals, alarm clock at two feet.

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE

Subway, motorcycle, truck traffic, lawn mower

100

Garbage truck, chain saw, pneumatic drill

120

Rock band concert in front of speakers, thunderclap

140

Gunshot blast, jet plane

180

Rocket launching pad

Information courtesy of the Deafness Research Foundation.

PIONEER CORPORATION

4-1, MEGURO 1-CHOME, MEGURO-KU, TOKYO 153-8654, JAPAN

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1760, Long Beach, California 90801, U.S.A.

TEL: (800) 421-1404

PIONEER ELECTRONIC (EUROPE) N.V.

Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

TEL: (0) 3/570.05.11

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia

TEL: (03) 9586-6300

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada

TEL: (905) 479-4411

PIONEER ELECTRONICS DE MEXICO, S.A. de C.V.

San Lorenzo Num 1009 3er piso Desp. 302

Col. Del Valle, Mexico D.F. C.P. 03100

TEL: 5-688-52-90

Published by Pioneer Corporation.

Publication de Pioneer Corporation.

Tous droits de reproduction et de traduction

réservés.

Printed in U.S.A.

Imprimé aux Etats-Unis

<HRD0131-A> UC

<00A00F0R01>

BRIDGEABLE FOUR-CHANNEL

POWER AMPLIFIER

AMPLIFICATEUR DE PUISSANCE

PONTABLE A QUATRE VOIES

Owner's Manual

GM-X544

Mode d'emploi

Thank you for purchasing this PIONEER

product. It is designed to give you many

years of enjoyment.

PIONEER SUGGESTS USING A PRO-

FESSIONAL INSTALLER DUE TO THE

COMPLEXITY OF THIS PRODUCT.

Please read all instructions and WARN-

INGS in this manual before attempting

operation. Should you have any questions,

contact your nearest Pioneer authorized

dealer or installation specialist.

Important

The serial number of this amplifier is writ-

ten on the bottom of the unit. For your

own security and convenience, write it

down on the enclosed warranty card. Keep

the card handy for future reference.

WARNING

· Always use the special red battery and ground

wire [RD-223], which is sold separately. Connect

the battery wire directly to the car battery positive

terminal (+) and the ground wire to the car body.

· Do not touch the amplifier with wet hands.

Otherwise you may get an electric shock. Also, do

not touch the amplifier when it is wet.

· For traffic safety and to maintain safe driving

conditions, keep the volume low enough so that

you can still hear normal traffic sound.

· Check the connections of the power supply and

speakers if the fuse of the separately sold battery

wire or the amplifier fuse blows. Detect the cause

and solve the problem, then replace the fuse with

another one of the same size and rating.

· To prevent malfunction of the amplifier and

speakers, the protective circuit will cut the power

supply to the amplifier (sound will stop) when an

abnormal condition occurs. In such a case, switch

the power to the system OFF and check the

connection of the power supply and speakers.

Detect the cause and solve the problem.

· Contact the dealer if you cannot detect the cause.

· To prevent an electric shock or short-circuit

during connection and installation, be sure to

disconnect the negative () terminal of the battery

beforehand.

· Confirm that no parts are behind the panel when

drilling a hole for installation of the amplifier. Be

sure to protect all cables and important equipment

such as fuel lines, brake lines and the electrical

wiring from damage.

Before Using This Product

After-sales service for Pioneer

products

Please contact the dealer or distributor from where

you purchased the product for its after-sales ser-

vice (including warranty conditions) or any other

information. In case the necessary information is

not available, please contact the companies listed

below:

Please do not ship your product to the companies

at the addresses listed below for repair without

advance contact.

7 U.S.A.

Pioneer Electronics Service, Inc.

CUSTOMER SERVICE DEPARTMENT

P.O. Box 1760

Long Beach, CA 90801

800-421-1404

7 CANADA

Pioneer Electronics of Canada, Inc.

CUSTOMER SERVICE DEPARTMENT

300 Allstate Parkway

Markham, Ontario L3R 0P2

(905) 479-4411

1-877-283-5901

For warranty information please see the Limited

Warranty sheet included with your product.

Selecting fine audio equipment such as the unit you've just purchased is only the start of your

musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your

equipment offers. This manufacturer and the Electronic Industries Association's Consumer

Electronics Group want you to get the most out of your equipment by playing it at a safe level.

One that lets the sound come through loud and clear without annoying blaring or distortion--and,

most importantly, without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of

sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard against

this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

· Start your volume control at a low setting.

· Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

· Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all,

we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since

hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the

Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged

exposure to excessive noise. This list of sound levels is included for your protection.

Decibel

Level

Example

Quiet library, soft whispers

Living room, refrigerator, bedroom away from traffic

Light traffic, normal conversation, quiet office

Air conditioner at 20 feet, sewing machine

Vacuum cleaner, hair dryer, noisy restaurant

Average city traffic, garbage disposals, alarm clock at two feet.

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE

Subway, motorcycle, truck traffic, lawn mower

100

Garbage truck, chain saw, pneumatic drill

120

Rock band concert in front of speakers, thunderclap

140

Gunshot blast, jet plane

180

Rocket launching pad

Information courtesy of the Deafness Research Foundation.

PIONEER CORPORATION

4-1, MEGURO 1-CHOME, MEGURO-KU, TOKYO 153-8654, JAPAN

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1760, Long Beach, California 90801, U.S.A.

TEL: (800) 421-1404

PIONEER ELECTRONIC (EUROPE) N.V.

Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

TEL: (0) 3/570.05.11

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia

TEL: (03) 9586-6300

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada

TEL: (905) 479-4411

PIONEER ELECTRONICS DE MEXICO, S.A. de C.V.

San Lorenzo Num 1009 3er piso Desp. 302

Col. Del Valle, Mexico D.F. C.P. 03100

TEL: 5-688-52-90

Published by Pioneer Corporation.

Publication de Pioneer Corporation.

Tous droits de reproduction et de traduction

réservés.

Printed in U.S.A.

Imprimé aux Etats-Unis

<HRD0131-A> UC

<00A00F0R01>

BRIDGEABLE FOUR-CHANNEL

POWER AMPLIFIER

AMPLIFICATEUR DE PUISSANCE

PONTABLE A QUATRE VOIES

Owner's Manual

GM-X544

Mode d'emploi

Connection Diagram

Connecting the Unit

CAUTION

· Disconnect the negative () terminal of the battery

to avoid the risk of short-circuit and damage to

the unit.

· Secure the wiring with cable clamps or adhesive

tape. To protect the wiring, wrap adhesive tape

around it where they lie against metal parts.

· Do not route wires where they will get hot, for

example where the heater will blow over them. If

the insulation heats up, it may become damaged,

resulting in a short-circuit through the vehicle

body.

· Make sure that wires will not interfere with mov-

ing parts of the vehicle, such as the gearshift,

handbrake or seat sliding mechanism.

· Do not shorten any wires. Otherwise the protec-

tion circuit may fail to work when it should.

· Never feed power to other equipment by cutting

the insulation of the power supply wire to tap

from the wire. The current capacity of the wire

will be exceeded, causing overheating.

Fuse (30 A)

Grommet

RCA input

Special red battery wire [RD-223] (sold separately).

After making all other connections at the amplifier,

connect the battery wire terminal of the amplifier to

the positive (+) terminal of the battery.

Ground wire (black) [RD-223] (sold separately).

Connect to metal body or chassis.

Amplifier with

RCA input jacks

Fuse (25 A)

× 2

Car stereo with

RCA output jacks

External Output

If only one input plug is used, do not

connect anything to RCA input jack B.

Connecting wires with RCA pin

plugs (sold separately).

RCA input jack B

RCA output jack

Speaker terminal

See the "Connecting the

Speaker wires" section

for speaker connection

instructions.

System remote control wire (sold separately)

Connect the male terminal of this wire to the system remote control

terminal of the car stereo (SYSTEM REMOTE CONTROL). The

female terminal can be connected to the auto-antenna relay control

terminal. If the car stereo does not have a system remote control ter-

minal, connect the male terminal to the power terminal through the

ignition switch.

Speaker Channel

Speaker Type

Power

Four-channel

Subwoofer

Nominal input: Min. 65 W

Other than subwoofer

Max. input: Min. 100 W

Two-channel

Subwoofer

Nominal input: Min. 170 W

Other than subwoofer

Max. input: Min. 240 W

Three-channel

Subwoofer

Nominal input: Min. 65 W

Speaker output A

Other than subwoofer

Max. input: Min. 100 W

Three-channel

Subwoofer

Nominal input: Min. 170 W

Speaker output B

Other than subwoofer

Max. input: Min. 240 W

Setting the Unit

Gain Control

Adjusting the gain controls A and B will

help match the output of the car stereo

to the Pioneer amplifier. Normally, set

the gain controls to the "NORMAL"

position. If the output is low, even when

the volume of the car stereo is turned up,

turn these controls clockwise. If there is

distortion when the volume of the car

stereo is turned up, turn these controls

counter-clockwise.

· If you only use one input plug, set the gain

controls for speaker outputs A and B to the

same position.

· When using with an RCA equipped car

stereo (standard output of 500 mV), set to

the NORMAL position. When using with

an RCA equipped Pioneer car stereo with

max. output of 4 V or more, adjust level to

match the car stereo output level.

· If you hear too much noise when using the

speaker input terminals, turn the gain

control counter-clockwise.

Power Indicator

The power indicator lights when the

power is switched on.

Input Select Switch

For two-channel input, slide this switch

to the left. For four-channel input, slide

this switch to the right.

Cut Off Frequency Control

If the LPF/HPF select switch is set to

LPF or HPF, you can select a cut off

frequency from 40 to 120 Hz.

LPF (Low-Pass Filter)/HPF (High-Pass Filter) Select Switch

Set the LPF/HPF select switch as follows according to the type of

speaker that is connected to the speaker output connector and the car

stereo system:

LPF/HPF Select

Audio frequency range

Speaker

Remarks

Switch

to be output

Type

LPF (left)

* -- 40 to 120 Hz

Subwoofer

Connect a subwoofer.

OFF (center)

Full range

HPF (right)

* 40 to 120 Hz --

Full range

Use if you want to cut the

very low frequency range*

because it is not necessary

for the speakers you are

using.

* See the "Cut Off Frequency Control" section.

Fuse (30 A)

Front side

Connecting wires with RCA pin

plugs (sold separately).

To prevent damage

· Do not ground the speaker wire directly or con-

nect a negative () lead wire for several speakers.

· This unit is for vehicles with a 12-volt battery and

negative grounding. Before installing it in a recre-

ational vehicle, truck or bus, check the battery

voltage.

· If the car stereo is kept on for a long time while

the engine is at rest or idling, the battery may go

dead. Turn the car stereo off when the engine is at

rest or idling.

· If the system remote control wire of the amplifier

is connected to the power terminal through the

ignition switch (12 V DC), the amplifier will

always be on when the ignition is on-- regardless

of whether the car stereo is on or off. Because of

this, the battery could go dead if the engine is at

rest or idle.

· Speakers to be connected to the amplifier should

conform with the standards listed below. If they do

not conform, they may catch fire, emit smoke or

become damaged. The speaker impedance must be

1 to 8 ohms. But in case of two-channel and other

bridge connections, the speaker impedance must be

2 to 8 ohms.

· Install and route the separately sold battery wire

as far away as possible from the speaker wires.

Install and route the separately sold battery wire,

ground wire, speaker wires and the amplifier as

far away as possible from the antenna, antenna

cable and tuner.

· Cords for this product and those for other prod-

ucts may be different colors even if they have the

same function. When connecting this product to

another product, refer to the supplied Installation

manuals of both products and connect cords that

have the same function.

RCA input jack A

Back side

Input Select Switch

For two-channel input, slide this switch

to the left. For four-channel input, slide

this switch to the right.

Connecting the Unit

Connecting the Power Terminal

· Always use the special red battery and ground

wire [RD-223], which is sold separately. Connect

the battery wire directly to the car battery positive

terminal (+) and the ground wire to the car body.

1. Pass the battery wire from the

engine compartment to the interior

of the vehicle.

· After making all other connections to the

amplifier, connect the battery wire terminal of

the amplifier to the positive (+) terminal of

the battery.

2. Twist the battery wire, ground wire

and system remote control wire.

3. Attach lugs to wire ends. Lugs not

supplied.

· Use pliers, etc., to crimp lugs to wires.

4. Connect the wires to the terminal.

· Fix the wires securely with the terminal

screws.

Fuse (30 A)

Engine

compart-

ment

Interior of

the vehicle

Drill a 14 mm

hole into the

vehicle body.

Insert the O-ring rubber

grommet into the vehicle

body.

Twist

Positive terminal

GND terminal

Power terminal

Battery wire

System remote

control terminal

System remote

control wire

Ground wire

Connecting the Speaker Terminals

1. Expose the end of the speaker wires

by about 10 mm and twist using

nippers or a cutter.

2. Attach lugs to speaker wire ends.

Lugs not supplied.

· Use pliers, etc., to crimp lugs to wires.

3. Connect the speaker wires to the

speaker terminals.

· You must attach the supplied terminal cover

to the speaker output terminal.

· Connect the speaker wires, passing them

through the terminal cover.

· Fix the speaker wires securely with the termi-

nal screws.

4. Push on the terminal cover.

10 mm

Twist

Speaker

terminal

Terminal cover

Terminal screw

Speaker wire

Lug

Fuse (30 A)

Battery wire

Ground wire

Lug

Two-channel mode (stereo)

Two-channel mode (mono)

Connecting the Speaker wires

The speaker output mode can be four-channel, three-channel (stereo +

mono) or two-channel (stereo, mono). Connect the speaker leads to suit the

mode according to the figures shown below.

· When either the RCA input or the speaker input is connected, RCA output

becomes functional. Do not connect both the RCA input and the speaker input at

the same time.

Four-channel mode

Three-channel mode

Input Select Switch

For two-channel input, slide this switch to

the left. For four-channel input, slide this

switch to the right.

(Left)

Speaker out B

(Right)

Speaker out A

(Left)

Speaker out B

(Mono)

Speaker (Left)

Speaker (Right)

Input Select Switch

Slide this switch to the left.

Speaker wire

(Left)

Speaker input A

(Right)

Speaker input B

(Left)

Input Select Switch

For two-channel input, slide this switch to

the left. For four-channel input, slide this

switch to the right.

(Right)

Speaker out A

(Left)

Speaker input A

(Right)

Speaker input B

(Left)

Speaker input A

(Right)

Speaker (Mono)

Input Select Switch

Slide this switch to the left.

(Left)

Speaker input A

(Right)

Speaker input

terminal

Speaker output

terminal

Speaker input

terminal

Speaker output

terminal

Speaker input

terminal

Speaker output

terminal

Speaker input

terminal

Speaker output

terminal

Specifications

Installation

Power source .............................................................................................................. 14.4 V DC (10.8 -- 15.1 V allowable)

Grounding system ............................................................................................................................................ Negative type

Current consumption ........................................................................................................ 32.2 A (at continuous power, 4

)

Average current drawn* ........................................................................................................ 10.9 A (4

for four channels)

15.9 A (4

for two channels)

Fuse .......................................................................................................................................................................... 25 A

× 2

Dimensions ........................................................................................................................ 270 (W)

× 60 (H) × 250 (D) mm

[10-5/8 (W)

× 2-3/8 (H) × 9-7/8 (D) in]

Weight ........................................................................................................ 4.1 kg (9.0 lbs) (Leads for wiring not included)

Maximum power output .................................................................................................................... 100 W

× 4 / 240 W × 2

Continuous power output .......................................................... 50 W

× 4 (at 14.4 V, 4 , 20 -- 20,000 Hz, 0.04% THD)

120 W

× 2 (at 14.4 V, 4 , 20 -- 20,000 Hz, 0.4% THD)

60 W

× 4 (at 14.4 V, 2 , 20 -- 20,000 Hz, 0.4% THD)

Load impedance ............................................................................................................................ 4

(1 -- 8 allowable)

(Bridge connection: 2 -- 8

allowable)

Frequency response ............................................................................................................ 10 -- 50,000 Hz (+0 dB, 1 dB)

Signal-to-noise ratio ...................................................................................................................... 105 dB (IHFA network)

Distortion ............................................................................................................................................ 0.005% (10 W, 1 kHz)

Separation ........................................................................................................................................................ 65 dB (1 kHz)

Low pass filter .................................................................................................................... Cut off frequency: 40 -- 120 Hz

Cut off slope: 12 dB/oct

High pass filter .................................................................................................................. Cut off frequency: 40 -- 120 Hz

Cut off slope: 12 dB/oct

Maximum input level/impedance .................................................................................... RCA: 6.5 V/22 k

(0.4 -- 6.5 V)

Speaker: 26 V/40 k

(1.6 -- 26 V)

Note:

· Specifications and the design are subject to possible modification without notice

due to improvements.

*Average current drawn

· The average current drawn is nearly the maximum current drawn by this unit

when an audio signal is input. Use this value when working out total current

drawn by multiple power amplifiers.

CAUTION

· Do not install in:

--Places where it could injure the driver or pas-

sengers if the vehicle stops suddenly.

--Places where it may interfere with the driver,

such as on the floor in front of the driver's

seat.

· Make sure that wires are not caught in the sliding

mechanism of the seats, resulting in a short-cir-

cuit.

· Confirm that no parts are behind the panel when

drilling a hole for installation of the amplifier.

Protect all cables and important equipment such

as fuel lines, brake lines and electrical wiring

from damage.

· Install tapping screws in such a way that the

screw tip does not touch any wire. This is impor-

tant to prevent wires from being cut by vibration

of the car, which can result in fire.

· To prevent electric shock, do not install the ampli-

fier in places where it might come in contact with

liquids.

· To ensure proper installation, use the supplied

parts in the manner specified. If any parts other

than the supplied ones are used, they may damage

internal parts of the amplifier, or they may

become loose causing the amplifier to shut down.

To prevent malfunction

· To ensure proper heat dissipation of the amplifier,

be sure of the following during installation.

--Allow adequate space above the amplifier for

proper ventilation.

--Do not cover the amplifier with a floor mat or

carpet.

· Do not install the amplifier near a door where it

may get wet.

· Do not install the amplifier on unstable places

such as the spare tire board.

· The best location for installation differs with the

car model and installation location. Secure the

amplifier at a sufficiently rigid location.

· Make temporary connections first and check that

the amplifier and the system operate properly.

· After installing the amplifier, confirm that the

spare tire, jack and tools can be easily removed.

Example of installation on the floor

mat or on the chassis

1. Place the amplifier where it is to be

installed. Insert the supplied tapping

screws (4

× 18 mm) into the screw

holes. Push on the screws with a

screwdriver so they make marks

where the installation holes are to be

located.

2. Drill 2.5 mm diameter holes at the

point marked, and install the ampli-

fier, either on the carpet or directly

to the chassis.

Drill a 2.5 mm diameter hole

Tapping-screws

× 18 mm)

Floor mat

or chassis

Cher Client:

La sélection d'un équipement audio de qualité comme l'unité que vous venez d'acheter n'est

que le début de votre plaisir musical. Maintenant, il est temps de penser à la manière de profiter au

maximum des plaisirs que vous offre votre équipement. Ce fabricant et le Groupe "Consumer

Electronics Group" de l'Association des Industries Electroniques veut que vous profitiez au maxi-

mum de votre équipement en l'utilisation à un niveau sûr. Un niveau qui permet au son d'être fort

et clair, sans beuglement ennuyant ou distorsion -- et, ce qui est plus important, sans affecter votre

ouïe sensible.

Le son peut être décevant. Avec le temps, le "niveau de confort" de votre ouïe s'adapte aux

volumes sonores plus élevés. Ainsi, les sons "normaux" peuvent en fait être forts et affecter votre

ouïe. Protégez-vous contre cela en réglant votre équipement à un niveau sûr AVANT l'adaptation

de votre ouïe.

Pour établir un niveau sûr:

Démarrer votre commande de volume à un réglage bas.

Augmentez lentement le son jusqu'à ce que vous l'entendiez confortablement et clairement,

sans distorsion.

Lorsque vous avez établi un niveau sonore confortable:

Réglez le cadran et laissez-le tel quel.

En prenant une minute pour faire cela, vous pourrez éviter des dommages ou des pertes de sen-

sibilités d'écoute dans le futur. Après tout, nous voulons que vous écoutiez pendant toute votre vie.

Nous voulons que vous écoutiez pendant toute votre vie

Utilisé avec sagesse, votre nouvel équipement sonore sera une source de plaisir pendant toute

votre vie. Comme les dommages de l'ouïe provenant d'un bruit fort ne sont souvent détectables

que lorsqu'il est trop tard, ce fabricant et le Groupe "Consumer Electronics Group" de

l'Association des Industries Electroniques vous recommandent d'éviter toute exposition prolongée

à un bruit excessif. Cette liste de niveaux sonores est incluse pour votre protection.

Niveau de

Décibels

Exemple

Bibliothèque tranquille, chuchotement

Salon, réfrigérateur, chambre à distance de la circulation

Circulation légère, conversation normale, bureau tranquille

Climatiseur à 20 pieds, machine à coudre

Aspirateur, sèche-cheveux, restaurant bruyant

Circulation moyenne en ville, évacuateurs de déchets, réveils à deux pieds.

LES BRUITS SUIVANTS PEUVENT ETRE DANGEREUX DANS LE CAS D'UNE EXPOSI-

TION CONSTANTE

Métro, motocyclette, circulation de camion, tondeuse à gazon

100

Collecteurs de poubelle, scie à chaîne, perceuse pneumatique

120

Concert de groupe rock devant les haut-parleurs, coup de tonnerre

140

Coup de pistolet, avion à réaction

180

Aire de lancement d'une fusée

Ces informations ont été gracieusement fournies par la Fondation de la Recherche pour les Sourds

Nous vous remercions d'avoir porté votre

choix sur un appareil PIONEER. Il a été

conçu et fabriqué pour vous apporter de

nombreuses années de satisfaction.

En raison des problèmes posés par

l'installation de cet appareil, Pioneer vous

conseille de consulter un professionnel.

Avant d'utiliser l'appareil, prenez

connaissance de ce mode d'emploi et tout

spécialement des AVERTISSEMENTS.

Pour toute question concernant cet

appareil, veuillez vous adresser au

revendeur ou à l'installateur.

AVERTISSEMENT

· Utilisez le faisceau de câbles de liaison à la

batterie (un câble rouge et un câble de masse) qui

est vendu séparément [RD-223]. Reliez le câble

rouge à la borne positive (+) de la batterie et le

câble de masse à la carrosserie du véhicule.

· Ne touchez pas l'amplificateur quand vous avez

les mains mouillées, faute de quoi vous risquez de

ressentir une secousse électrique. Pareillement, ne

touchez pas l'amplificateur s'il est mouillé.

· Pour votre sécurité et celles des autres usagers de

la route, maintenez le niveau d'écoute à une

valeur telle que les bruits de la circulation

demeurent nettement perceptibles.

· Si le fusible monté sur le câble de liaison à la

batterie, câble qui est vendu séparément, a grillé

ou bien s'il en est ainsi de celui de l'amplificateur,

vérifiez soigneusement toutes les connexions

d'alimentation. Recherchez la cause de l'anomalie

puis corrigez-la; enfin, remplacez le fusible grillé

par un fusible de même taille et de même calibre.

· Pour éviter d'endommager l'amplificateur et les

haut-parleurs, le circuit de protection coupe

l'alimentation de l'amplificateur (les sons ne sont

plus émis) dès que survient une situation

anormale. Dans ce cas, mettez l'ensemble des

appareils hors tension et contrôlez les liaisons

entre l'amplificateur et les haut-parleurs. Le cas

échéant, recherchez la cause de l'anomalie et

corrigez-la.

· Consultez le revendeur si vous n'êtes pas en

mesure de résoudre le problème qui se pose à

vous.

· Pour éviter toute secousse électrique et tout risque

de court-circuit au cours des opérations de

raccordement et d'installation, n'oubliez pas de

débrancher le câble relié au pôle négatif de la

batterie () avant d'effectuer quelque opération

que ce soit.

· Avant d'effectuer un perçage requis par

l'installation de l'amplificateur, assurez-vous que

vous pouvez le faire sans danger pour les câbles,

canalisations, flexibles, etc., qui sont placés

derrière le panneau que vous devez percer.

Avant d'utiliser cet appareil

Service après-vente pour un

produit Pioneer

Pour toute question, et en particulier pour toute

question relative au service après-vente (y compris

celles qui relèvent de la garantie), veuillez vous

adresser au revendeur ou au distributeur auprès de

qui vous avez acquis ce produit. Dans l'hypothèse

où vous ne pourriez pas être renseigné comme

vous le désirez, consultez l'une des sociétés

mentionnées ci-dessous.

N'expédiez pas le produit à l'une de ces sociétés,

quelle qu'en soit la raison, avant d'y avoir été

expressément invité.

7 Etats-Unis

Pioneer Electronics Service, Inc.

CUSTOMER SERVICE DEPARTMENT

P.O. Box 1760

Long Beach, CA 90801

800-421-1404

7 Canada

Pioneer Electronics of Canada, Inc.

CUSTOMER SERVICE DEPARTMENT

300 Allstate Parkway

Markham, Ontario L3R 0P2

(905) 479-4411

1-877-283-5901

Pour toute question concernant la garantie,

veuillez consulter le document Garantie Limitée

qui accompagne le produit.
