background image

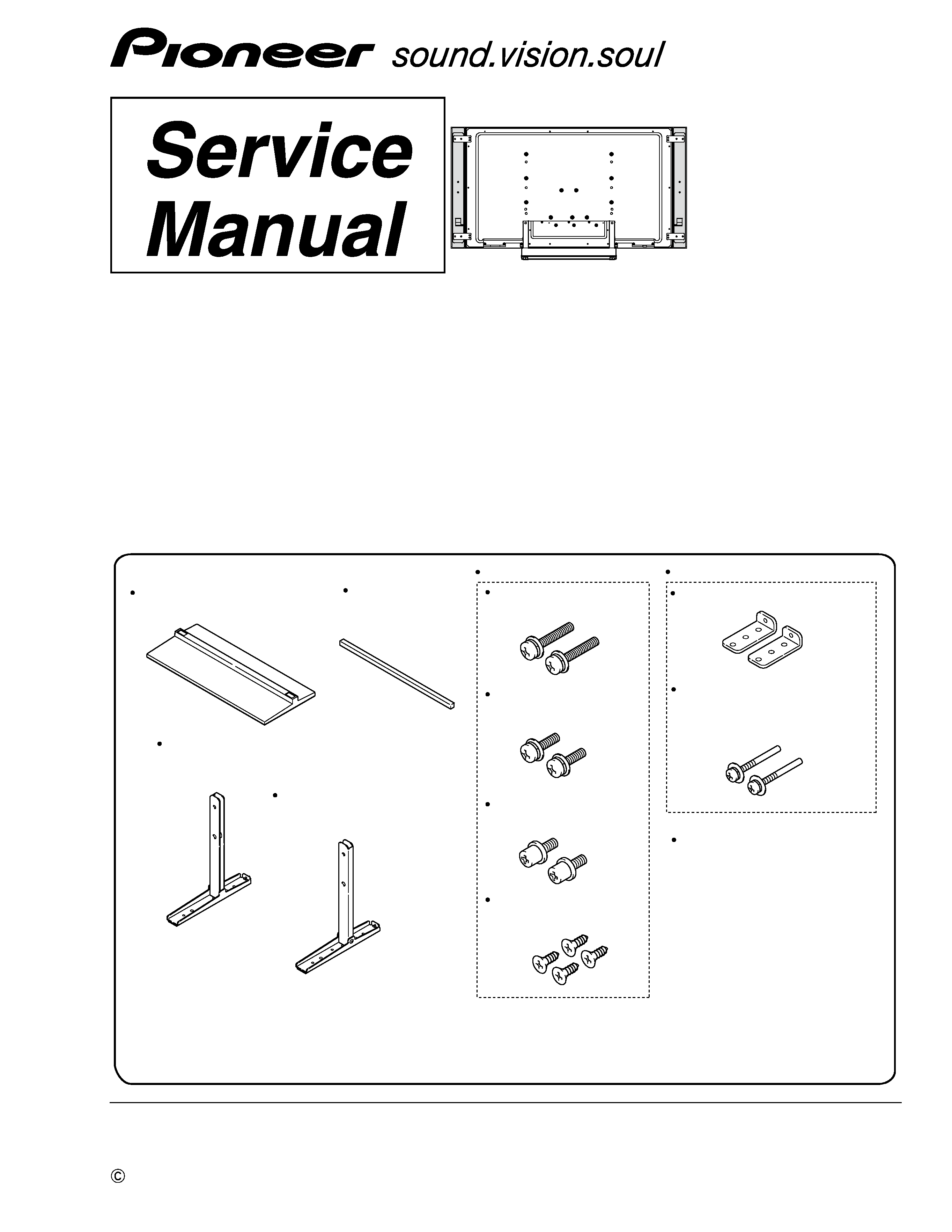

ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2008
KRP-TS02
ARP3488
T-ZZR APR. 2008 printed in Japan
KRP-TS02
S/WL5
TABLE TOP STAND
Base Cover Assy
(AZN2789)
Screws
(4 mm x 10 mm : silver) × 4
Bracket Assy (AZE1216)
Falling prevention metal fitting x 2
Cushion x 1
(AZN2805)
Operating Instructions x 1
(AZR1277)
Installation Screws
(M8 x 40 mm: black) × 2
Installation Screws
(M8 x 23 mm: black) × 2
Installation Screws
(M8 x 15 mm: black) × 2
Stand Pipe Assy (L) × 1
(AZN2793)
Stand Pipe Assy (R) × 1
(AZN2799)
Installation Screws
(M4 x 35 mm : Black) × 2
[for Falling prevention metal fitting]
Screw Assy (AZE1219)
Parts Included
Specifications
External dimensions:
PDK-TS02 ................ 552 mm (W) × 323 mm (H) × 350 mm (D) (21-23/32 in. (W) × 12-23/32 in. (H) × 13-25/32 in. (D))
Weight:
PDK-TS02 ................ 2.5 kg (5.6 lbs)
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2008
KRP-TS02
ARP3488
T-ZZR APR. 2008 printed in Japan
KRP-TS02
S/WL5
TABLE TOP STAND
Base Cover Assy
(AZN2789)
Screws
(4 mm x 10 mm : silver) × 4
Bracket Assy (AZE1216)
Falling prevention metal fitting x 2
Cushion x 1
(AZN2805)
Operating Instructions x 1
(AZR1277)
Installation Screws
(M8 x 40 mm: black) × 2
Installation Screws
(M8 x 23 mm: black) × 2
Installation Screws
(M8 x 15 mm: black) × 2
Stand Pipe Assy (L) × 1
(AZN2793)
Stand Pipe Assy (R) × 1
(AZN2799)
Installation Screws
(M4 x 35 mm : Black) × 2
[for Falling prevention metal fitting]
Screw Assy (AZE1219)
Parts Included
Specifications
External dimensions:
PDK-TS02 ................ 552 mm (W) × 323 mm (H) × 350 mm (D) (21-23/32 in. (W) × 12-23/32 in. (H) × 13-25/32 in. (D))
Weight:
PDK-TS02 ................ 2.5 kg (5.6 lbs)
background image
2
KRP-TS02
1
2
3
4
C
D
F
A
B
E
1
2
3
4

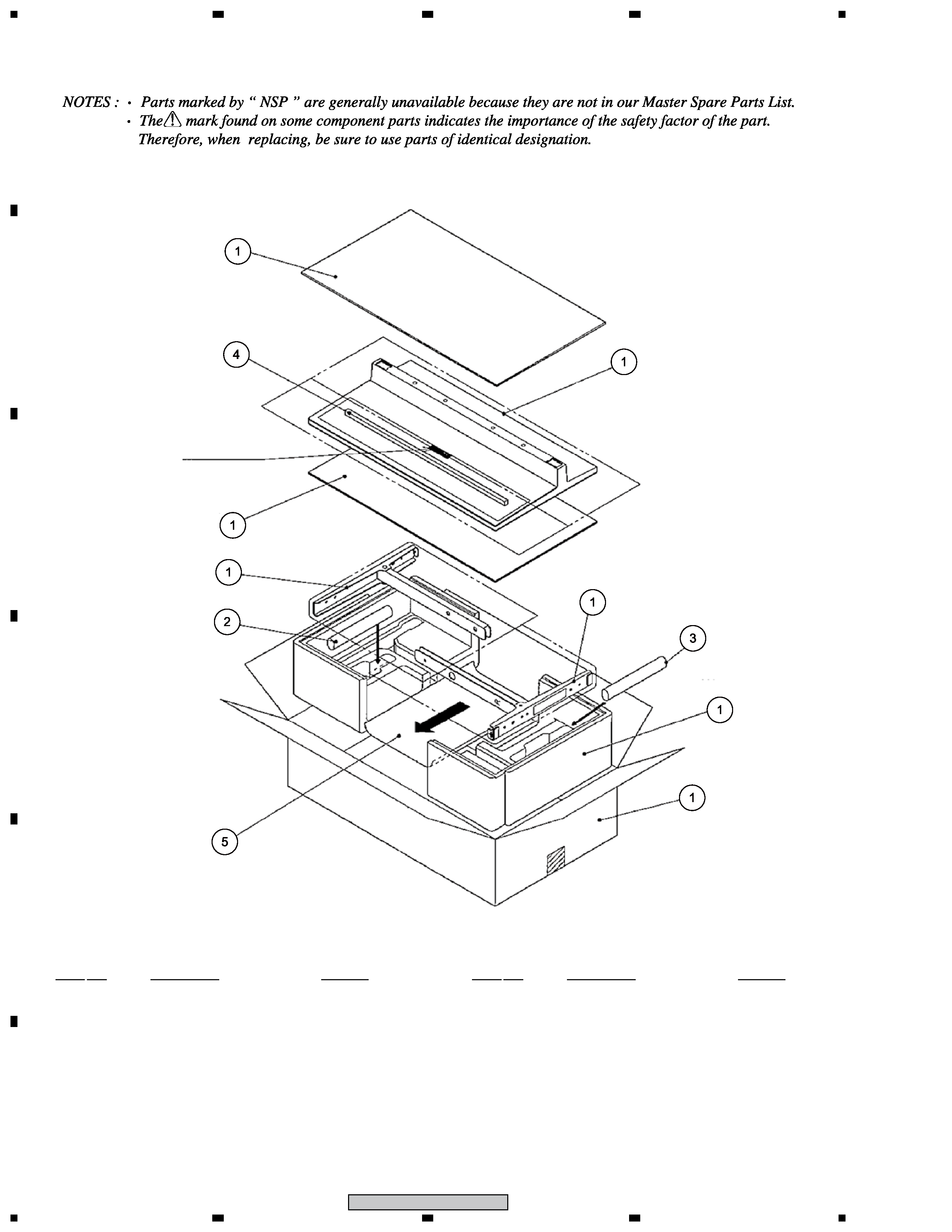

1. EXPLODED VIEWS AND PARTS LIST
1.1 PACKING
Tape
(1/7)
(2/7)
(3/7)
(4/7)
(5/7)
(6/7)
(7/7)
1
Packing Set
AZH1331
2
1..Screw Assy
AZE1219
NSP
2..Installation Screws (M8 x 40 mm) x 2
NSP
2..Installation Screws (M8 x 23 mm) x 2
NSP
2..Installation Screws (M8 x 15 mm) x 2
NSP
2..Installation Screws (4 mm x 10mm) x 4
3
1..Bracket Assy
AZE1216
NSP
2..Falling prevention metal fitting x 2
NSP
2..Installation Screws (M4 x 35 mm) x 2
PACKING Parts List
Mark No.
Description
Part No.
4
Cushion
AZN2805
5
Operating Instructions
AZR1277
(Japanese/English/French/Spanish
/German/Italian/ Dutch/Russian)
Mark No.
Description
Part No.
background image
3
KRP-TS02
5
6
7
8
5
6
7
8
C
D
F
A
B
E

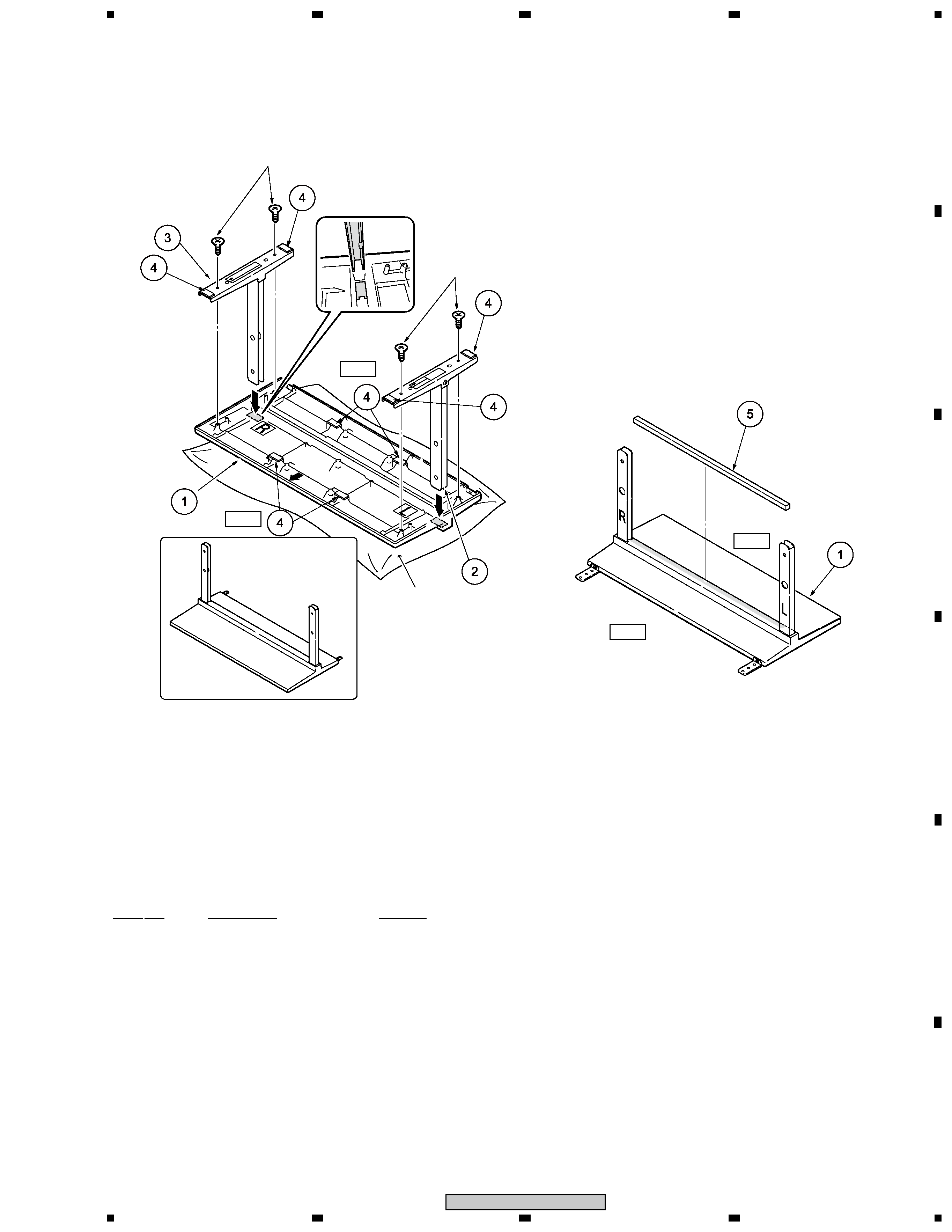

1.2 EXTERIOR SECTION
Screws
(4 mm x 10 mm: Silver)
Screws
(4 mm x 10 mm: Silver)
Completed
Table Top Stand
Front
Sheet
Rear
Front
Rear
1
Base Cover Assy
AZN2789
2
Stand Pipe Assy (L)
AZN2793
3
Stand Pipe Assy (R)
AZN2799
4
Rubber
AZE1198
5
Cushion
AZN2805
EXTERIOR Parts List
Mark No.
Description
Part No.
