background image

6-DISC MULTI-MINI DISC PLAYER

MD-P100

EW

Service

Manual

PIONEER ELECTRONIC CORPORATION

4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC.

P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V.

Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lane Wheelock Place, Singapore 23880

C PIONEER ELECTRONIC CORPORATION 1998

ORDER NO.

CRT2203

CONTENTS

1. SAFETY INFORMATION ............................................2

2. EXPLODED VIEWS AND PARTS LIST .......................2

3. SCHEMATIC DIAGRAM .............................................8

4. PCB CONNECTION DIAGRAM ................................18

5. ELECTRICAL PARTS LIST ........................................26

6. ADJUSTMENT..........................................................29

7. GENERAL INFORMATION .......................................30

7.1 IC .........................................................................30

7.2 DISASSEMBLY ...................................................40

7.3 BLOCK DIAGRAM ..............................................44

8. OPERATIONS AND SPECIFICATIONS.....................46

- US and foreign patents licensed from Dolby Laboratories Licensing Corporation.

K-FEA. APR. 1998 Printed in Japan

background image

6-DISC MULTI-MINI DISC PLAYER

MD-P100

EW

Service

Manual

PIONEER ELECTRONIC CORPORATION

4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC.

P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V.

Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lane Wheelock Place, Singapore 23880

C PIONEER ELECTRONIC CORPORATION 1998

ORDER NO.

CRT2203

CONTENTS

1. SAFETY INFORMATION ............................................2

2. EXPLODED VIEWS AND PARTS LIST .......................2

3. SCHEMATIC DIAGRAM .............................................8

4. PCB CONNECTION DIAGRAM ................................18

5. ELECTRICAL PARTS LIST ........................................26

6. ADJUSTMENT..........................................................29

7. GENERAL INFORMATION .......................................30

7.1 IC .........................................................................30

7.2 DISASSEMBLY ...................................................40

7.3 BLOCK DIAGRAM ..............................................44

8. OPERATIONS AND SPECIFICATIONS.....................46

- US and foreign patents licensed from Dolby Laboratories Licensing Corporation.

K-FEA. APR. 1998 Printed in Japan

background image

2

MD-P100

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

2. EXPLODED VIEWS AND PARTS LIST

2.1 PACKING

A "CLASS 1 LASER PRODUCT" label is affixed to the

rear of the player.

CLASS 1

LASER PRODUCT

- PACKING SECTION PARTS LIST

Mark No. Description

Part No.

Mark No. Description

Part No.

NOTE:

- Parts marked by "*"are generally unavailable because they are not in our Master Spare Parts List.

- Screws adjacent to

mark on the product are used for disassembly.

1 Cord

CZD3030

2 Cord

CZD3036

3 Base

CZN5122

4 PSW

CZB3044

5 Installation Base Assy

CZX3015

6 Nut

CZB3043

7 Cushion

CZN5092

Cushion F

CZN5090

Cushion R

CZN5091

Owner's Manual

CZR3024

(English, Spanish, German)

Owner's Manual

CZR3025

(French, Italian, Dutch)

Installation Manual

CZR3026

(English, Spanish, German, French, Italian,

Dutch)

*

Warranty Card

CZR3027

Carton

CZH3047

Contain Box

CZH3048

5

6

7

1

2

3

4

background image

3

MD-P100

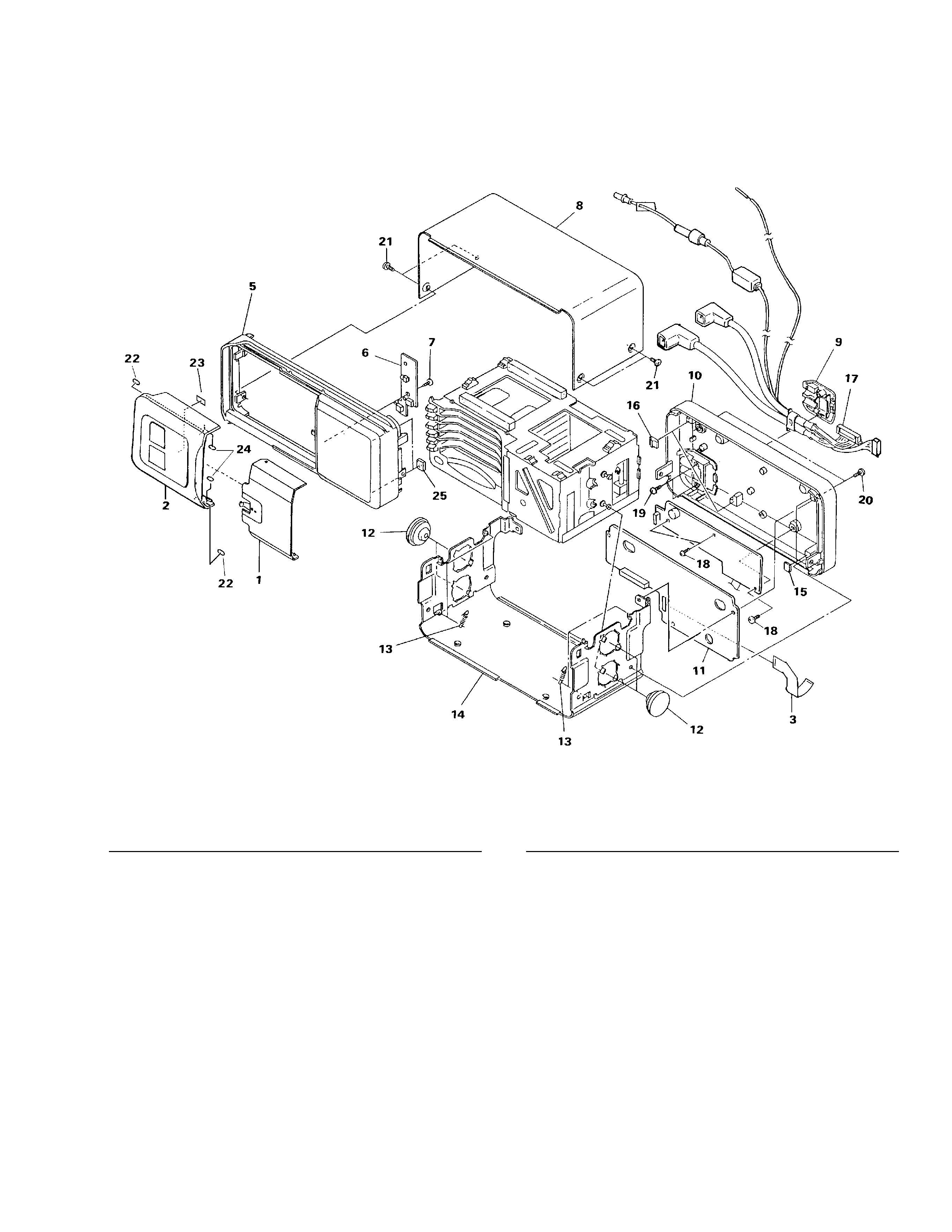

2.2 EXTERIOR

1 Door Assy

CZX3010

2 Door Assy

CZX3067

3 PCB

CZN5082

4 ·····

5 Front Panel Assy

CZX3068

6 Lamp PCB

CZN5081

7 Screw

CZB3036

8 Case(Upper)

CZN5143

9 Cover

CZN5086

10 Rear Panel Assy

CZX3012

11 Power PCB Assy

CZW3061

12 Damper

CZN5071

13 Spring

CZB3038

14 Case(Lower)

CZN5142

15 Cushion

CZN5085

16 Cushion

CZN5068

17 Cord

CZD3037

18 Self-Tapping Screw

CZB3041

19 Self-Tapping Screw

CZB3042

20 PTT

CZB3039

21 BVTT

CZB3037

22 Sheet

CZN5080

23 Cushion

CZN5079

24 Spacer

CZN5117

25 Cushion

CZN5068

- EXTERIOR SECTION PARTS LIST

Mark No. Description

Part No.

Mark No. Description

Part No.

background image

9

8

7

6

5

4

3

2

1

12

not supplied

11

6

10

not supplied

6

7

6

4

MD-P100

2.3 MAIN PCB

1 Sheet

CZN5073

2 Main PCB

CZW3057

3 Cable

CZD3029

4 Screw

CZB3036

5 Sensor PCB

CZN5087

6 Cushion

CZN5068

7 Cushion

CZN5069

8 Cushion

CZN5075

9 Sheet

CZN5072

10 Cushion

CZN5074

11 PCB

CZN3100

12 Screw

CZB3073

- MAIN PCB SECTION PARTS LIST

Mark No. Description

Part No.

Mark No. Description

Part No.

background image

1 Screw

CZB3046

2 Escutcheon

CZN5098

3 Button(Stop)

CZA3022

4 Chassis(Front)

CZN5100

5 Plate

CZN5102

6 PCB

CZN5093

7 Chassis(Motor)Assy

CZX3069

8 Collar

CZL3004

9 Bearing

CZN5096

10 Plate(LD2)Assy

CZX3071

11 Worm Wheel

CZN5116

12 Washer

CZB3065

13 Gear(LD)

CZN5113

14 Chassis(Bottom A)Assy

CZX3065

15 Gear

CZN5097

16 Gear(ELV2)

CZN5145

17 Worm Wheel(ELV2)

CZN5147

18 Switch

CZS3038

19 Switch

CZS3039

20 Screw

CZB3048

21 Screw

CZB3049

22 Screw

CZB3059

23 LD Motor Assy

CZX3076

24 ELV Motor Assy

CZX3077

2

3

4

1

1

5

6

7

24

not supplied

8

17

9

10

11

9

9

12

13

14

19

16

12

12

15

20

20

20

21

22

18

20

22

21

23

5

MD-P100

2.4 MD(1)

- MD(1) SECTION PARTS LIST

Mark No. Description

Part No.

Mark No. Description

Part No.
