PDA-4003
2
1. SAFETY INFORMATION
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for
voltage, wattage , etc.
Replacement parts which have
these special safety
characteristics are identified in
this Service Manual.
Electrical components having such features are
identified by marking with a
on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.
Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or
ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
(FOR USA MODEL ONLY)
Also test with plug
reversed
(Using AC adapter
plug as required)
Device
under
test
Test all exposed
metal surfaces
Earth ground
Leakage
current
tester
Reading should
not be above
0.5 mA
AC Leakage Test
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible
(fusible de type rapide) et/ou
(fusible de type lent) sur CCI indiquent que les
pièces de remplacement doivent avoir la même désignation.
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols
(fast operating fuse) and/or
(slow operating fuse) on PCB indicate that replacement parts
must be of identical designation.
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, bir th defects or other reproductive harm.
Health & Safety Cod e Section 25249.6 ­ Proposition 65
background image
PDA-4003
3
2.1 PACKING
1
Packing Case
AHD3054
2
Card Board
AHB1219
3
Packing Sheet
AHG1300
4
Operating Instructions
ARD1035
(Japanese/English/French/ German/
Italian/Dutch/Spanish)
5
Remote Control Unit (CU-V161) AXD1450
6
D-Sub 15pin Cable
ADF1010
7
AC Power Cord
ADG1034
8
AC Power Cord
RDG1127
9
Rubber Cushion
AEB1361
10
Binder
AEC­093
PACKING PARTS LIST
2. EXPLODED VIEWS AND PARTS LIST
NSP
11
Cable Strap
AEC­906
12
Screw Rivet
AEC1855
13
Magic Tape A
AEH1032
14
Magic Tape B
AEH1033
NSP
15
Dry Cell Battery (AA/R6P)
AEX1025
NSP
16
Literature Bag
AHG­117
NSP
17
Packing Bag
AHG1162
18
AC Adaptor
AXY1048
19
Battery Cover
AZN2098
20
EMC Caution Label
AAX2708
NSP
21
Literature Bag
AHG1083
16
7
8
10 (
×10)
4
20
21
18
3
5
19
2
6
1
11
15
14
13
12
9
17
NOTES :
Parts marked by " NSP " are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to
mark on the product are used for disassembly.
Mark No.
Description
Part No.
Mark No.
Description
Part No.
background image
PDA-4003
4
2.2 EXTERIOR
1
DOWN CONVERTER ASSY
AWV1823
2
Power Switch
BSM1002
3
5P Housing Wire
ADX2570
4
Chassis
ANA1624
5
Insulating Sheet
AEC1843
6
Locking Mini Clamp
AEC1854
NSP
7
Name Label
AAL2319
8
Serial Sheet
AAX2609
9
Solder Warning Label
AAX2644
10
Shield Gasket L
ANK1652
EXTERIOR PARTS LIST
11
Label
AAX2750
NSP
12
Label
VRW1629
13
Hexagon Head Screw
BBA1051
14
Screw
BBZ30P050FZK
15
Screw
BMZ30P060FZK
16
Screw
BPZ30P080FZK
17
Metal Bonnet
ANE1586
1
5
4
10
15
13
7
12
14
17
9
14
8
11
14
14
14
14
16
6
2
3
Mark No.
Description
Part No.
Mark No.
Description
Part No.
background image
PDA-4003
5
A
B
C
D
1
23
4
1
2
3
4
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

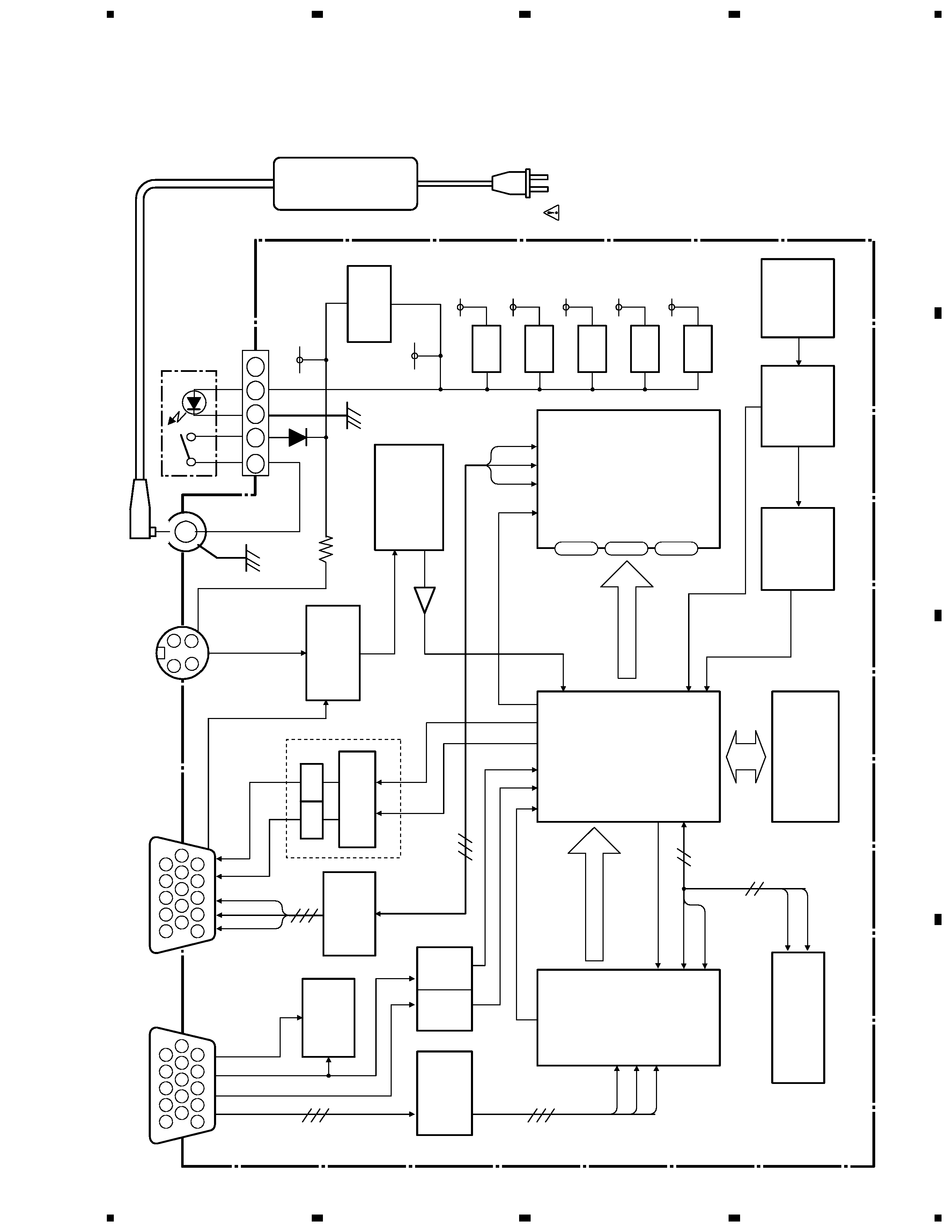

3.1 BLOCK DIAGRAM
ADG1034
ADG1127
Q12­Q14
RGB
Buff
IC25
V
Buff
IC3
H
Buff
IC4
24LCS21A
Plug
&
Play
Q6­Q8,
D19
REM
MIXER
IC27
PD5586
IC23
PQ30RV21
REM
DECODE
µ
-COM
PLL,
A/D
Converter
IC2
AD9884KS
IC9
PW364
RESIZE
IC
IC22
ADV7123KST50
D/A
Converter
IC1
E
2
PROM
IC8
24LC15B
IC7
MBM29LV400TC
FLASH
ROM
IC12
ICS502
CLK
PROCESS
IC10
ICS501
CLK
PROCESS
CLK
REF
X2
XTAL
12.588
MHz
RGB
IN
1­3
12
3
RG
B
34
32
28
R
G
B
13
7
22
4
115
29
30
5
6
5
5
4
1
24
20
1
6
3
4
4
13
11
15
22
7
G
B
R
4
14
13
14
12
12,15
5,6
RGB
OUT
SATELLITE
REMOTE
CN5
CN4
R233­R237
Q22,
Q33
REM
CODE
REMCODE
REMCODE
REM
CODE
D
CLK
G
CLK
V
H
V
H
16bit
×
RGB
RGB
Digital
Data
Bus
8bit
×
RGB
RGB
Digital
Data
Bus
H
SCL
SCL
SCL
SDA
SDA
SDA
DCKEXT
MCKEXT
100.7
MHz
25.176
MHz
V
H
RGB
Vcc
(5V)
AXY1048
S1
J1
CN10
POWER
SW
CN1
D-sub15
DIN4
BSM1002
ADX2570
DC9.3V
AV
DD
(3.3V)
IC11
V33
(3.3V)
IC13
V25
(2.5V)
IC24
V
AA
(3.3V)
IC26
PV
DD
(3.3V)
CN2
D-sub15
AYW1008
1
2
3
4
5
AC
Power
Code
RGB
RGB
RGB
SCL
SDA
V
H
H.V
Buff
IC21
Q21
Q20
Q17­
Q19
RGB
Buff
ACAdaptor
15
14
13
12
11
5
4
3
2
1
10
9
8
7
6
15
14
13
12
11
5
4
3
2
1
4
3
2
1
10
9
8
7
6
16­
24
10
41­
48
B2­
B9
G2­
G9
R2­
R9
