PD-F1007
2
1. SAFETY INFORMATION
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for
voltage, wattage , etc.
Replacement parts which have
these special safety
characteristics are identified in
this Service Manual.
Electrical components having such features are
identified by marking with a
on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.
Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or
ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
(FOR USA MODEL ONLY)
Also test with plug
reversed
(Using AC adapter
plug as required)
Device
under
test
Test all exposed
metal surfaces
Earth ground
Leakage
current
tester
Reading should
not be above
0.5 mA

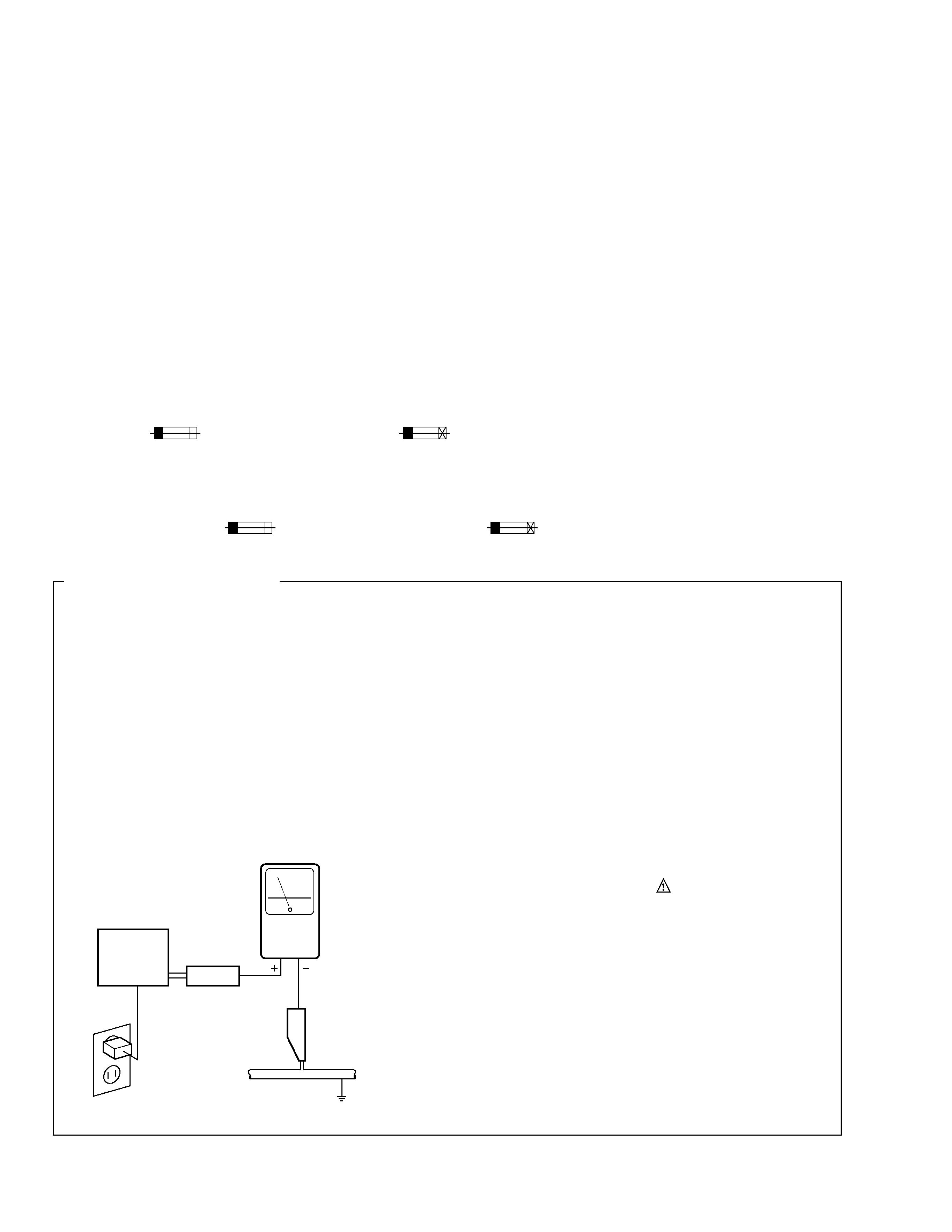

AC Leakage Test
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible
(fusible de type rapide) et/ou
(fusible de type lent) sur CCI indiquent que les
pièces de remplacement doivent avoir la même désignation.
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols
(fast operating fuse) and/or
(slow operating fuse) on PCB indicate that replacement parts
must be of identical designation.
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Cod e Section 25249.6 ­ Proposition 65
background image
PD-F1007
3
1
6
7
8
9
10
11
12
4
5
3
2
2. EXPLODED VIEWS AND PARTS LIST

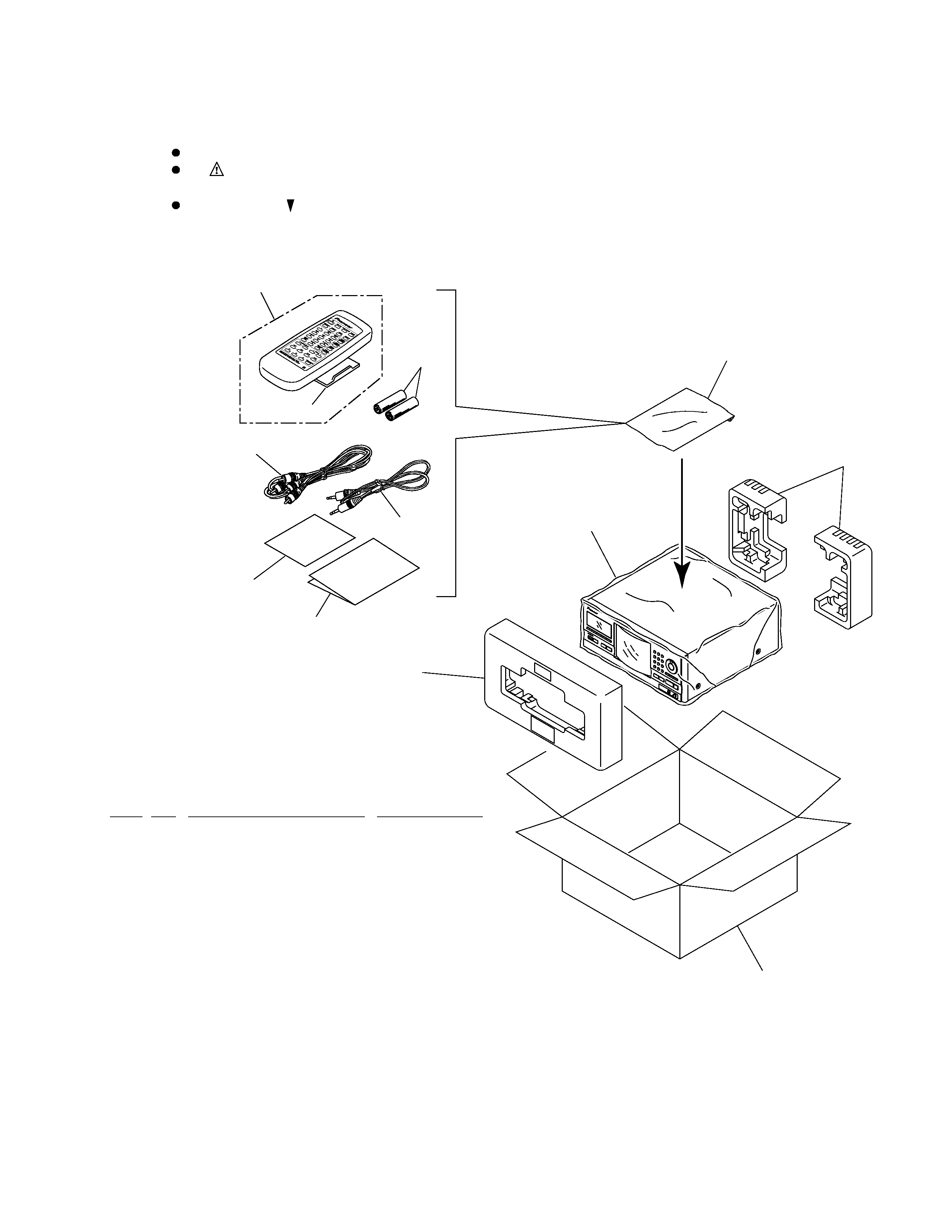

2.1 PACKING
PACKING PARTS LIST
1
Styrol Protector F
PHA1325
2
Styrol Protector R
PHA1326
3
Packing Case
PHG2316
4
Packing Sheet
RHC1023
5
Polyethylene Bag
Z21­038
(0.03
× 230 × 340)
6
Operating Instructions (English) PRB1271
7
Remote Control Unit
PWW1139
(CD-PD094)
8
Battery Cover
AZA7204
NSP
9
Dry Cell Batteries (R6P, AA)
VEM­013
10
Control Cable (L=1 m)
PDE1247
11
Audio Cable (L=1 m)
PDE1248
NSP
12
Warranty Card
ARY7023
NOTES :
Parts marked by " NSP " are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screw adjacent to
mark on the product are used for disassembly.
Mark No.
Description
Part No.
MC-Service
background image
PD-F1007
4
B
B
A
A
I
I
H
C
C
D
D
E
E
F G
G
F
H
19
8
21
21
20
18
Refer to " 2.3 EXTERIOR (2/2)".
3
6
17
6
15
22
14
(1/2)
6
12
16
20
20
20
20
10
20
20
10
23
23
7
4
11 (2/2)
20
20
20
11 (1/2)
2
20
20
20
20
22
22
22
13
1
14
(2/2)
20
20
5
20
Refer to " 2.5 FRONT PANEL
ASSY SECTION".
Hood Base Assy
9
2

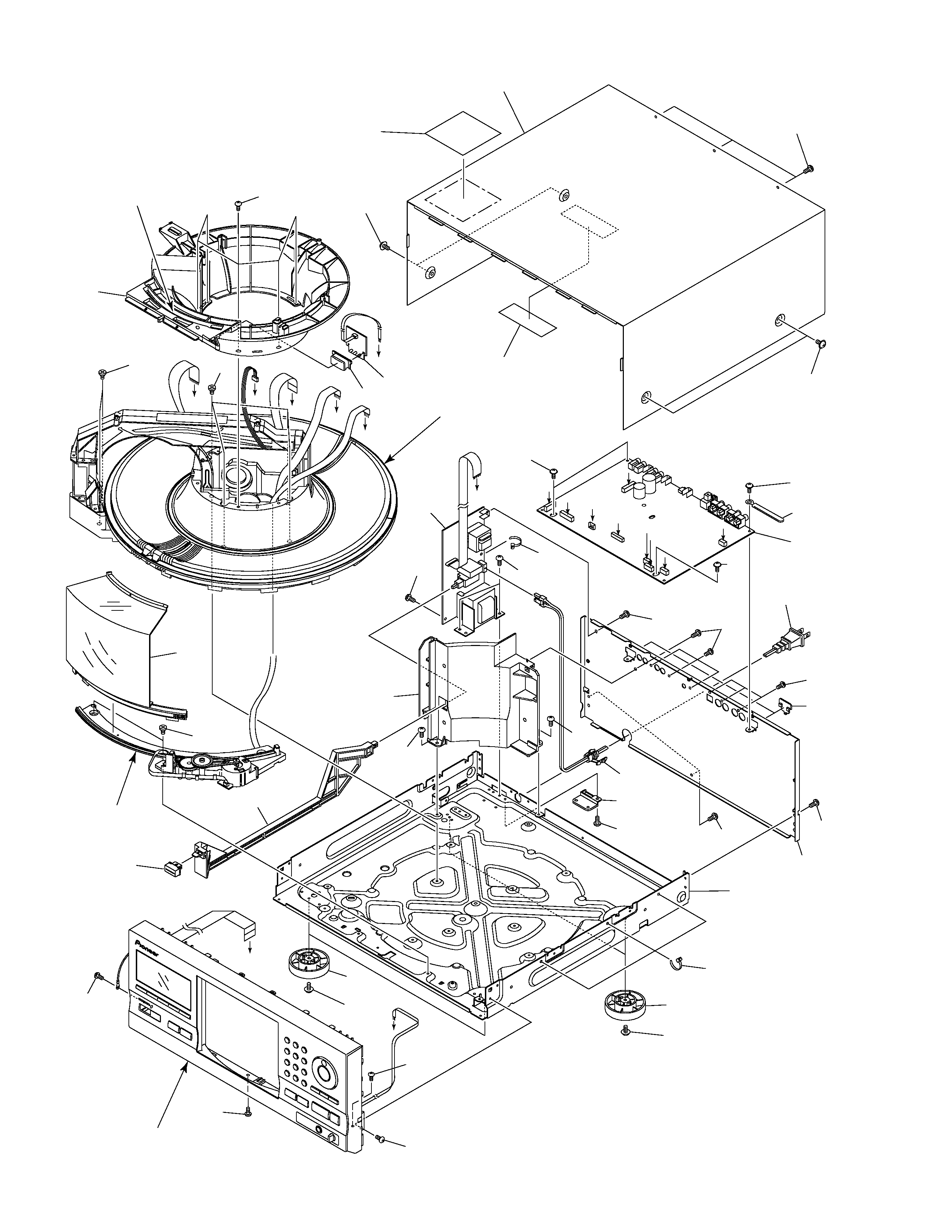

2.2 EXTERIOR (1/2)
background image
PD-F1007
5
1
MAIN BOARD ASSY
PWZ3822
2
POWER BOARD ASSY
PWZ3852
NSP
3
LED BOARD ASSY
PWZ3867
4
Strain Relief
CM­22C
5
AC Power Cord
VDG1057
6
Screw C
PBA1106
NSP
7
Under Base
PNA2421
8
Bonnet Case
PYY1255
9
Rear Base
PNA2424
10
Insulator
PNW2766
11
Trans Cover
PNW2802
12
Joint
PNW2805
13
Cord Clamper
RNH­184
14
Center Pole
PNW2792
15
CR Lens
PNW2816
16
POWER Button
PAC1884
17
Hood
PNW2793
18
65 Label
ORW1069
19
Caution Label
PRW1517
20
Screw
BBZ30P080FZK
21
Screw
FBT40P080FZK
22
Screw
IBZ30P080FMC
23
Binder
ZCA­SKB90BK
2
Ha Narl PN955R (for service)
GEM1016
24
32
27
33
1
2
2
30
28
31
26
33
29
25

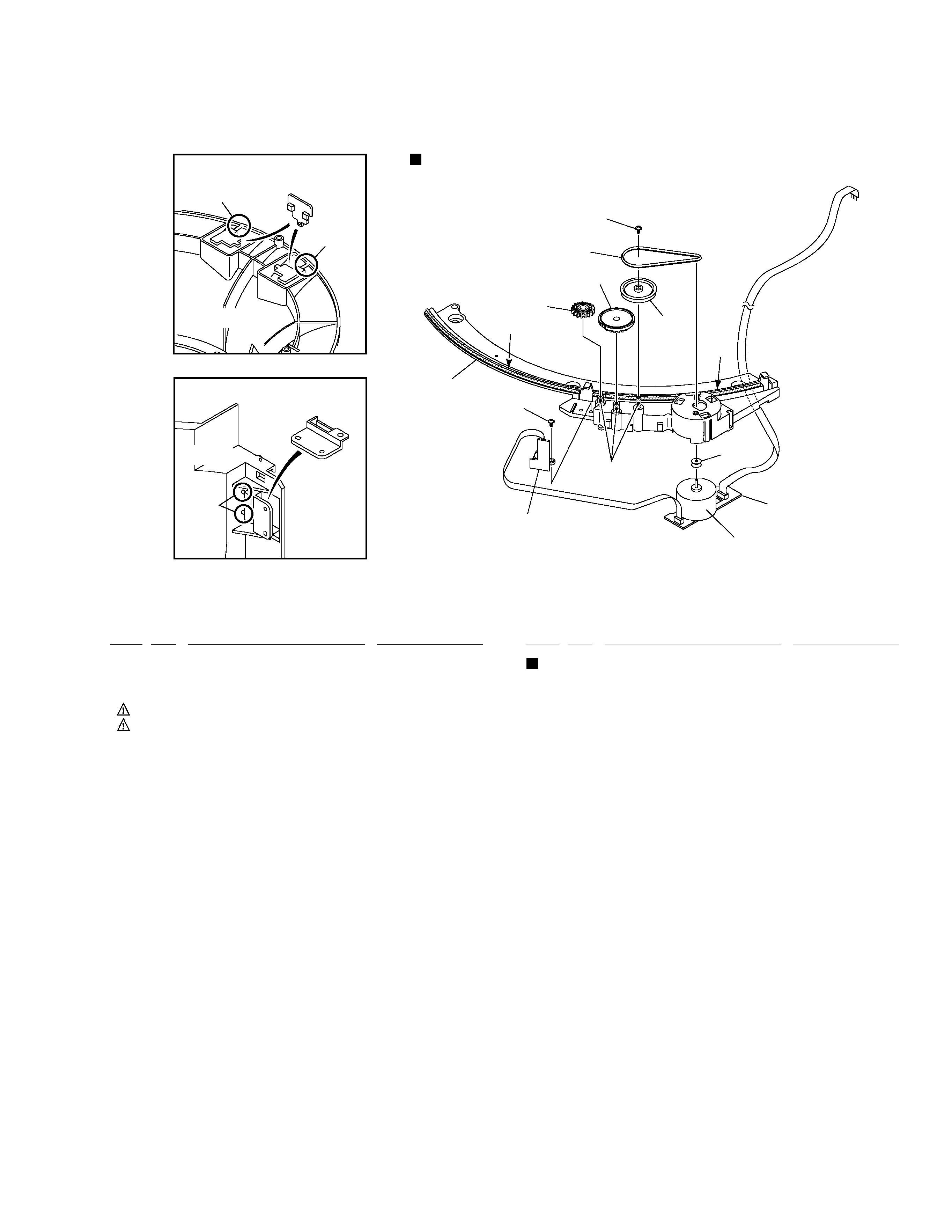

EXTERIOR (1/2) PARTS LIST
Mark No.
Description
Part No.
Hood Base Assy Section
NSP
24
DOOR MOTOR BOARD ASSY
PWZ3863
NSP
25
DOOR SW BOARD ASSY
PWZ3865
26
Belt
PEB1300
27
Motor Pulley
PNW1634
28
Gear
PNW2641
29
Hood Base
PNW2791
30
Gear M1
PNW2800
31
Gear Pulley
VNL1662
32
Slider Motor
VXM1033
33
Screw
IPZ20P080FMC
1
Froil 397 (for service)
GYA1001
2
Ha Narl PN955R (for service)
GEM1016
Mark No.
Description
Part No.
Hood Base Assy Section
Cut
14 (2/2)
No. 14: Center Pole
Cut
14 (1/2)
Cut
11(2/2)
11(1/2)
No. 11: Trans Cover
