PIONEER PDF1007 II Service Manual

Cover page of PIONEER PDF1007 II Service Manual

Service Manual for PIONEER PDF1007 II, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 56 pages
  • File size: 6.75 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
Thumbnail of page 9
background image
ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1999
FILE-TYPE COMPACT DISC PLAYER
RRV2105
T­ZZR FEB. 1999 Printed in Japan
PD-F1007
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type
Model
PD-F1007
Power Requirement
Remarks
MY
AC220-230V
KEYBORD
INPUT
1. SAFETY INFORMATION .................................... 2
2. EXPLODED VIEWS AND PARTS LIST ............. 3
3. SCHEMATIC DIAGRAM ................................... 10
4. PCB CONNECTION DIAGRAM ....................... 22
5. PCB PARTS LIST ............................................. 30
6. ADJUSTMENT .................................................. 34
7. GENERAL INFORMATION .............................. 44
7.1 PARTS ....................................................... 44
7.1.1 IC ....................................................... 44
7.1.2 DISPLAY ........................................... 47
CONTENTS
7.2 DIAGNOSIS ................................................ 48
7.2.1 DISASSEMBLY ................................. 48
7.2.2 ERROR CCHECK DISPLAY ............. 51
7.2.3 EXPLANATION OF DISC
DETECTION ...................................... 52
7.3 BLOCK DIAGRAM ...................................... 54
8. PANEL FACILITIES AND SPECIFICATIONS
....................................................... 55
background image
ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1999
FILE-TYPE COMPACT DISC PLAYER
RRV2105
T­ZZR FEB. 1999 Printed in Japan
PD-F1007
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type
Model
PD-F1007
Power Requirement
Remarks
MY
AC220-230V
KEYBORD
INPUT
1. SAFETY INFORMATION .................................... 2
2. EXPLODED VIEWS AND PARTS LIST ............. 3
3. SCHEMATIC DIAGRAM ................................... 10
4. PCB CONNECTION DIAGRAM ....................... 22
5. PCB PARTS LIST ............................................. 30
6. ADJUSTMENT .................................................. 34
7. GENERAL INFORMATION .............................. 44
7.1 PARTS ....................................................... 44
7.1.1 IC ....................................................... 44
7.1.2 DISPLAY ........................................... 47
CONTENTS
7.2 DIAGNOSIS ................................................ 48
7.2.1 DISASSEMBLY ................................. 48
7.2.2 ERROR CCHECK DISPLAY ............. 51
7.2.3 EXPLANATION OF DISC
DETECTION ...................................... 52
7.3 BLOCK DIAGRAM ...................................... 54
8. PANEL FACILITIES AND SPECIFICATIONS
....................................................... 55
background image
PD-F1007
2

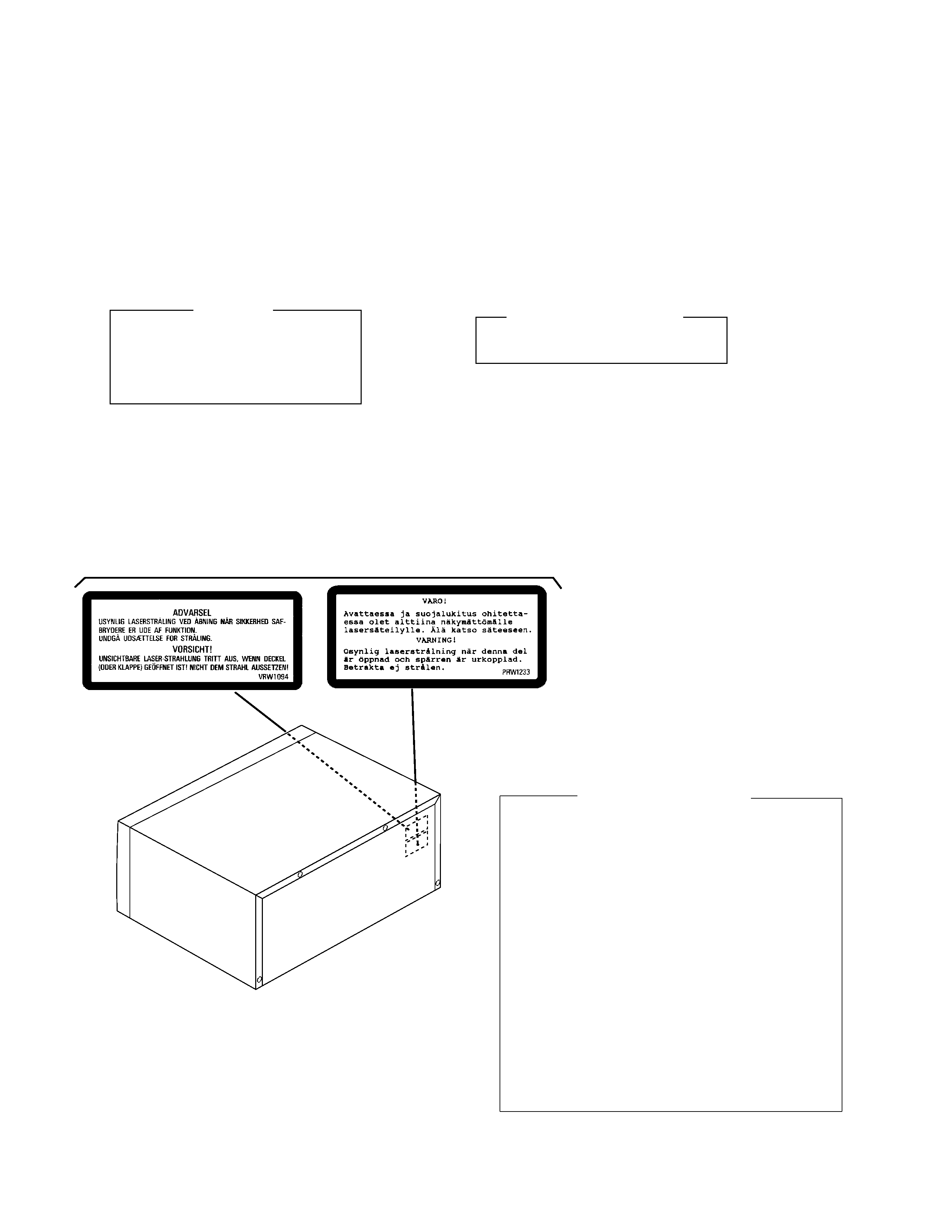

Additional Laser Caution
1. Laser Interlock Mechanism
The position of the switch (VSK1011) for detecting
loading state is detected by the system microprocessor,
and the design prevents laser diode oscillation when
the switch (VSK1011) is not on CLMP terminal side
(CLMP signal is OFF or high level).
Thus, the interlock will no longer function if the switch
(VSK1011) is deliberatery set to CLMP terminal side. (low
level)
The interlock also does not function in the test mode *.
Laser diode oscillation will continue, if pin 33 of
CXA1782CQ (IC151) on the MOTHER BOARD ASSY
is connected to GND, or pin 89 of IC351 (LDON) is
connected to low level (ON), or else the terminals of
Q151 are shorted to each other (fault condition).
2. When the cover is opened, close viewing of the
objective lens with the naked eye will cause exposure
to a Class 1 laser beam.
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
1. SAFETY INFORMATION
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
REAR
PD-F1007/MY
LABEL CHECK
Refer to page 35 .
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 7 mw
WAVELENGTH: 780 ­ 785 nm
background image
PD-F1007
3
1
6
8
9
10
11
12
14
4
5
3
2
13
7
2. EXPLODED VIEWS AND PARTS LIST

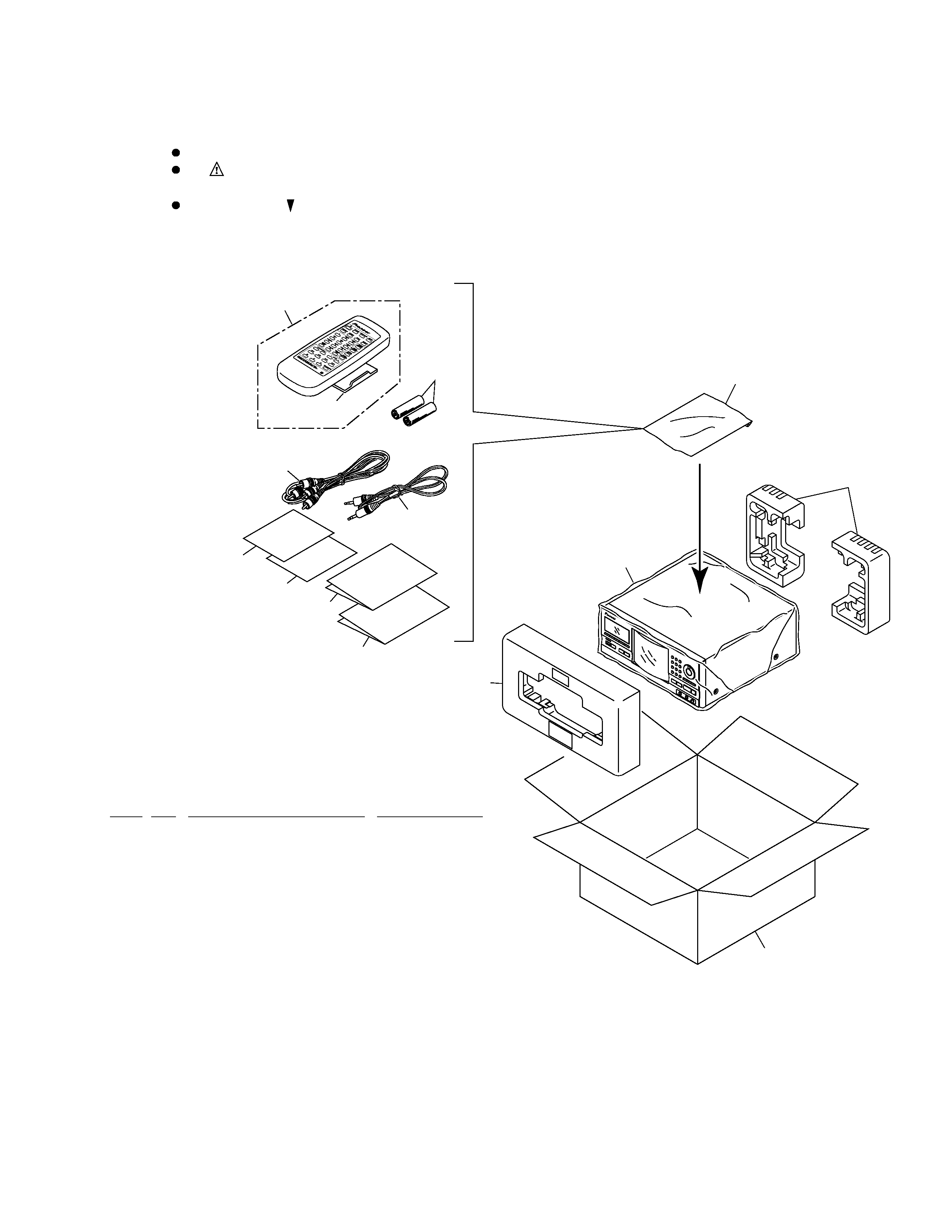

2.1 PACKING
PACKING PARTS LIST
1
Styrol Protector F
PHA1325
2
Styrol Protector R
PHA1326
3
Packing Case
PHG2368
4
Packing Sheet
RHC1023
5
Polyethylene Bag
Z21­038
(0.03
× 230 × 340)
6
Operating Instructions
PRD1052
(English/French/German/Italian)
7
Operating Instructions
PRE1279
(Dutch/Swedish/Spanish/Portuguese)
8
Remote Control Unit
PWW1139
(CD-PD094)
9
Battery Cover
AZA7204
NSP
10
Dry Cell Batteries (R6P, AA)
VEM­013
11
Control Cable (L=1 m)
PDE1247
12
Audio Cable (L=1 m)
PDE1248
NSP
13
Warranty Card
ARY7022
14
KEY Board Label
PRW1527
NOTES :
Parts marked by " NSP " are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screw adjacent to
mark on the product are used for disassembly.
Mark No.
Description
Part No.
background image
PD-F1007
4
B
A
A
I
I
H
C
C
D
D
E
E
F G
G
F
H
19
8
21
21
20
Refer to " 2.3 EXTERIOR (2/2)".
3
6
17
6
15
22
14
(1/2)
6
12
16
20
20
20
20
10
20
20
10
23
23
7
4
11 (2/2)
20
20
20
11 (1/2)
2
20
20
20
20
22
22
22
13
1
14
(2/2)
20
20
5
20
Refer to " 2.5 FRONT PANEL
ASSY SECTION".
Hood Base Assy
18
24
9
25
2
B

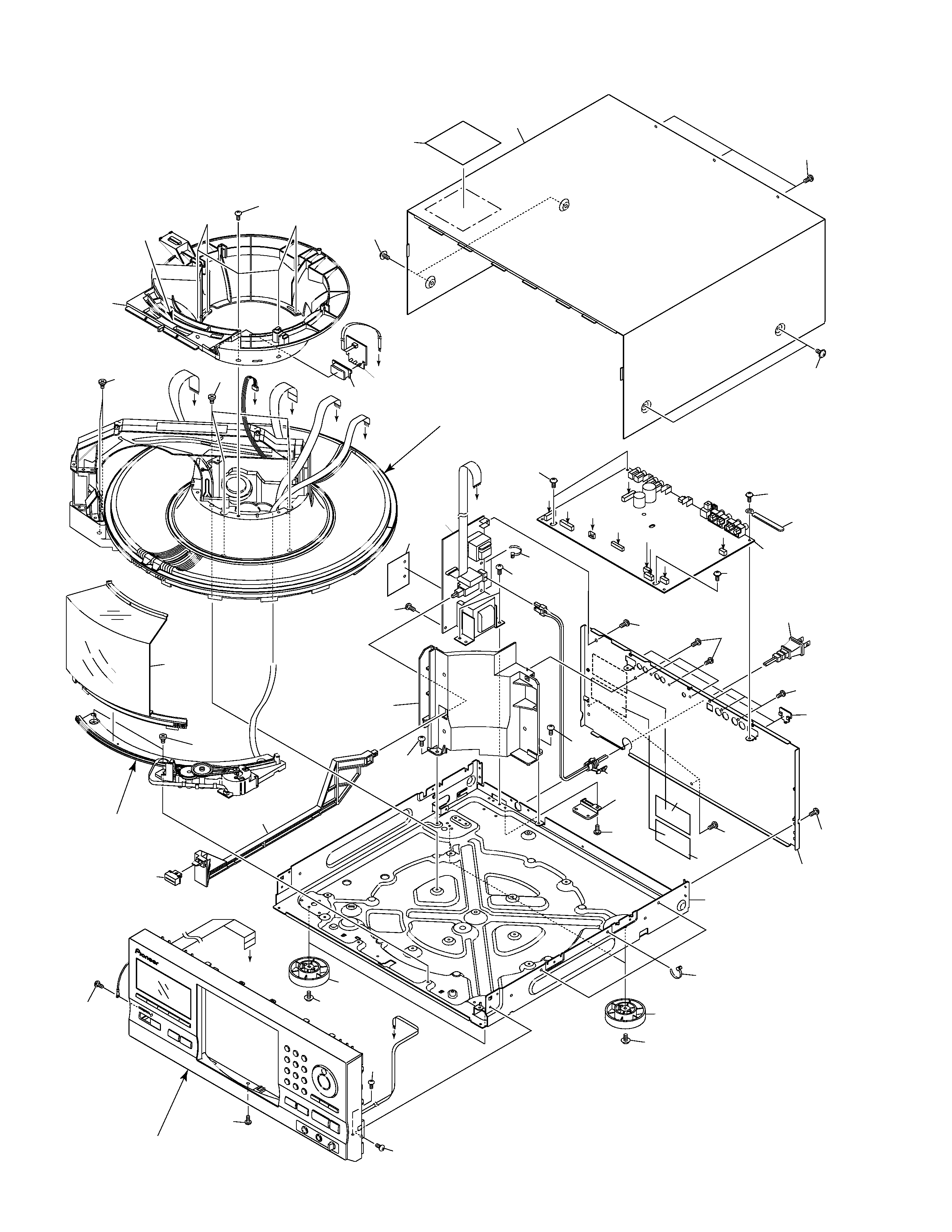

2.2 EXTERIOR (1/2)
background image
PD-F1007
5
1
MAIN BOARD ASSY
PWZ3823
2
POWER BOARD ASSY
PWZ3853
NSP
3
LED BOARD ASSY
PWZ3867
4
Strain Relief
CM­22B
5
AC Power Cord
VDG1061
6
Screw C
PBA1106
NSP
7
Under Base
PNA2421
8
Bonnet Case
PYY1255
9
Rear Base
PNA2491
10
Insulator
PNW2766
11
Trans Cover
PNW2802
12
Joint
PNW2805
13
Cord Clamper
RNH­184
14
Center Pole
PNW2792
15
CR Lens
PNW2816
16
POWER Button
PAC1884
17
Hood
PNW2793
18
Caution Label (HE)
PPW1233
19
Caution Label
PRW1517
20
Screw
BBZ30P080FZK
21
Screw
FBT40P080FZK
22
Screw
IPZ30P080FMC
23
Binder
ZCA­SKB90BK
24
Caution Label
VRW1094
25
Screw Cover
PNM1340
2
Ha Narl PN955R (for service)
GEM1016
26
34
29
35
1
2
2
32
30
33
28
35
31
27
EXTERIOR (1/2) PARTS LIST
Mark No.
Description
Part No.

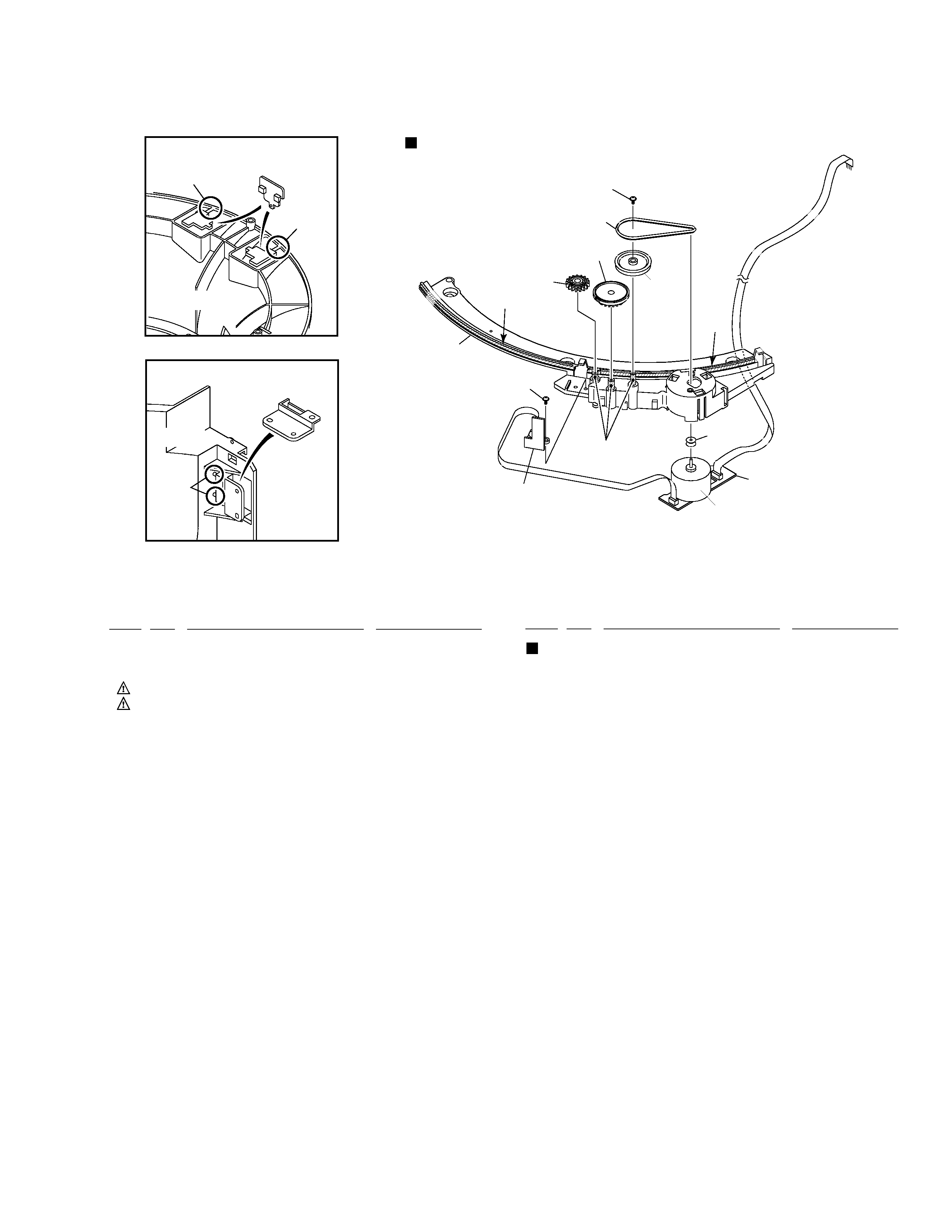

Hood Base Assy Section
NSP
26
DOOR MOTOR BOARD ASSY
PWZ3863
NSP
27
DOOR SW BOARD ASSY
PWZ3865
28
Belt
PEB1300
29
Motor Pulley
PNW1634
30
Gear AW
PNW2906
31
Hood Base
PNW2791
32
Gear M1
PNW2800
33
Gear Pulley
VNL1662
34
Slider Motor
VXM1033
35
Screw
IPZ20P080FMC
1
Froil 397 (for service)
GYA1001
2
Ha Narl PN955R (for service)
GEM1016
Mark No.
Description
Part No.
Hood Base Assy Section
Cut
14 (2/2)
No. 14: Center Pole
Cut
14 (1/2)
Cut
11(2/2)
11(1/2)
No. 11: Trans Cover
