PIONEER PDK-5006 Service Manual

Cover page of PIONEER PDK-5006 Service Manual

Service Manual for PIONEER PDK-5006, downloadable as a PDF file.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 3 pages
  • File size: 0.06 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7
background image
PDK-5006
Type
Model
Power Requirement
Remarks
PDK-5006
PDK-4006
ES
HUNG ON WALL UNIT
ORDER NO.
ARP3005
O - ZZC SEPT 1998 Printed in Japan
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
c
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
PDK-4006
background image
PDK-5006
Type
Model
Power Requirement
Remarks
PDK-5006
PDK-4006
ES
HUNG ON WALL UNIT
ORDER NO.
ARP3005
O - ZZC SEPT 1998 Printed in Japan
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
c
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
PDK-4006
background image
2
PDK-5006, PDK- 4006
2.1 PACKING
1
Packing Set (PDK-5006)
AZH1124
1
Packing Set (PDK-4006)
AZH1123
NSP
2
Packing Case (PDK-5006)
.........
NSP
2
Packing Case (PDK-4006)
.........
NSP
3
Under Carton R (PDK-5006)
.........
NSP
3
Under Carton R (PDK-4006)
.........
NSP
4
Under Carton L (PDK-5006)
.........
NSP
4
Under Carton L (PDK-4006)
.........
NSP
5
Pad
.........
NSP
6
Pad
.........
NSP
7
Mirror Mat
.........
NSP
8
Vinyl Bag
.........
NSP
9
Vinyl Bag
.........
10
Tilt Frame R ASSY
AZN2374
11
Tilt Frame L ASSY
AZN2375
NSP
12
Joint pipe ASSY
.........
13
Joint pipe COMP (PDK-5006)
AZN2378
13
Joint pipe COMP (PDK-4006)
AZN2377
Parts List
Mark
No.
Description
Parts No.

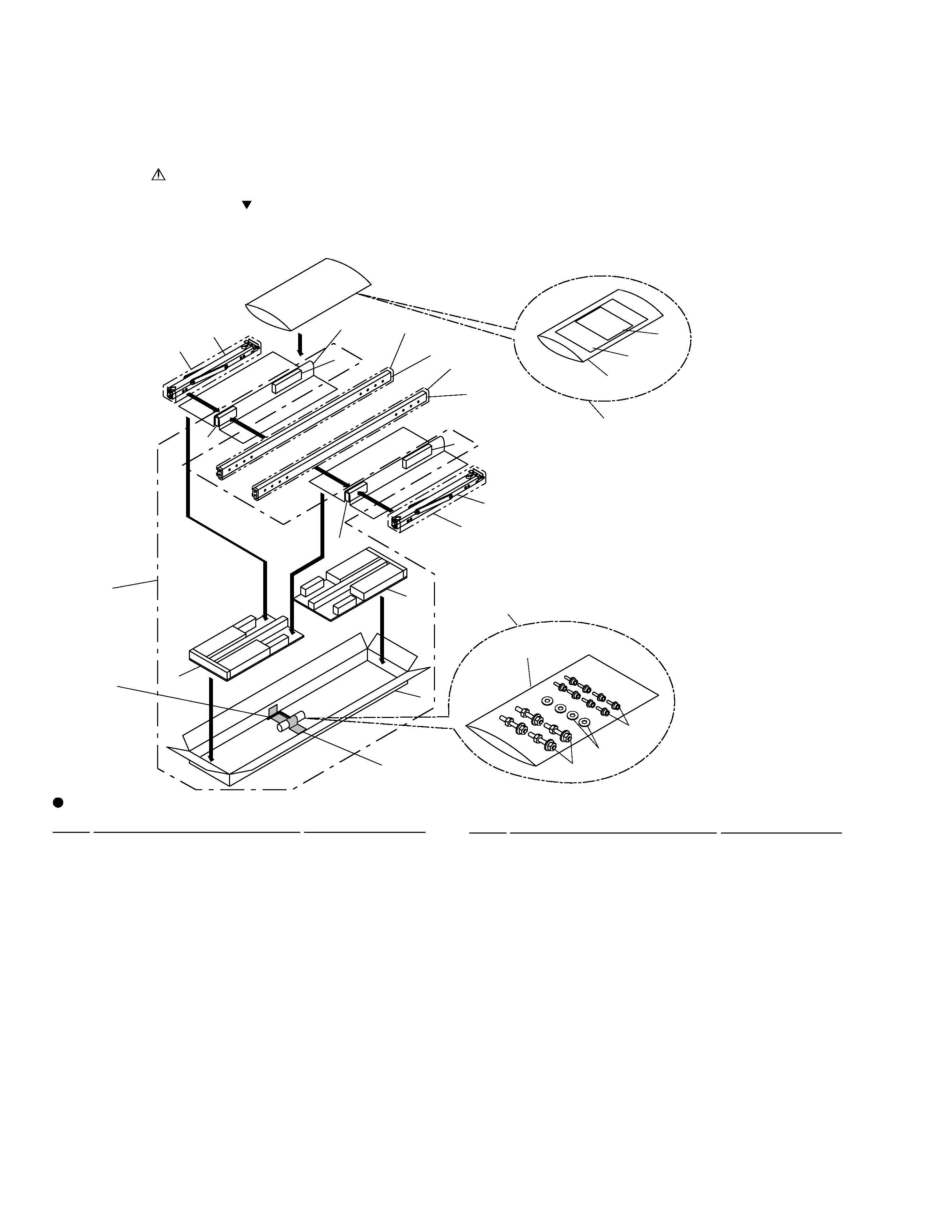

2. EXPLODED VIEWS AND PARTS LIST
NOTES:
· Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
· The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
· Screws adjacent to mark on the product are used for disassembly.
Mark No.
Description
Part No.
NSP
14
Screw set
.........
NSP
15
Vinyl Bag
.........
16
Bolt ASSY
AZB1397
17
Screw
AZB1398
NSP
18
Parts ASSY
.........
NSP
19
Vinyl Bag
.........
20
Operating Instructions (PDK-5006) AZR1027
(Japanese,English)
20
Operating Instructions (PDK-4006) AZR1024
(Japanese,English)
21
Memorandum
BZR1069
22
Hexagon Wrench
AZE1104
23
Washer (PDK-5006 only)
WC80FZK
2
22
4
7
5
6
12
8
13
8
9
6
11
10
9
5
3
1
14
18
17
16
15
21
19
20
Adhesive tape
23
background image
3
PDK-5006, PDK-4006

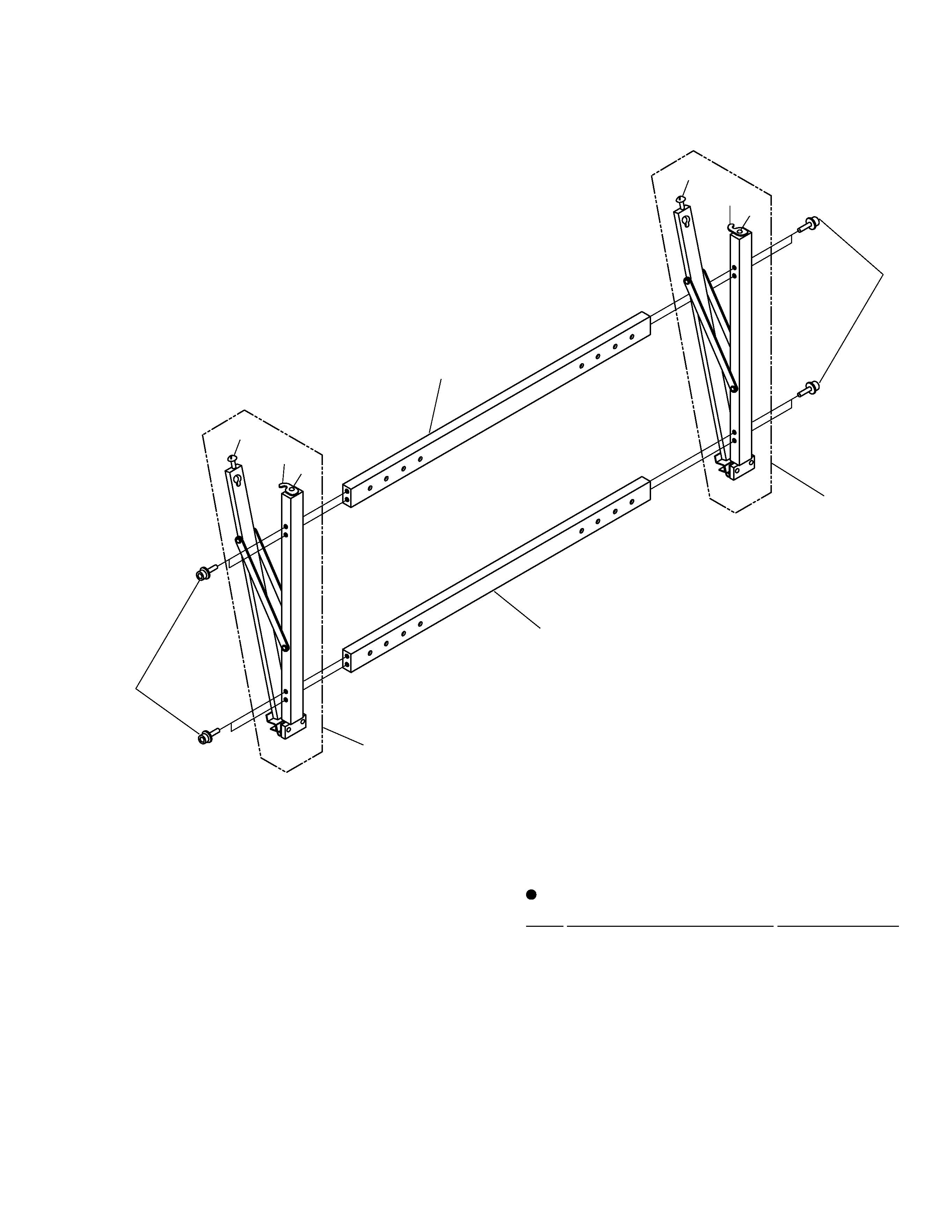

2.2 EXTERIOR
1
Joint pipe COMP (PDK-5006)
AZN2378
1
Joint pipe COMP (PDK-4006)
AZN2377
NSP
2
Joint pipe ASSY (PDK-5006)
.........
NSP
2
Joint pipe ASSY (PDK-4006)
.........
3
Tilt Frame R ASSY
AZN2374
4
Tilt Frame L ASSY
AZN2375
5
Screw
AZB1397
6
Lock Plate
AZN2376
7
Screw
TMZ50P120FZK
8
Screw
TMZ50P350FZK
Parts List
Mark No.
Description
Part No.
5
3
4
1
8
6 7
5
2
8
6 7
