ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2002
ARP3116
PDK-FS01E
/E6
CONTENTS
T ­ ZZM JAN. 2002 Printed in Japan
FLOOR STAND
1. PARTS .................................................................. 2
2. EXPLODED VIEWS AND PARTS LIST ................ 3
2.1 PACKING ....................................................... 3
2.2 EXTERIOR .................................................... 4
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2002
ARP3116
PDK-FS01E
/E6
CONTENTS
T ­ ZZM JAN. 2002 Printed in Japan
FLOOR STAND
1. PARTS .................................................................. 2
2. EXPLODED VIEWS AND PARTS LIST ................ 3
2.1 PACKING ....................................................... 3
2.2 EXTERIOR .................................................... 4
background image
PDK-FS01E
2
¶Column ...........................1
¶Shelf glass ......................1
(AZN2497)
¶Glass stays
(left and right).................1 each
¶PDP attachment bracket ...1
¶Base ...............................1
¶Bolts M8........................9
(AZB1444)
¶Screws (M4 x 8).............2
(PMB40P080FZK)
¶Cable covers (Attached to the
column by a magnet.)
(large ,small)..................1each
¶Hexagonal wrench .........1
¶Ornamental base ............1
(AZN2498)
¶Cable clamps ..................4
(AZE1123)
¶Operating instructions ....1
(AZR1058)
Precaution
Because there is a danger of the
glass breaking accidentally,we
recommend that it be left in its
case until it is time to install it.
¶Washer ...........................1
(AZB1445)
(large : AZN2493)
(small : AZN2494)

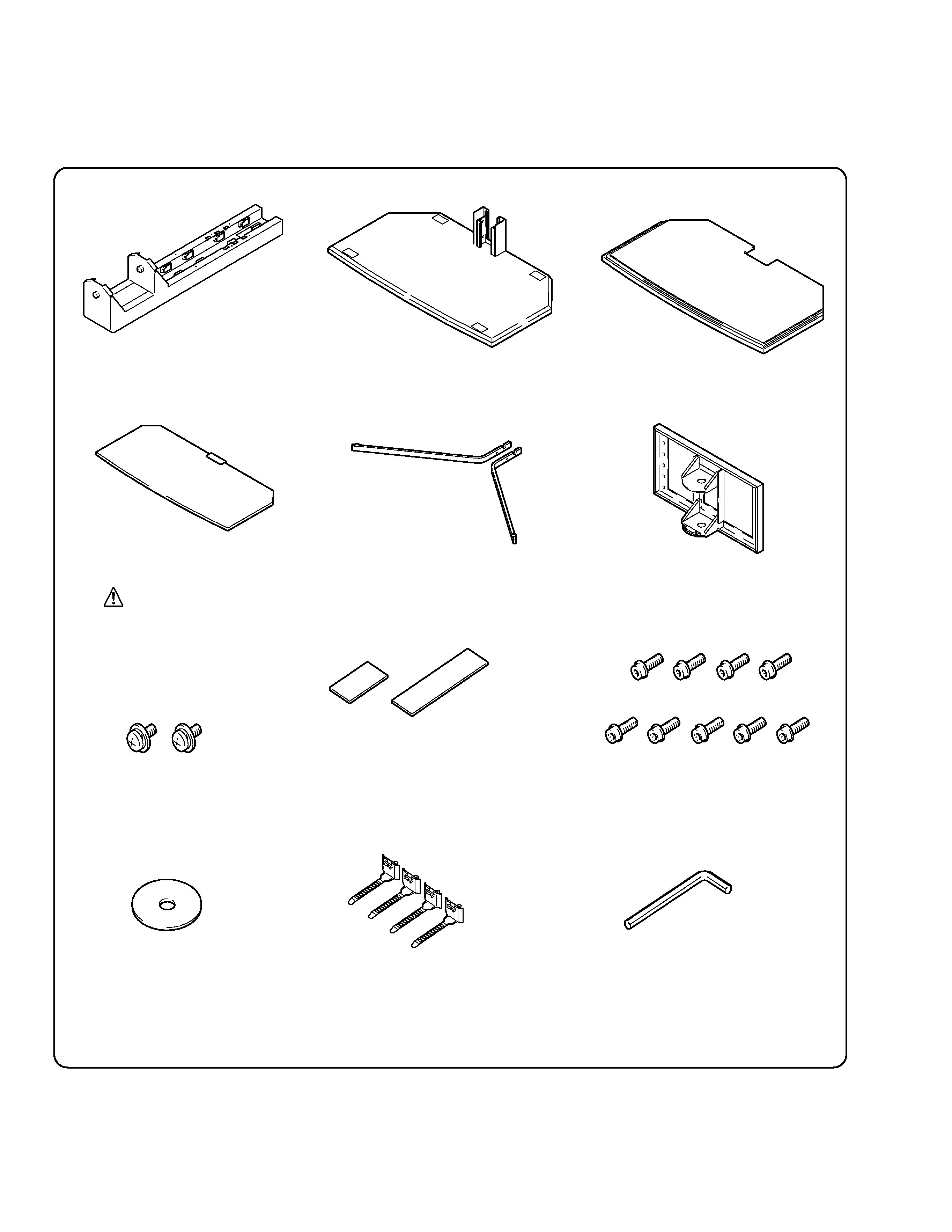

1. PARTS
background image
PDK-FS01E
3
2. EXPLODED VIEWS AND PARTS LIST
Mark No.
Description
Part No.
NSP
1
Base
· · · · ·
NSP
2
Column
· · · · ·
3
Shelf Glass
AZN2497
NSP
4
PDP Attachiment Bracket
· · · · ·
NSP
5
Glass Stay Right
· · · · ·
2.1 PACKING
¶ PACKING PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to
mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
NOTES:
3
7
1
6
4
5
2
9
8
10 (1/19)
10 (2/19)
10 (3/19)
10 (4/19)
10 (6/19)
10 (7/19)
10 (9/19)
10 (11/19)
10 (10/19)
10 (12/19)
10 (15/19)
10 (16/19)
10
(13/19)
10 (14/19)
10 (17/19)
10 (18/19)
10 (19/19)
10 (8/19)
10 (5/19)
Mark No.
Description
Part No.
NSP
6
Glass Stay Left
· · · · ·
7
Ornamental Base
AZN2498
NSP
8
Accessory
· · · · ·
9
Operating Instructions
AZR1058
(English,French,German,
Italian,Dutch,Swedish,Spanish)
10
Packing Set
AZH1149
background image
PDK-FS01E
4
11
Plasma Display
11
4
10
11
12
16
19
15
12
9
13
12
5
6
7
1
3
8
18
11
11
11
13
13
13
14
12
12
12
2
17
19
Mark No.
Description
Part No.
NSP
1
Base
· · · · ·
NSP
2
Column
· · · · ·
3
Shelf Glass
AZN2497
NSP
4
PDP Attachiment Bracket
· · · · ·
NSP
5
Glass Stay Right
· · · · ·
NSP
6
Glass Stay Left
· · · · ·
7
Ornamental Base
AZN2498
8
Cable Cover Large
AZN2493
9
Cable Cover Small
AZN2494
10
Washer
AZB1445
11
Bolt M8
AZB1444
12
Screw
PMB40P080FZK
13
Caster
AMR2729
14
Cable Clamp
AZE1123
15
Plunger Assy
AZN2492
16
Screw
AZB1446
17
Guard Right
AZN2495
18
Guard Left
AZN2496
19
Screw
BMZ40P080FZK
¶ EXTERIOR PARTS LIST
2.2 EXTERIOR
