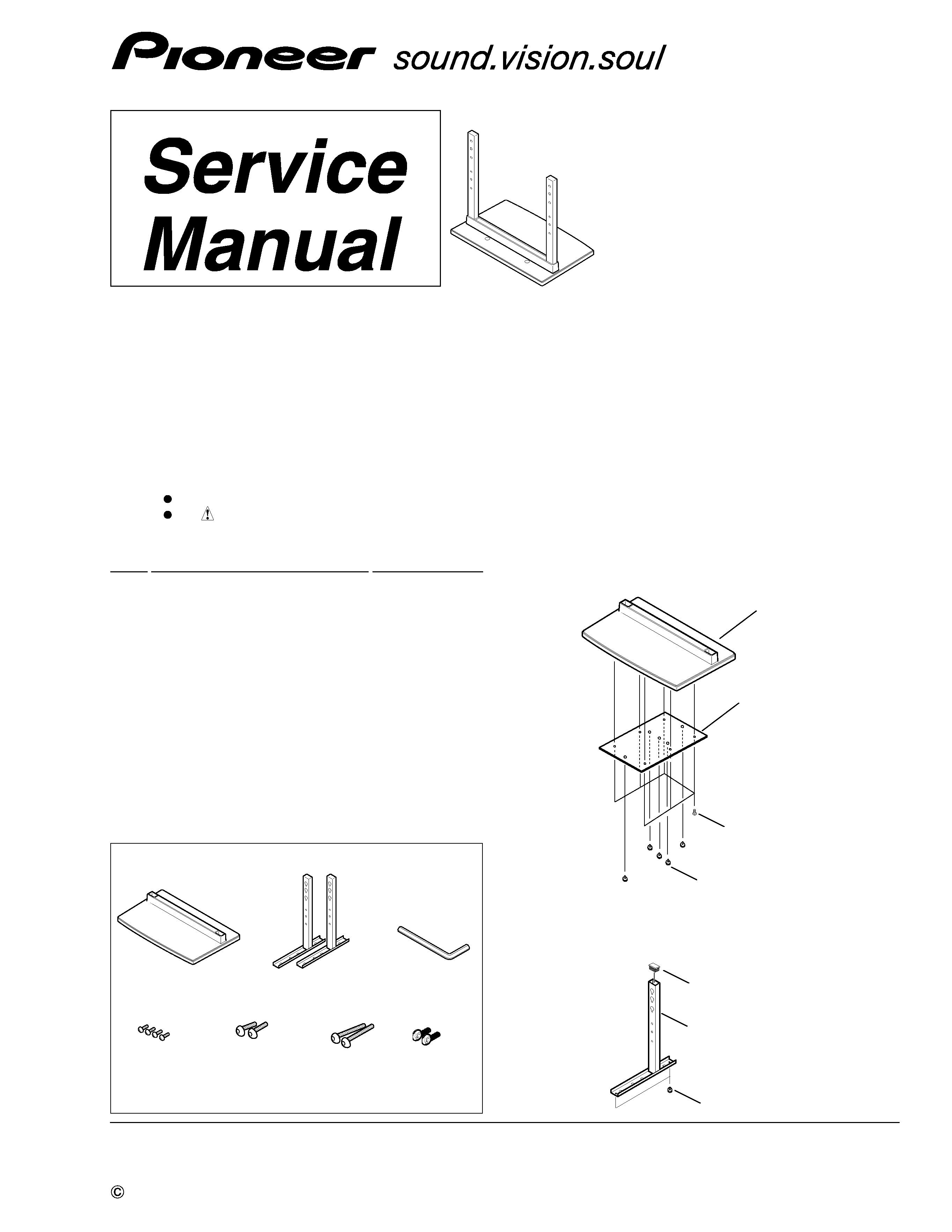

Cover page of PIONEER PDK-TS01WL6 Service Manual

Service Manual for PIONEER PDK-TS01WL6, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 1 pages
  • File size: 0.04 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
ARP3096
T-ZZM AUG. 2001 Printed in Japan
PDK-TS01
/WL6
TABLE TOP STAND
Mark No.
Description
Part No.
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
PARTS
Operating Instructions
ARD1044
(Japanese/English/French
/German/Italian/Dutch
/Swedish/Spanish/Chinese)
Stabilization Bolt
ABA1261
Installation Bolt 1 (M8 x 20)
AZB1436
Installation Bolt 2 (M8 x 40)
AZB1437
Base Cover
AZN2464
Stand Pipe
AZN2465
Stand Cap
AZN2466
Case Leg
AZN2467
Screw
BPZ40P080FZK
NSP
Hexagonal Wrench (5mm)
· · · · ·
NSP
Base Plate
· · · · ·
Base Cover Assy
Stand Pipe Assys
Hexagonal
Wrench (5mm)
Screws(4 x 8)
(BPZ40P080FZK)
Installation
Bolts 1
(M8 x 20)
(AZB1436)
Installation
Bolts 2
(M8 x 40)
(AZB1437)
Stabilization
Bolts
(ABA1261)
Base Cover Assy
Stand Pipe Assy
Base Cover
(AZN2464)
Stand Pipe
(AZN2465)
Base Plate
Case Leg
(AZN2467)
Stand Cap
(AZN2466)
Screw(4 x 8)
(BPZ40P080FZK)
Case Leg
(AZN2467)
