PIONEER PDK-TS12 Service Manual

Cover page of PIONEER PDK-TS12 Service Manual

Service Manual for PIONEER PDK-TS12, downloadable as a PDF file.

We also have owner's manual to this model.

Manual details

  • Immediate download after payment.
  • Delivered as a PDF file.
  • The manual has 4 pages
  • File size: 0.14 MB
  • Available language versions: English
  • Different language versions may vary sligthly in file size and page count.

We guarantee that...

  • our manuals are complete,
  • the manual includes circuit diagrams,
  • our manuals are checked with antivirus,
  • We'll issue refund if the manual is damaged, incomplete or unreadable (our refund policy)

Sample pages

Thumbnail of page 1Thumbnail of page 2Thumbnail of page 3Thumbnail of page 4
Thumbnail of page 5Thumbnail of page 6Thumbnail of page 7Thumbnail of page 8
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
ARP3273
T ­ ZZR JULY 2005 Printed in Japan
PDK-TS12
WL5
TABLE TOP STAND
PDK-TS12
PLASMA DISPLAY
TABLE TOP STAND
· Table top stand x 1
· Support columns S x 2 [short columns]
*Cannot be used to install the PDP-S39.
· Support columns L x 2
[long columns]
· Cable binders x 2
1 (M8 x 16 mm: silver) x 4
· Installation screws
2
(M8 x 30 mm: silver) x 2
· Installation screws
(M8 x 40 mm: black) x 2
· Hexagonal wrench x 1
(Diagonal size: 6 mm)
· Operating instructions
C wrench x 1 (10 mm)
Operating instructions
Mode díemploi
Bedienungsanleitung
Istruzioni per líuso
Gebruiksaanwijzing
Manual de instrucciones
Table top stand
Support de couverture de table
Tischstnder
Supporto di tavolo
Tafelbladstaander
Soporte de mesa
PDK-TS12
3
Parts Included
Specifications
Model : PDK-TS12 / WL5
External dimensions : 577 (W) x 249.5 (H) x 380 (D) mm (22-23/32 (W) x 9-27/32(H) x 14-31/32 (D) in.)
Weight : 10.5 kg (23.2 lbs)
· Installation screws
[used to anchor the support columns and the table top stand]
[When using the support columns S]
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
ARP3273
T ­ ZZR JULY 2005 Printed in Japan
PDK-TS12
WL5
TABLE TOP STAND
PDK-TS12
PLASMA DISPLAY
TABLE TOP STAND
· Table top stand x 1
· Support columns S x 2 [short columns]
*Cannot be used to install the PDP-S39.
· Support columns L x 2
[long columns]
· Cable binders x 2
1 (M8 x 16 mm: silver) x 4
· Installation screws
2
(M8 x 30 mm: silver) x 2
· Installation screws
(M8 x 40 mm: black) x 2
· Hexagonal wrench x 1
(Diagonal size: 6 mm)
· Operating instructions
C wrench x 1 (10 mm)
Operating instructions
Mode díemploi
Bedienungsanleitung
Istruzioni per líuso
Gebruiksaanwijzing
Manual de instrucciones
Table top stand
Support de couverture de table
Tischstnder
Supporto di tavolo
Tafelbladstaander
Soporte de mesa
PDK-TS12
3
Parts Included
Specifications
Model : PDK-TS12 / WL5
External dimensions : 577 (W) x 249.5 (H) x 380 (D) mm (22-23/32 (W) x 9-27/32(H) x 14-31/32 (D) in.)
Weight : 10.5 kg (23.2 lbs)
· Installation screws
[used to anchor the support columns and the table top stand]
[When using the support columns S]
background image
2
1
23
4
12
3
4
C
D
F
A
B
E
PDK-TS12

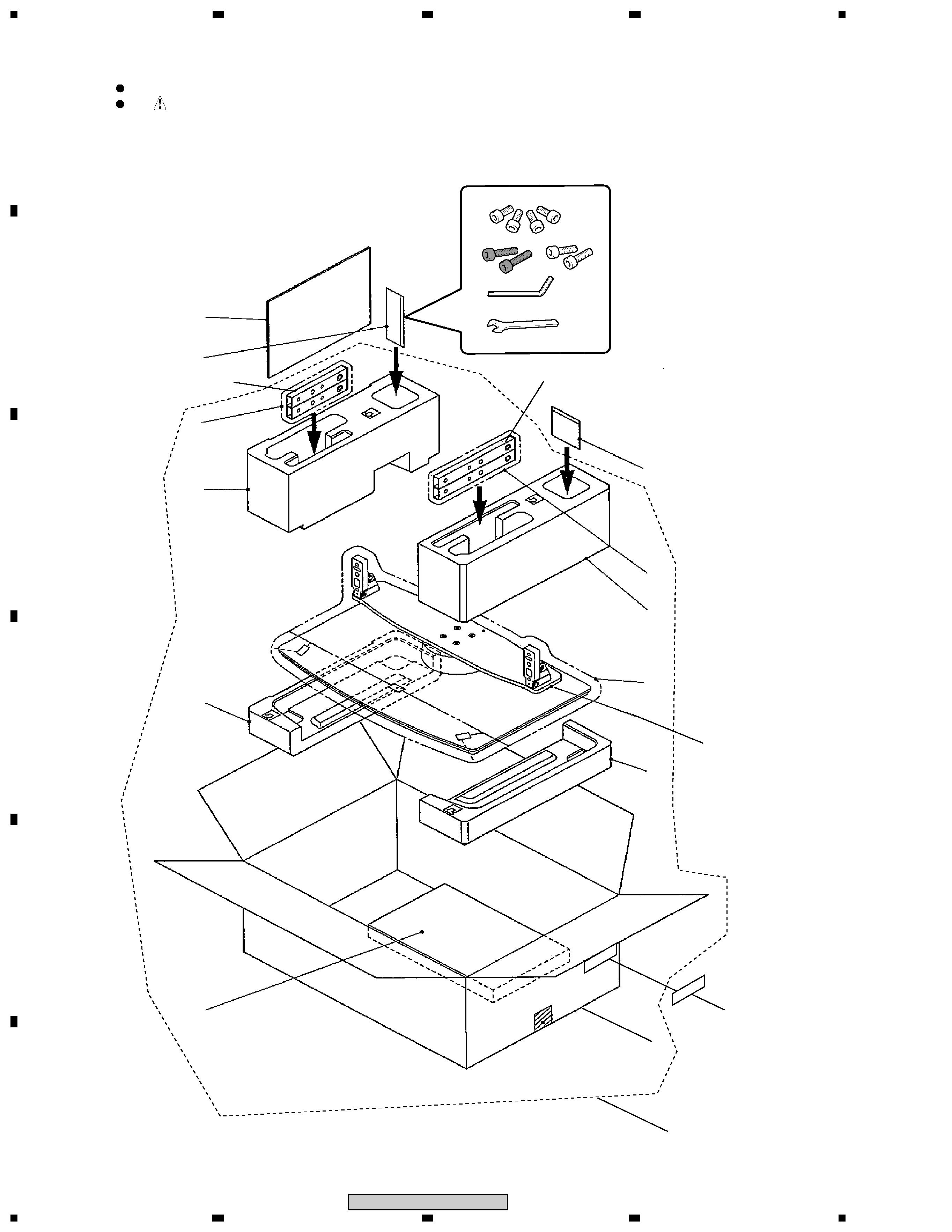

EXPLODED VIEWS AND PARTS LIST
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PACKING
1
2
8
4
6
9
3
7
5
10
11
12
14
16
13
15
17
background image
3
1
23
4
1
2
3
4
C
D
F
A
B
E
PDK-TS12
1
Packing Set
AZH1183
NSP
2
Packing Case
· · · ·
NSP
3
Bottom Pad R
· · · ·
NSP
4
Bottom Pad L
· · · ·
NSP
5
Top Pad R
· · · ·
NSP
6
Top Pad L
· · · ·
NSP
7
Packing Sheet
· · · ·
NSP
8
Spacer
· · · ·
NSP
9
Packing Sheet B
· · · ·
NSP
10
Packing Sheet C
· · · ·
NSP
11
Serial Label
· · · ·
12
Base Plate Assy
AZN2607
13
Support columns S Assy
AZN2576
14
Support columns L Assy
AZN2609
15
Screw Assy
AZE1144
Hexagonal wrench
AZE1129
(Diagonal size : 6 mm)
C wrench (10 mm)
AZE1133
Installation screws (M8 x 16 mm : Silver)
Installation screws (M8 x 30 mm : Silver)
Installation screws (M8 x 40 mm : Black)
16
Accessory Assy
AZE1145
Cable Binders
17
Operating instructions
AZR1117
(Japan / English / French / Spanish
German / Italian / Dutch / Chinese)
Mark No.
Description
Part No.
background image
4
1
23
4
12
3
4
C
D
F
A
B
E
PDK-TS12
· Base Plate Assy
EXTERIOR SECTION
· Base Reverse Side
1
Base Plate Assy
AZN2607
2
Cosmetic Base
AZN2578
3
Bottom Plate
AZN2606
4
Case gum Leg
AZE1132
5
Swivel Assy
AZX1066
6
M8 Flat Head Screws(M8)x4
AZB1504
7
Tapping Screws(4x10)x9
AZB1500
8
Screws (M6x20)x4
AZB1501
9
M8 Flat Head Screws x4
AZB1503
· EXTERIOR Parts List
Mark No.
Description
Part No.
6
1
2
9
9
8 5
7
7
7
7
7
77
7
7
3
4
