background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
ARP3247
T ­ ZZY DEC. 2004 Printed in Japan
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
Power Requirement
Remarks
PDP-50MXE1, PDP-50MXE1-S
T/E1
AC100 - 240V
PDP-50MXE1. PDP-50MXE1-S
TXK/1
AC100 - 240V
PDP-43MXE1, PDP-43MXE1-S
T/E1
AC100 - 240V
PDP-43MXE1, PDP-43MXE1-S
TXK/1
AC100 - 240V
PDP-50MXE1
PLASMA DISPLAY
¶ This service manual should be used together with the following manual(s):
Model No.
Order No.
Remarks
PDP-504CMX/LUC/1
ARP3241
SAFETY INFORMATION, EXPLODED VIEWS AND PARTS LIST , BLOCK DIAGRAM,
PDP-434CMX/LUC/1
PCB PARTS LIST, ADJUSTMENT, IC INFORMATION etc.
ARP3242
SCHEMATIC DIAGRAM and PCB CONNECTION DIAGRAM
PDP-50MXE1-S
PDP-43MXE1
PDP-43MXE1-S
C F S S 0 0 0 0 0 1 E H
CFSS100001EH
PDP-50MXE/1
MFD.
AUGUST
2004
SER, NO.
CFSS100001EH
Number for identification of the previous model
Number for identification of the current model
Number for identification of the current model
For details, see the next section "How to distinguish the current model from the previous model."
HOW TO DISTINGUISH THE CURRENT MODEL FROM THE PREVIOUS MODEL
· Serial No.
·Name label, Barcode label
Current model
(PDP-50MXE1/T/E1, /TXK/1)
(PDP-50MXE1-S/T/E1, /TXK/1)
(PDP-43MXE1/T/E1, /TXK/1)
(PDP-43MXE1-S/T/E1, /TXK/1)
Previous model
(PDP-50MXE1/LDFK)
(PDP-50MXE1-S/LDFK)
SS or UK
SS or UK
background image
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
ARP3247
T ­ ZZY DEC. 2004 Printed in Japan
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
Power Requirement
Remarks
PDP-50MXE1, PDP-50MXE1-S
T/E1
AC100 - 240V
PDP-50MXE1. PDP-50MXE1-S
TXK/1
AC100 - 240V
PDP-43MXE1, PDP-43MXE1-S
T/E1
AC100 - 240V
PDP-43MXE1, PDP-43MXE1-S
TXK/1
AC100 - 240V
PDP-50MXE1
PLASMA DISPLAY
¶ This service manual should be used together with the following manual(s):
Model No.
Order No.
Remarks
PDP-504CMX/LUC/1
ARP3241
SAFETY INFORMATION, EXPLODED VIEWS AND PARTS LIST , BLOCK DIAGRAM,
PDP-434CMX/LUC/1
PCB PARTS LIST, ADJUSTMENT, IC INFORMATION etc.
ARP3242
SCHEMATIC DIAGRAM and PCB CONNECTION DIAGRAM
PDP-50MXE1-S
PDP-43MXE1
PDP-43MXE1-S
C F S S 0 0 0 0 0 1 E H
CFSS100001EH
PDP-50MXE/1
MFD.
AUGUST
2004
SER, NO.
CFSS100001EH
Number for identification of the previous model
Number for identification of the current model
Number for identification of the current model
For details, see the next section "How to distinguish the current model from the previous model."
HOW TO DISTINGUISH THE CURRENT MODEL FROM THE PREVIOUS MODEL
· Serial No.
·Name label, Barcode label
Current model
(PDP-50MXE1/T/E1, /TXK/1)
(PDP-50MXE1-S/T/E1, /TXK/1)
(PDP-43MXE1/T/E1, /TXK/1)
(PDP-43MXE1-S/T/E1, /TXK/1)
Previous model
(PDP-50MXE1/LDFK)
(PDP-50MXE1-S/LDFK)
SS or UK
SS or UK
background image
2
A
B
C
D
1
23
4
12
3
4
PDP-50MXE1/1
Label reading
You can distinguish the current model from the previous model by referring to the model-name label and the barcode label.
On the serial label
On the barcode label
C F S S 0 0 0 0 0 1 E H
CFSS100001EH
PDP-50MXE/1
MFD.
AUGUST
2004
SER. NO.
CFSS100001EH
0: Previous model
1: Current model
Current model
: 1
Previous model : 0
"/1" is added to the model name.
serial label
serial label
barcode label
+
destination label
barcode label
+
destination label
Current model
(PDP-50MXE1/T/E1, /TXK/1)
(PDP-50MXE1-S/T/E1, /TXK/1)
(PDP-43MXE1/T/E1, /TXK/1)
(PDP-43MXE1-S/T/E1, /TXK/1)
Previous model
(PDP-50MXE1/LDFK)
(PDP-50MXE1-S/LDFK)
SS or UK
SS or UK
HOW TO DISTINGUISH THE CURRENT MODEL FROM THE PREVIOUS
MODEL
background image
3
A
B
C
D
5
67
8
5
6
7
8
PDP-50MXE1/1

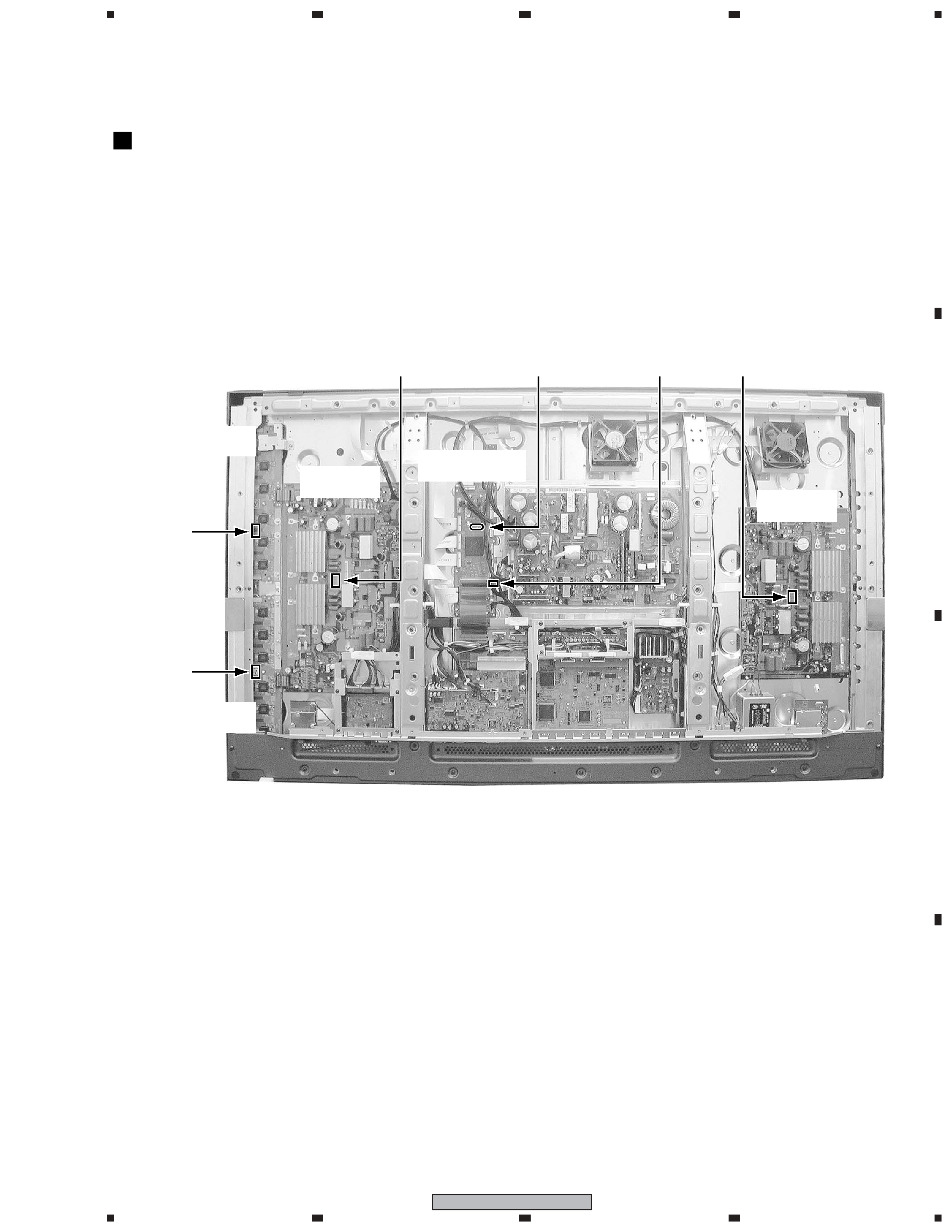

Distinction of PC boards
"MONITOR"
"G5"
"G5"
"G5"
"G5"
"G5"
DIGITAL VIDEO
ASSY
50 Y DRIVE
ASSY
50 SCAN B
ASSY
50 SCAN A
ASSY
50 X DRIVE
ASSY
Some PC boards of the previous model are incompatible with the current model.
Do NOT mount a PC board of the previous model in the current model, as it may cause a failure.
When ordering a PC board, be sure to check the part number correctly.
On a PC board of the current model, "G5" is marked, as shown below.
Note: The photo is from a 50-inch model, but G5 markings are provided in exactly the same way as with the 50-inch model.
background image
4
A
B
C
D
1
23
4
12
3
4
PDP-50MXE1/1
1. CONTRAST OF MISCELLANEOUS PARTS
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The
mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to
mark on product are used for disassembly.
Reference Nos. indicate the pages and Nos. in the service manual for the base model.
NOTES:
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
561
473
R50
1R0
5621
560
47k
0.5
1
RD1/4PU
J
RD1/4PU
J
RN2H
K
RS1P
K
56
x 101
47
x 103
R50
1R0
561
473
5.62k
RN1/4PC
F
562
x 101
5621
· Parts of the packing section are all mentioned in this manual.
1.1.1 PACKING SECTION
1.1 PDP-50MXE1, PDP-50MXE1-S types
Cable Tie
1
2
6
21
24
10
9
14
13
16
17
12
18
23
19
15
25
8
22
26
11
2
20
4
7
5
25
3
3
background image
5
A
B
C
D
5
67
8
5
6
7
8
PDP-50MXE1/1
(1) PACKING Parts List
Mark No.
Description
Part No.
1
Upper Carton
See Contrast table (2)
2
Under Carton
See Contrast table (2)
3
Pad (50M/XQ)
AHA2280
4
Mirror Mat
See Contrast table (2)
5
Front Sheet
AHB1241
6
Power Cord Case
See Contrast table (2)
NSP
7
Accessory Case Assy (MXE1)
AXX1066
8
Operating Instructions
ARC1527
(Italian/Spanish/Dutch/Chinese)
9
Operating Instructions
ARE1377
(English/ French/ German)
NSP 10
Battery (R6P, AA)
VEM1031
11 Reomote Control Holder
AMR3268
12 Display Stand
AMR3264
13 Binder Assy
AEC1758
(Speed Clamp x2, Bead Band x2)
14 Wiping Cloth (for screen)
AED1208
15 Screws Set
AXX1060
16 Washer
WB80FZB
17 Bolt
SMZ80H400FZB
18 Ferrite Core
ATX1039
19 Vinyl Bag
AHG1330
20 Caution Sheet
ARM1201
21 Remote Control Unit
AXD1486
22 Caution Sheet
ARM1245
23 Vinyl Bag
AHG1337
24 Battery Cover
AZN2462
25 Destination Label
See Contrast table (2)
NSP 26 Warranty Card
ARY1149
Mark No.
Description
Part No.
PDP-50MXE1/T/E1, PDP-50MXE1-S/T/E1, PDP-50MXE1/TXK/1 and PDP-50MXE1-S/TXK/1 are constructed the
same except for the following :
1
Upper Carton (50MXE1)
AHD3218
Not used
AHD3318
Not used
1
Upper Carton (50MXE1-S)
Not used
AHD3219
Not used
AHD3319
2
Under Carton
AHD3037
AHD3037
AHD3135
AHD3135
4
Mirror Mat
AHG1284
AHG1284
AHG1327
AHG1327
6
Power Cord Case
AHC1037
AHC1037
AHC1039
AHC1039
25
Destination Label
AAX3153
AAX3153
Not used
Not used
(2) CONTRAST TABLE
Part No.
No.
Symbol and Description
Mark
PDP-50MXE1
T/E1
PDP-50MXE1-S
T/E1
PDP-50MXE1
TXK/1
PDP-50MXE1-S
TXK/1
Remarks
